Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

Hello,

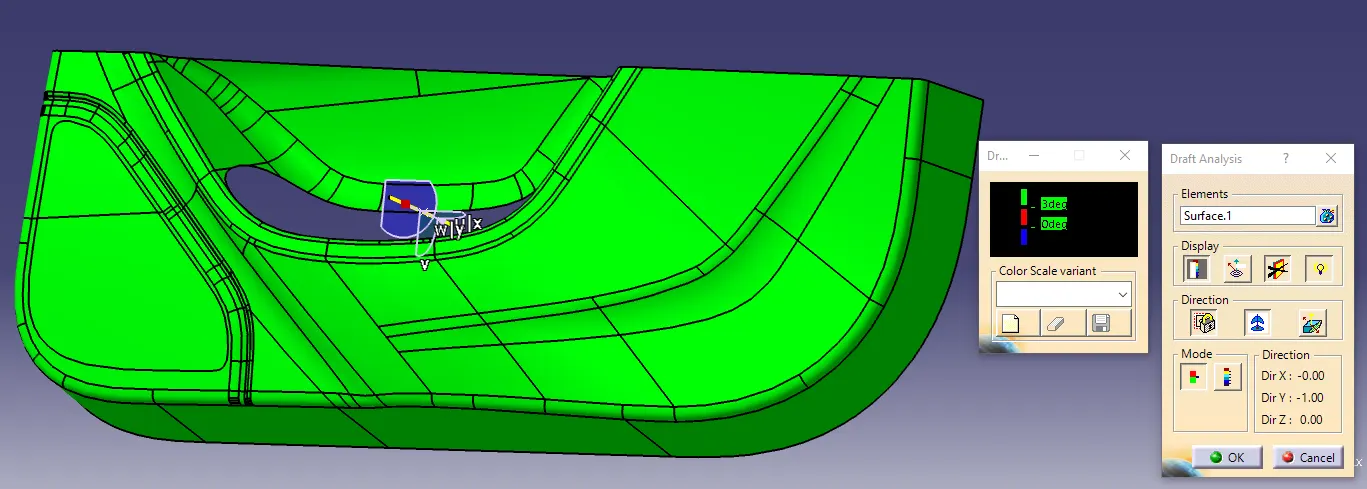

Tooling axis creation:

Here 2 Tool axis are possible, 1st is to direction of Y axis and other one is slightly angle to Y axis (3°). In both case m/c can possibly clear Door part. here I have use one Y axis Tooling Axis.

For 2nd Tooling axis consider middle point of cutout, From there one line is Y axis and 2nd line is angle to Y axis in YZ plane with 6° angle. When we bisect both line we get Tooling axis around 3° therefore we can use that line as Tool axis. This 2nd Tool axis can clear whole section with respect to draft angles.

For the locators I have choose 3 location and other are heat steaks.

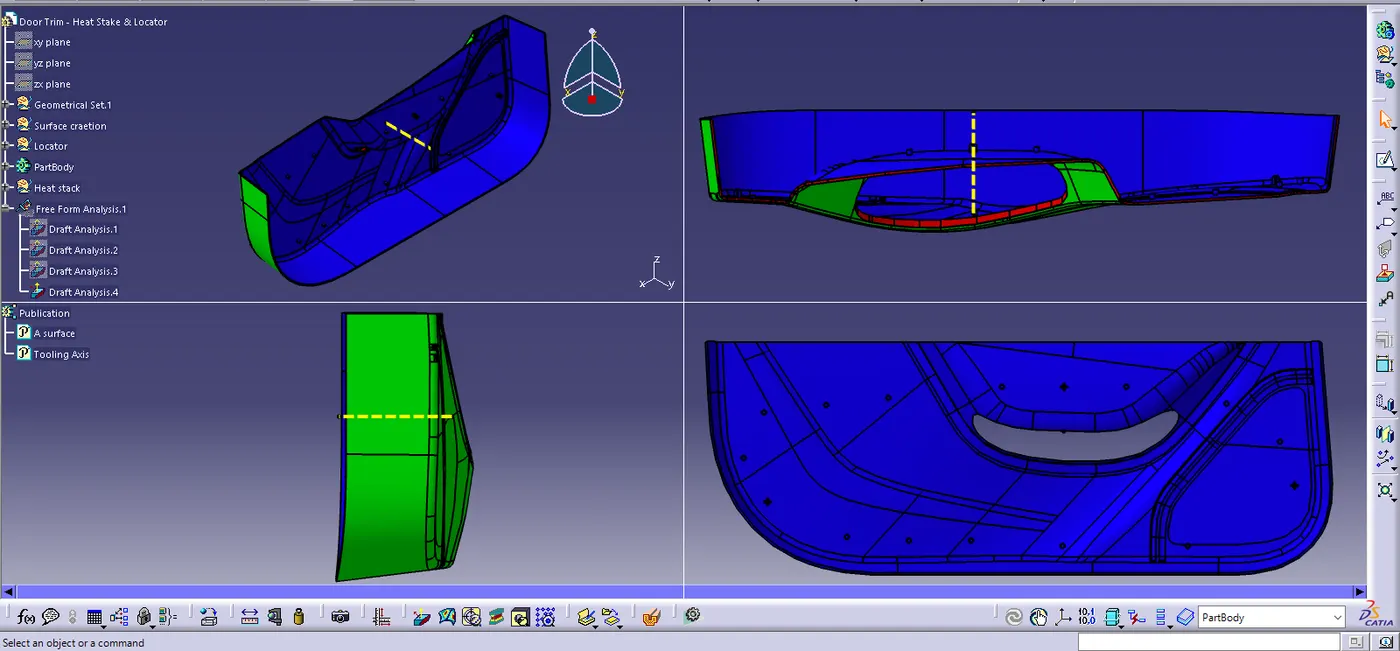

Below are section views of final part Door section:

Below is 2nd Tooling axis:
