Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

OBJECTIVE :

* The main aim of this challenge is to create a solid body of 'Door trim lower' with the help of closed surface method by using the generative shape design workbench in CATIA V%.

OVERVIEW:

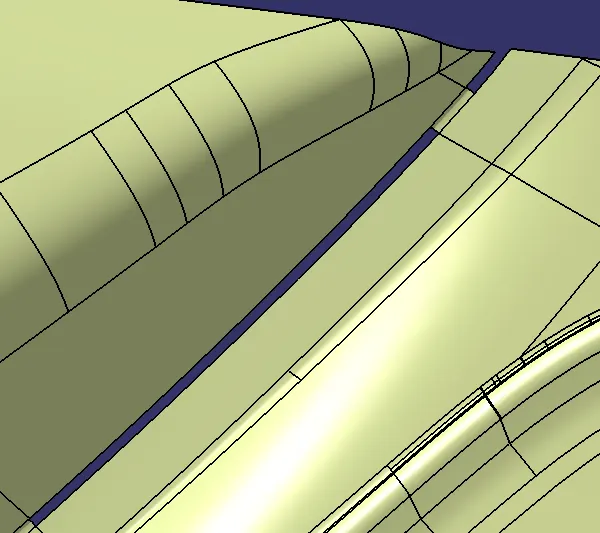

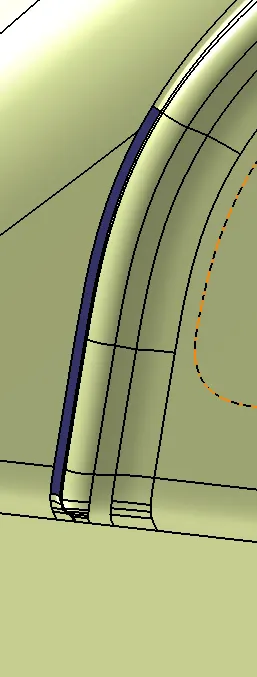

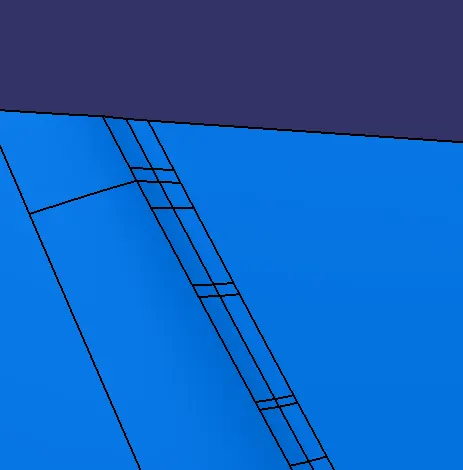

* Initially we need to offset the given door trim class a surface in the inner to the required thickness .after thet we need to close the patches on the offset surface the bumber the patches are formed due to the fillets on the class A surface .

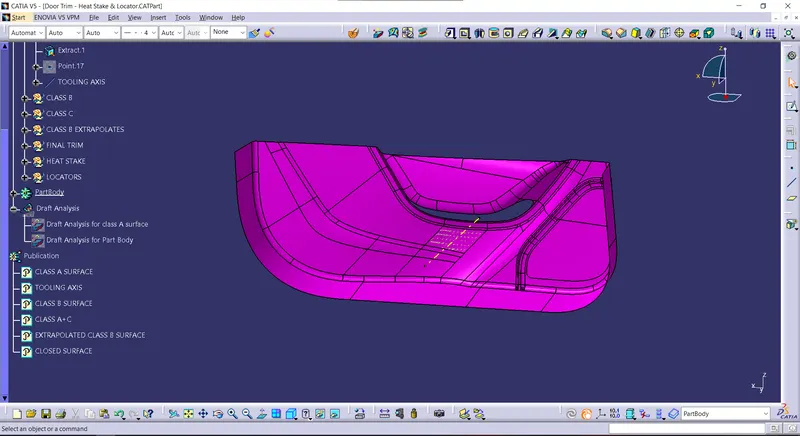

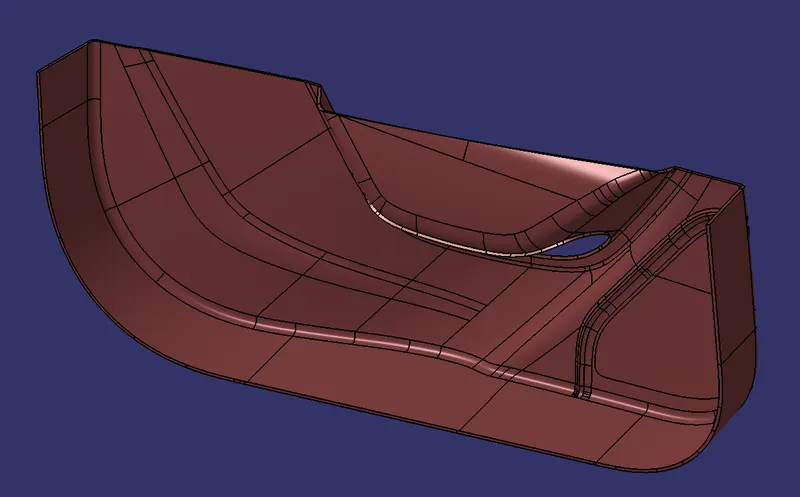

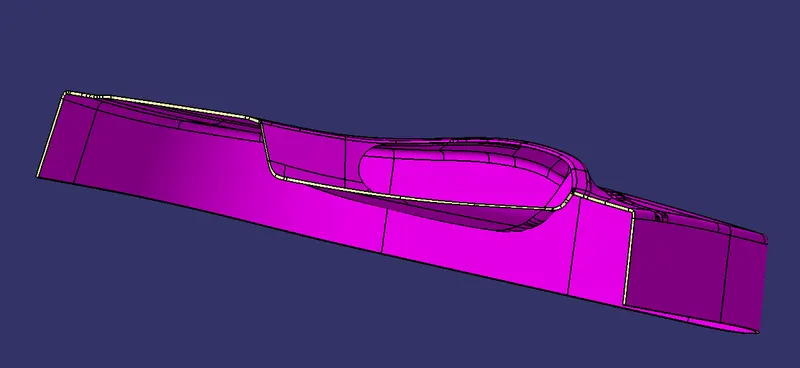

* By using the closed body command in the part workbench we can get the solid body from the closed surface of the door trim
