Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

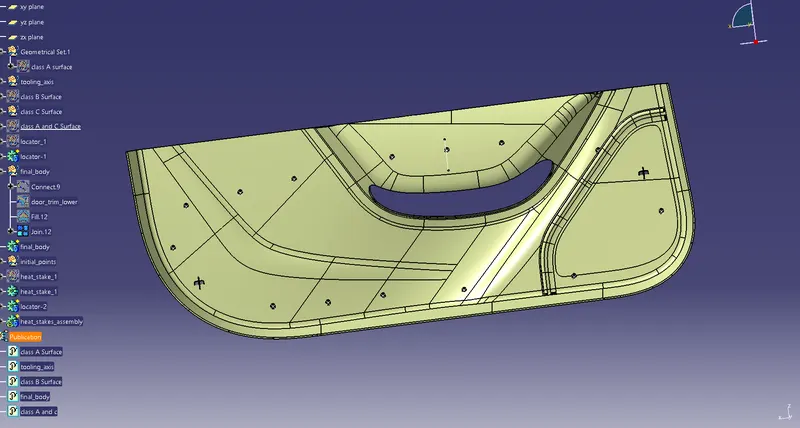

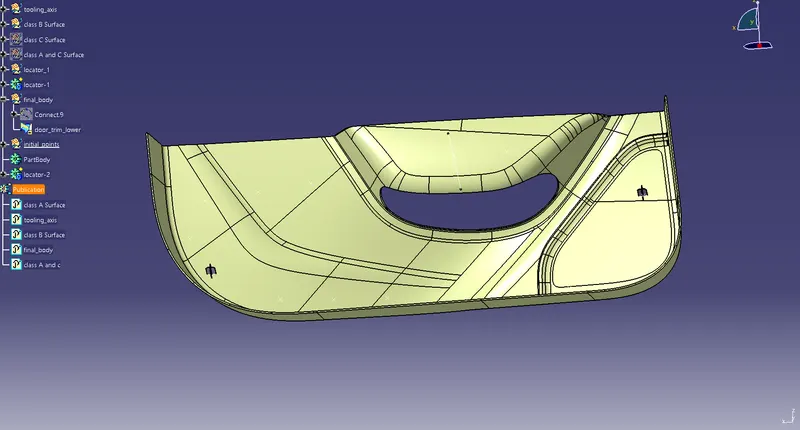

1. Heat Stakes and the locators were created considering the design rules mentioned in the video for the door applique.

2. Positioned sketch was used.

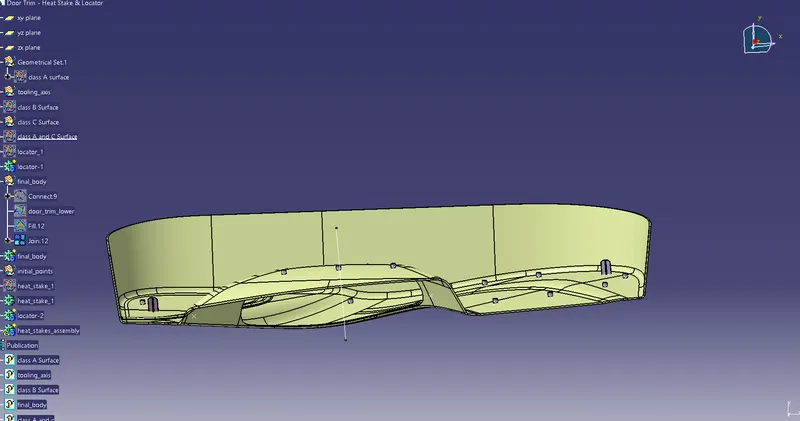

3. given points in the model were used to create the locators and Heat stakes.

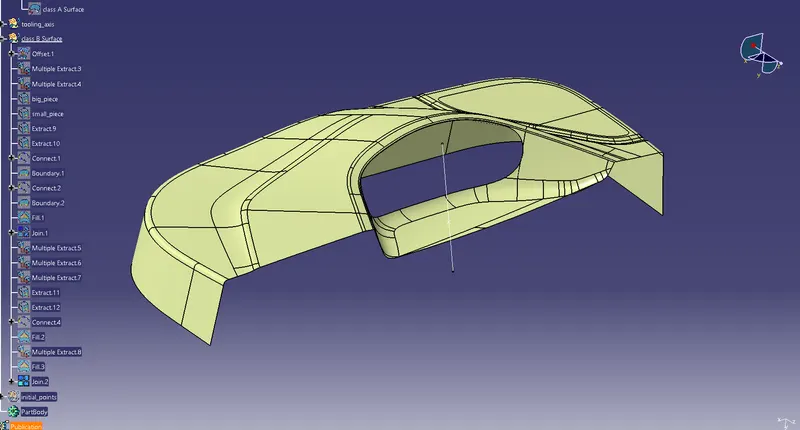

tooling axis creation:

1. fromt the 3 axes: x, y and z; an axis was chosen such that most of the part is visible.

2. then section was taken so that two dummy axes can be formed.

3. then mid line of these two dummy axes was chosen to be the final tooling axis. It was published then.

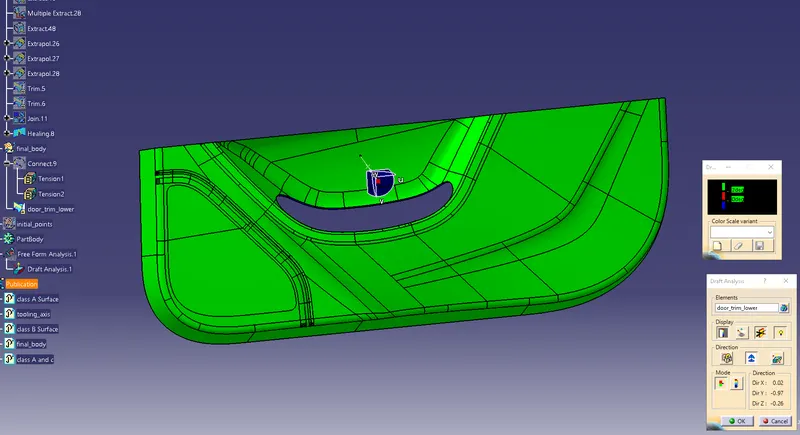

draft analysis:

1. it was carried out by selecting the material in customize view.

2. green areas are which depict a proper drafting of the material.

3. most of the green surfaces should be there in the part, having max of 3 degrees of draft angle if not 2 degrees. Here 1.45 degrees was chosen.

4. after selecting the material part, we drop the axis on the tooling axis to establish the colors, mostly green.

5. this means that the part can be manufactured properly.
