Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

REPORT

TOOLING AXIS

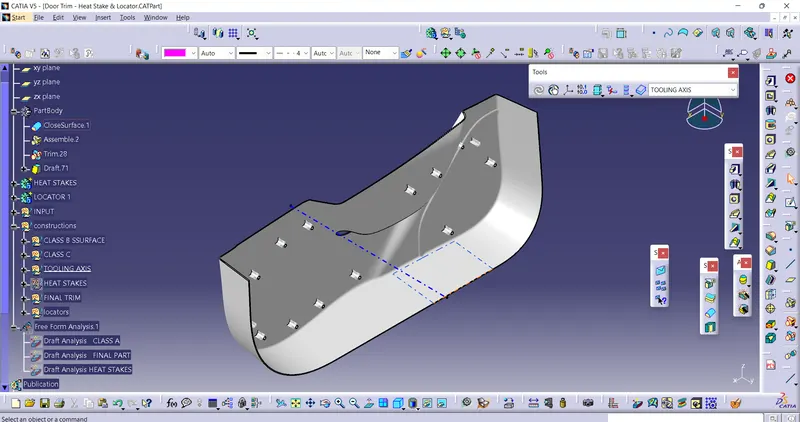

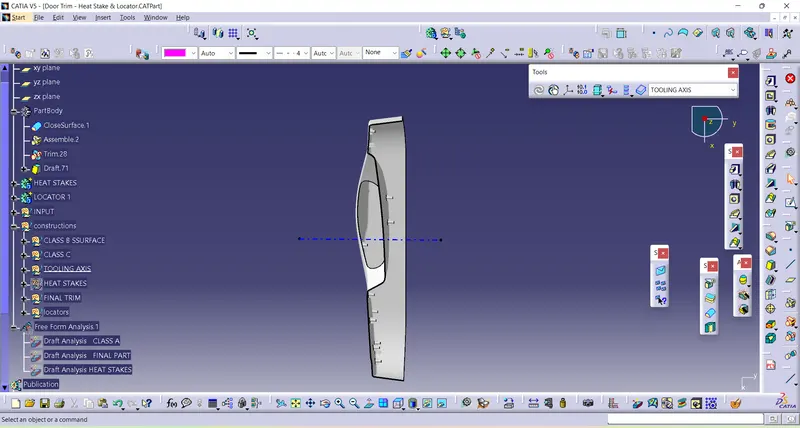

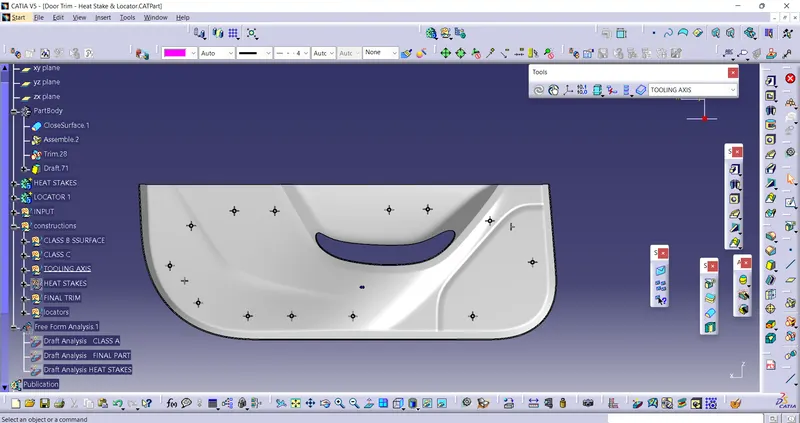

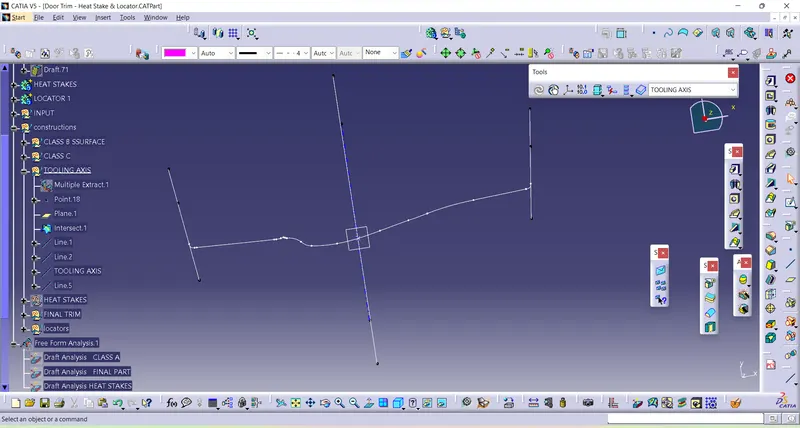

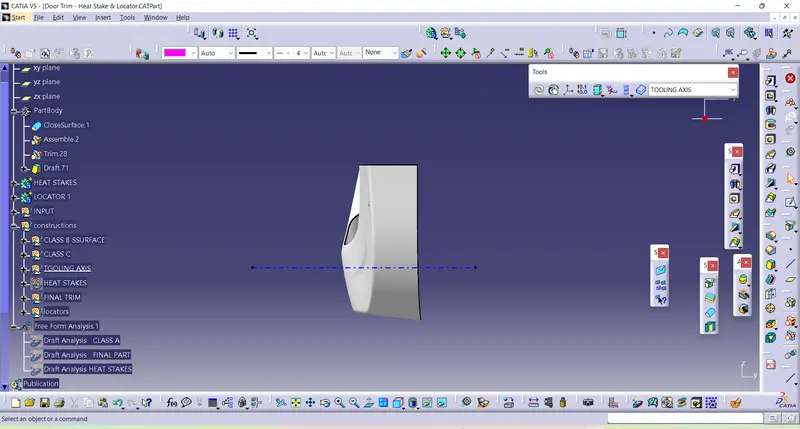

to create tooling axis first create a point on center of class A, then i create a dummy tooling axis on that point. and i project XY plane on that point and make a intersection of class A. then i extent two lines in the intersections which are more likely to come parallel to the dummy tooing axis. then i bisect the two lines ti get the original tooling axis.

as the given surface not very complicated so i make only one intersection.

DRAFT ANALYSIS

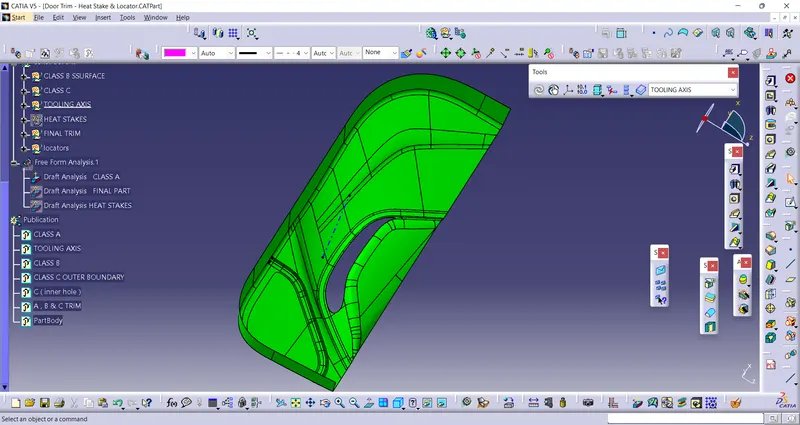

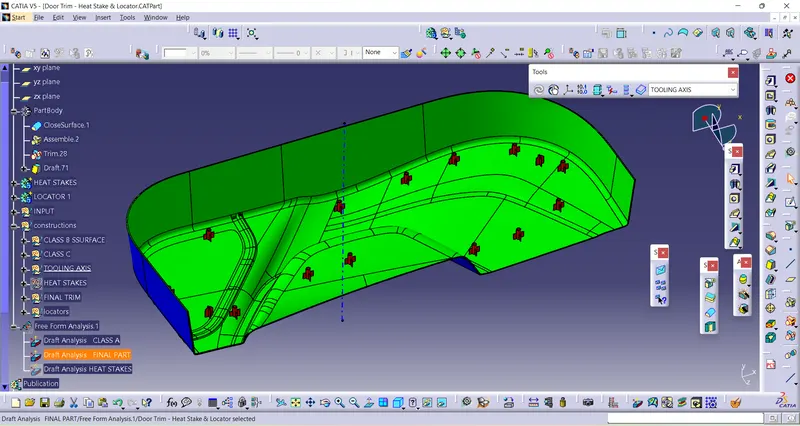

first i make draft analysis for the given class A with 3 degree of draft angle and then i follow the same for the final part also.

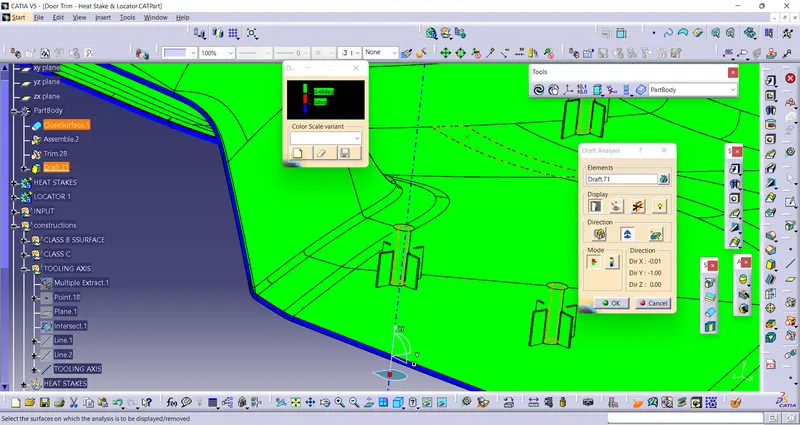

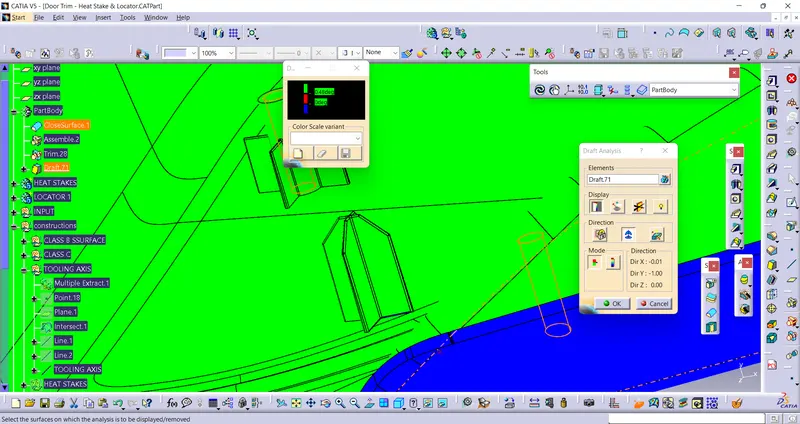

then i make draft analysis for hest steakes & locators
