Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

REPORT ON DOOR TRIM - Door Trim Lower with Engineering Features

By using the provided Class-A surface, creating the Door Handle by Creating the tooling axis for the supplied Class-A Surface according to the draft angle specifications, and then doing the Draft analysis on the Part Body. Before creating a solid component it's always better to check the draft angle for the given Class A Surface.

CAD software like CATIA creates a surface model of the desired final shape when designing plastic components. The following steps are often included in the process:

• Identify the component's purpose, as well as its size, shape, material, and any other important criteria, to define the component's needs.
• Create a digital surface model of the component using CATIA software, including all the necessary details including holes, ribs, bosses, and other design aspects. A series of mathematically defined curves and surfaces are used to generate the surface model, a smooth and exact representation of the final design.
• Performing draft analysis: This involves analyzing the surface model to determine the optimal angle of the draft for the part, which is the degree to which the walls of the part are tapered to facilitate its removal from the mold after the plastic injection process. This is an essential step that ensures that the final product is of high quality, and the manufacturing process is efficient.
• Creation of tooling axis: This involves creating a path for the cutting tool that will be used to machine the mold for the component. The tooling axis determines the quality of the final product, the efficiency of the machining process, and the overall cost of production.

The bisecting approach is one of many techniques that can be used to construct the tooling axis. The Bisecting method entails making a plane that bisects the part and aligning the tool axis perpendicular to it. It is a quick and effective way to create tooling axes. This technique is frequently employed for symmetrical items that need to have both sides machined. Using CATIA software, a surface model of the component is made, its symmetry plane is identified, a plane perpendicular to the symmetry plane is created, and the tool axis is positioned perpendicular to the plane.

Creating a surface model, doing a draught analysis, and developing a tooling axis are all crucial processes in the design of plastic components. Due to its ease of use and effectiveness, the bisecting method is a common way to create tooling axes. The end product will be of good quality, the manufacturing process will be effective, and the overall cost of production will be minimised if producers follow these processes.

TOOLING AXIS:

The plastic injection moulding process depends heavily on the tooling axis. It establishes the part's orientation within the mould, which has an impact on the end product's mechanical characteristics. The item's strength, longevity, and aesthetic appeal could be compromised by internal stresses, warping, or other problems brought on by improper tooling axis alignment. Additionally, a misaligned tooling axis may lead to increased tool wear, longer machining times, and higher costs. The tooling axis must be optimised if high-quality plastic components that comply with the necessary standards are to be produced at a cheaper cost.

The tooling axis also affects production costs and overall productivity. Manufacturers can cut the time and expense needed to make high-quality plastic components by designing the proper tooling axis. The main parts of the mould must be accessible by the cutting tool without endangering the tool itself. A cutting tool may successfully mill the mould with the help of a precisely aligned tooling axis, resulting in a shorter cycle time and less tool wear. Therefore, by optimizing the tooling axis, the entire cost of production can be reduced while guaranteeing that the finished product meets the necessary criteria.

BISECTING METHOD: In the plastic injection molding business, the bisecting method is a widely used method for producing a tooling axis for symmetric pieces. The process entails drawing a plane that cuts the part in half and setting the tool axis so that it is perpendicular to the plane. This strategy is straightforward and effective, which makes it a desirable choice for enterprises trying to improve their production process.

The first step in applying the bisecting approach in CATIA is to digitise the part using the software's surface modelling features. The part's symmetry plane is then identified, and a plane is made to bisect it perpendicular to that plane. Last but not least, the tool axis is positioned perpendicular to the plane that divides the mould, allowing the cutting tool to reach all required features without endangering the part or the tool.The Bisecting method provides for quick machining while ensuring that the finished product is of excellent quality, making it particularly helpful for symmetric items that need to be machined on both sides. By utilizing this technique in CATIA, manufacturers can reduce production time and costs while still producing high-quality plastic components that meet the required specifications.

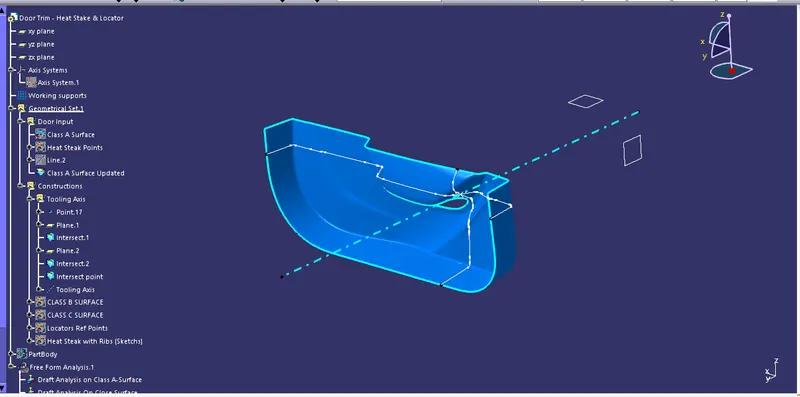

Steps that have been followed to Create the Tooling Axis:

• Create intersections on Class-A Surface using Planes in different directions.
• Now create intersection point by using both the intersections.
• By using Intersection point draw a line in Y Direction.
• For this part we can use Y-direction as it doesn't effect the Drafting Direction.

DRAFT ANALYSIS:

Draft analysis is a critical step in the plastic injection molding process that is essential for ensuring the production of high-quality plastic components. In the industrial sector, draft analysis is often referred to as parting line analysis, and it involves analyzing the 3D model of a plastic component to determine the optimal angle of the draft for the part.

The draft angle, also known as the taper angle, is the degree to which the walls of the part are tapered to facilitate its removal from the mold after the plastic injection process. This is an important consideration in the design of plastic components, as it can affect the quality of the final product and the efficiency of the manufacturing process. The draft analysis process in CATIA involves analyzing the 3D model of the part to determine the optimal draft angle for each feature of the part. The software identifies any areas of the part where the draft is insufficient, and it suggests modifications to ensure that the part can be removed from the mold without damage.

By performing a draft analysis in CATIA, manufacturers can ensure that their plastic components are of high quality and can be produced efficiently. The software provides advanced simulation capabilities that allow designers to identify and correct any issues with the draft angle before production begins. This ensures that the final product meets the required specifications and that the manufacturing process is optimized for cost and efficiency.

Images of Draft Analysis of Door Trim in Different Orientations at Different Stages

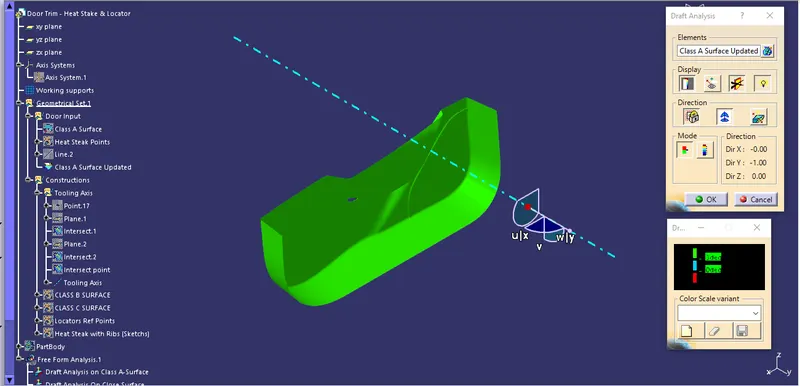

Draft Analysis on Class A-Surface

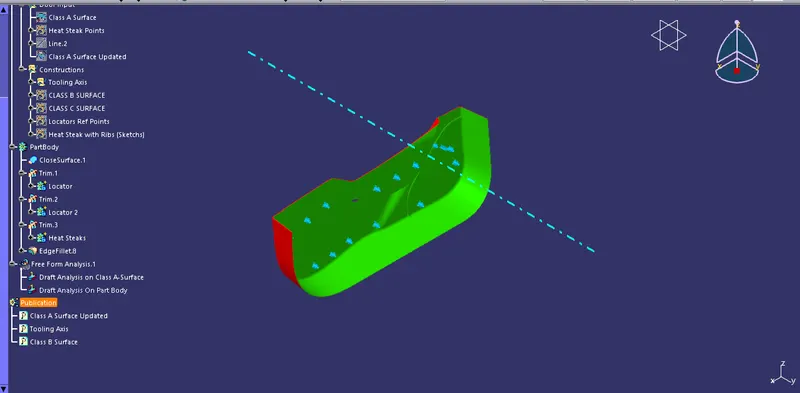

Draft analysis on Door Trim Part Body (View 1)

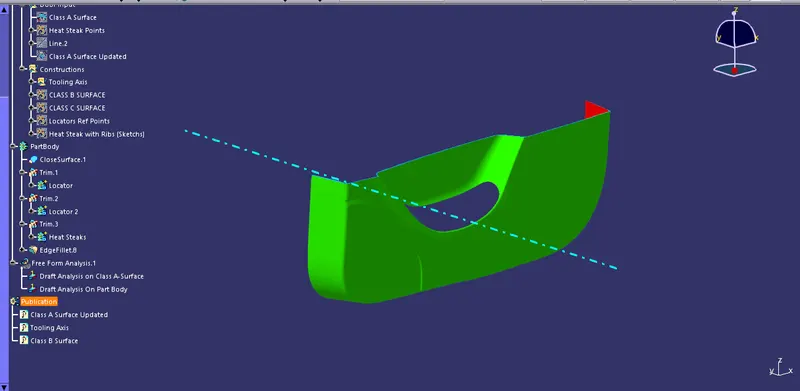

Draft analysis on Door Trim Part Body (View 2)

Four way locators and Heat Steak Points Construction

Four way locators and Heat Steak are constructed by this reference Picture.

Images of Part Body in Different Orientations

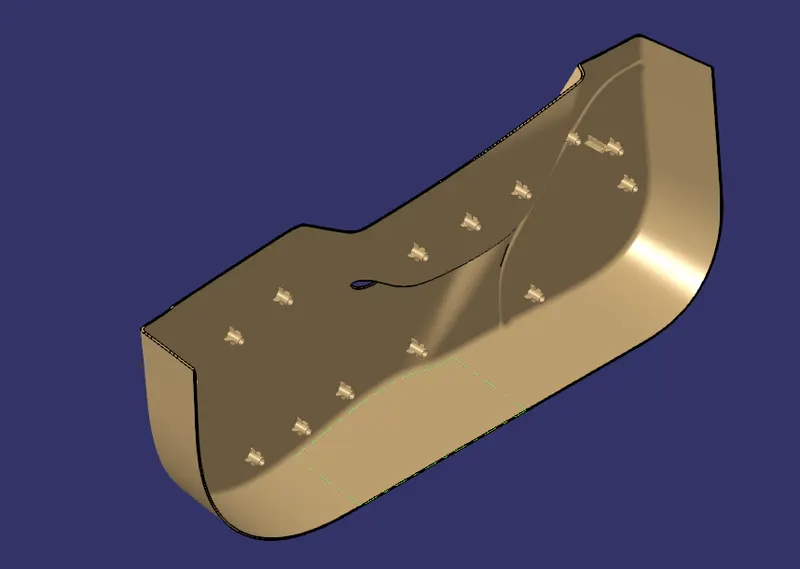

Isometric View

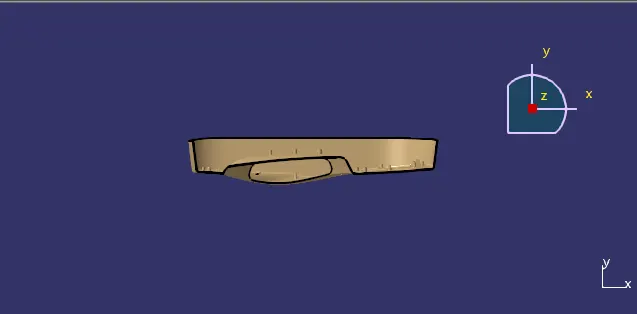

Top View

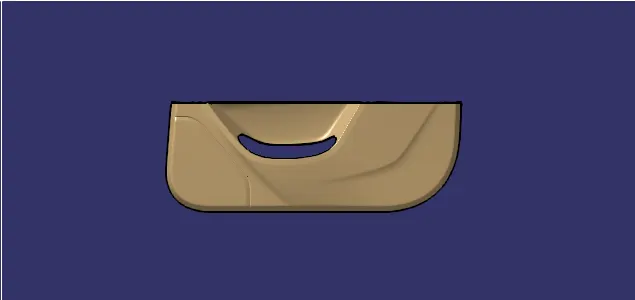

Front View

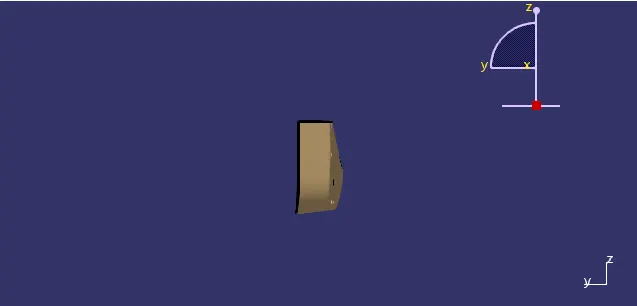

Side View

................

NOTE: CATpart has been uploaded as a Single ZIP File.
