Week 10 Challenge

1. Based on the analysis design RC column and beam.

AIM: To design RC column and beam based on the analysis.

TOOLS REQUIRED:

FILE

OPEN

SAVE AS

MEMBER

INTERACTIVE DESIGN

SEEN CONTENT

PROPERTY WINDOW

PROJECT BROWSER

VALIDATE

PROCEDURE:

1. Open the saved file in Tekla software using the open icon present in the file toolbar.

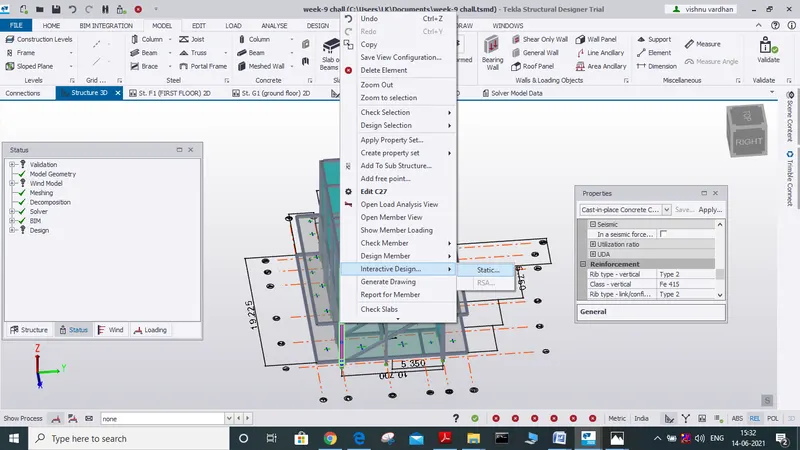

2. now select any of the column member from the model and right-click on the member

let us select C29

3. now a lot of options will appear after right-clicking on the member.

4. From that we will select the interactive design option followed by selecting static.

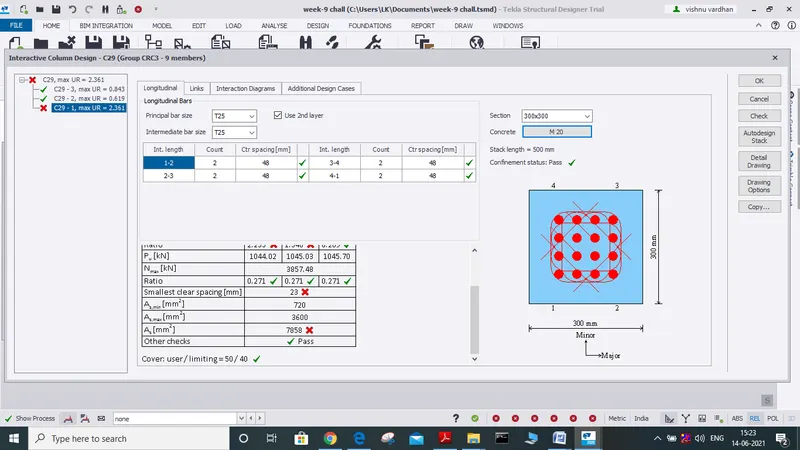

5. a new dialog box appears.

6. check whether it passes the tests

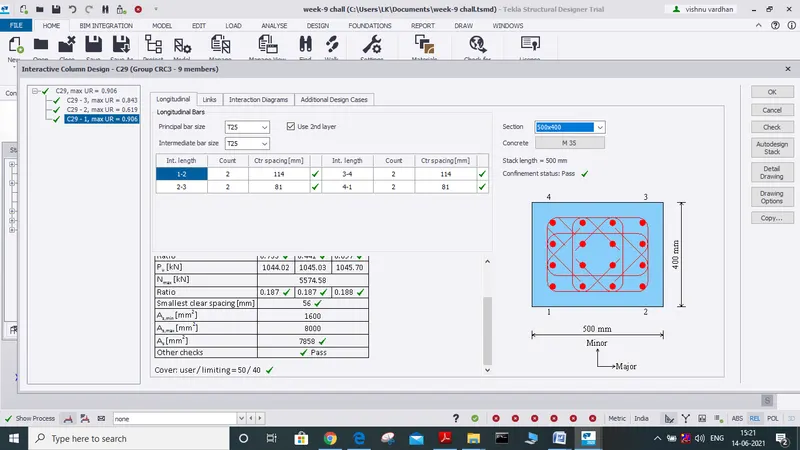

here our member fails in one test so we have changed its properties to make the member pass the test

7. once this clears all the tests we can use the same properties to similar members click ok

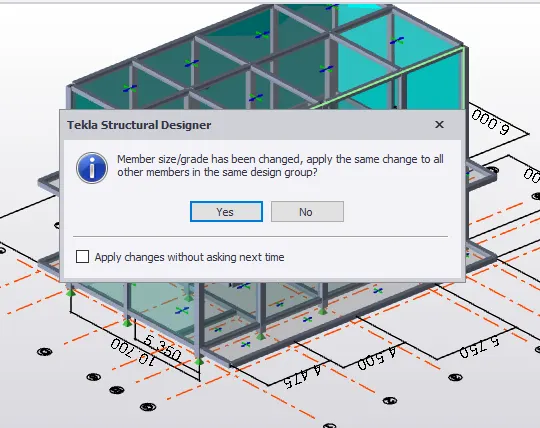

8. there is a new dialog box that appears stating that apply the same change to all the members let is click ok

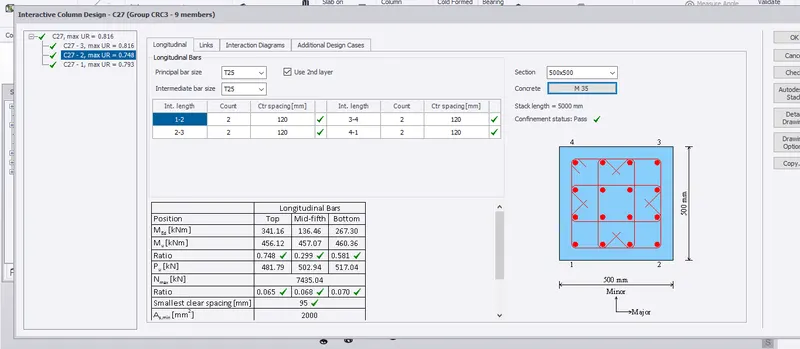

we can check whether the changed properties are applied on the other members so let us select any other column C27

WE CAN CLEARLY SEE THAT THE DESIGN CHANGES ARE APPLIED TO THE REMAINING COLUMN MEMBERS.

9. now we can design beam members.

10. select a beam member and right-click on the beam

11. a dialog box appears select interactive design option followed by static option.

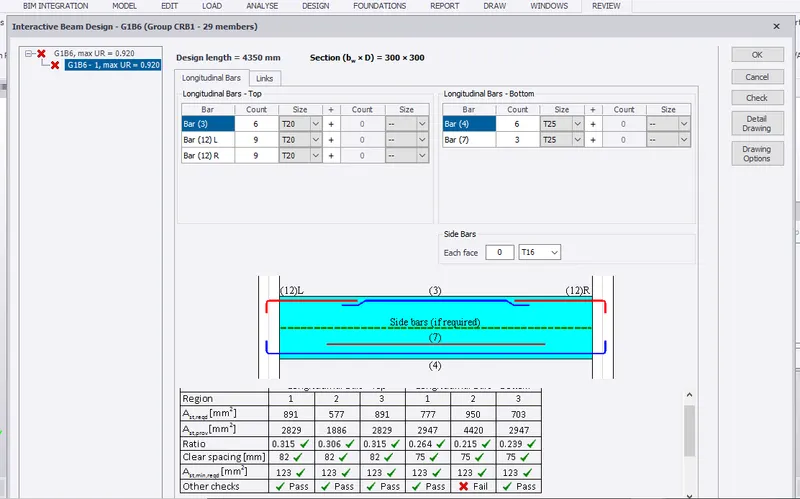

12. a new dialog box appears showing whether the member passes the tests

for the member we have selected has failed in a test

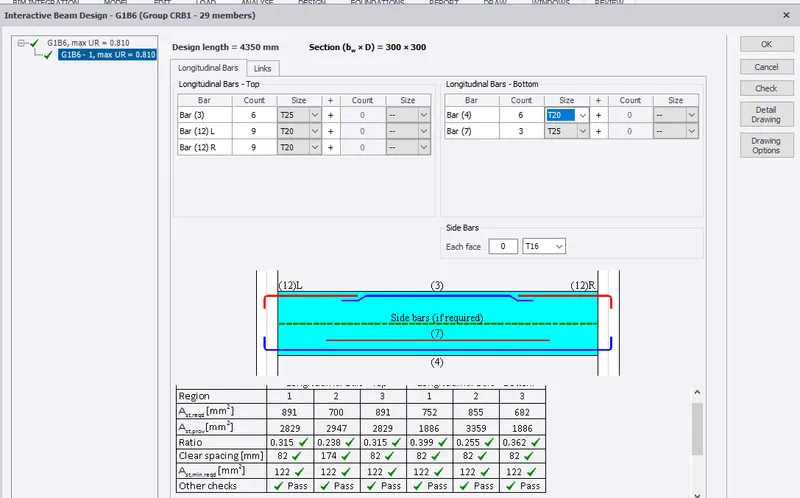

13.now let us modify its properties such that it much clear the tests

14. there is a new dialog box that appears stating that apply the same change to all the members let is click ok

we can check for other members whether the property is applied

RESULT:

WE HAVE SUCCESSFULLY DESIGNED RC COLUMN AND BEAM BASED ON OUR ANALYSIS

BY FOLLOWING THESE STEPS I.E WE HAVE CHANGED THE PROPERTIES OF BEAMS AND COLUMNS

SUCH THAR IT SATISFIES THE REQUIREMENTS ( WHICH APPEAR AFTER SELECTING INTERACTIVE DESIGN

OPTION)

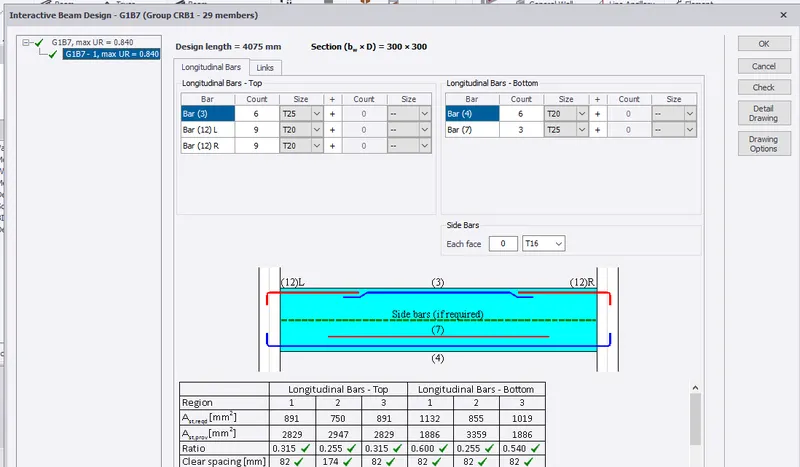

WE CAN CLEARLY SEE THAT OUR BEAM MEMBER PASSES THE TEST CONDITIONS.

SIMILARLY, WE HAVE MODIFIED THE PROPERTIES OF THE COLUMN AS WELL SUCH THAT IT HAS CLEAR THE

TEST CONDITIONS
