Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

ATTACHMENT FEATURE CREATION DOGHOUSE

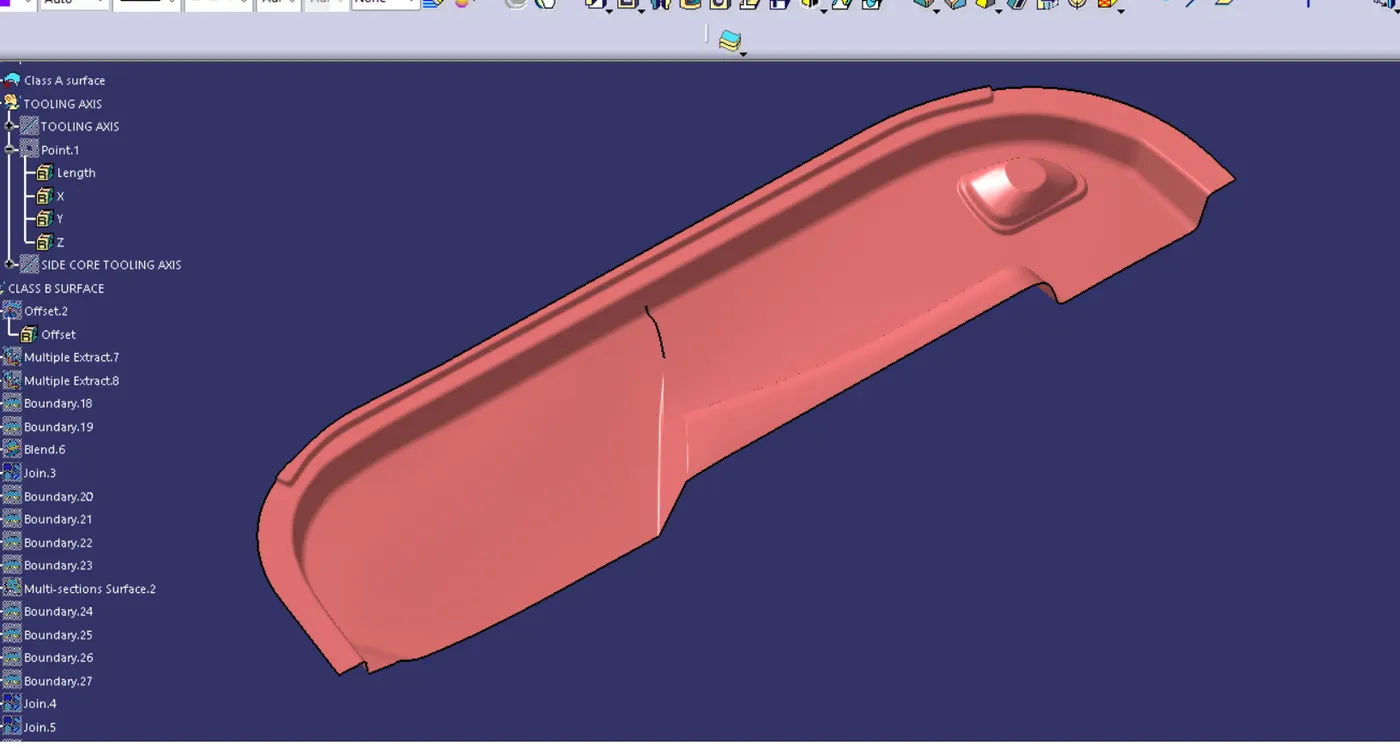

A SURFACE

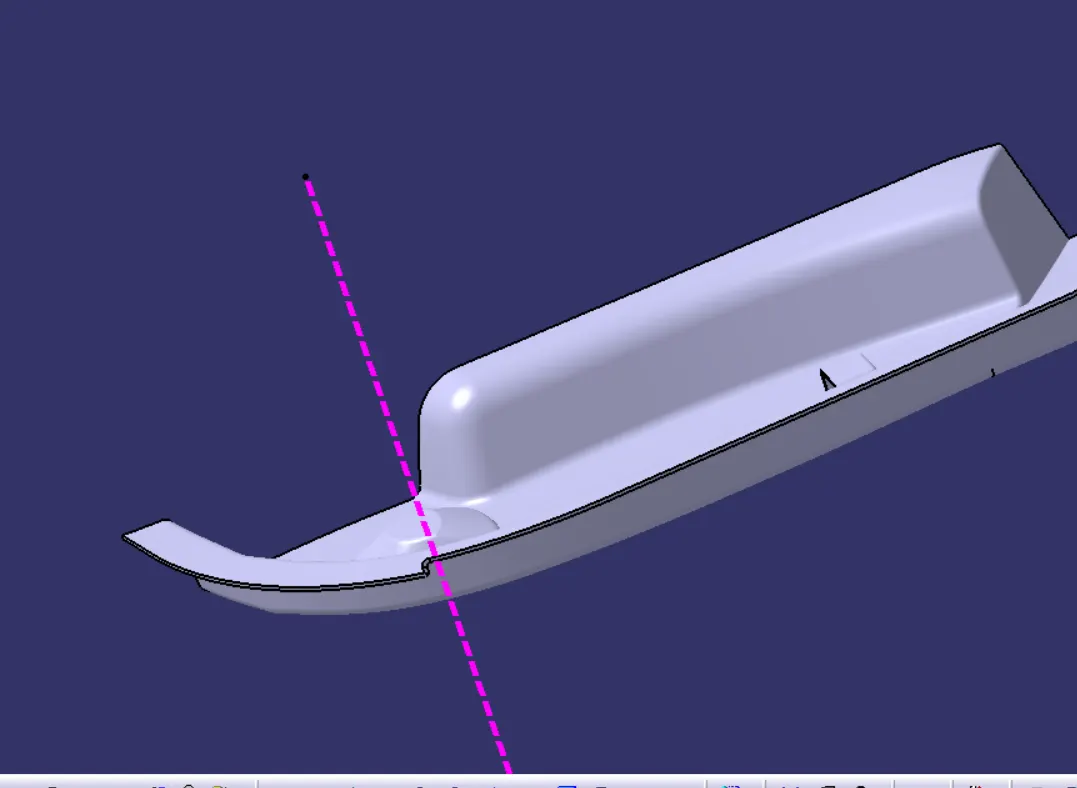

TOOLING DIRECTION

TOOLING DIRECTION IS CREATED FROM SURFACE FROM EXTRACTING A SINGLE PATCH AND CREATING POINTS ALONG IT.

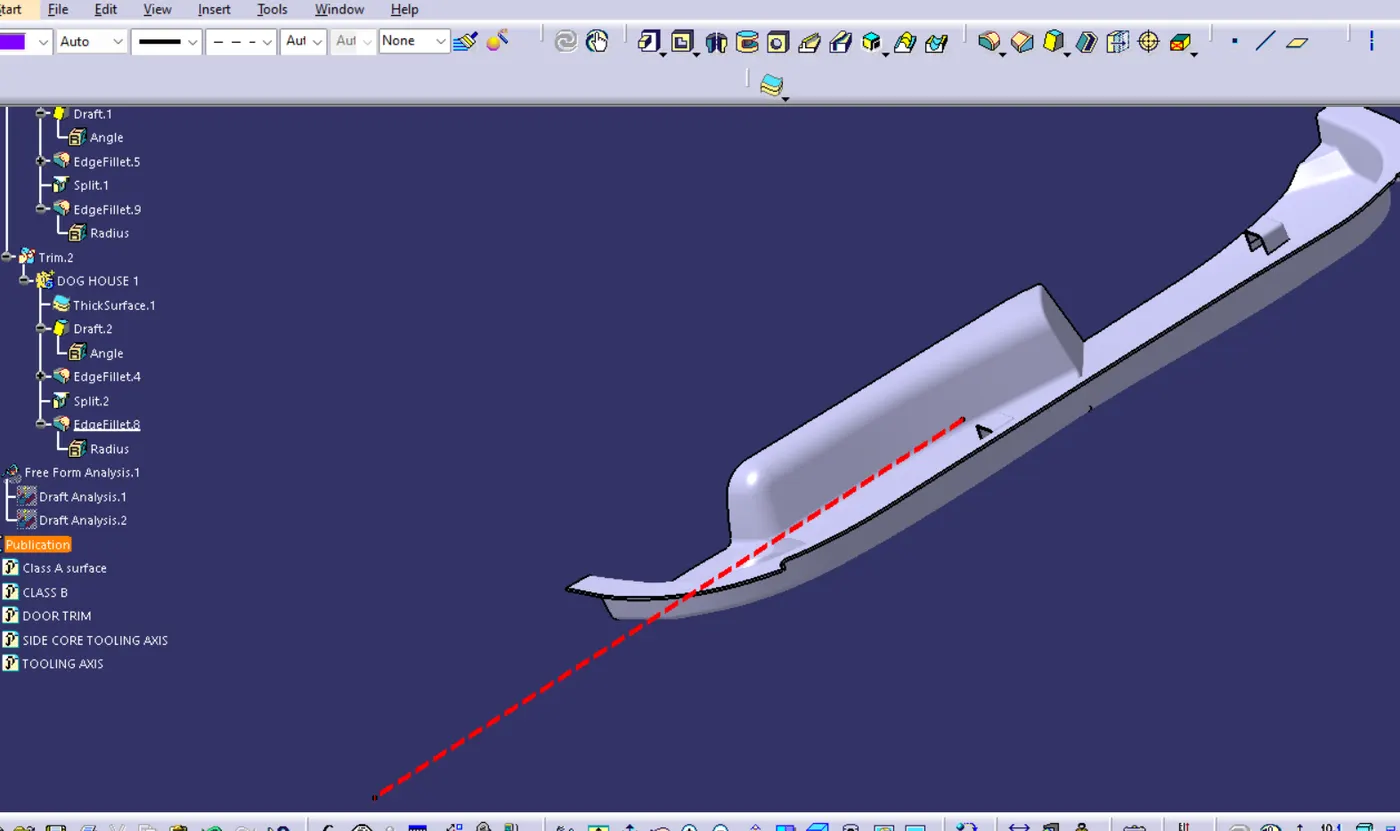

SIDE CORE TOOLING DIRECTION

side core tooling direction is created for dog house which is comes under ejecting pin mechanism .

B SURFACE

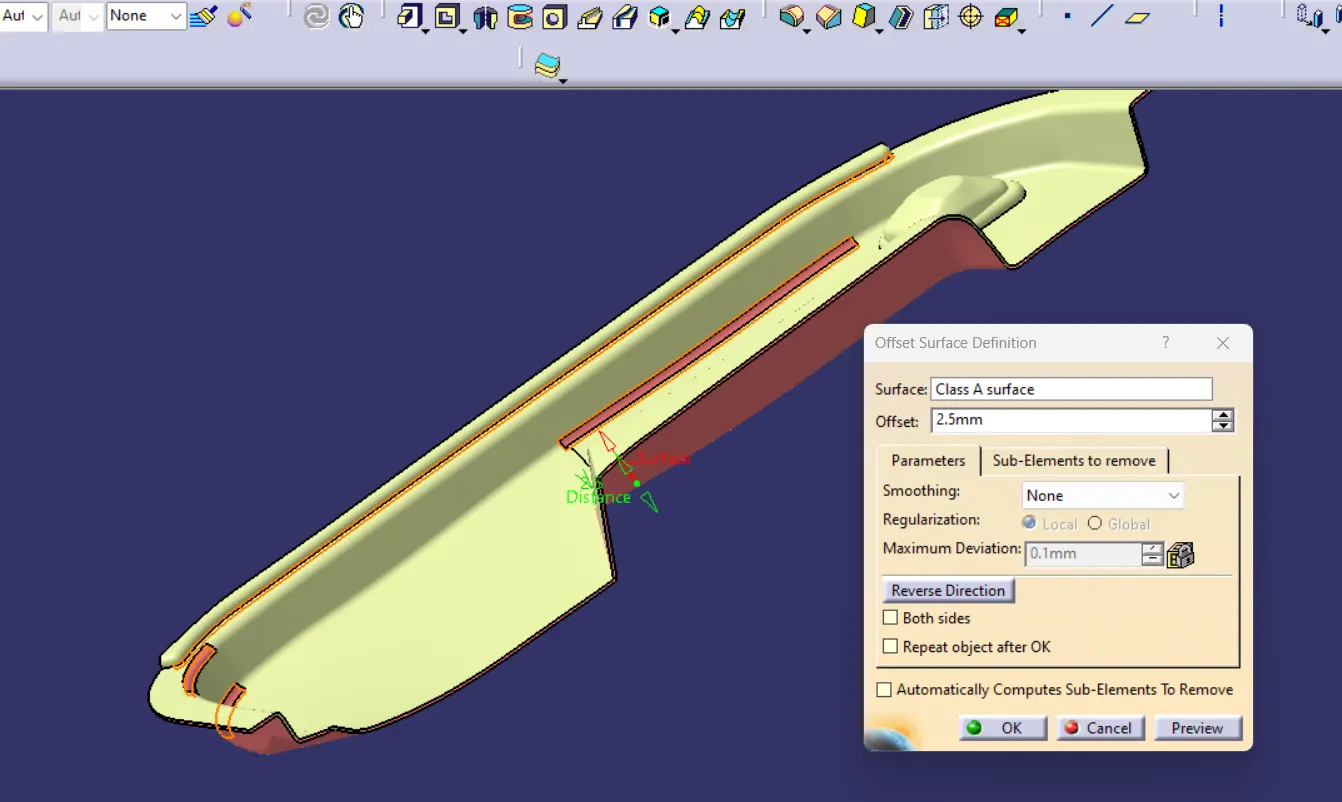

after offsetting 2.5mm of a surface some patches may have missing it is simplified by multisection command and edge blend command after fixing those patches they are joined using the join command

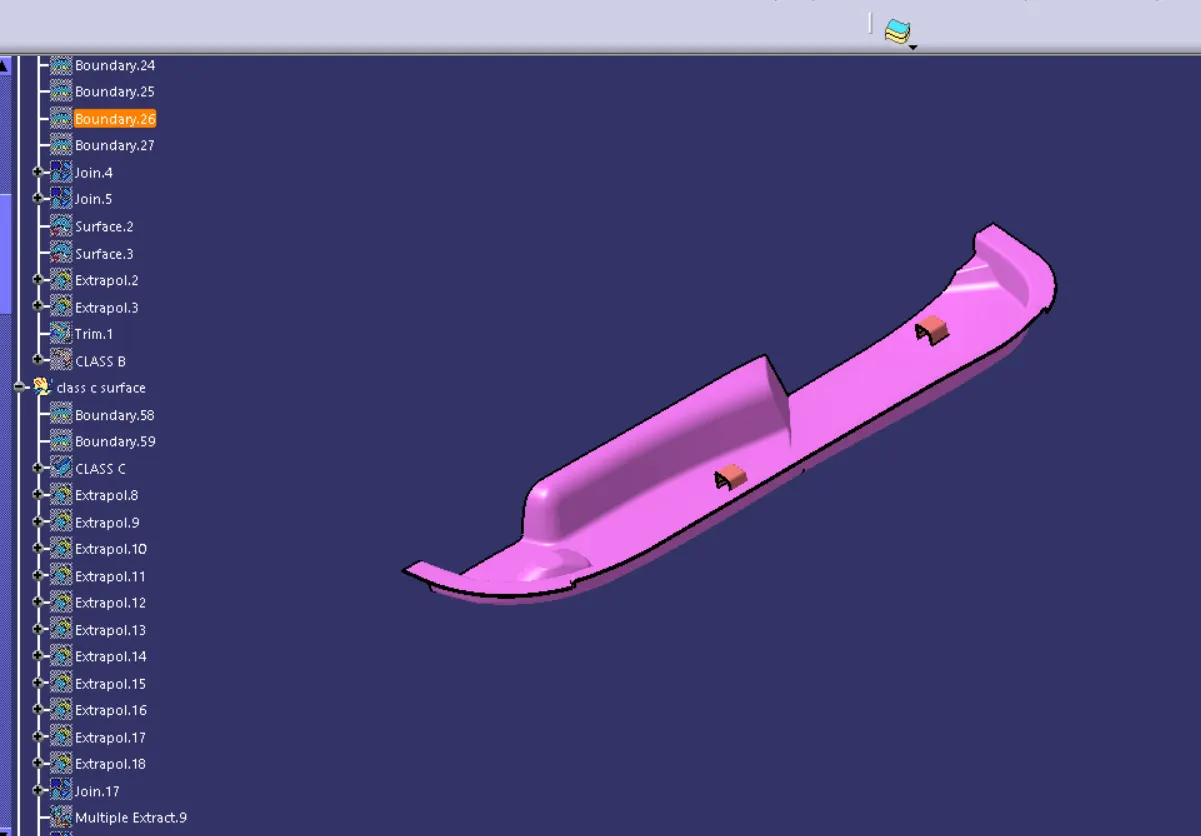

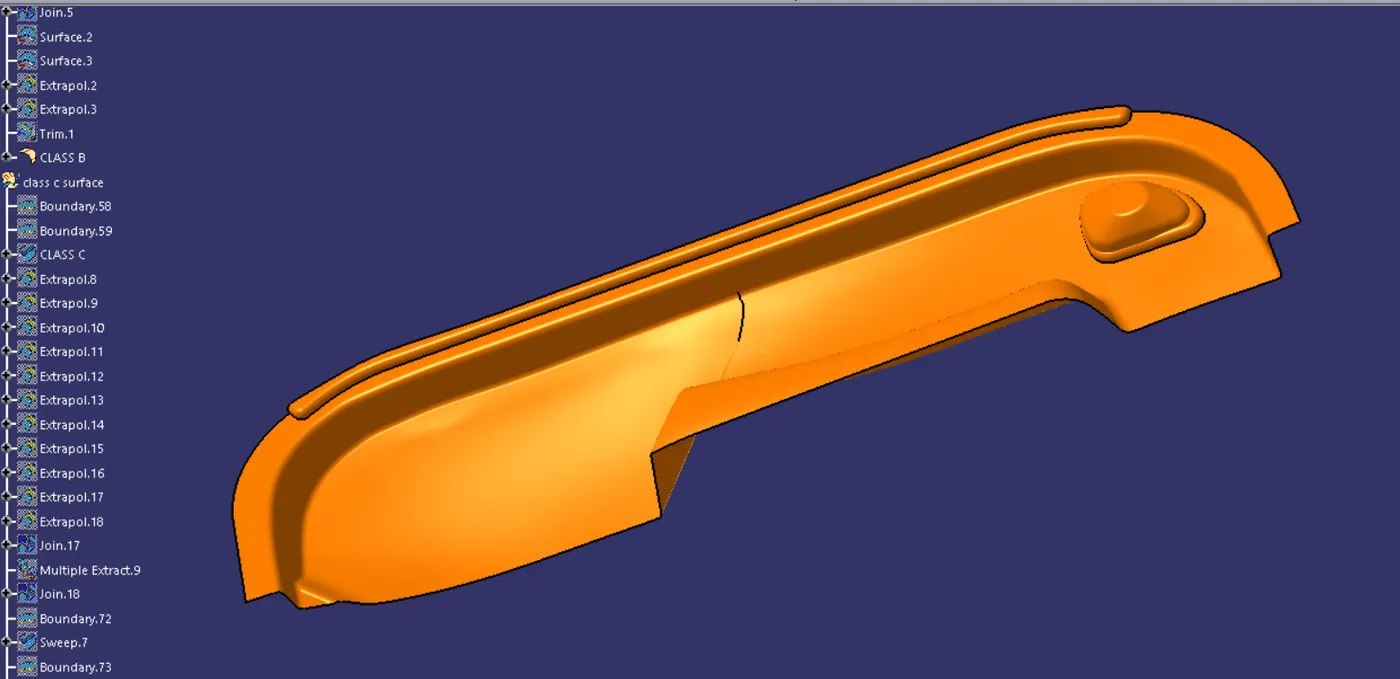

c surface

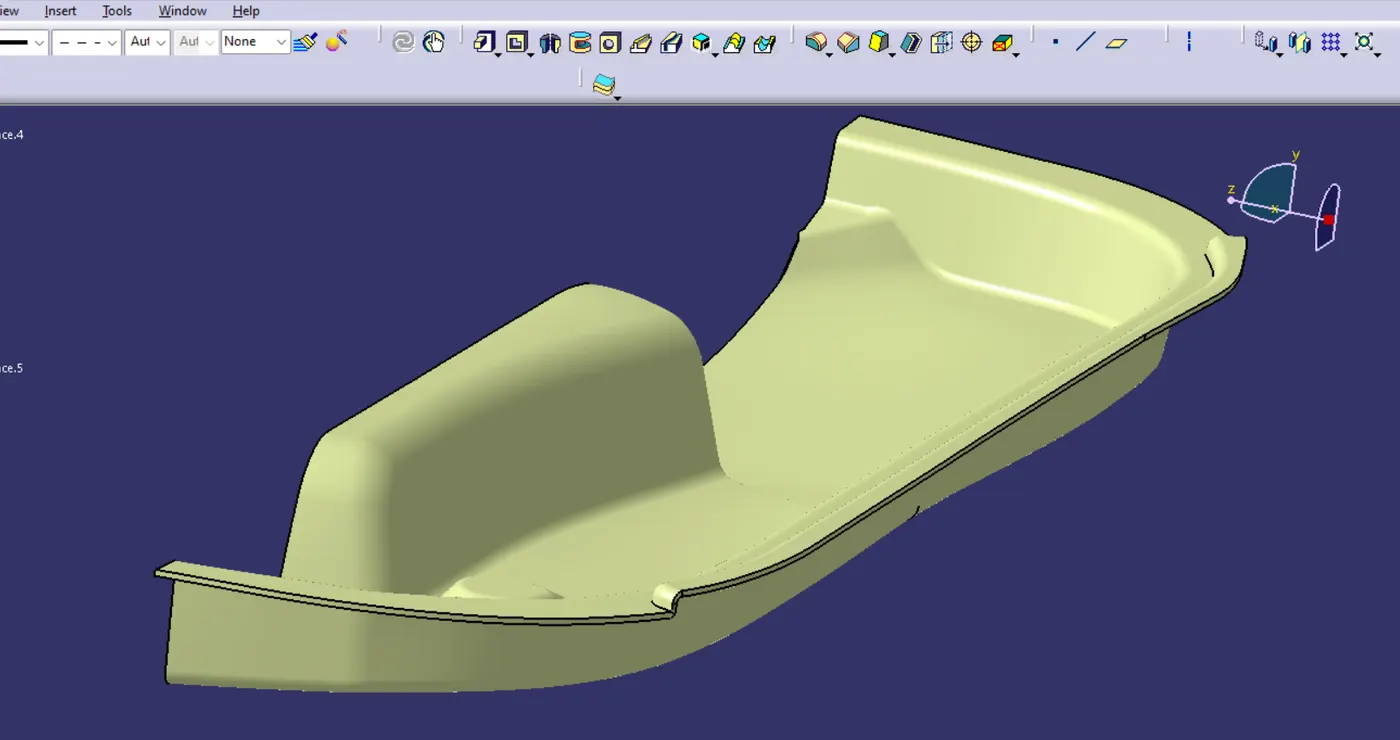

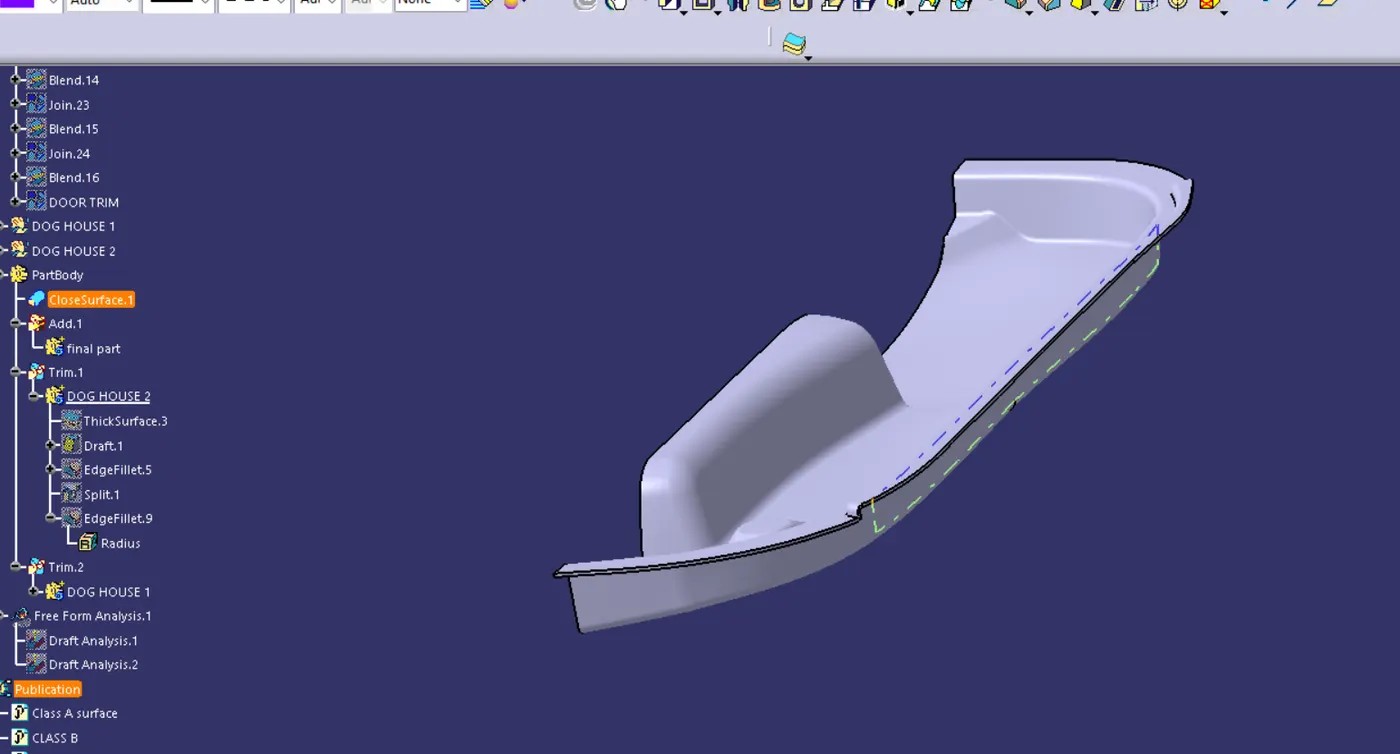

CLOSED SURFACE

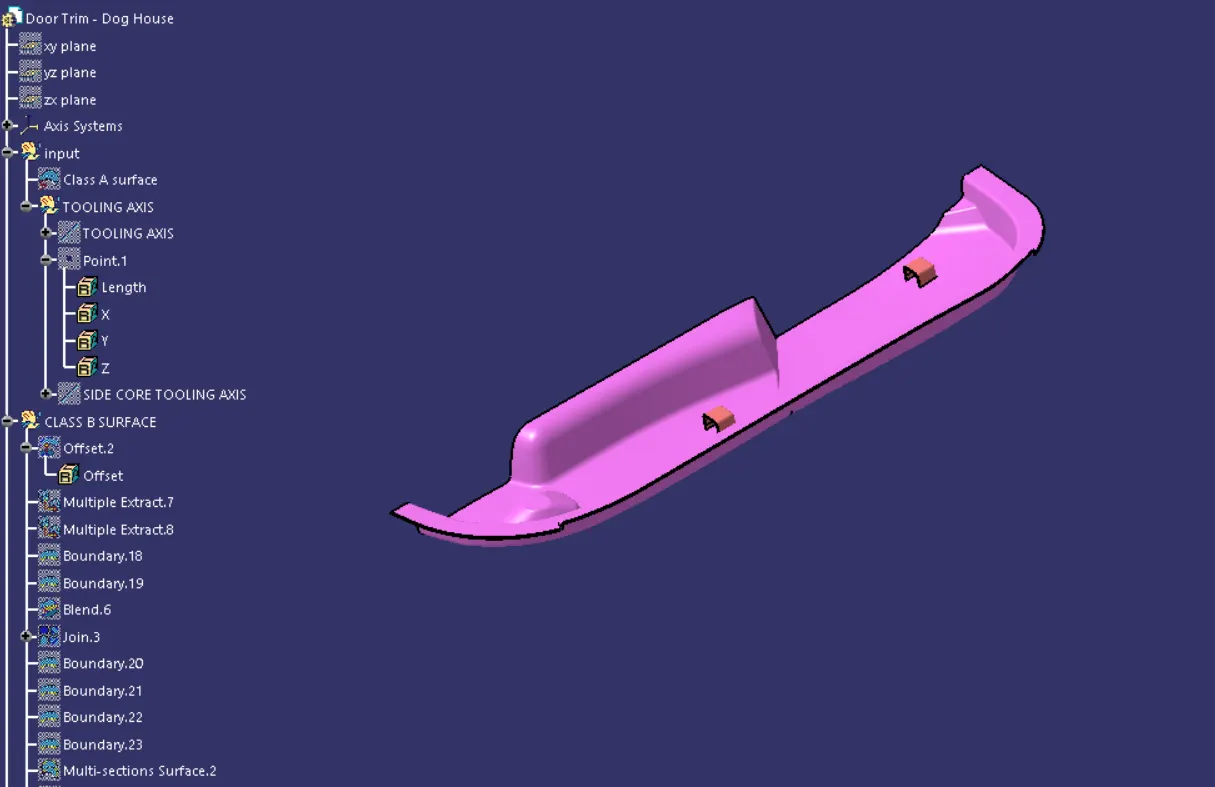

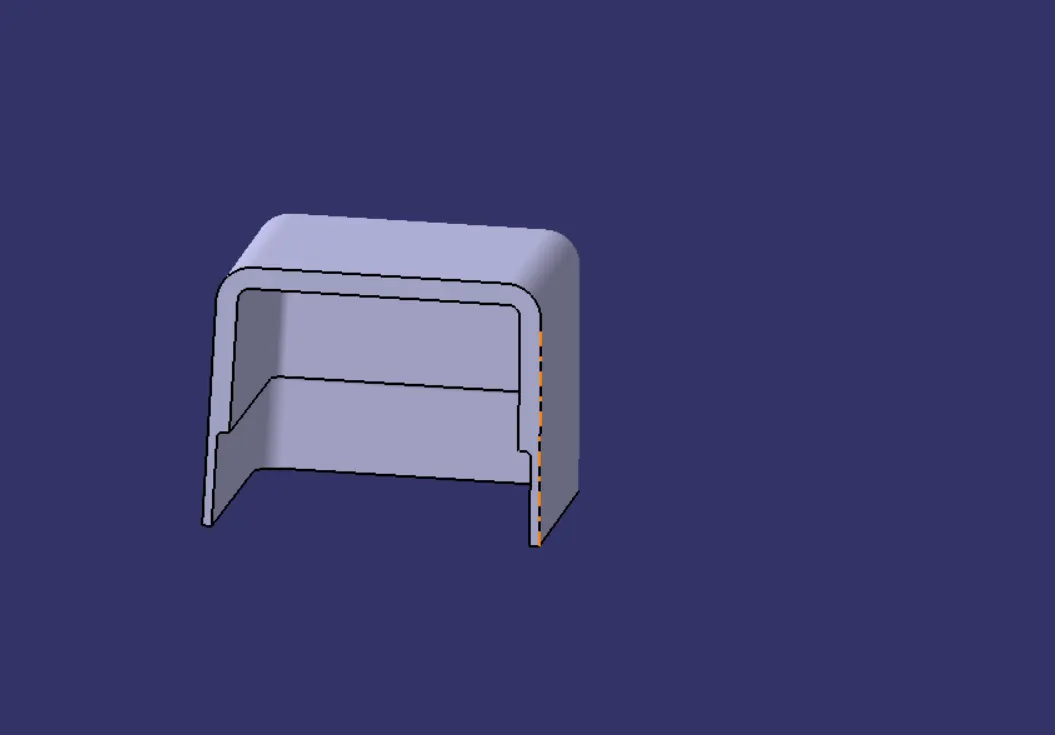

DOG HOUSE

dog houses are used avoid sink marks on class a surface and to provide external support to the components it can be also used as fixation feature by adding pusspin on the top of the dog house

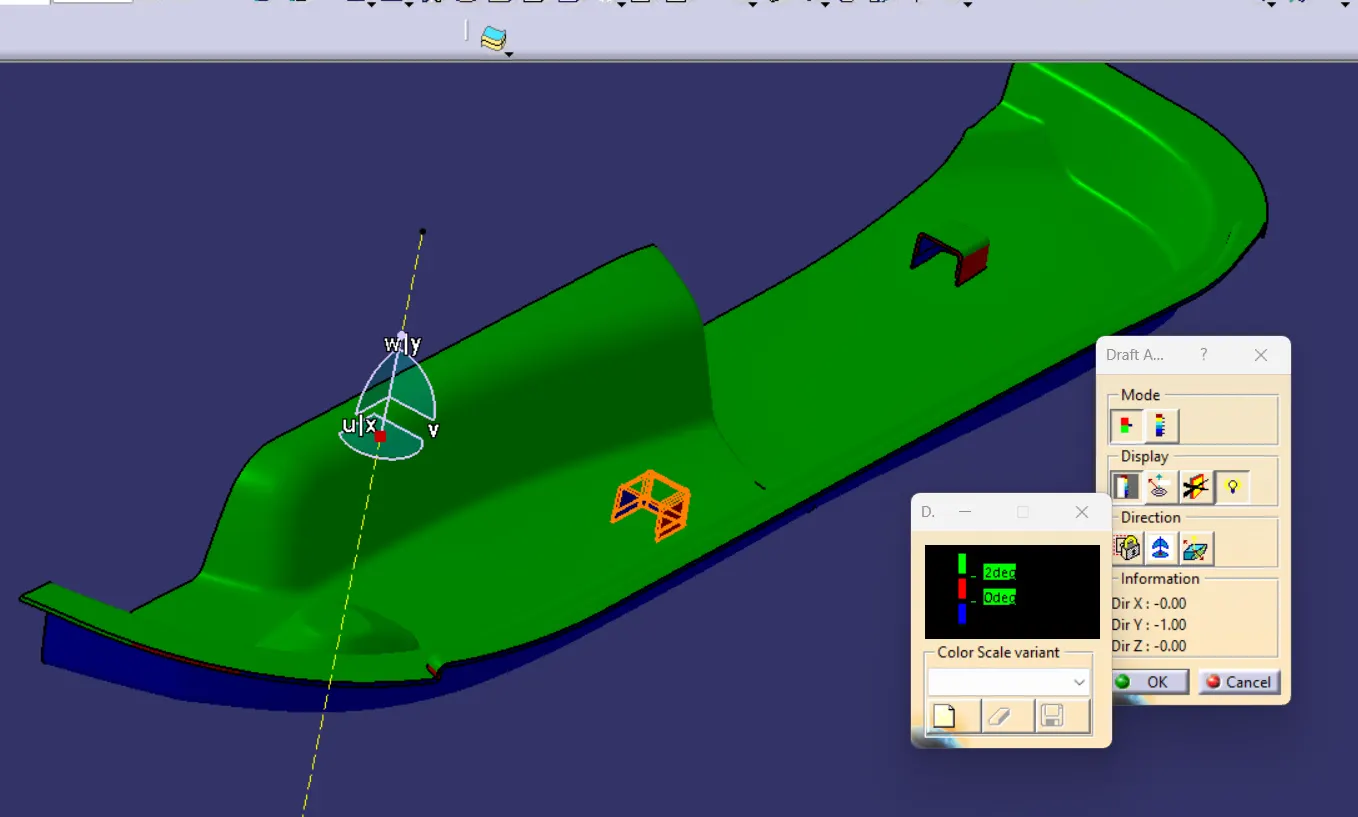

DRAFT ANALYSIS

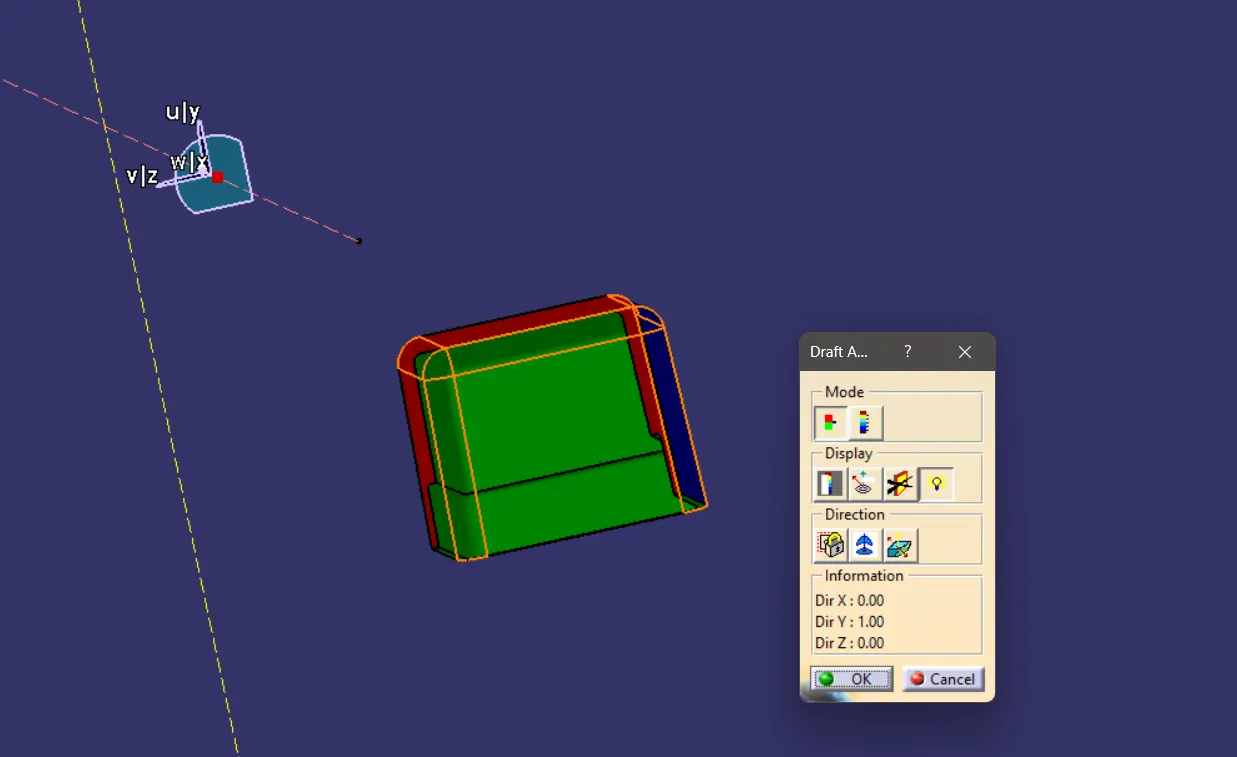

DRAFT ANALYSIS FOR DOG HOUSE USING SIDE CORE AXIS

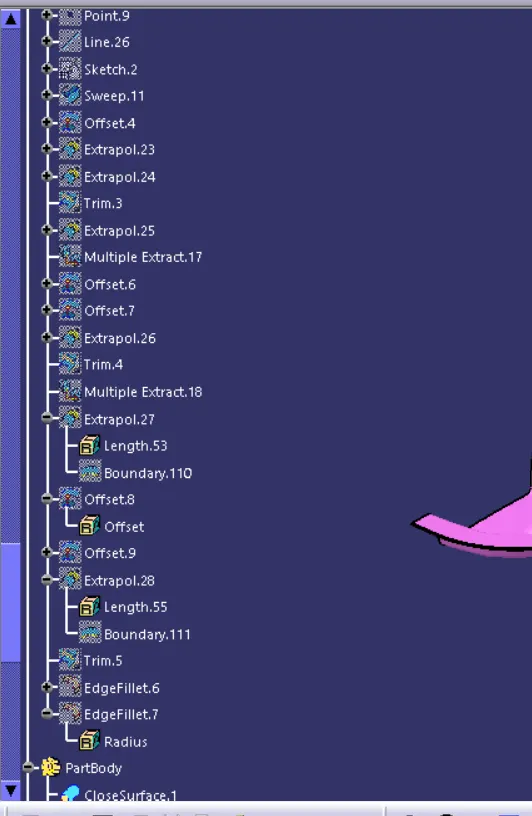

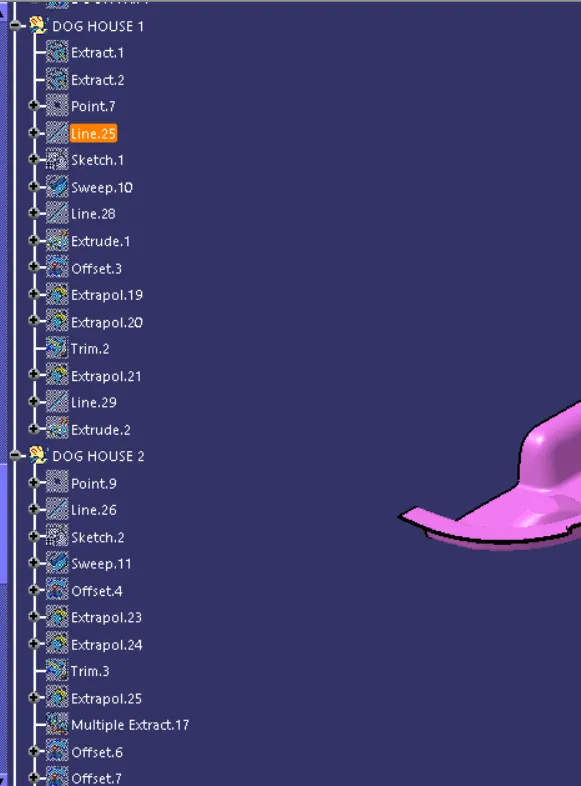

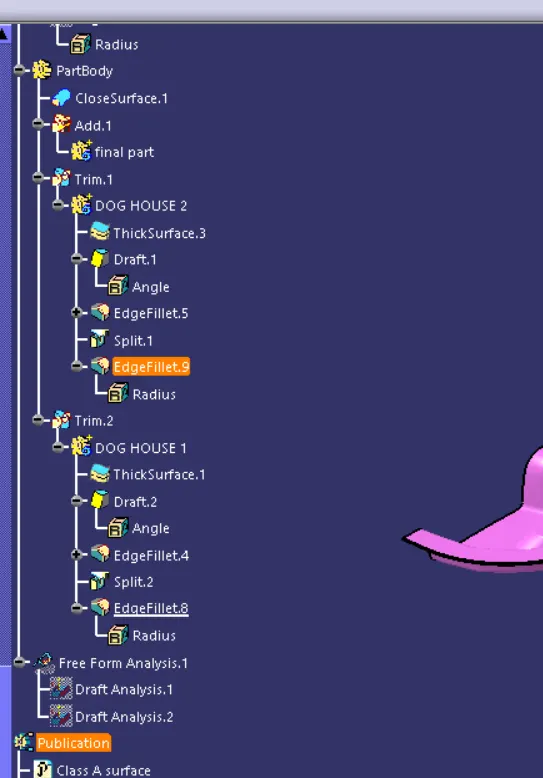

TREE STRUCTURE
