Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

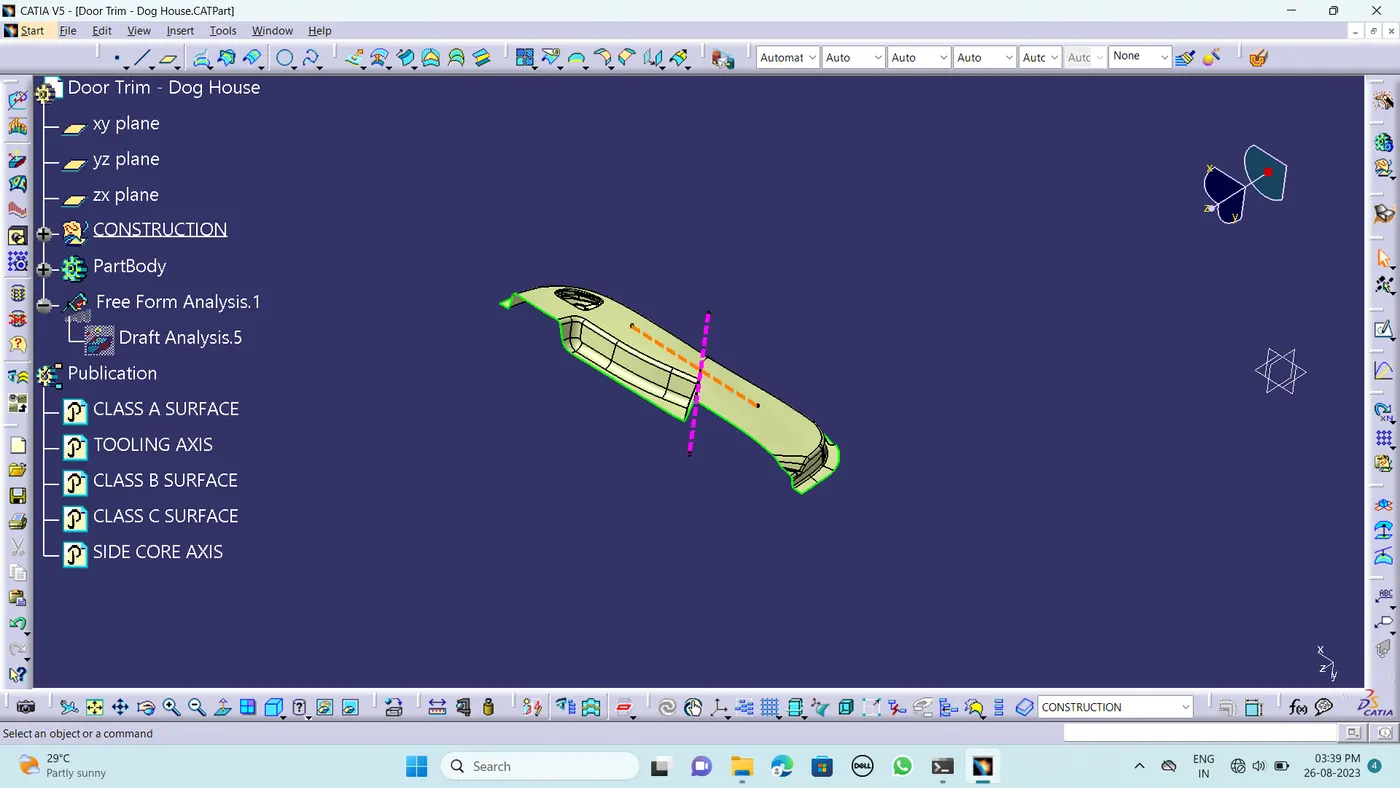

CLASS A SURFACE:

TOOLING AXIS:

SIDE CORE AXIS:

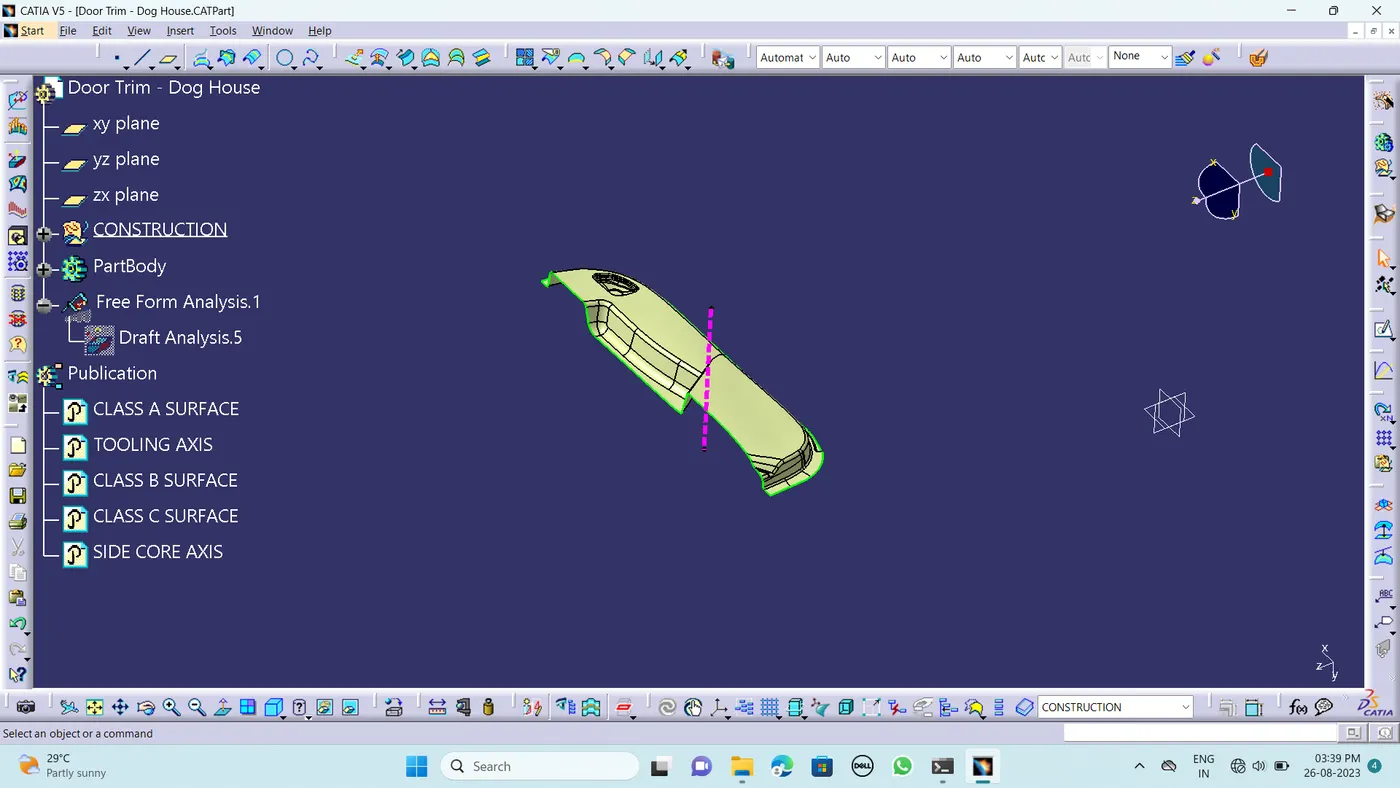

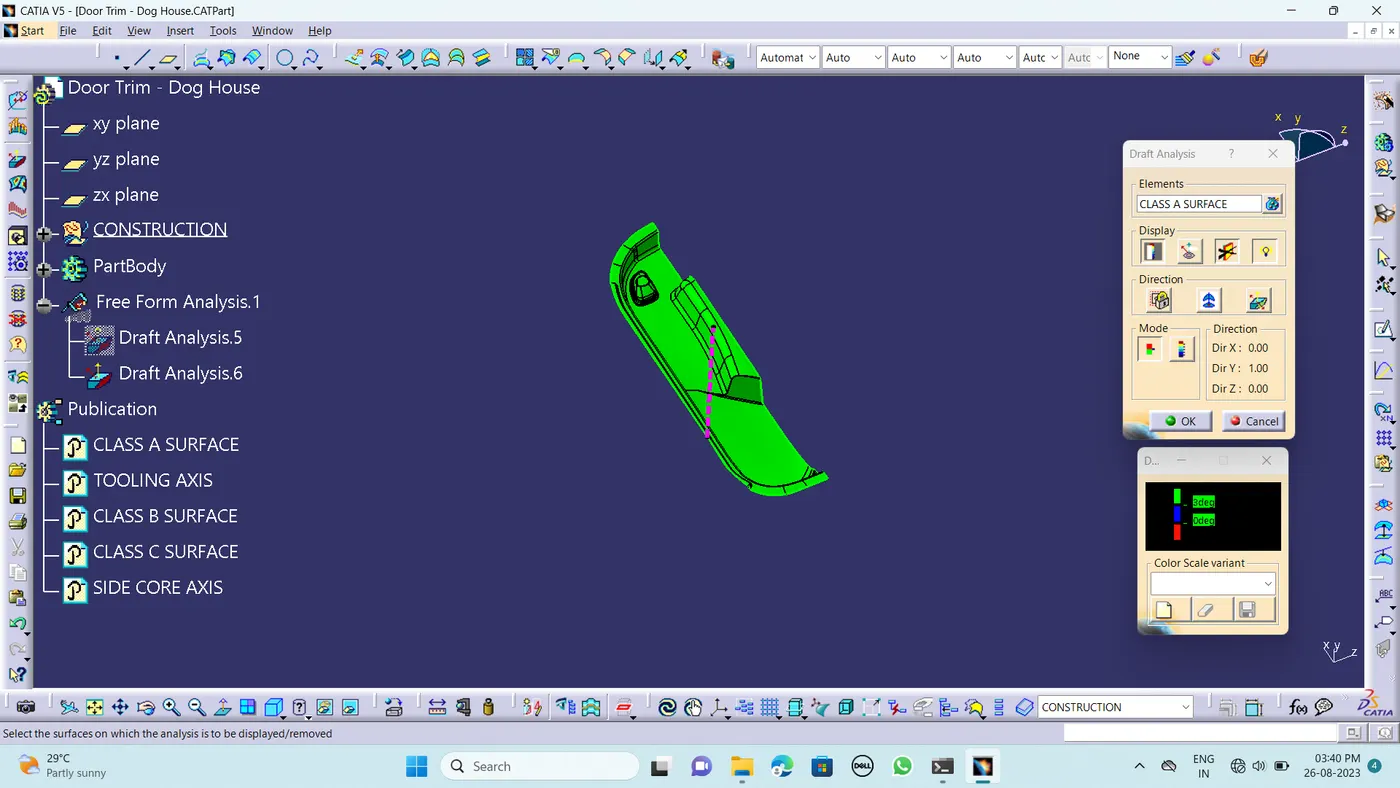

DRAFT ANALYSIS OF CLASS A SURFACE:

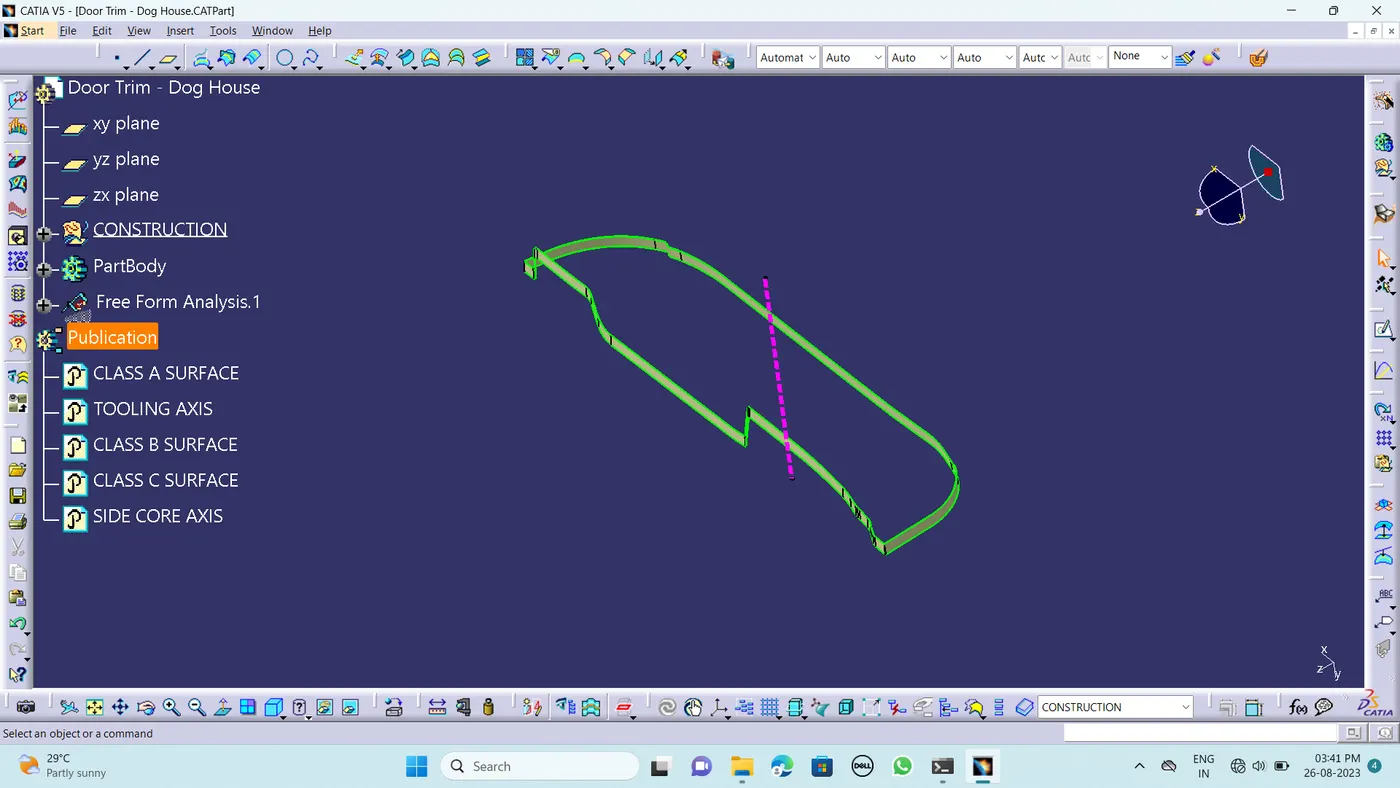

CLASS B SURFACE:

CLASS C SURFACE:

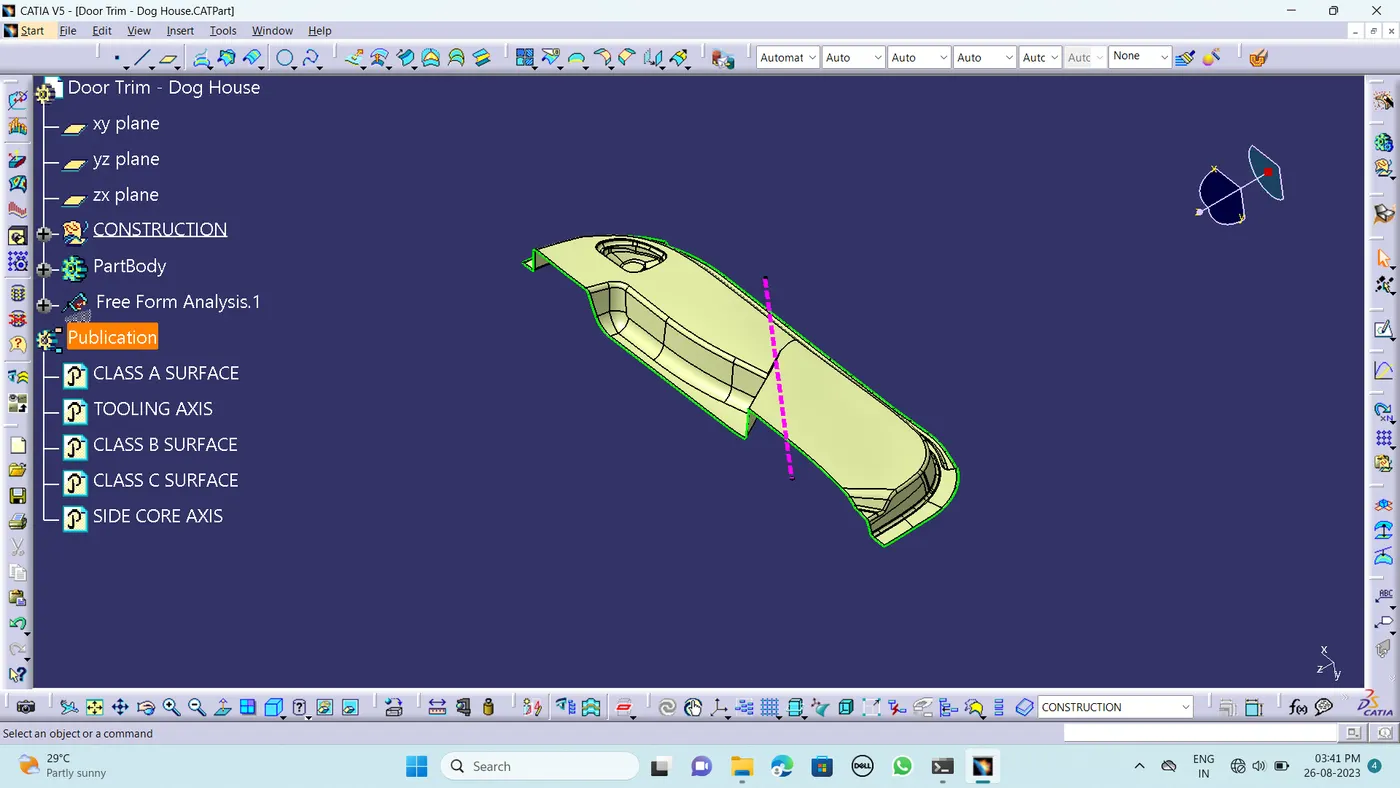

SOLID PART:

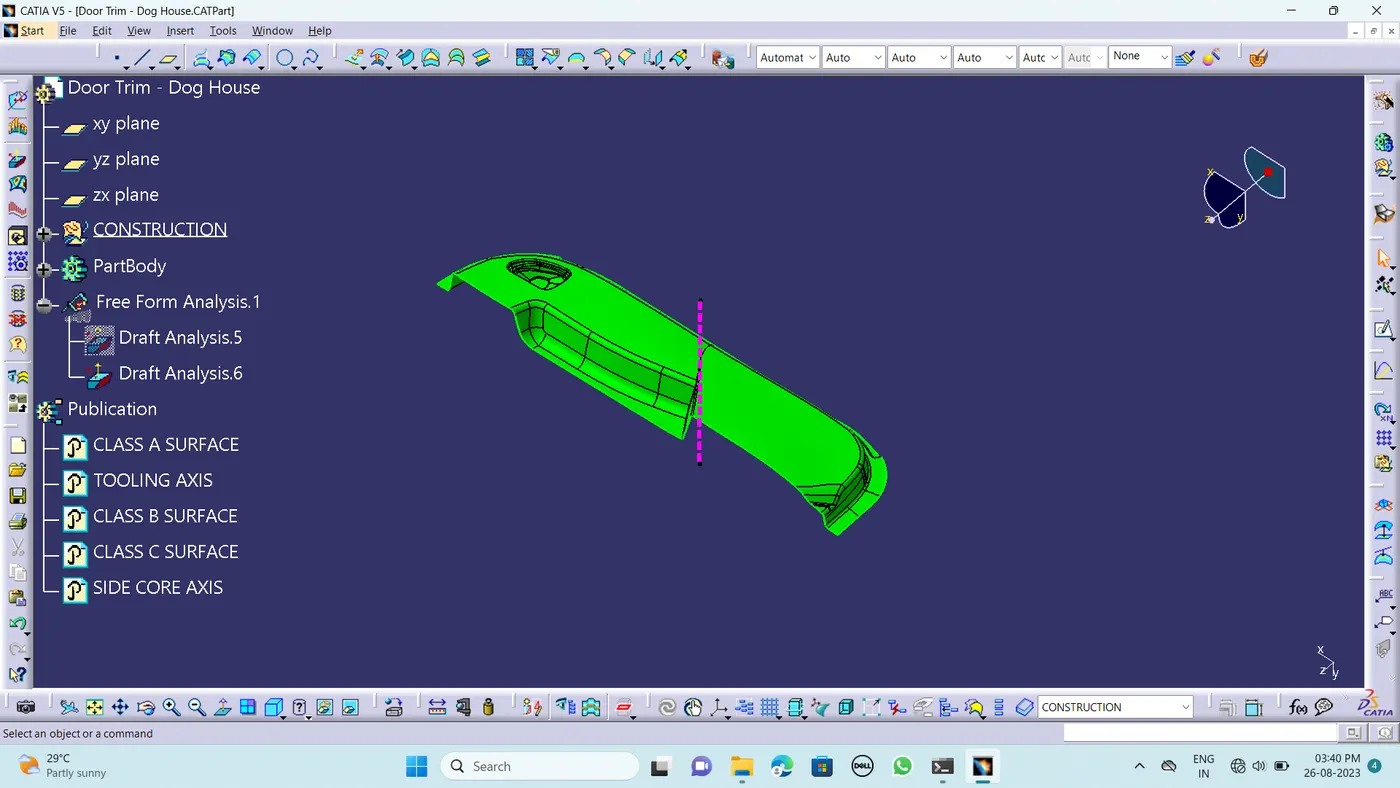

DRAFT ANALYSIS:

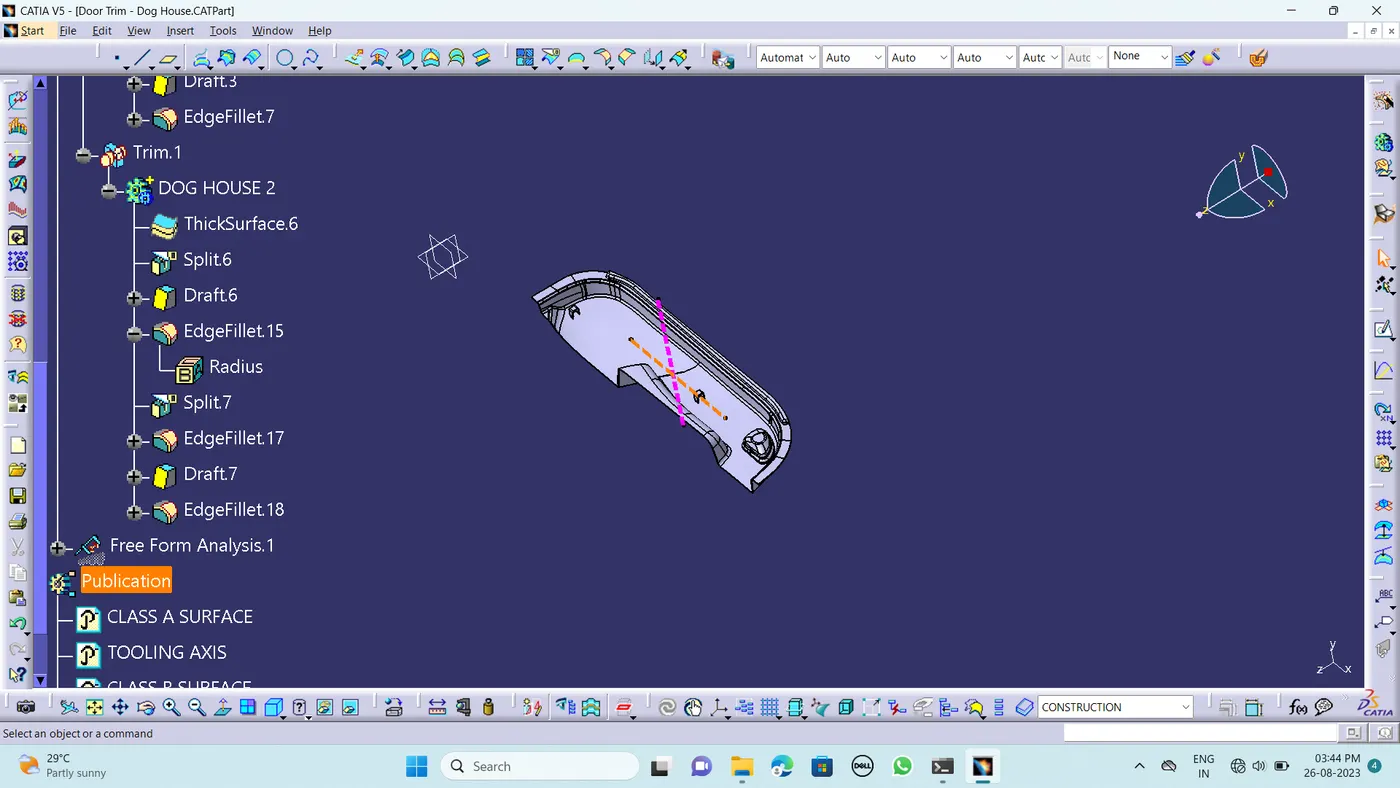

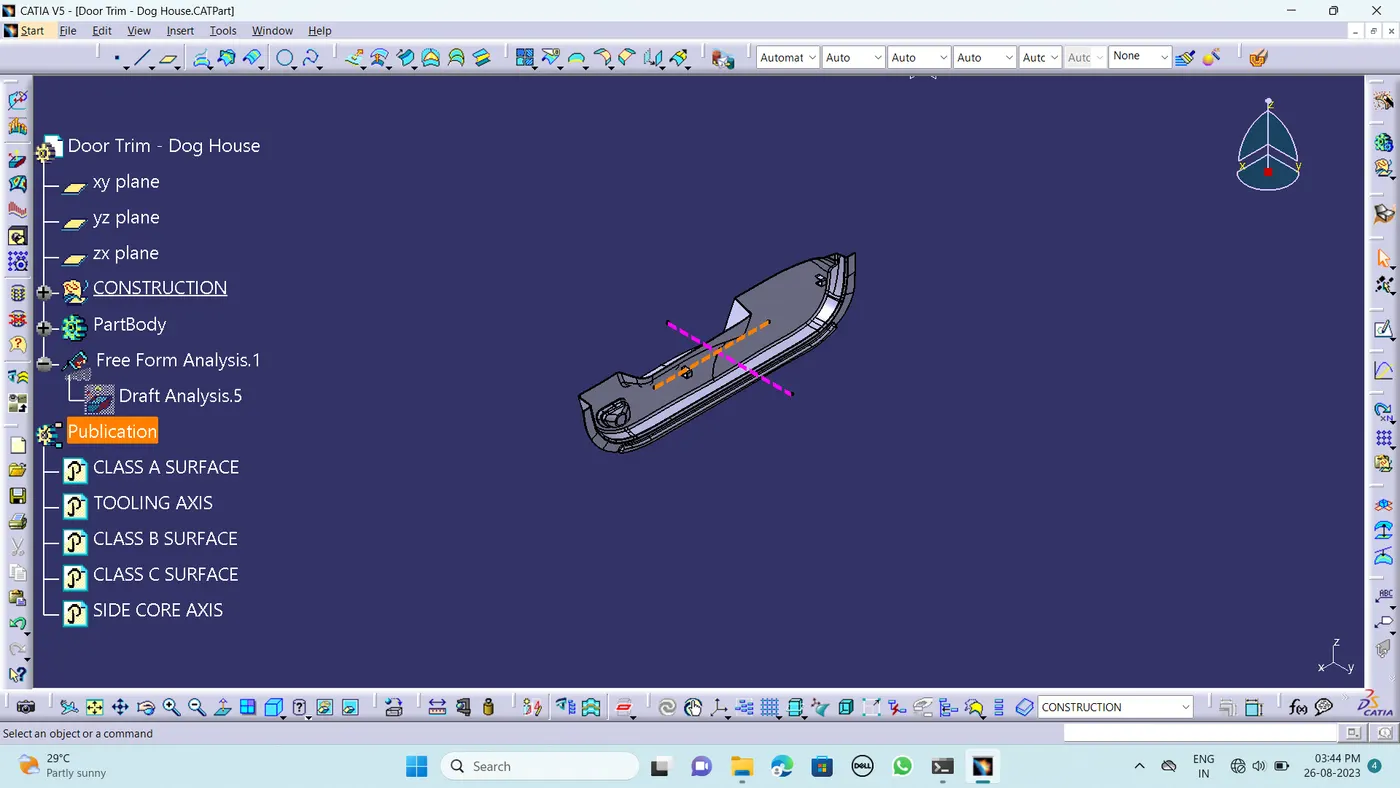

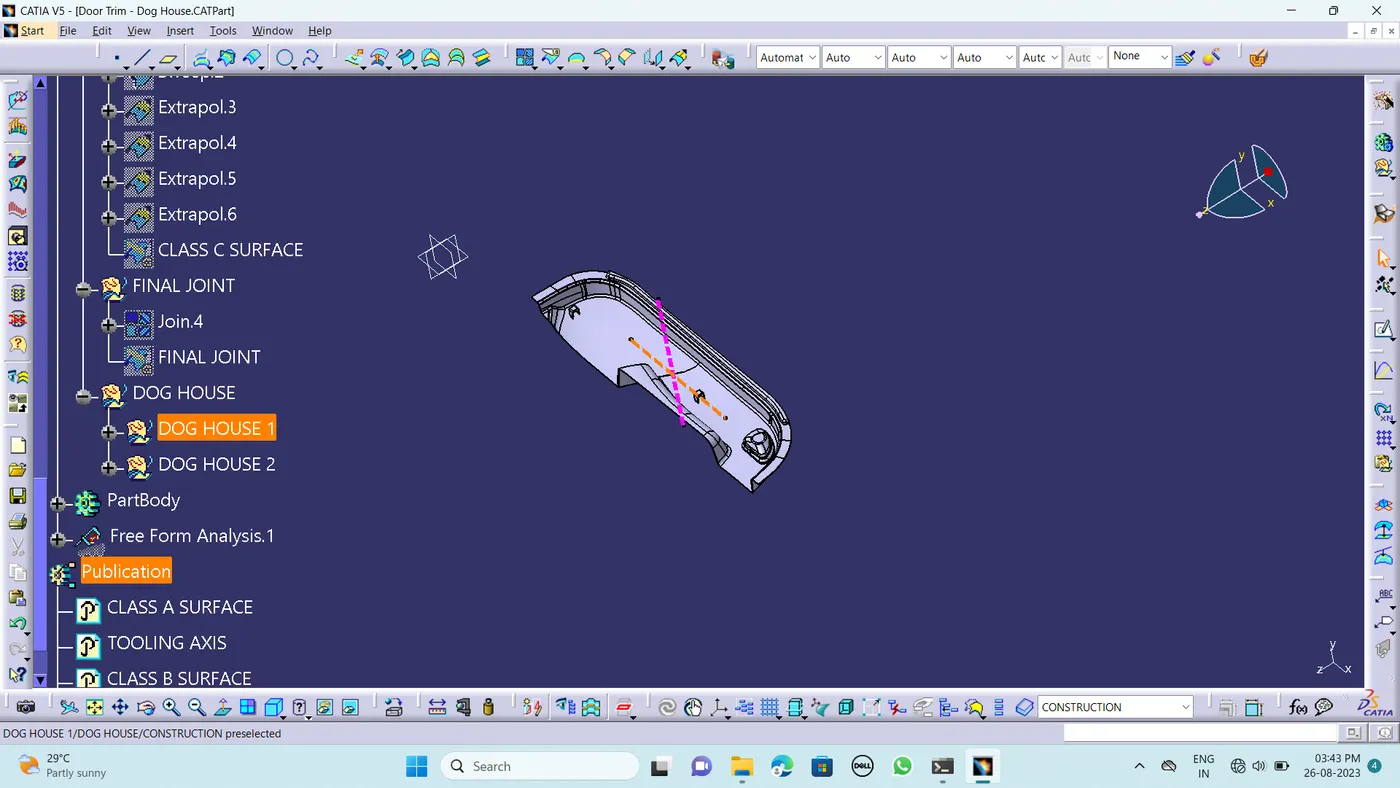

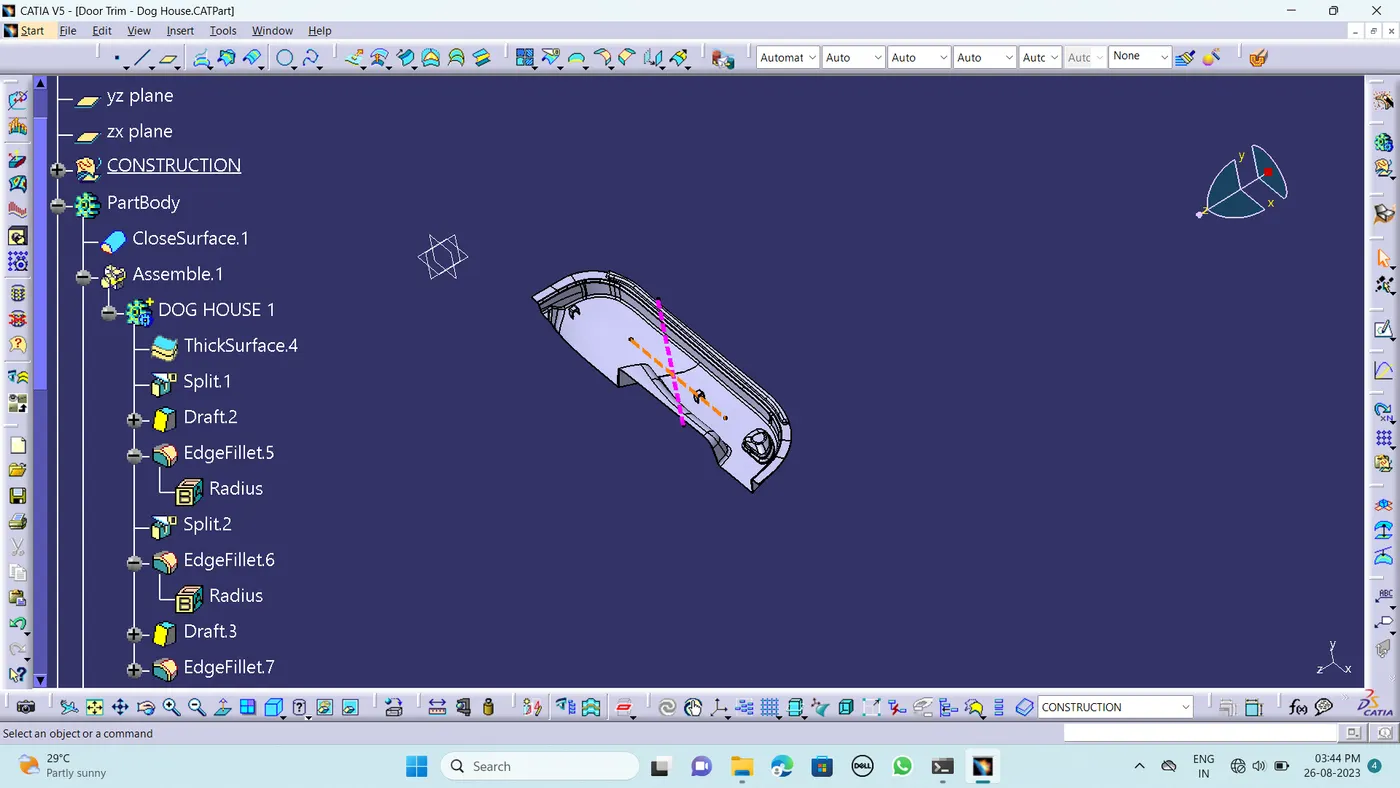

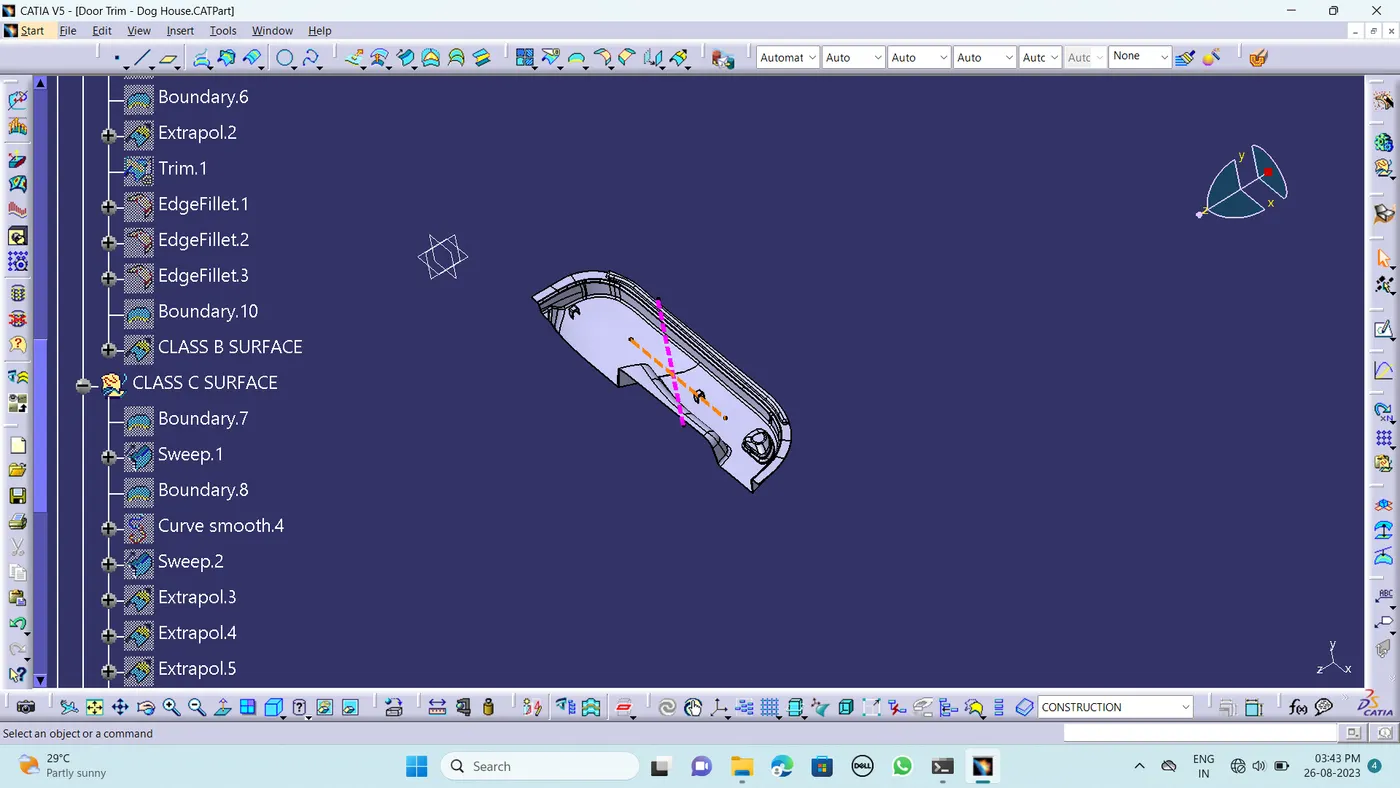

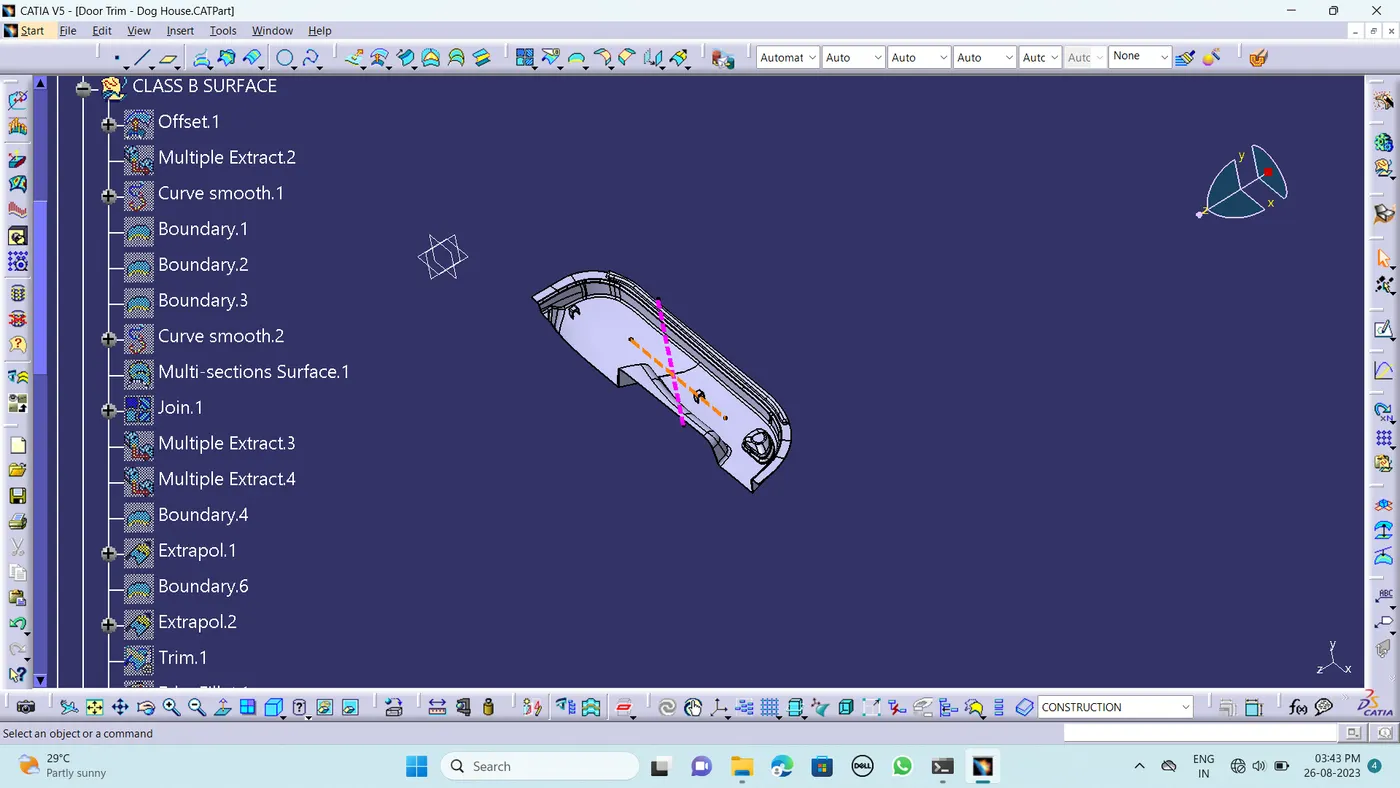

TREE STRUCTURE:

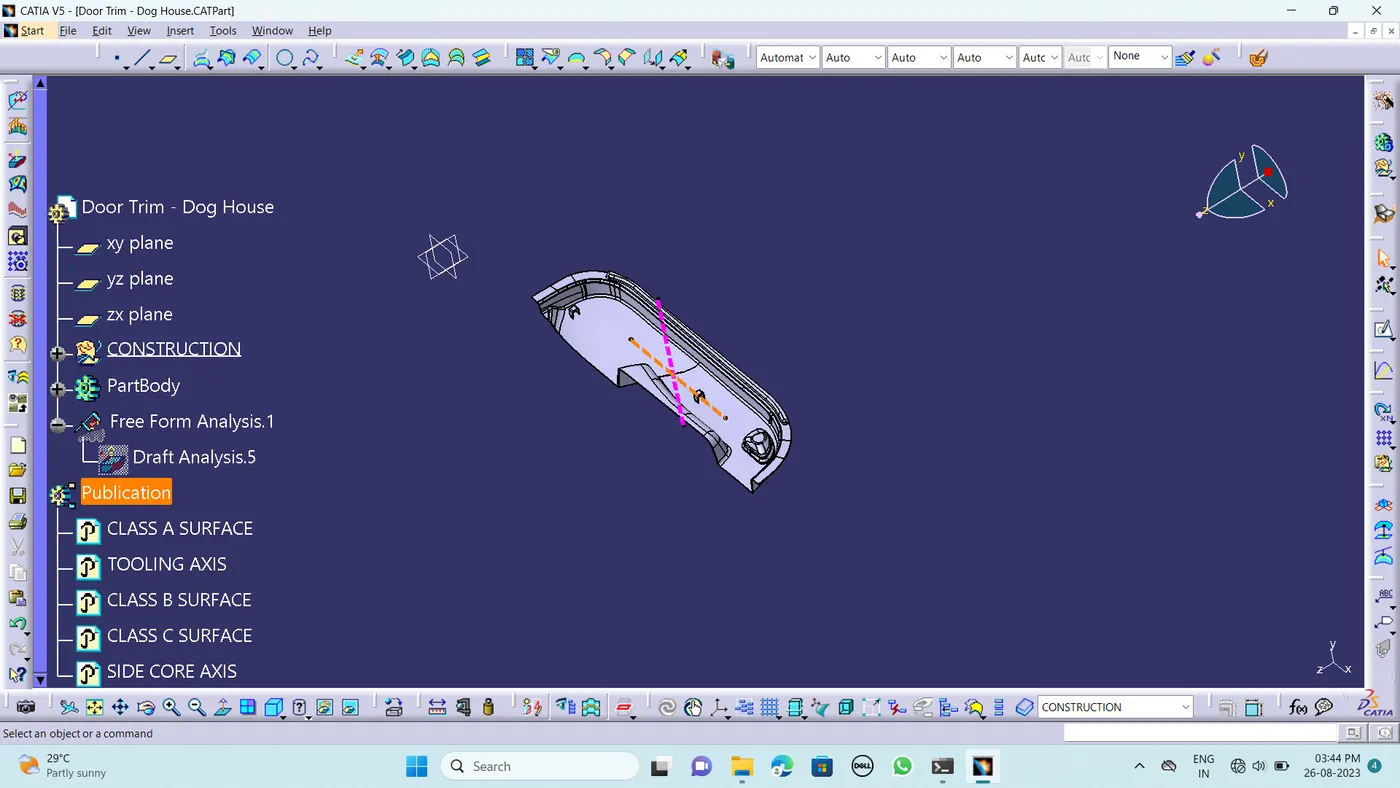

ISOMETRIC VIEW:

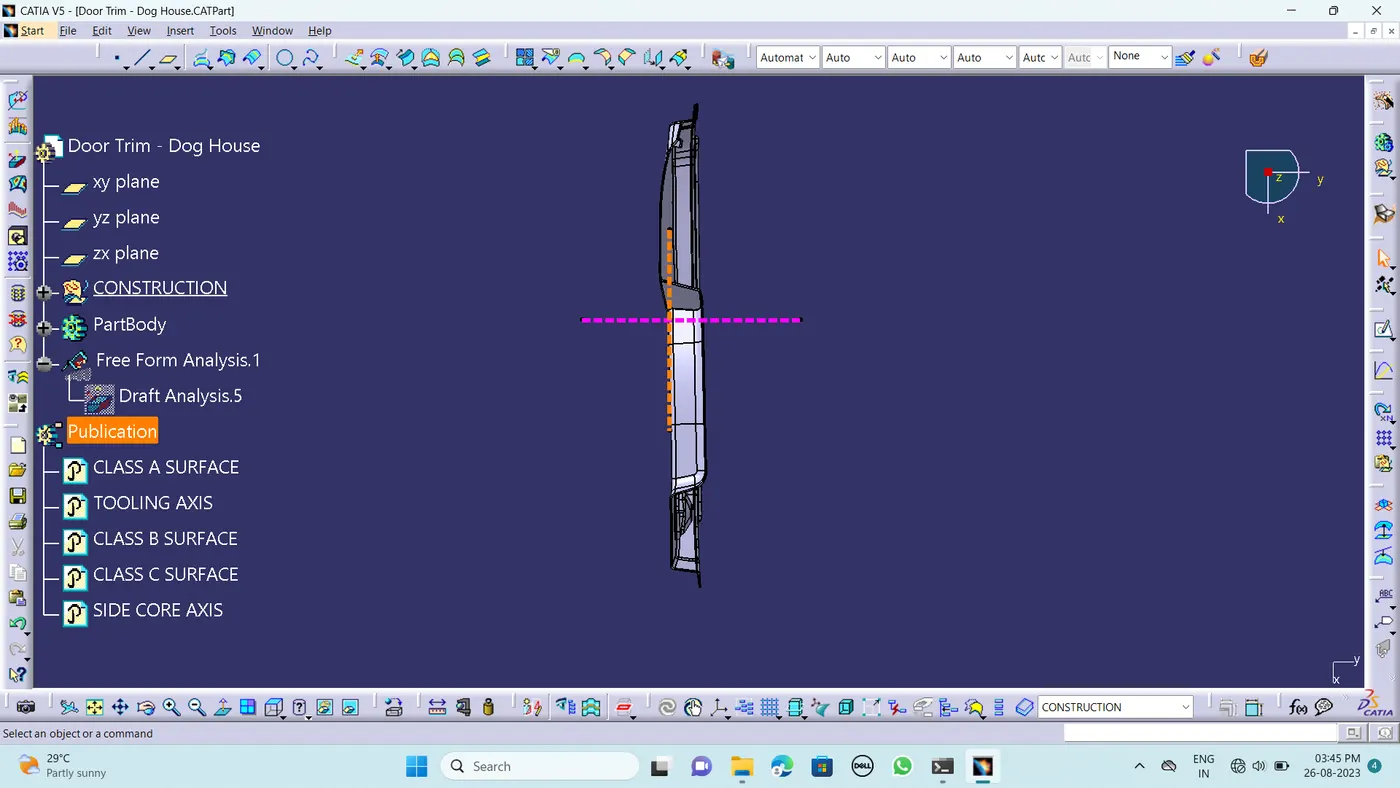

SIDE VIEW:

'

FRONT VIEW:

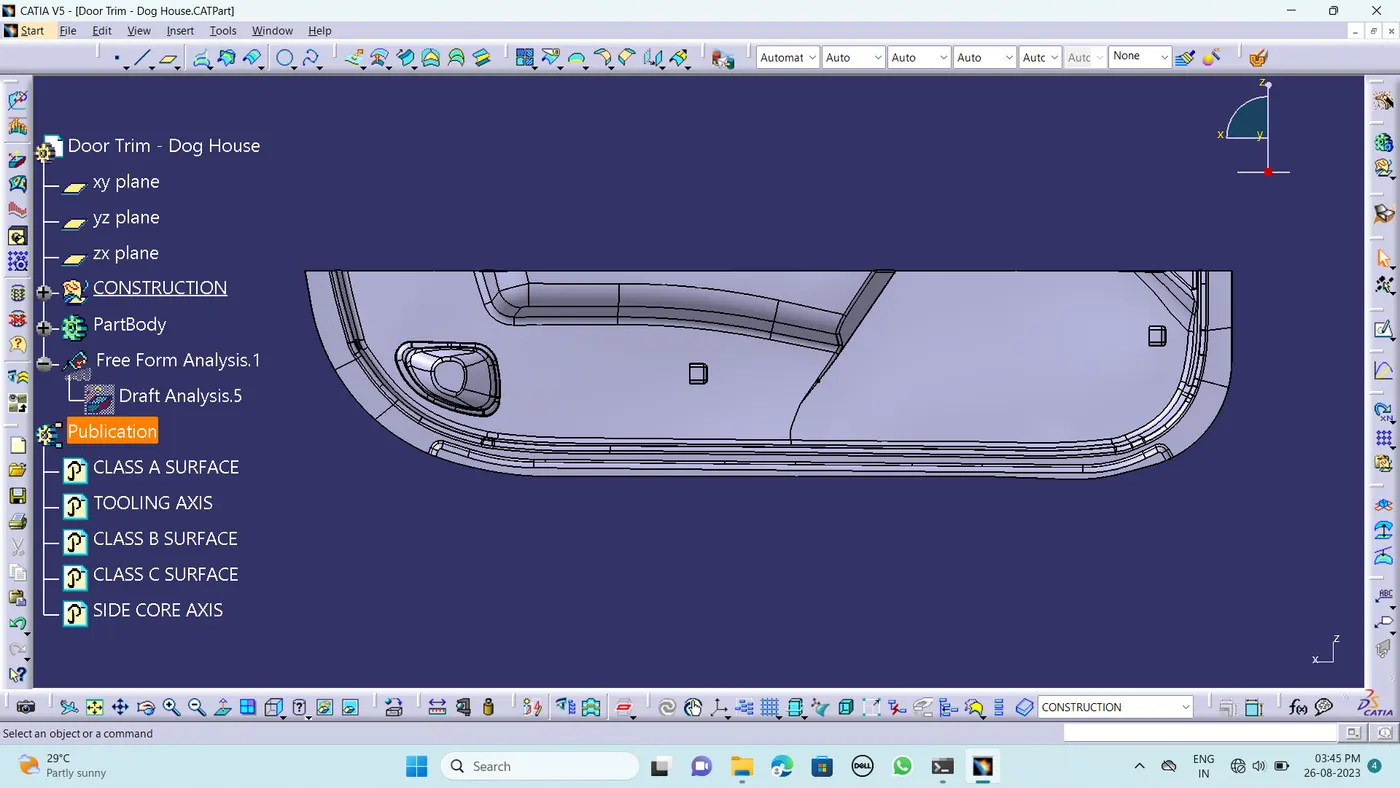

TOP VIEW:

Tooling axis:

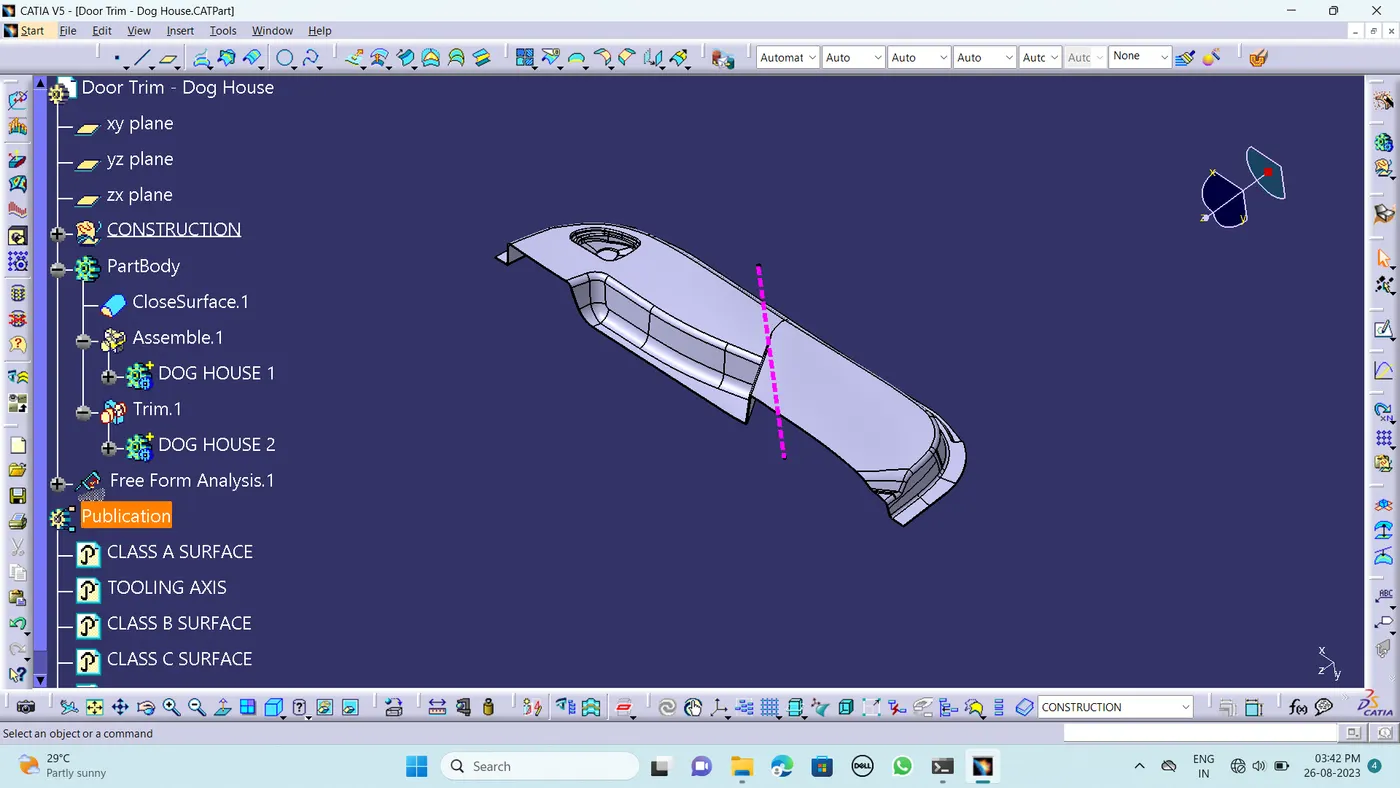

• Observe and study the class A surface to create the tooling axis.
• Z axis is the best suitable tooling axis for this component.
• Create point and line to make tooling axis.

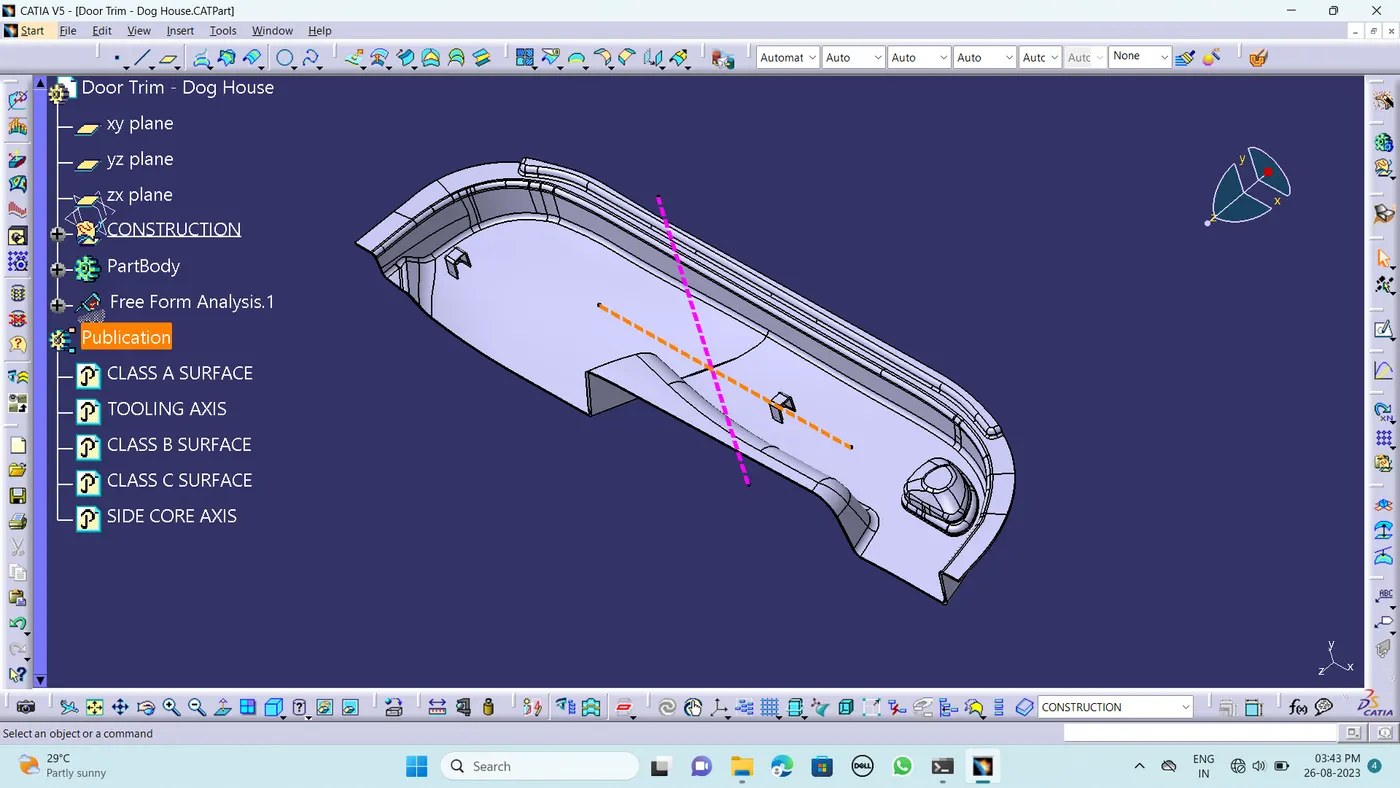

• Side core axis is used to draft the inner side of the Dog house.

Draft analysis:

• Draft angle is considered as 2.5 degree for the mani component.
• Select the compass and set it on the tooling axis in upward direction.
• Select the surface the whole part turned into green.
• Green means within 3 degree and blue represent 3 to 0 degree.
• In Dog house the draft angle is 1.5 degree .

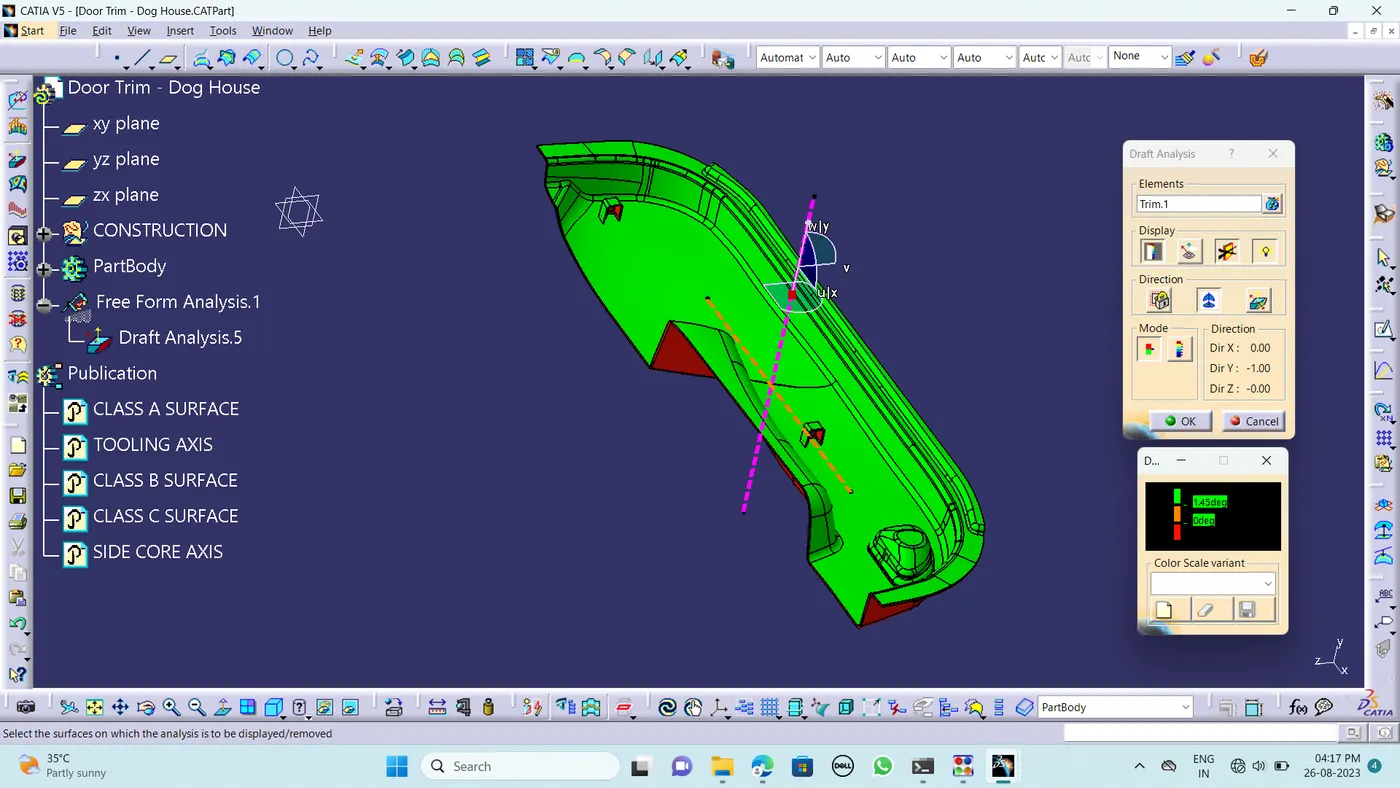

• Draft analysis for Outer side of Dog house done by main tooling axis.

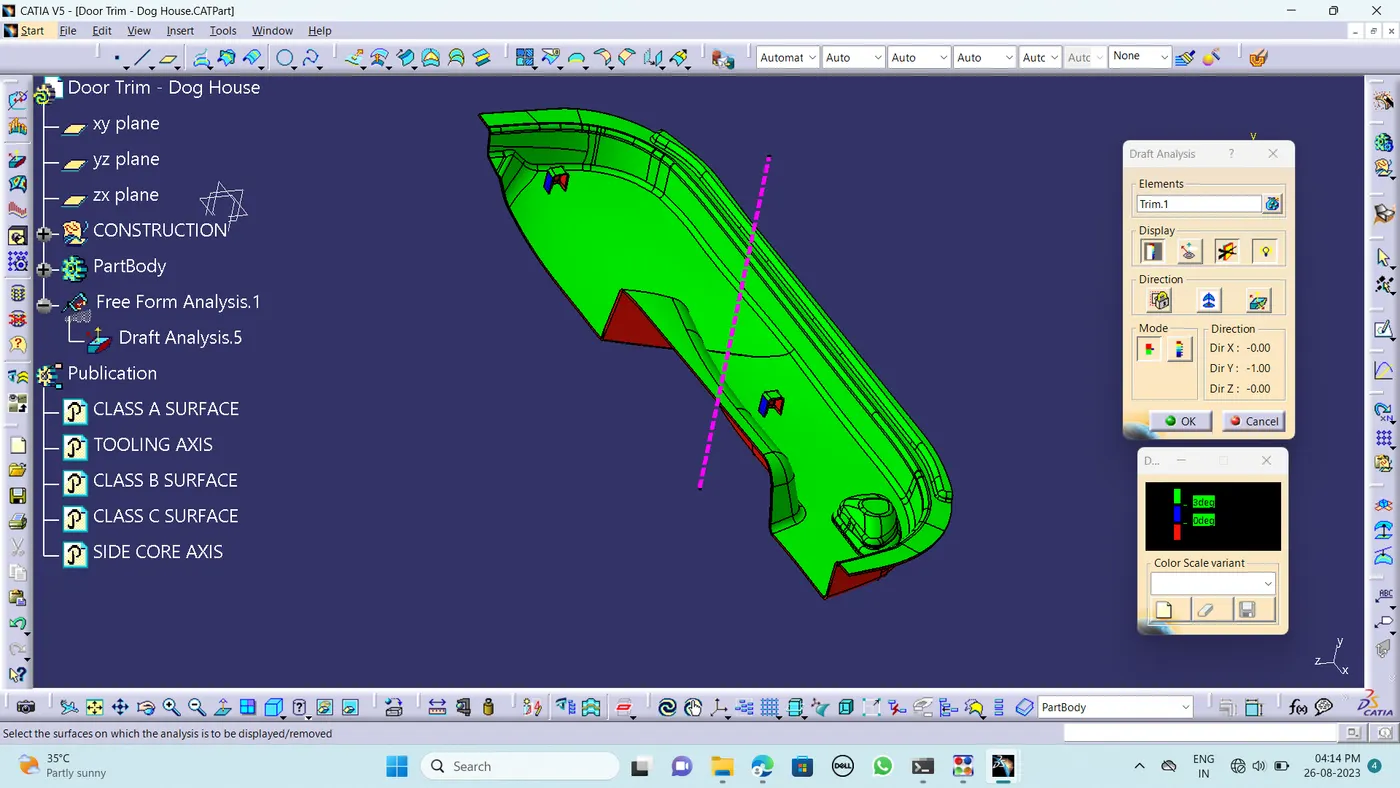

• Draft analysis for Inner side of Dog house done by Side core axis.
