Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Challange no 2 - Attachment feature creation -Dog house

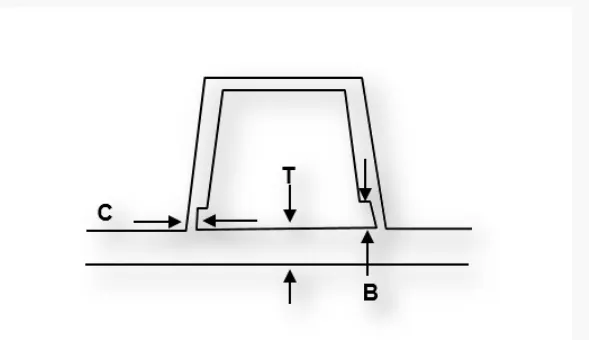

Design considerations for dog house

B = 3 to 6 mm

C = 40% of wall thickness T

Height of dog house 20 mm

Draft angle for outer faces = 1.5 degress

draft angle for inner faces = 0.50 degrees .

minimum edge fillet =0.5mm

max edge fillet 3 mm

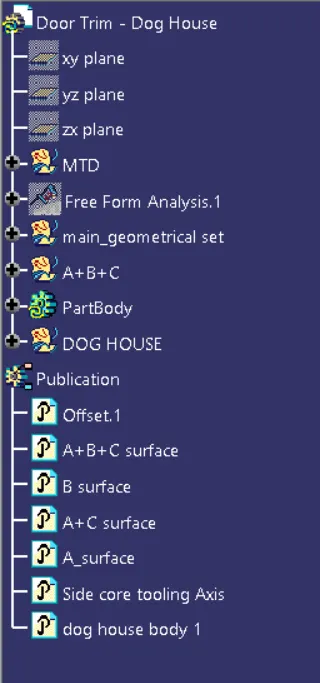

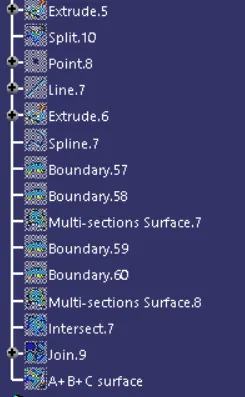

Tree structure

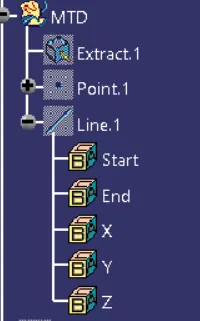

Mould tooling axis

Draft analysis

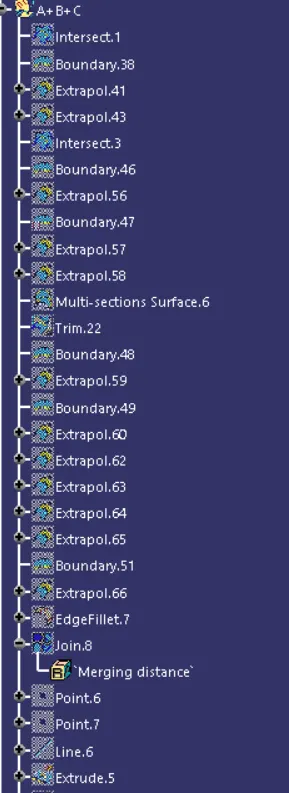

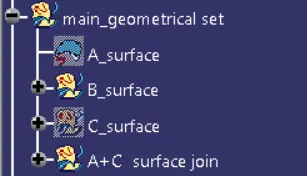

Main geometrical set

Close volume creation

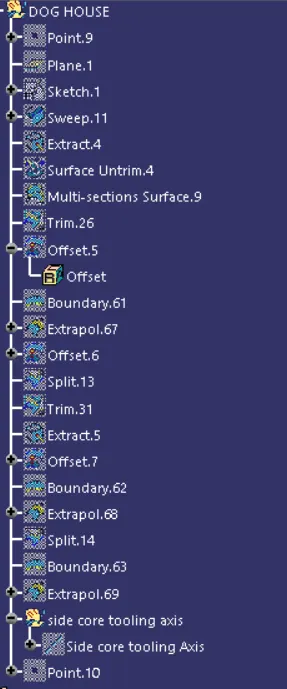

Dog house

Solid body creation

Publications

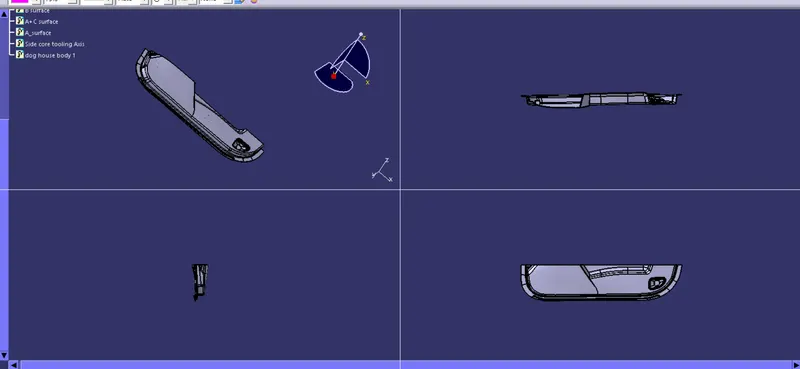

Diffrent views of component

Report on draft analysis.

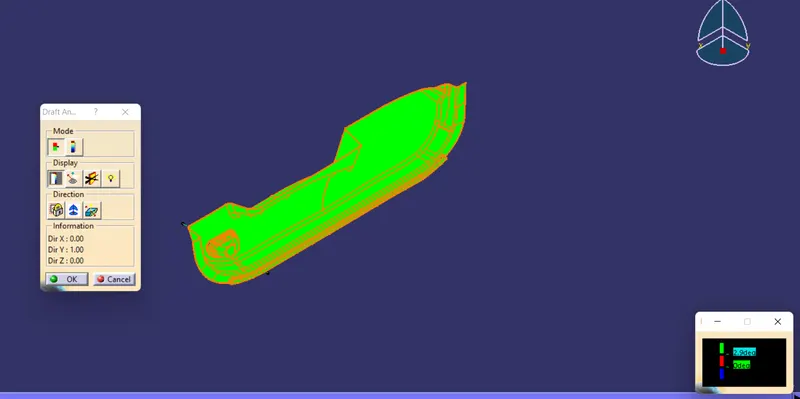

1 Class A surface Draft analysis

class A surface is clearing at 3 degrees of draft i.e. entire surface has minimum of 3 degrees of draft , thus we can proceed for class B And class C surface creation

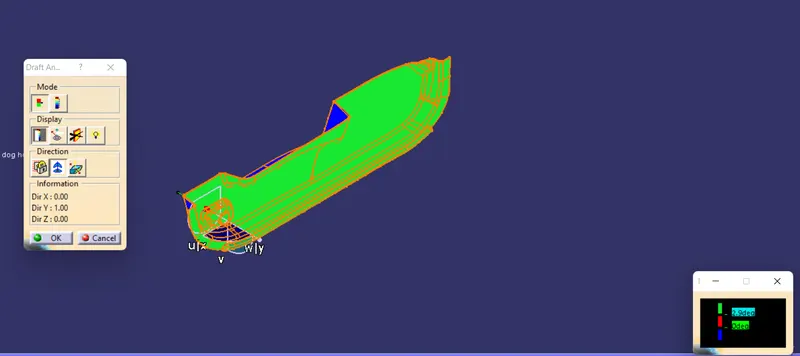

Draft analysis of closed volume

Closed volume component is clearing the minimum draft requirement
