Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

AIM :-

To Create the Dog House for the Door Trim considering the design rules mentioned. Consider the thickness of the part to be 2.5 mm.

ABSTRACT :-

We need to create the closed body 3mm tick from the provided Class A surface, before need to create the class B & class C as well. After that the Dog house has to be done with the provided guideline.

SOLUTION :-

From the provided Class A surface we need to make as a closed body with the following procedures, & finally creates a Dog house with proper constrained.

PROCEDURE 1 :- TOOLING AXIS & CHECKING CLASS_A SURFACE.

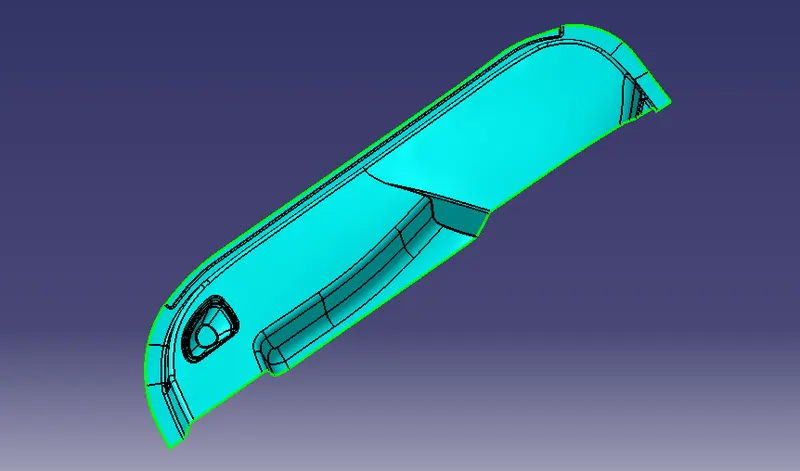

SNAP (1) :- Class_A surface checked with boundry.

SNAP (2) :- Tooling Axis

1. First we need to make a Tooling axis by any method just like
2. (x,y,z) direction method, Normal to surface & Bisecting method
3. Here we used the Bisecting method as well.
4. firstly created the simply means a Dummy tooling axis normal to surface & take a Intesection along the YZ direction & 2nd along the XY direction
5. with this 2 intersection we need to make a Tooling axis by using Bisecting line.
6. The yellow colour axis is a Tooling axis.

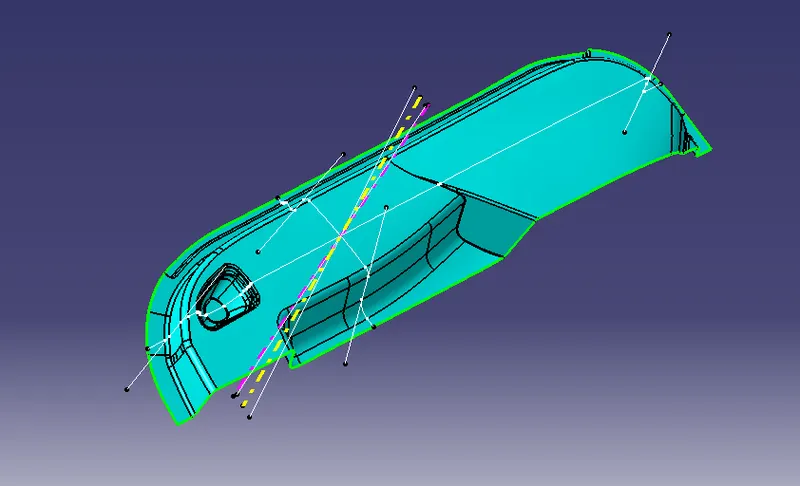

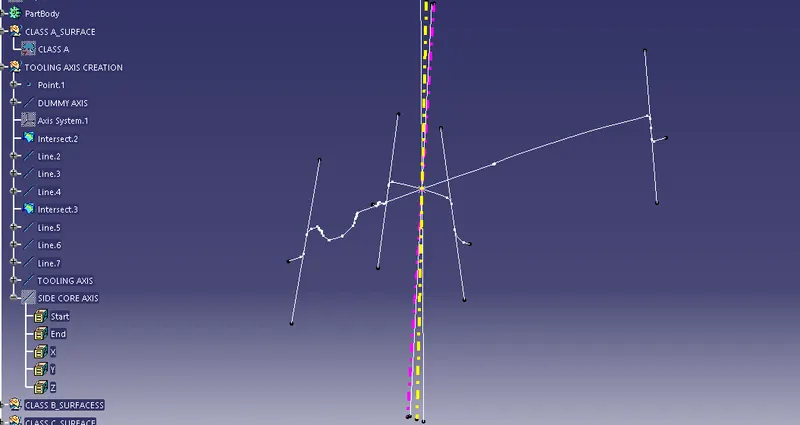

SNAP (3) :- Yellow colour axis is a Tooling axis.

PROCEDURE_2 :- Draft Analysis on class A

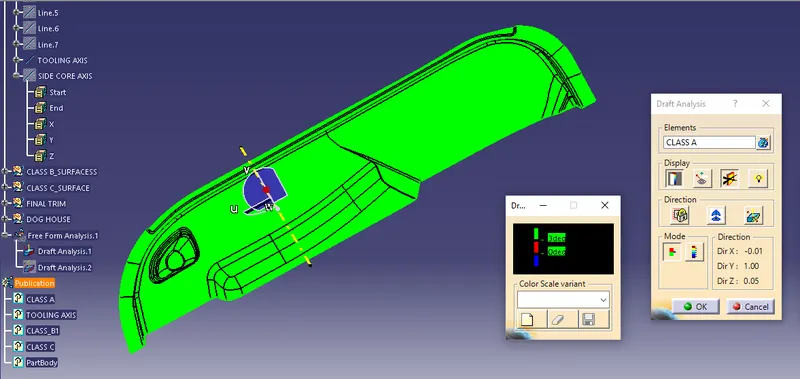

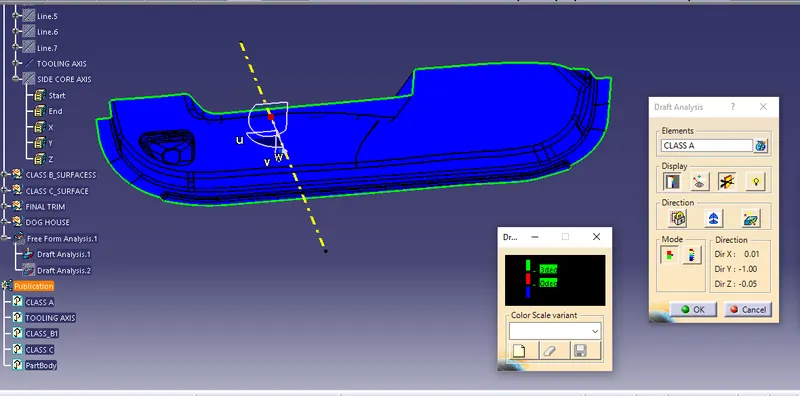

SNAP (4) :- Draft analysis Class-A surface.

SNAP (5) :- Draft analysis in reverse direction.

PROCEDURE (3) :- Creation the Class B surface.

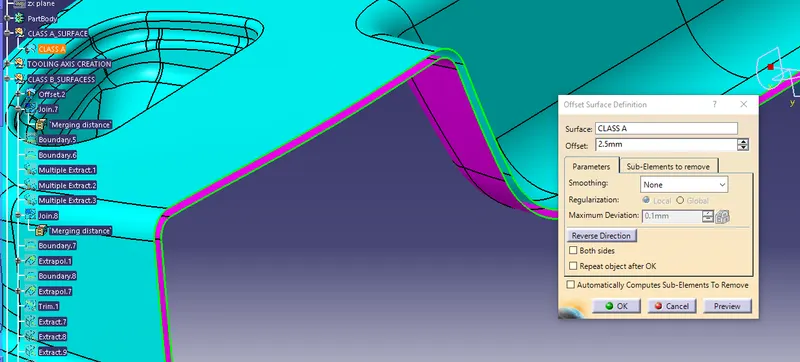

SNAP (6) :- Offset from the class A

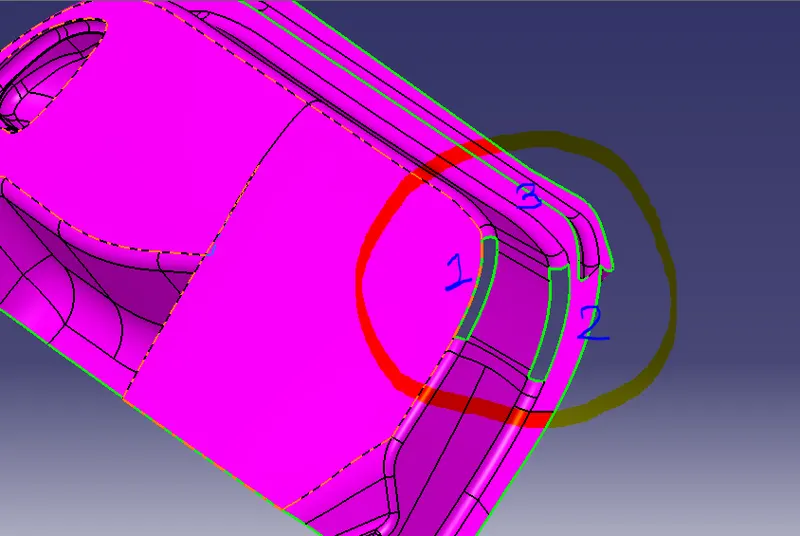

SNAP (7) :- Multiple patches found on Class B surface

1. After the offseted Class A surface with an 2.5 mm diamension we got a Class B surface
2. But there is a multiple of patches has found , at 3 places.
3. Then we need to take a multiple extract to flat surfaces & untrim to it.
4. This untrim surface has need to extrapolate & make a trim and finally provide a fillet radius as well.

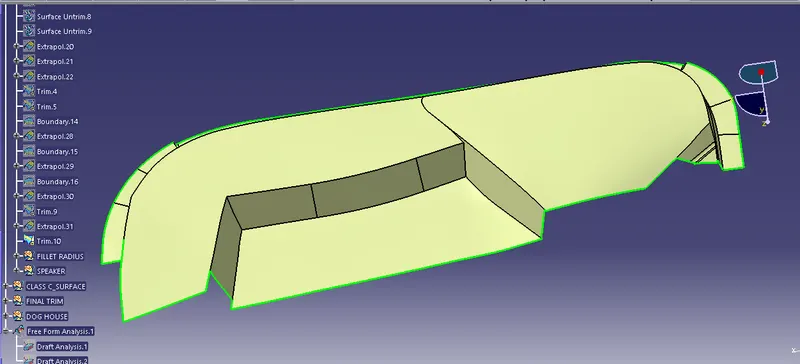

SNAP (8) :- CLASS B SURFACE without fillets radius

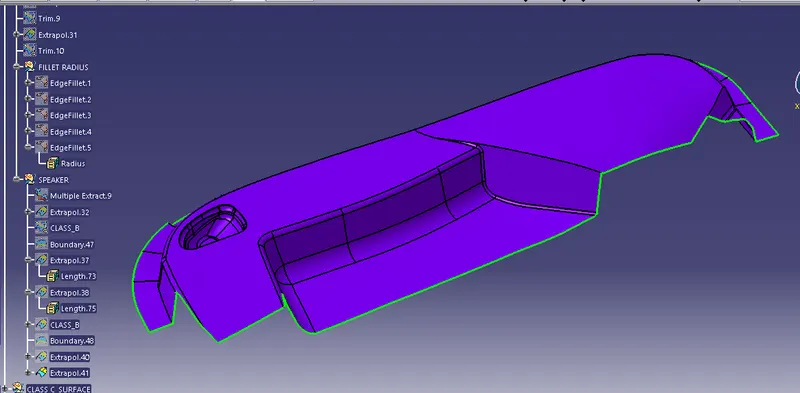

SNAP (9) :- FINAL CLASS B SURFACE

PROCEDURE_4 :- C_Surface Creation.

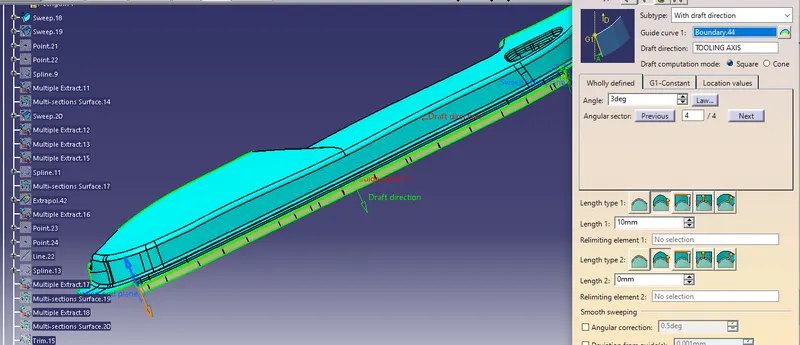

SNAP (10) :- C_surface created with the referance Class a & toolinfg axis.

1. For the C_surface creation we used commonly 2 types of sweeps.
2. With referance surface & Draft direction.
3. The edges which are parallel to the Tooling axis we nee d to used with Draft direction , tooling axis with 3 Degree angle.
4. And the edges which are perpendicular to the tooling axis we need to used with the referance surface & referance take as a Class A.

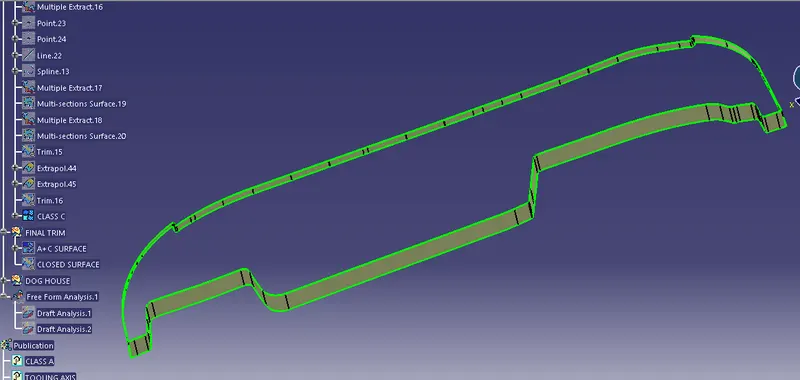

SNAP (11) :- Complete Class C surface

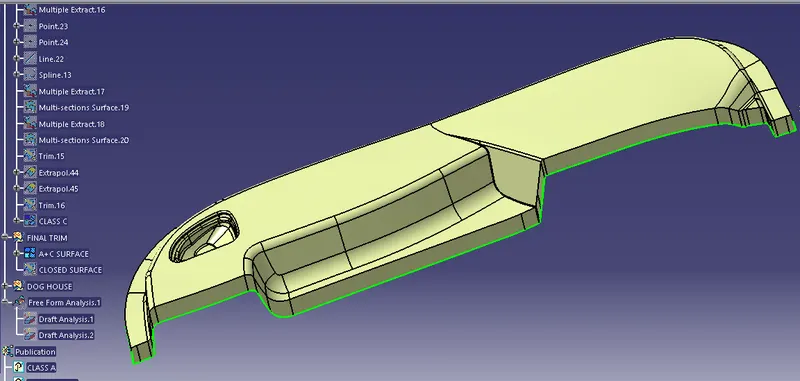

SNAP (12) :- Added Class A+C

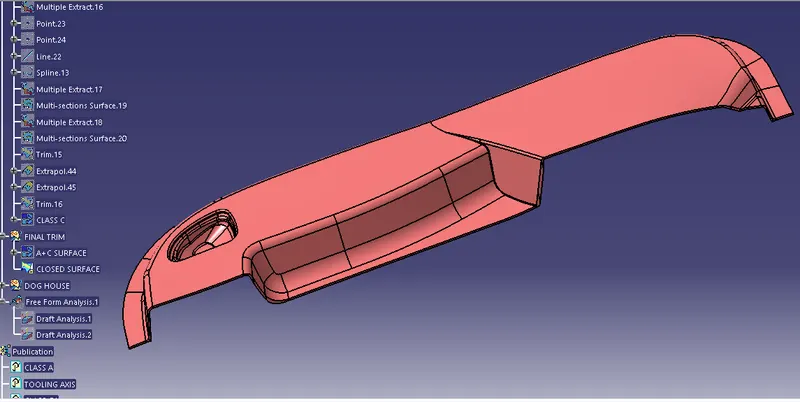

SNAP (13) :- FINAL TRIM / CLOSED SURFACE

PROCEDURE_5 :- Draft Analysis On the closed surface

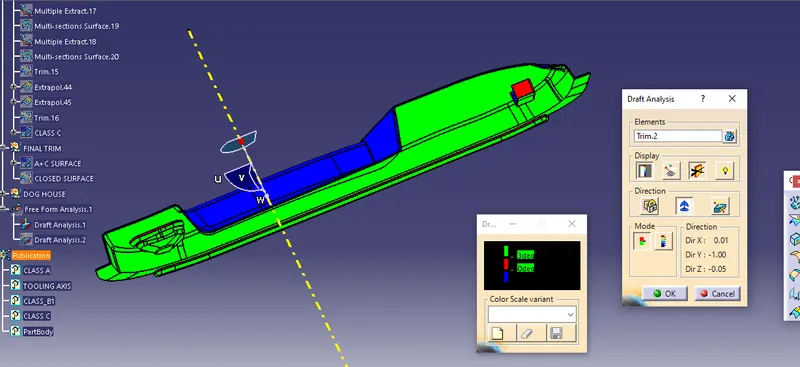

SNAP (14) :- Draft Analysis on closed body with ckeckiing 3 degree draft angle.

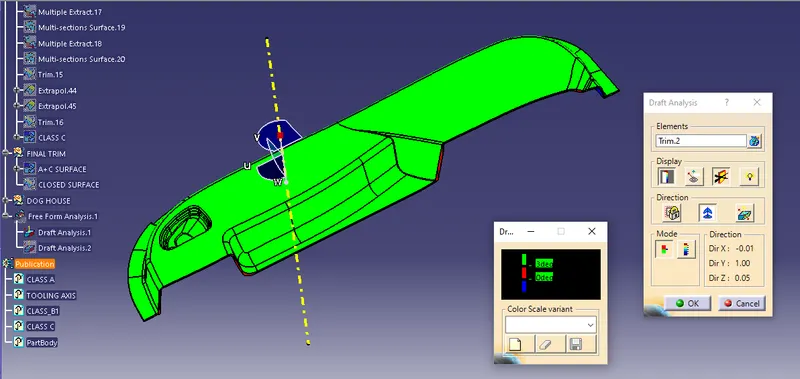

SNAP (15) :- Reverse direction Draft analysis

PROCEDURE_6 :- Dog house Creation.

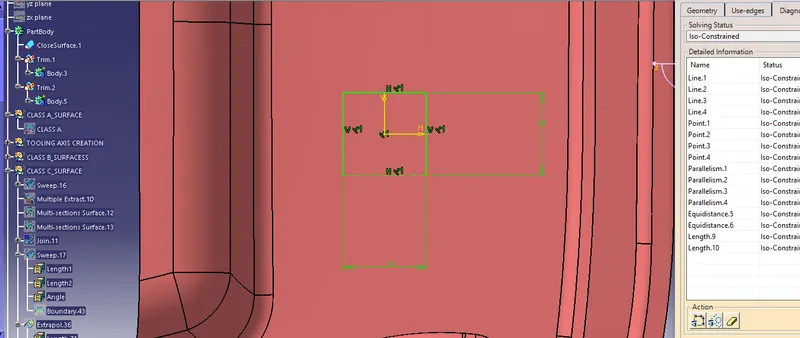

SNAP (16) :- Sketch of Dog House with iso-constrained

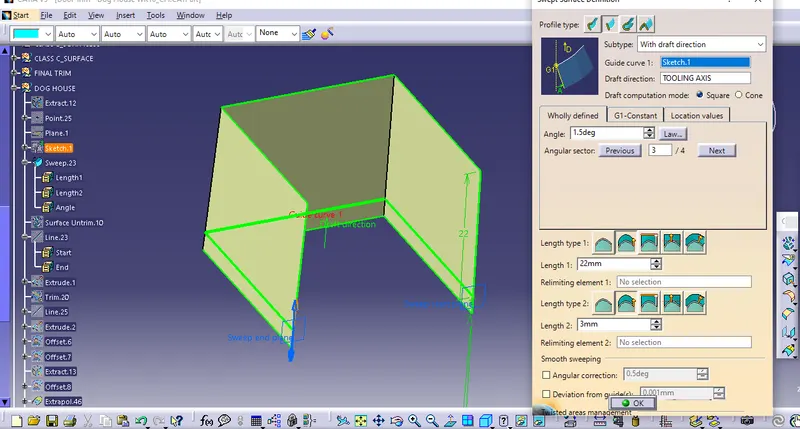

SNAP (17) :- Sweep to be taken to dog house

SNAP (18) :- Thicken to dog house

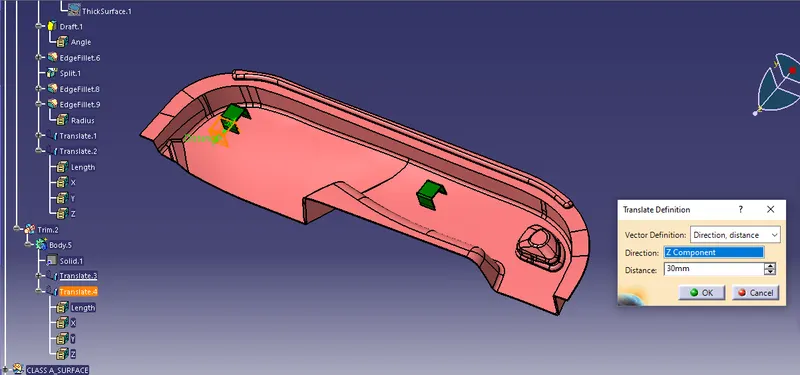

SNAP (19) :- Translate the Dog House with proper position.

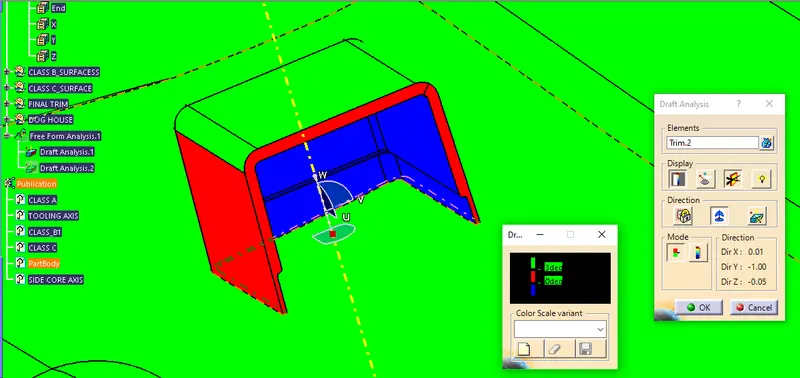

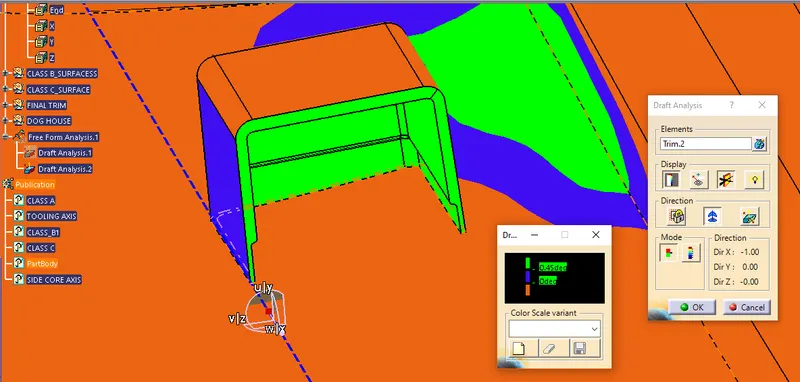

SNAP (20) :- Draft Analysis with tooling axis by 3 degree angle

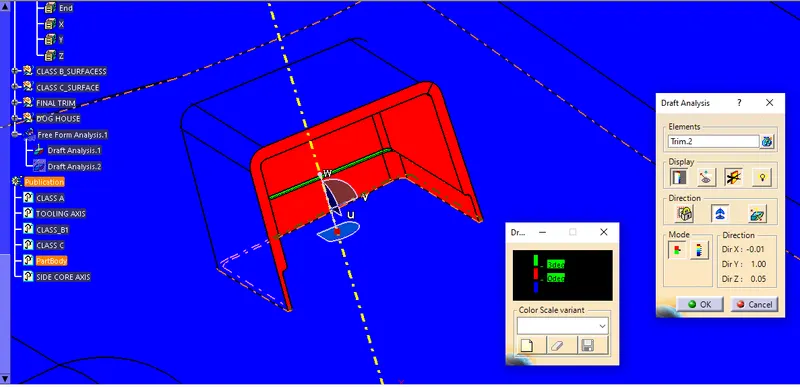

SNAP (21) :- REVERSE DIRECTION

SNAP (22) :- Draft analysis by Side core Axis with 1.45 degree angle.

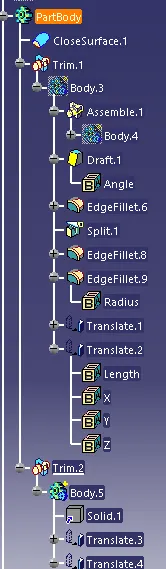

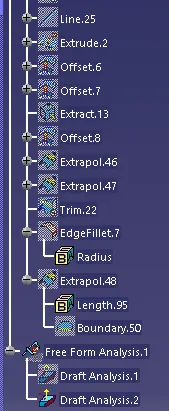

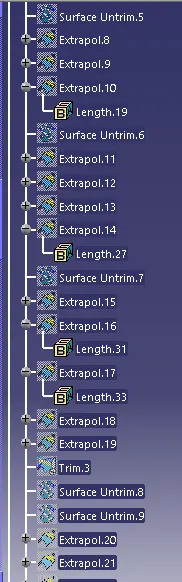

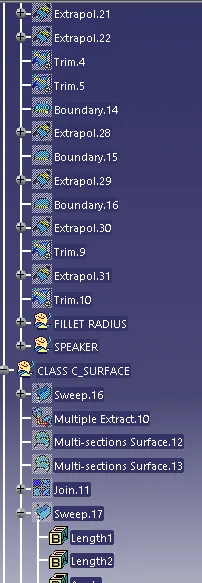

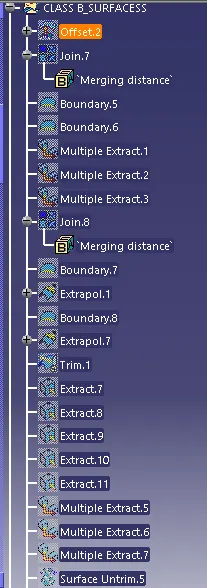

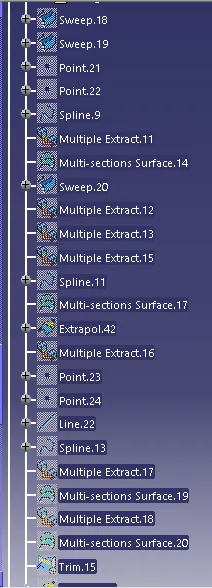

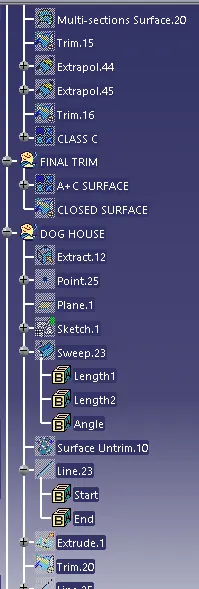

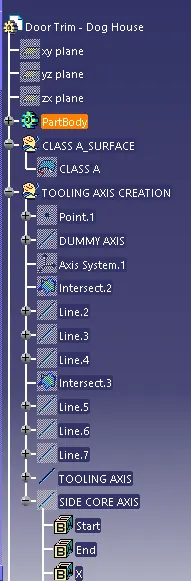

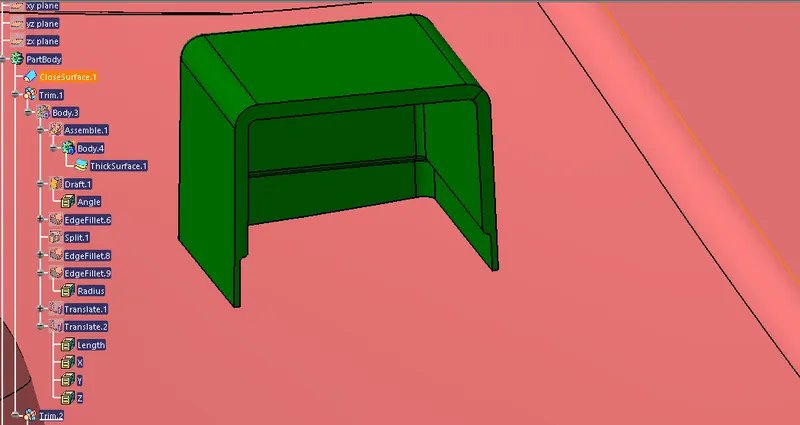

• TREE STRUCTURE

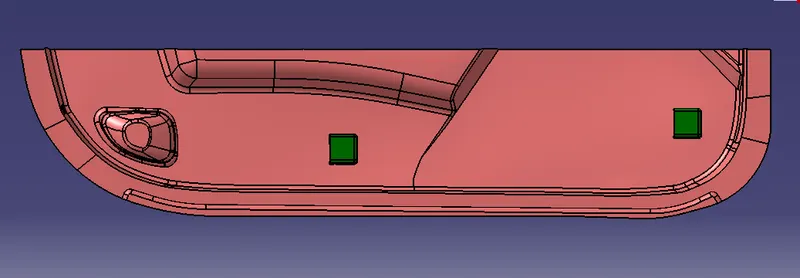

• FINAL COMPONENT

CONCLUSION :-

In this way we have created the closed body with Class A surface creation Class B & C surfaces. And finally Provided the Dog house with using the guidelines withh proper place & Draft anaysis. The required snaps are attached to the report with the explanation give to it. The Catia Cat part file are browse as well.

Thank You.
