Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

REPORT:

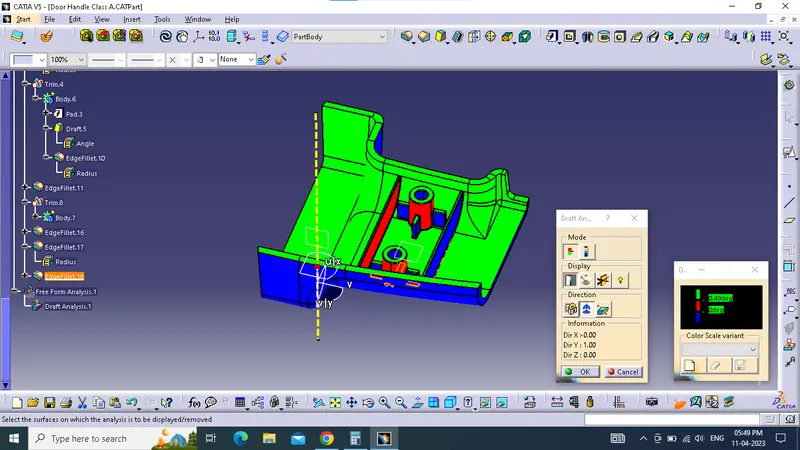

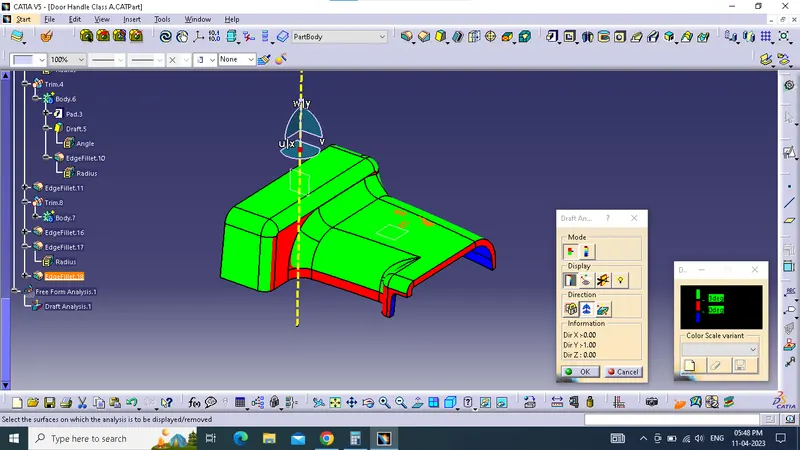

THE DAFT ANALYSIS FOR THE GIVE BUMPER IS DONE BY USING THE VERSION CATIA V5 2019.

THE GREEN COLUR INDICATES THE DRAFT ANGLE IS ~3 DEGREE.

THE RED COLOUR INDICATES THE DRAFT ANGLE IS ZERO DEGREE.

THE BLUE COLUR INDICATES THE NEGATIVE DEGREE WHICH IS BELOW THAN 3 DEGREE.

NOTE:

THE DRAFT ANALYSIS MAY HAVE SOME ERROR DUE TO THE ERRORS IN CLASS A SURFACE.
