Week 8 - Challenge 2 - Switch Bezel Design

REPORT:

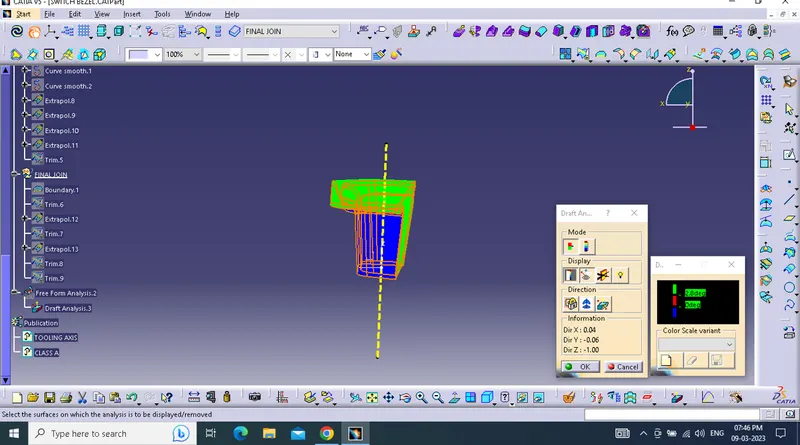

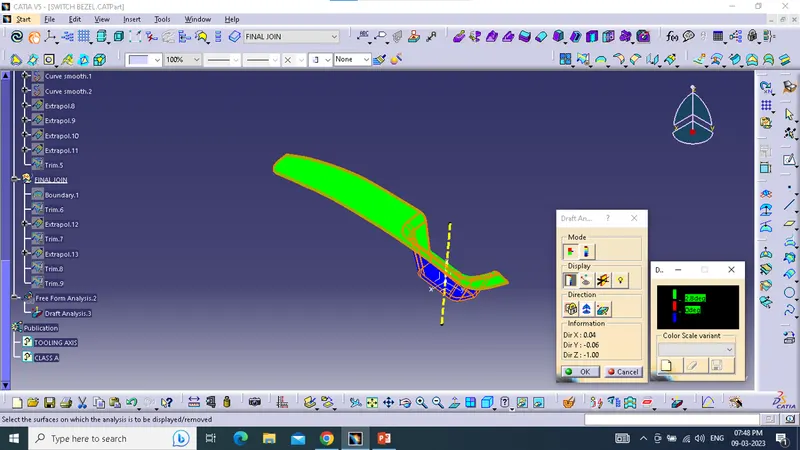

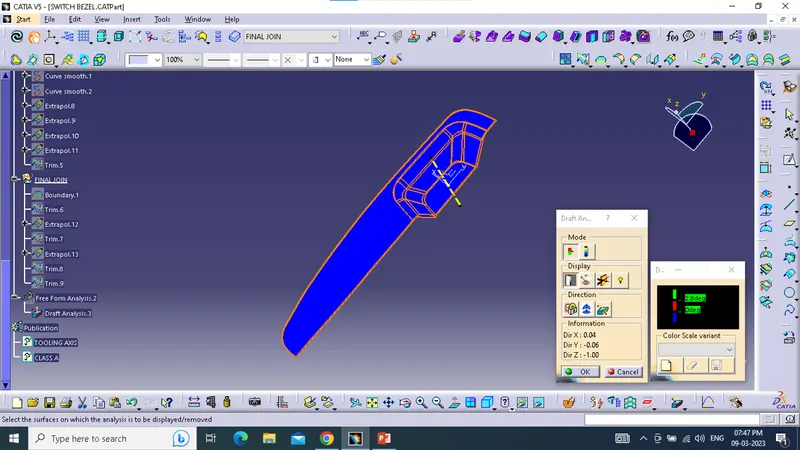

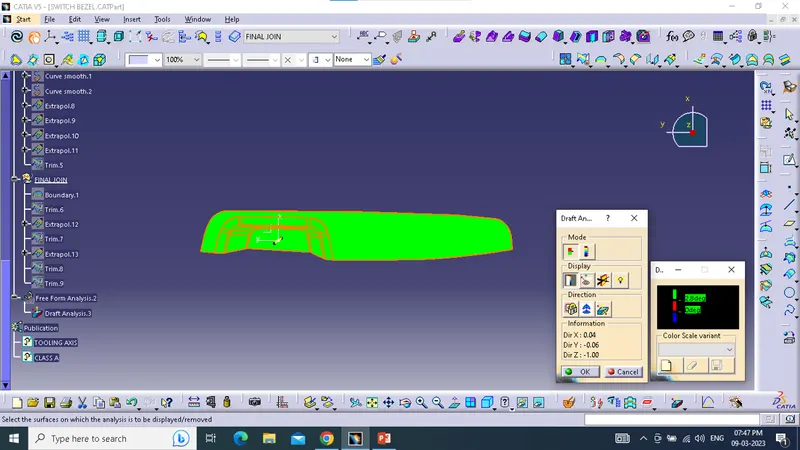

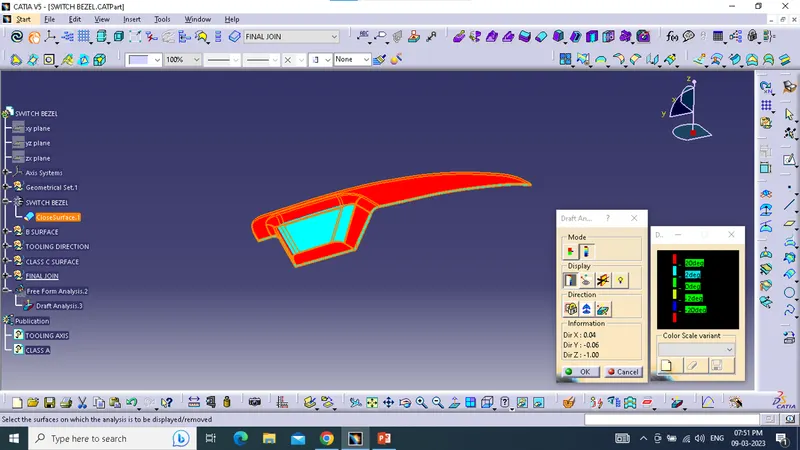

DRAFT ANALYSIS:

The draft direction is 2.8 degree because i am using the pirated version some API files are missing the so the draft analysis are not so percised.

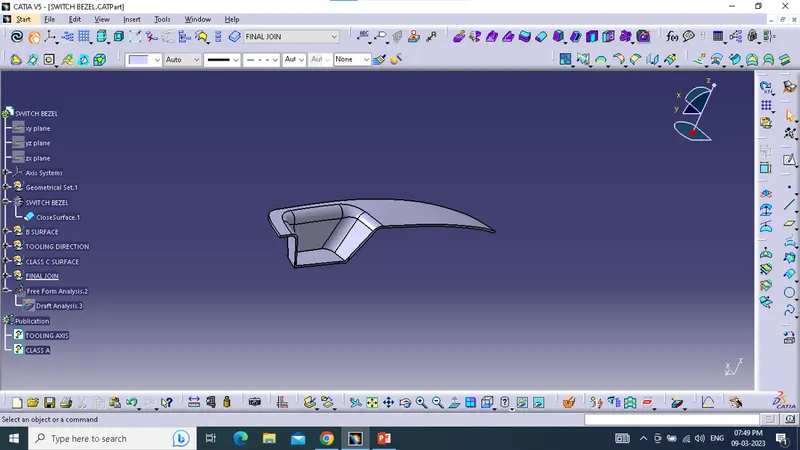

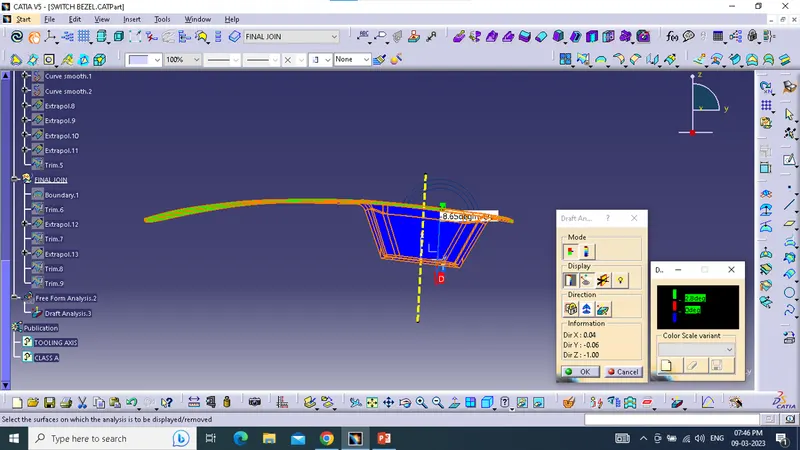

TOOLING DIRECTION:

The tooling direction is creatred by using the metho that was mentioned in the video.

1. a point should be created on the base surface of the switch bezel the dimension of the point should be 0.
2. creating a dummy tooling axis on the point by using the point direction and creating a intersect.
3. on facing the right side of the switch bezel creating a line on the horizontally of 6 degree.
4. using the bisecting line creating the tooling direction line.
