Week 9 - Challenge 3 - Bumper
REPORT:

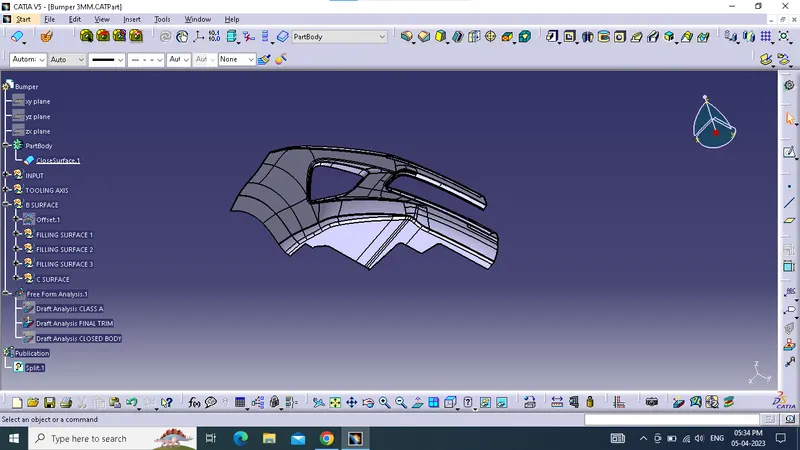

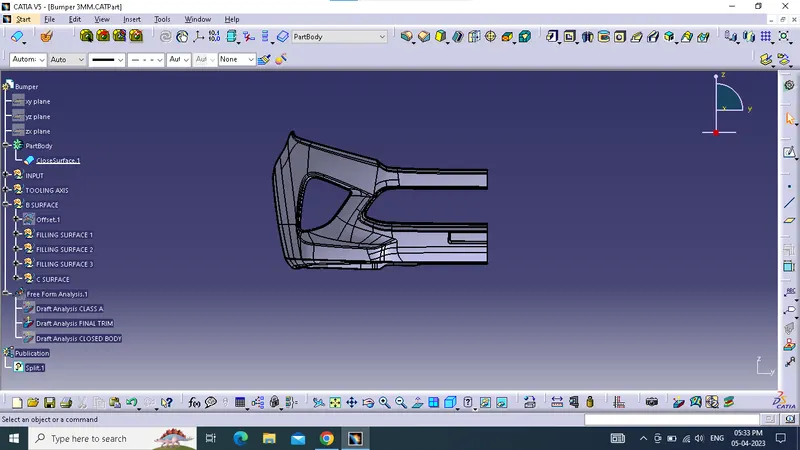

THE DAFT ANALYSIS FOR THE GIVE BUMPER IS DONE BY USING THE VERSION CATIA V5 2019.

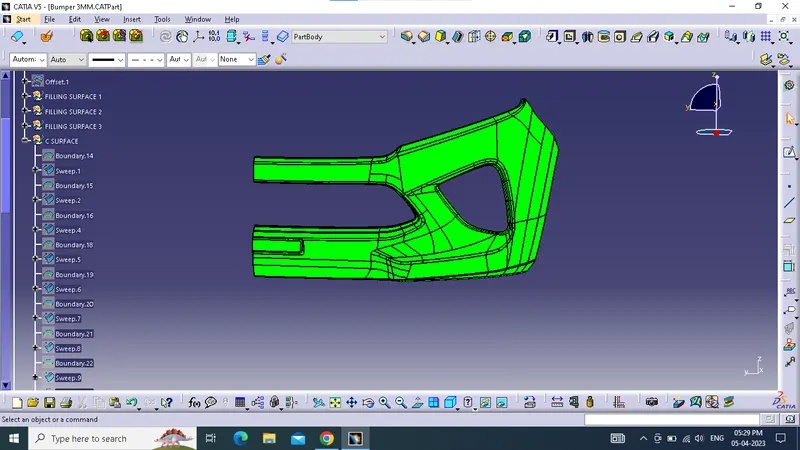

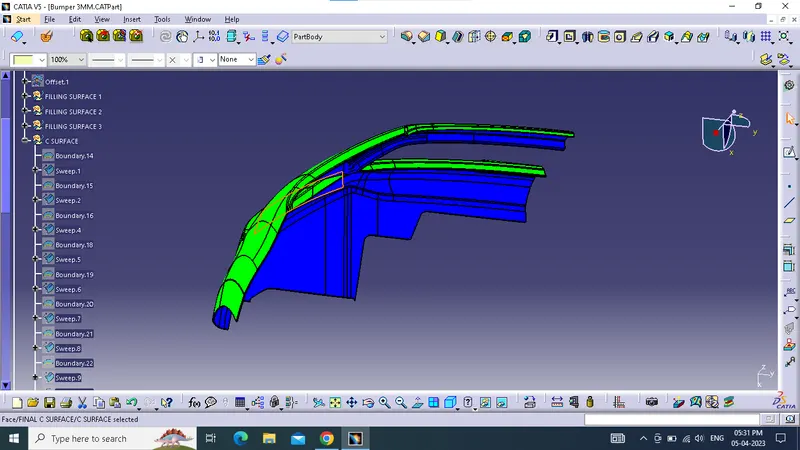

THE GREEN COLUR INDICATES THE DRAFT ANGLE IS ~3 DEGREE.
THE RED COLOUR INDICATES THE DRAFT ANGLE IS ZERO DEGREE.
THE BLUE COLUR INDICATES THE NEGATIVE DEGREE WHICH IS BELOW THAN 3 DEGREE.
