Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

SCREENSHOTS:

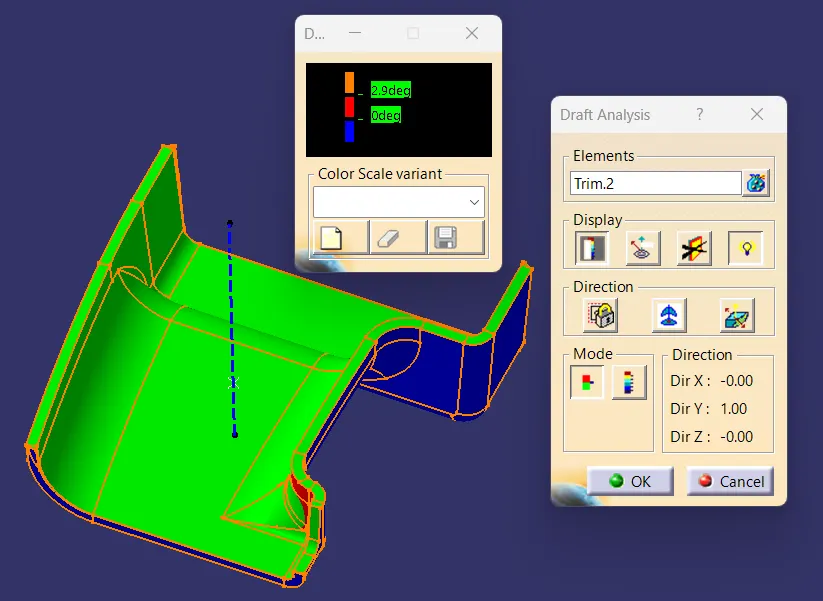

• Draft Analysis of the component before creating the ribs and screw bosses.

• Screenshots of the completed design in various orientation.

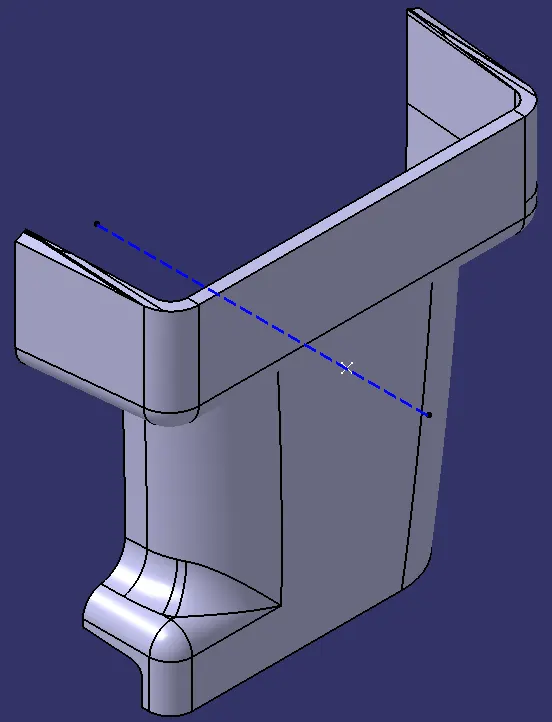

Isometric view.

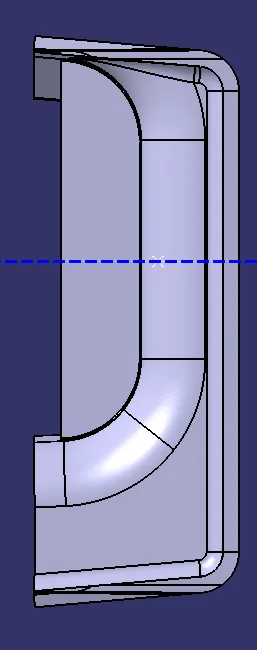

Front view.

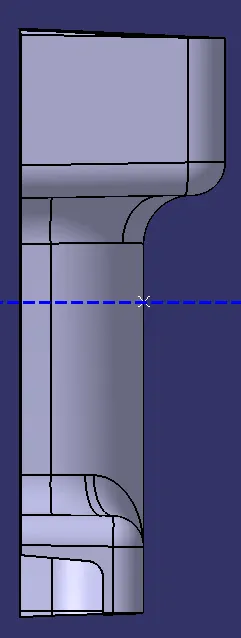

Side view.

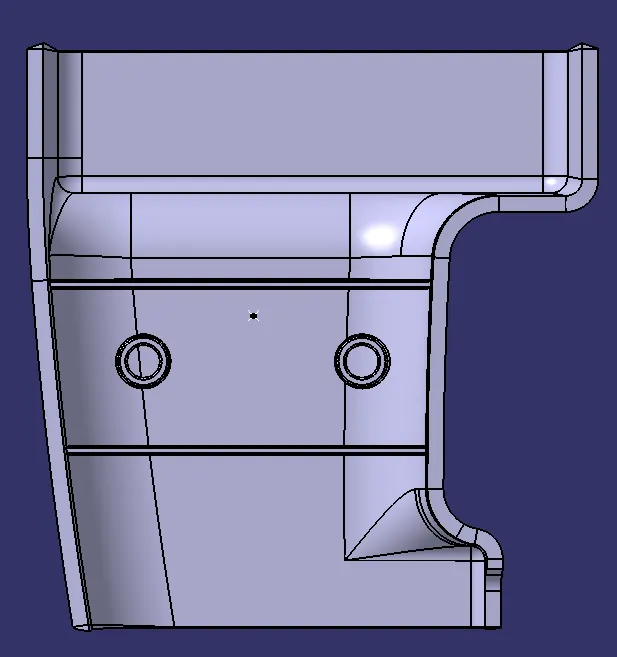

Top view.

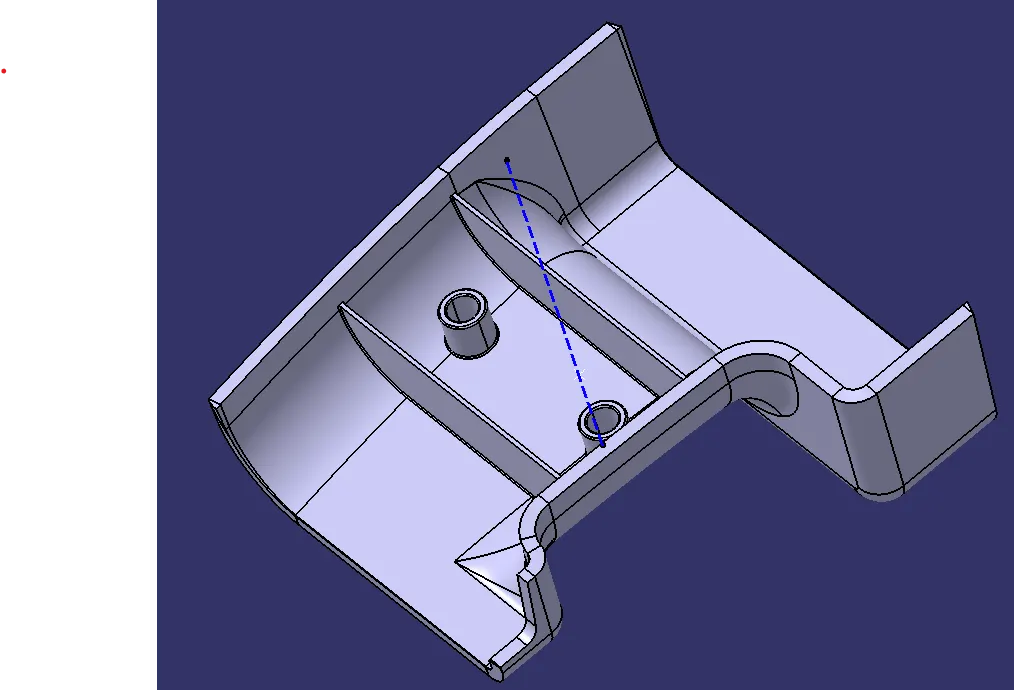

Random view.

REPORT:

• By using the dummy tooling axis creation at which all the intricate shapes will be visible and fixing it as the main tooling axis.
• Then by using the offset feature the thickness of the component is made which is 2.5mm thick and with the 3 degree draft. By using the Close Surface feature the solid body is obtained.
• The Ribs and the Screw Bosses have been created as per the instructions mention in the question and image mentioned in it.
