Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

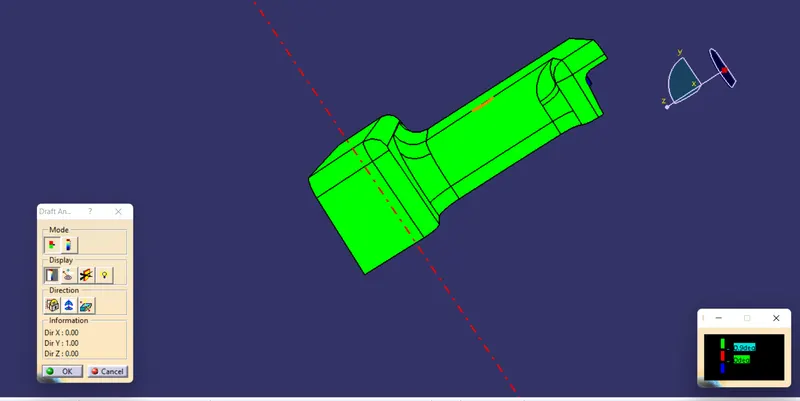

Draft analysis of final component

Draft analysis Report:

minimum draft angle should not be less than 3 degree for perpendicular surface but in case of inclined surfaces draft angle adds withe the angle of inclination . due to this inclination the draft angle less than 3 degrees is also valid .

In this part the draft analysis is clearing at 0.9 degrees .
