Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Creating

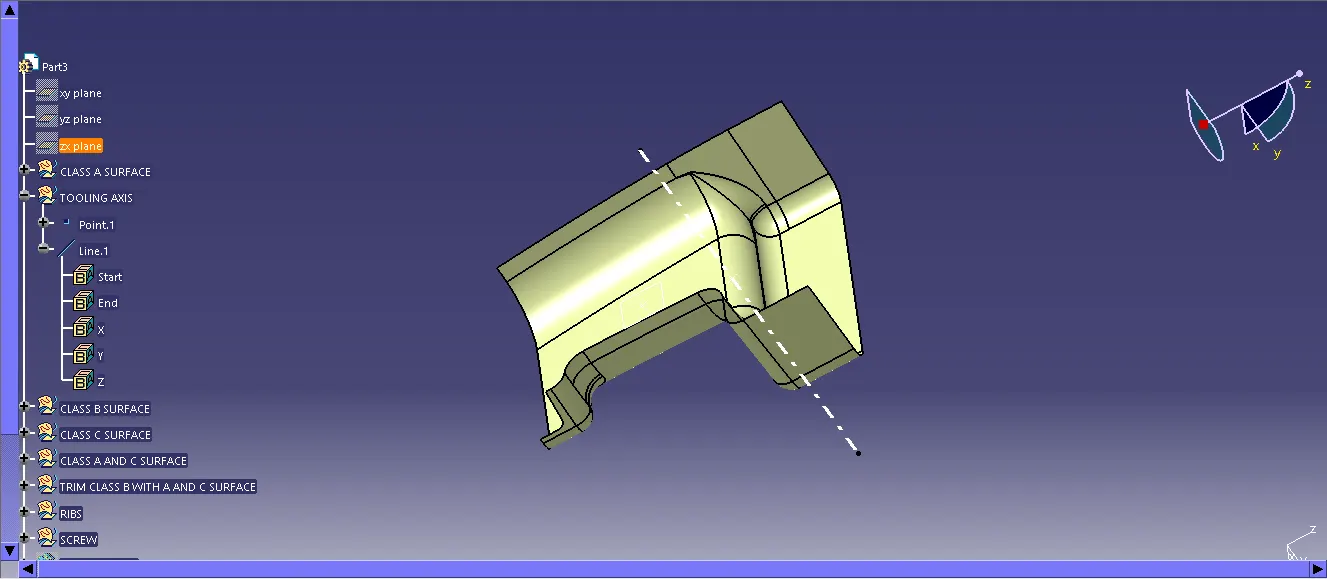

Creating a tooling axis using the CLASS A SURFACE,

Offset a CLASS B SURFACE USING CLASS A SURFACE,

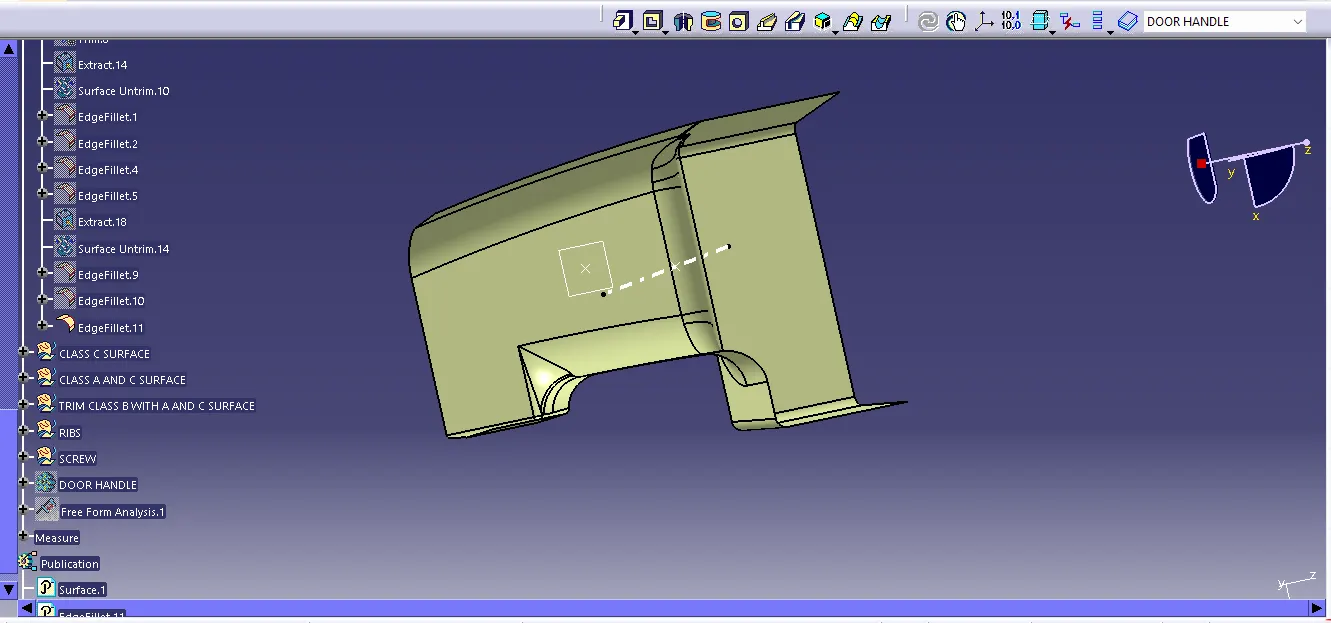

Creating a CLASS C SURFACE by using sweep commend,

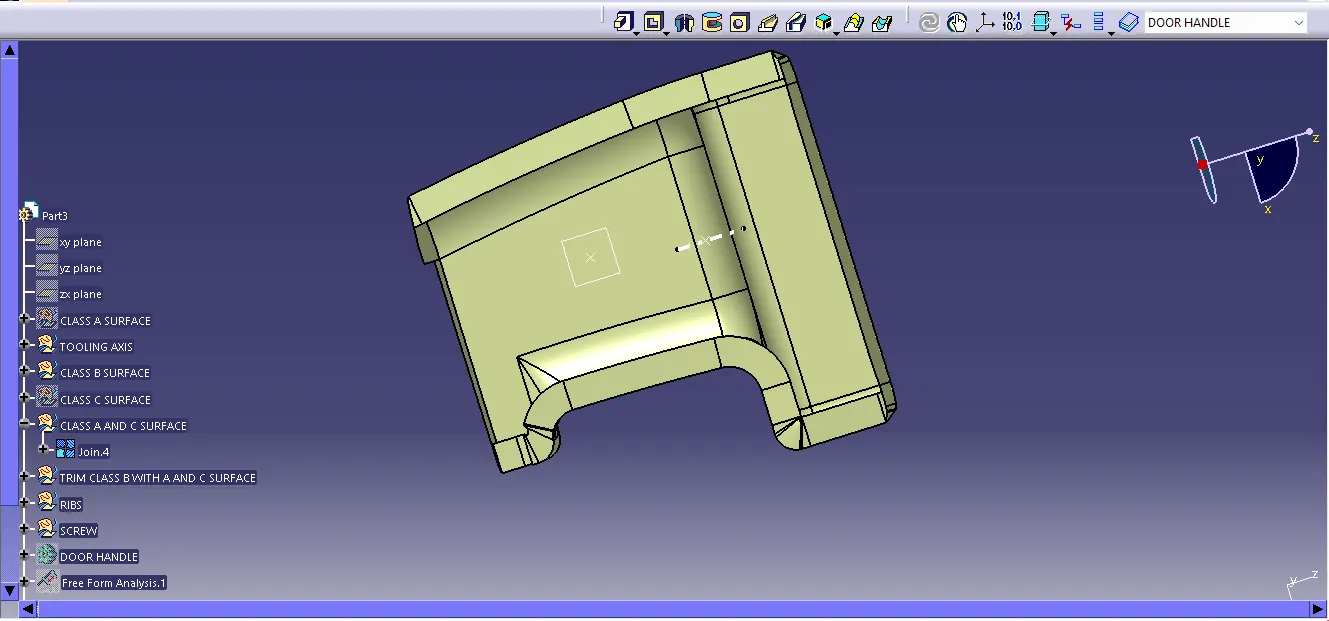

JOINING the CLASS A SURFACE AND CLASS C SURFACE,

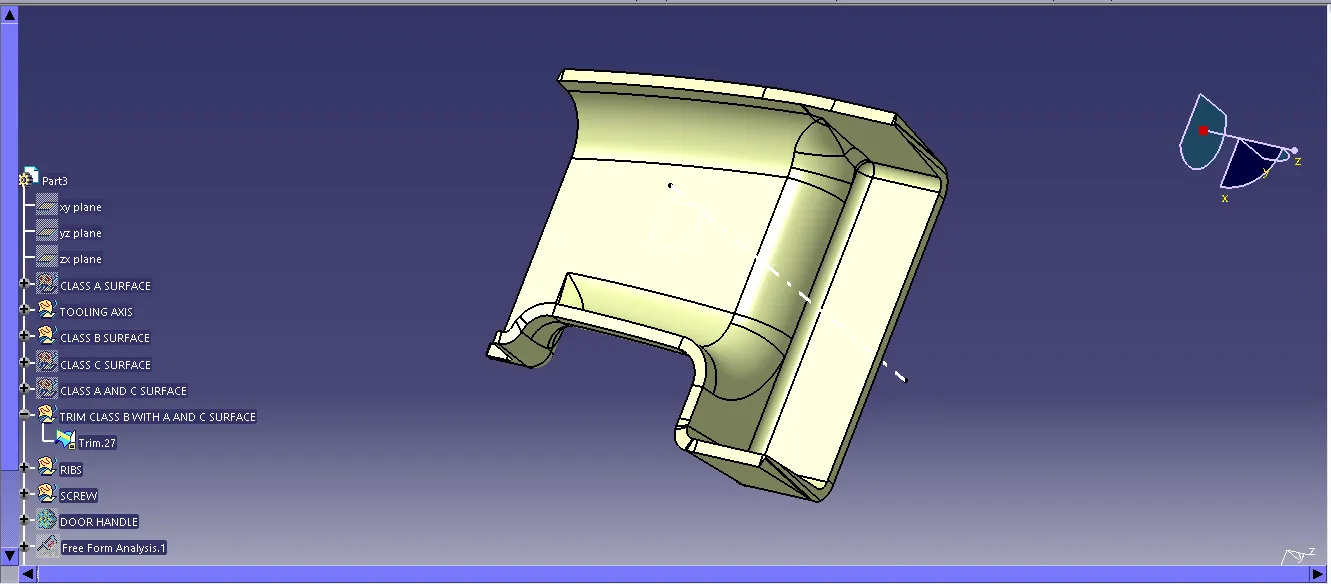

TRIM the join of CLASS A SURFACE AND CLASS C SURFACE WITH THE CLASS B SURFACE,

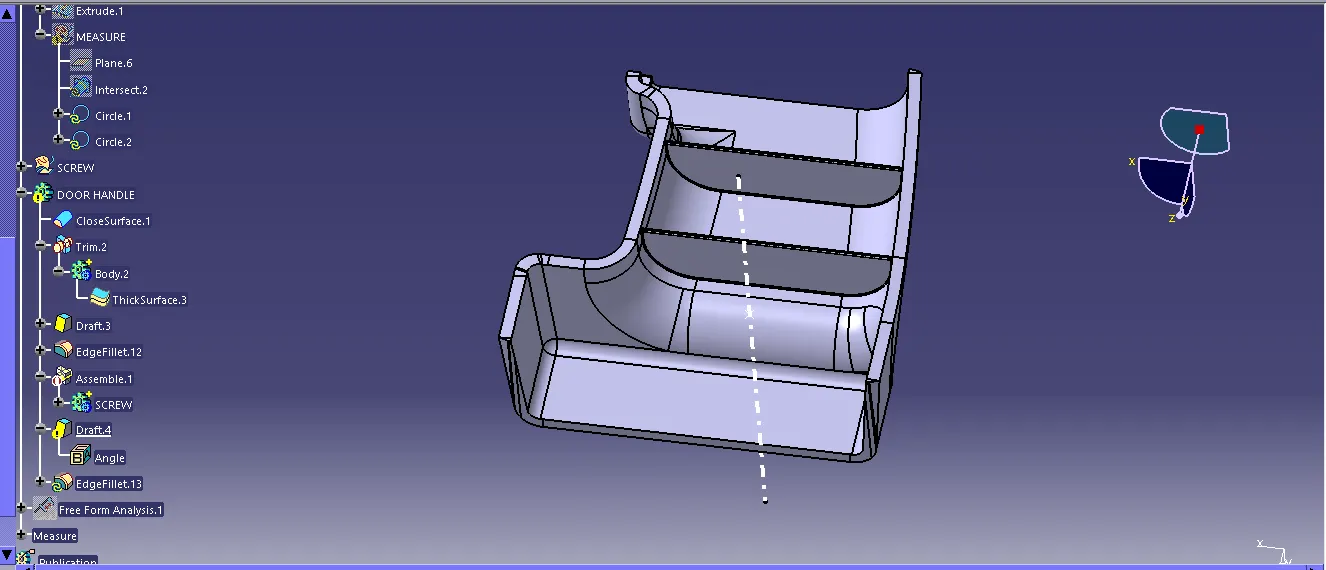

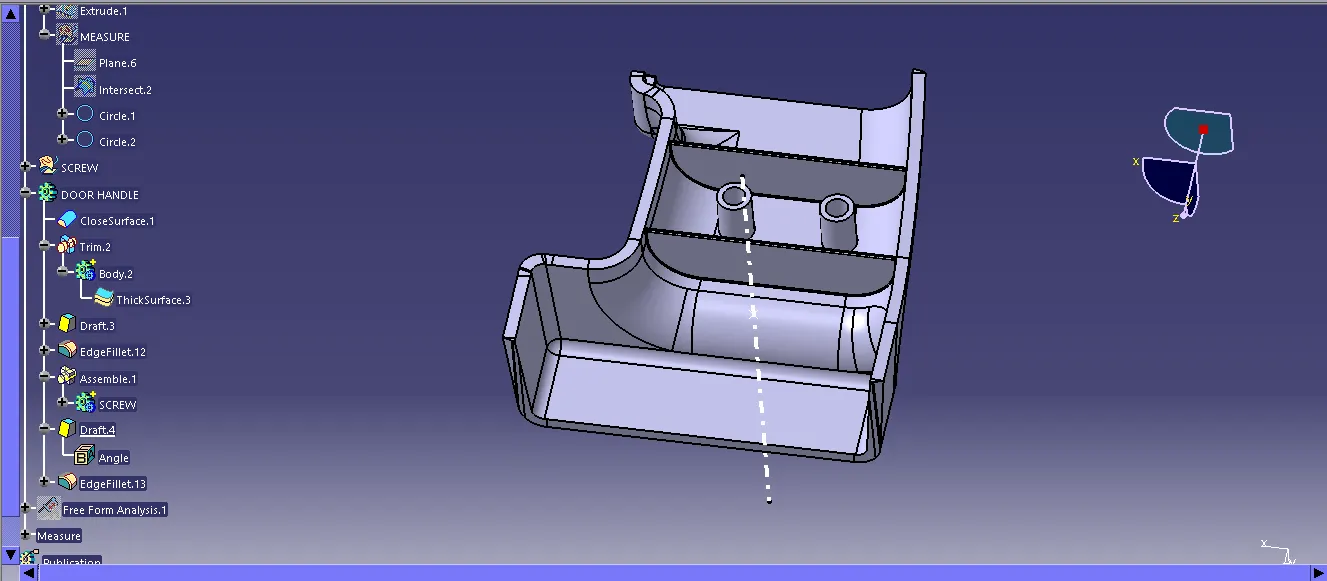

Creating a RIBS and DRAFT ANGLE in the RIBS and union trim with bass surfaace,

creating a screw boss onthe closed surface or in bass surface,

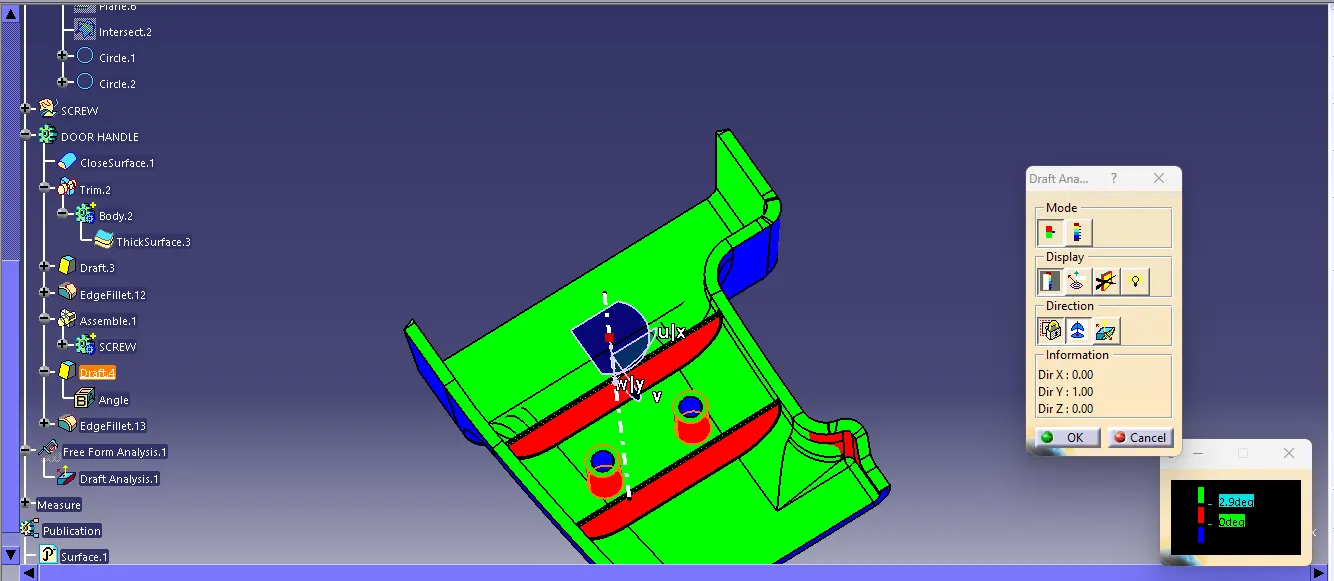

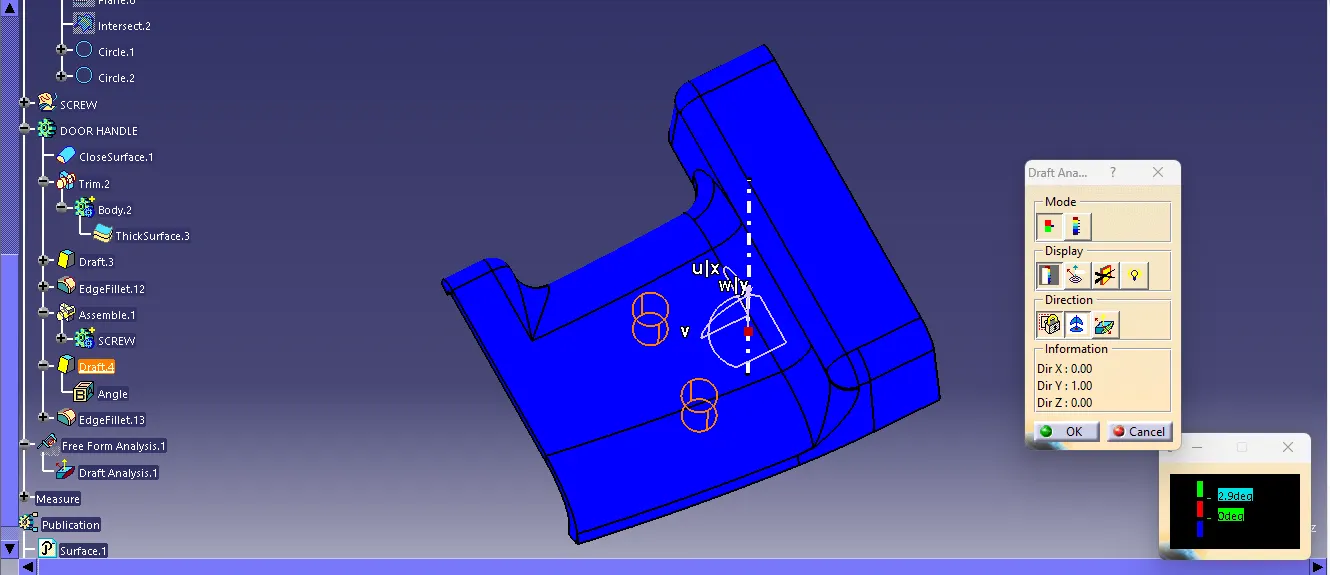

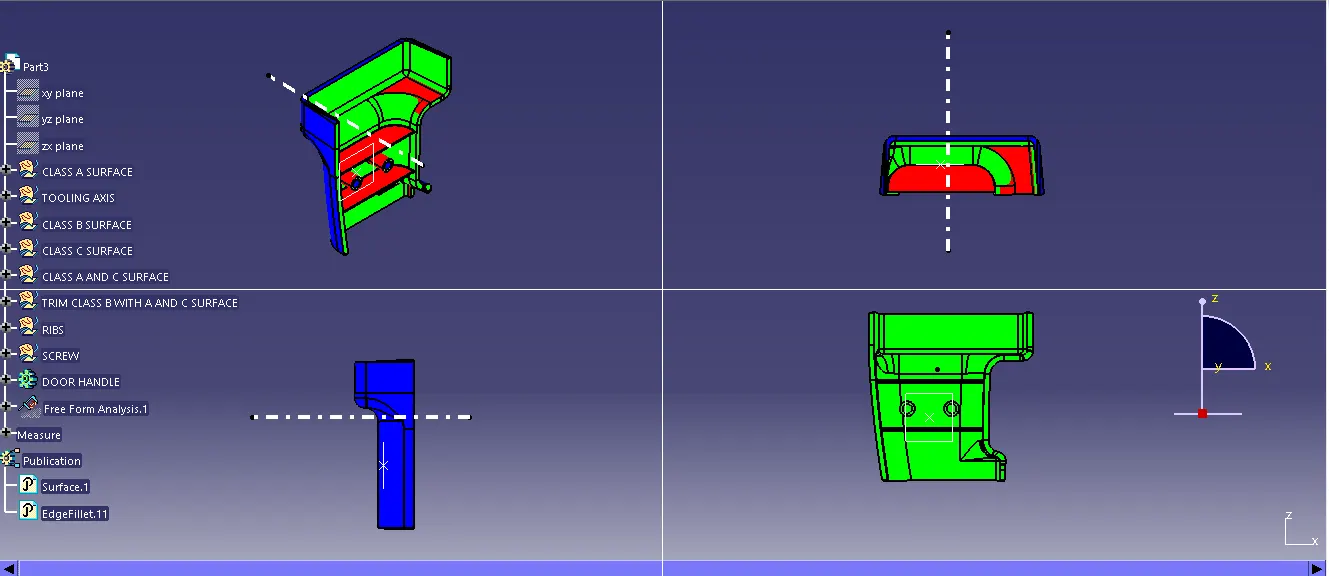

creating a draft analysis to check whether our part model created in CAD is manufacturable based on the draft condition applied,
