Week 10 Bullet penetrating a Bucket Challenge
Objective: To simulate a bucket and bullet challenge using 3 different materials for the bucket and compare the deformation and stress developed in each of the cases.
Materials:

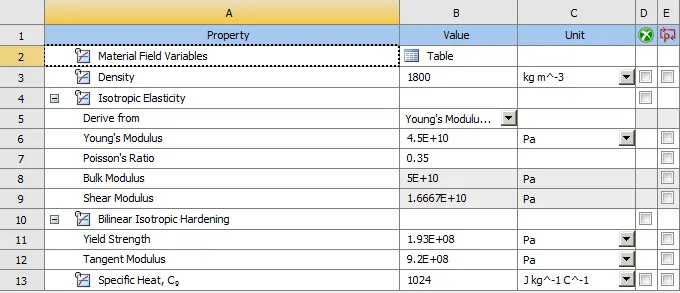

- Magnesium NL Alloy:

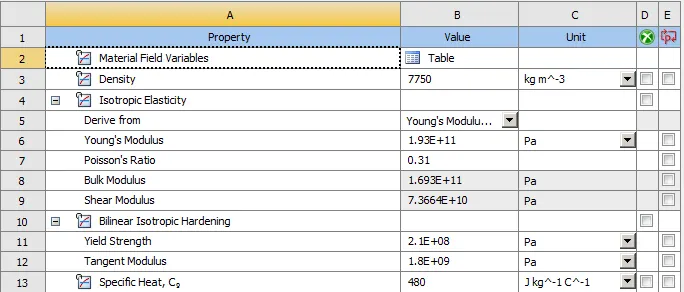

- Stainless Steel NL Alloy:

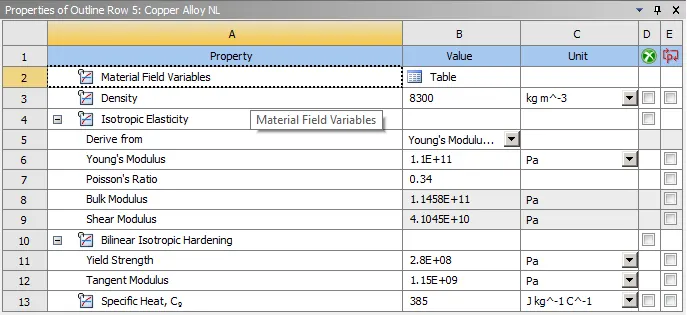

- Copper NL Alloy:

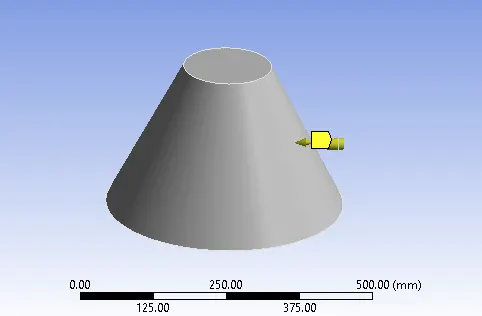

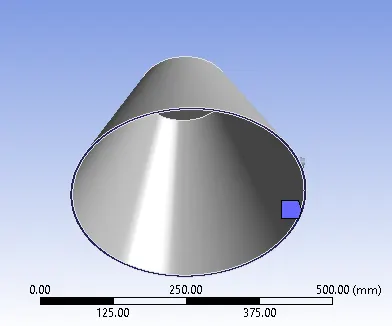

Geometry:
Connections:
As it is an explicit dynamics simulation no contact set is provided.
A body interface of frictionless type is defined.

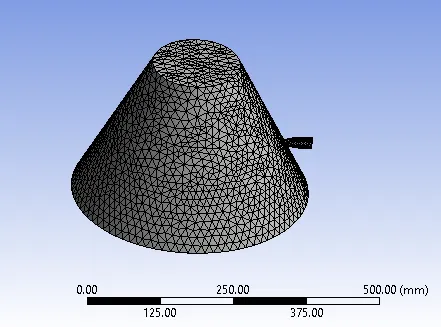

Mesh:
A body sizing is provided to the bucket and bullet.
| Nodes | Elements | |
| Mesh | 3644 | 10892 |

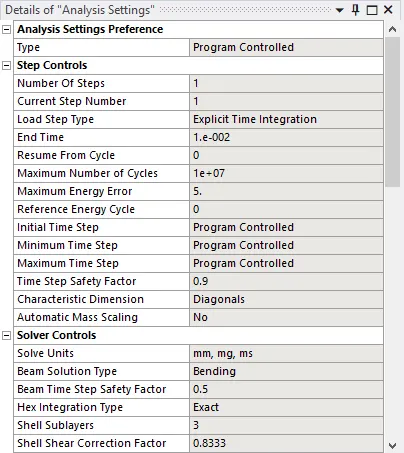

Analysis Setting:
1. Fixed Support:
A fixed support is provided to the bottom face of the bucket.

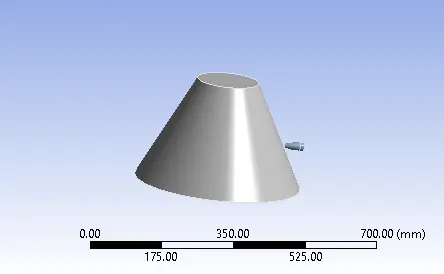

2. Velocity:
A velocity of 139m/s is given to the bullet in the negative x-direction.
Results:
1. Total Deformation:
a.Magnesium NL Alloy:

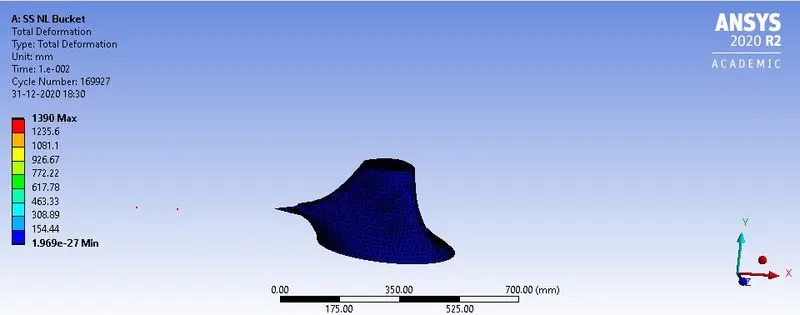

b.Stainless Steel NL Alloy:
c.Copper NL Alloy:
2. Equivalent Stress:

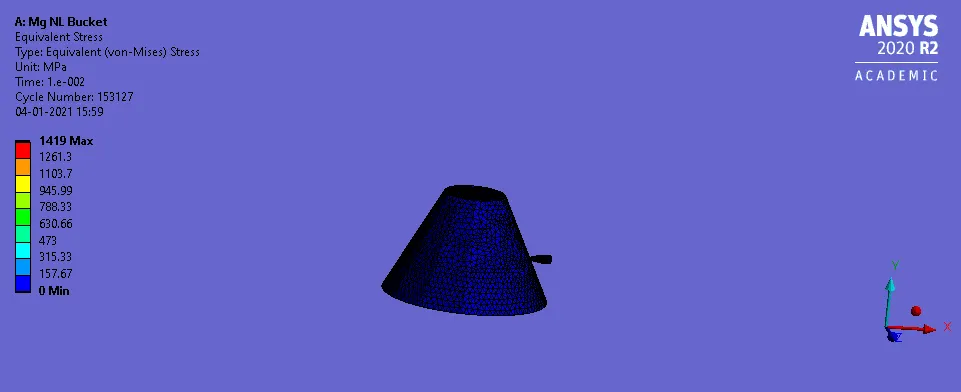

a.Magnesium NL Alloy:
b.Stainless Steel NL Alloy:

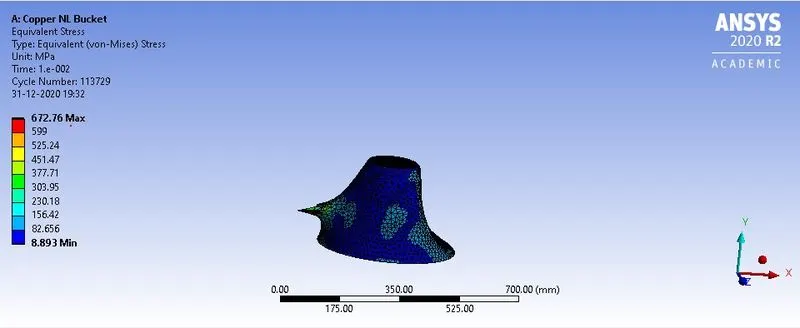

c.Copper NL Alloy:
| Magnesium NL Alloy | Stainless Steel NL Alloy | Copper NL Alloy | |
| Total Deformation(mm) | 1390 | 1390 | 1390 |
| Equivalent Stress(MPa) | 1419 | 1529.1 | 672.76 |
