Week 10- Assembly Workbench

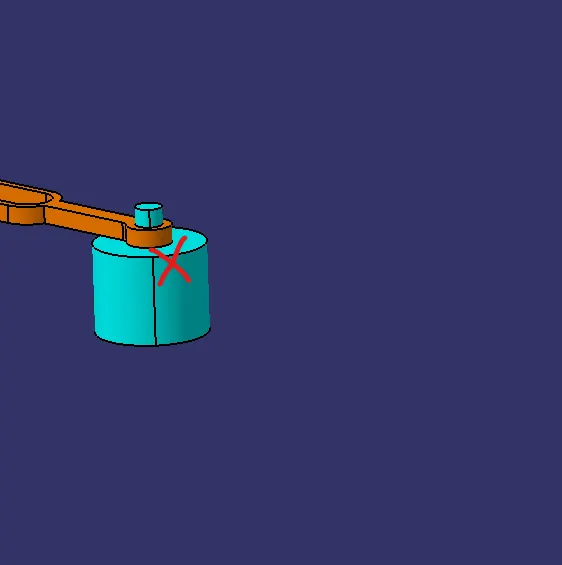

THE CROSS SHOWS THE BLUE PART IS FIXED.

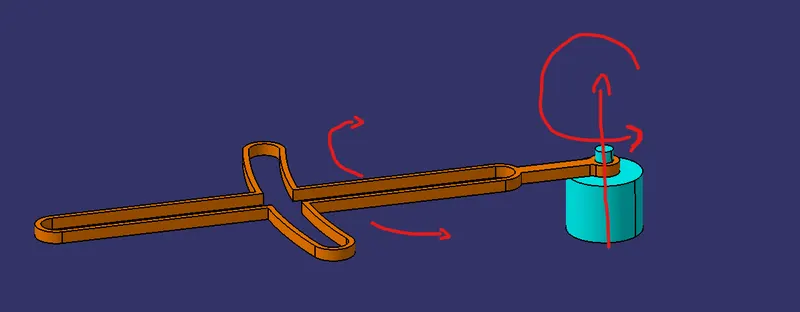

ALL MOVEMENTS ARE CONSTRAINED EXCEPT Y AXIS ROTATION.

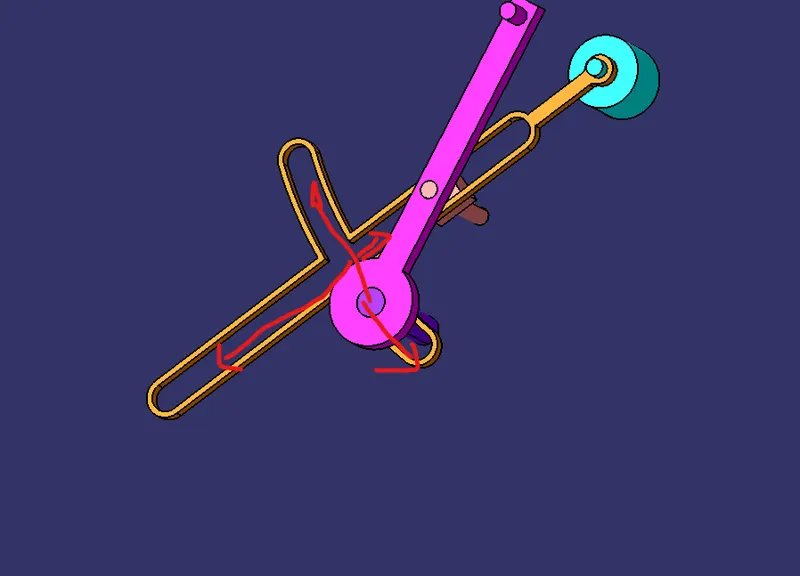

THE PATH OF THE FOLLOWER IS ALONG THE ARROW DIRECTION.

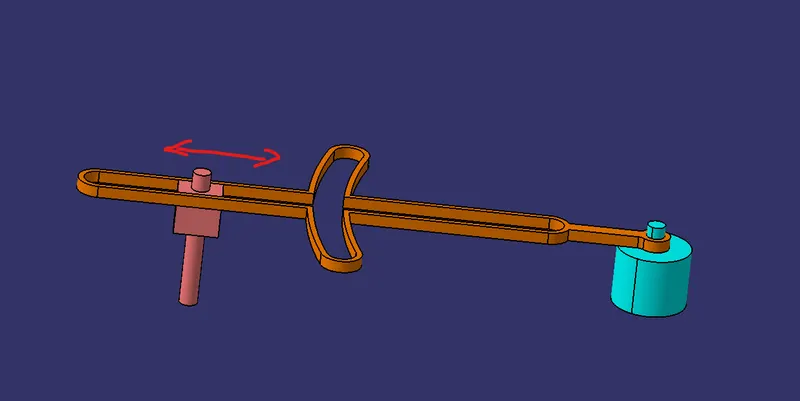

ARROWS SHOWS THE PATH OF THE FOLLOWERS.

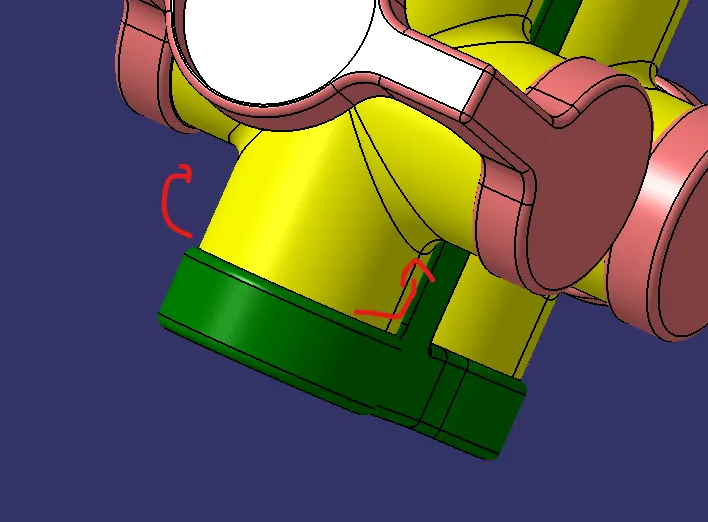

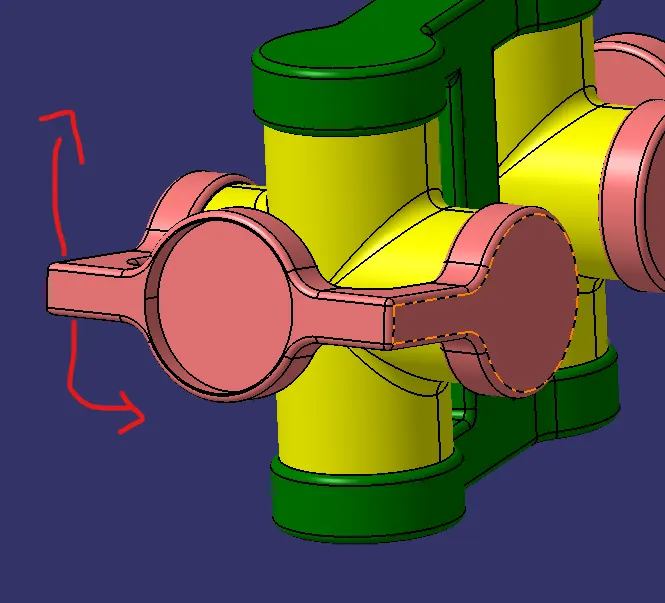

THE GREEN BODY IS FIXED THE WHILE THE REDDISH BODY IS ALLOWED TO MOVE ONLY IN Y ROTATIONAL MOVEMENTS,

AND THE YELLOW ONE IS ALLOWED ROTATION ALONG Z AXIS ONLY.

I HAVE MOSTLY CREATED THE PARTS USING SKETCH BASED FEATURES,ONLY USED SURFACE DESIGN TO CREATE THE YELLOW BODY .
