Week 10- Assembly Workbench
Model 1 - Quick Return Mechanism - Part creation and Assembly
AIM :
To create part models and assemble the components using the 2D drawings which were provided.
OBJECTIVE :
- To create the various part models from the 2D drawings.
- To asseble the part models into a single component.
- To create the 2D drawings of the components which were created
QUICK RETURN MECHANISM:
1) A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source (typically a motor of some sort) and uses a system of link with three turning pairs and a sliding pair. A quick return mechanism is a subclass of a slider crank linkage, with an offset crank.
2) Quick return is a common feature of tools in which the action is performed in only one direction of the stroke, such as shapers and powered saws because it allows less time to be spent on returning tool to its initial position.
Procedure :-
1) Create a all sketch by using positioned sketch command
2) Ensure that all the sketches in iso- constrained

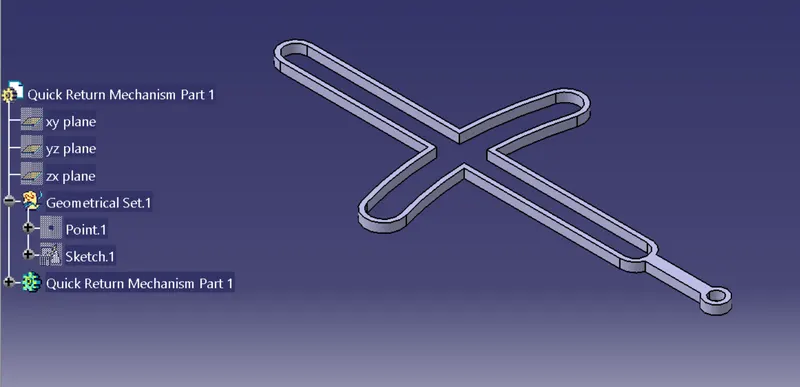

Part 1
Part 2

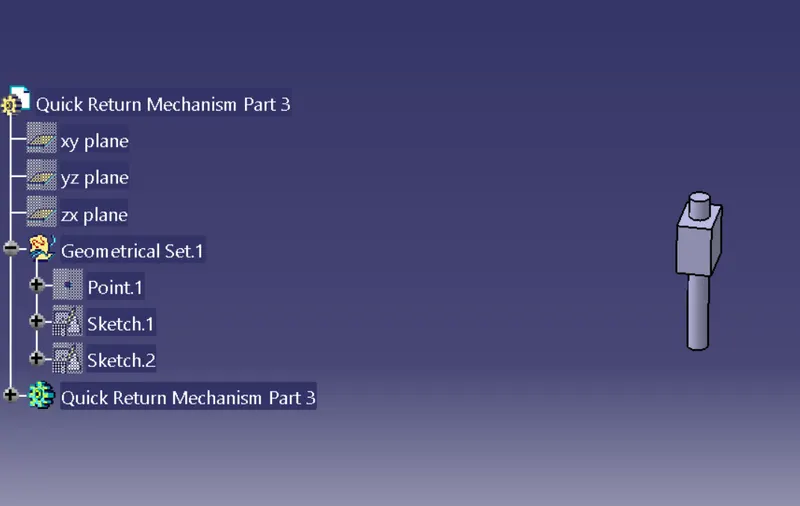

Part 3
Part 4
Part 5
ASSEMBLE ALL CATPART
1) Create a new CATproduct and insert all the above separate CATPART by using existing component command.
2) Create a reference elements for all catparts.
3) Add Reference elements like axis, points wherever we need
4) Use publication tool to make all the necessary elements like planes,points,axis to make visible.
5) Make the reference part fixed.

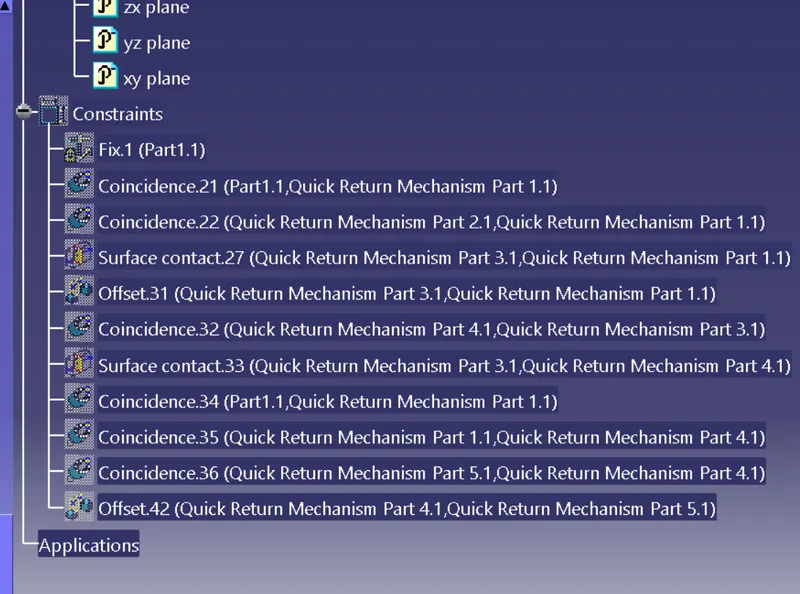

6) Now using Constrain, Offset tools assemble the each parts to one another.

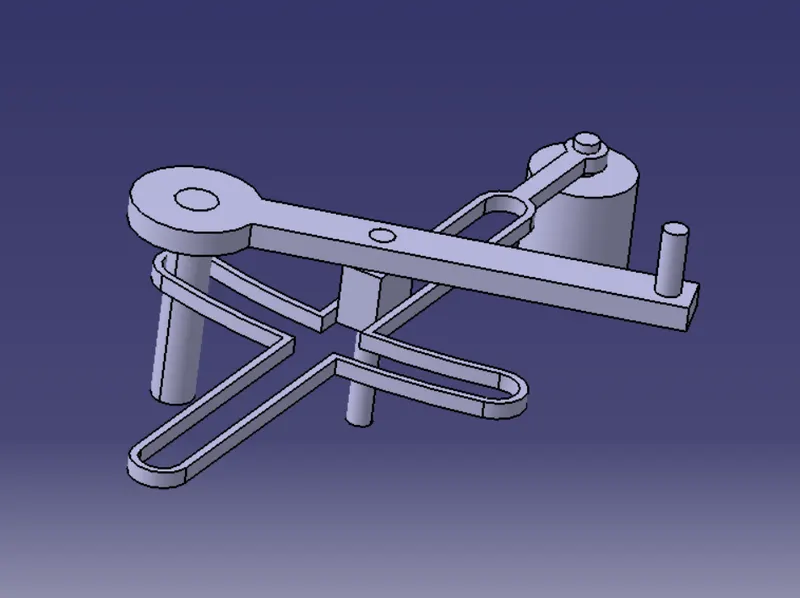

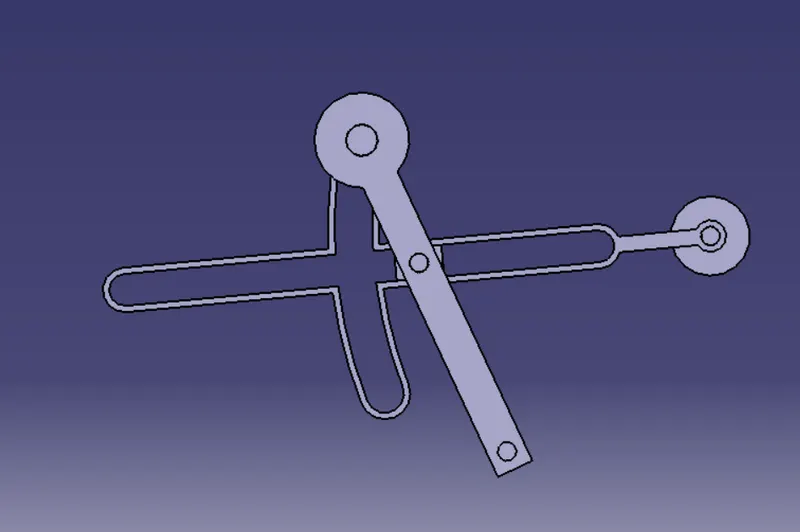

Final Model
Isometric View

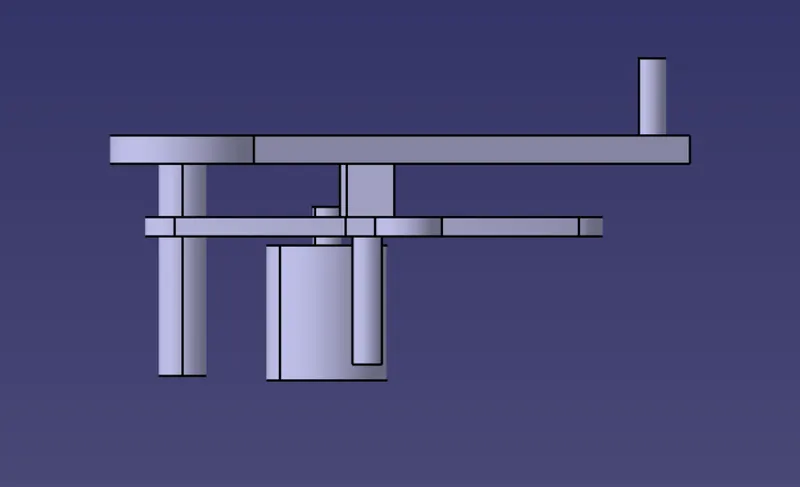

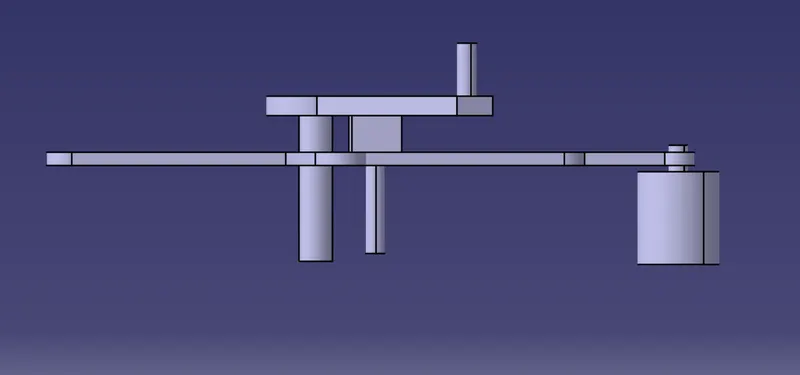

Front View
Left Sied View
Top View

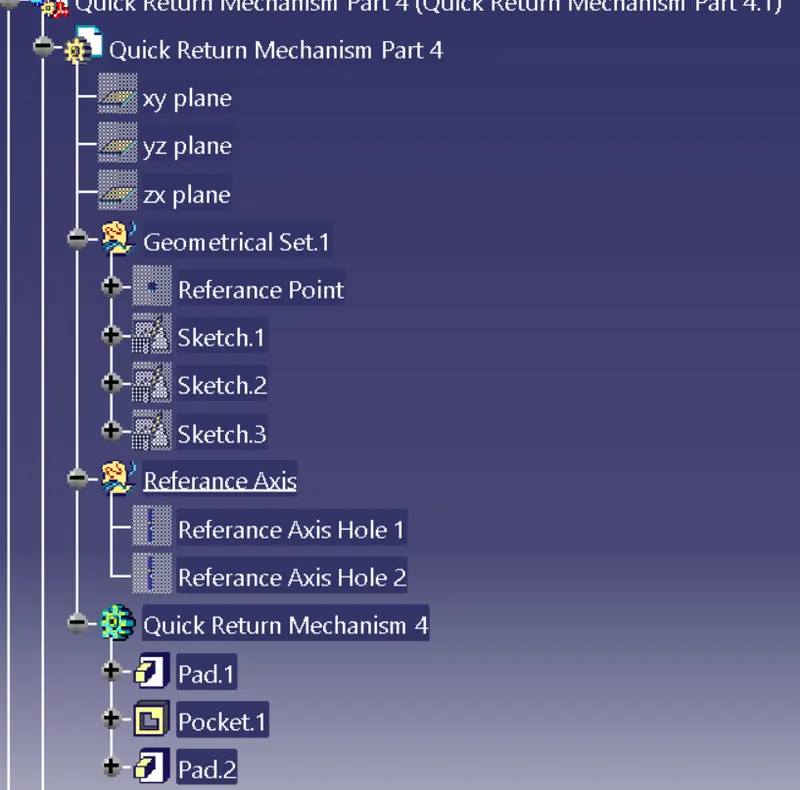

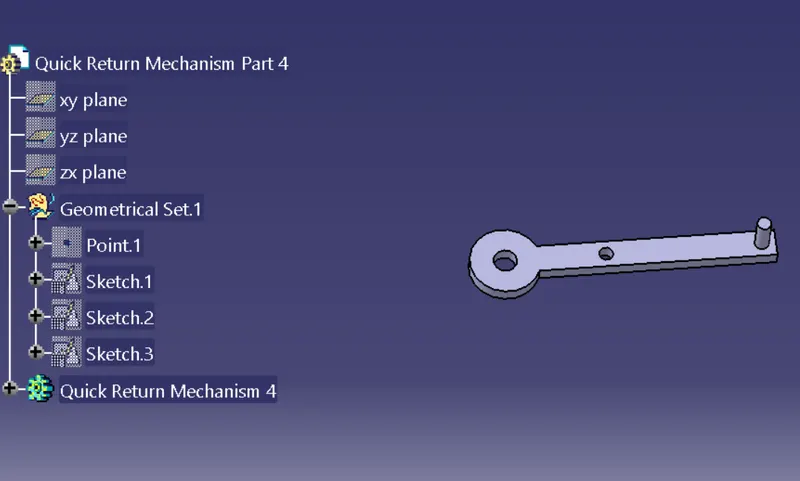

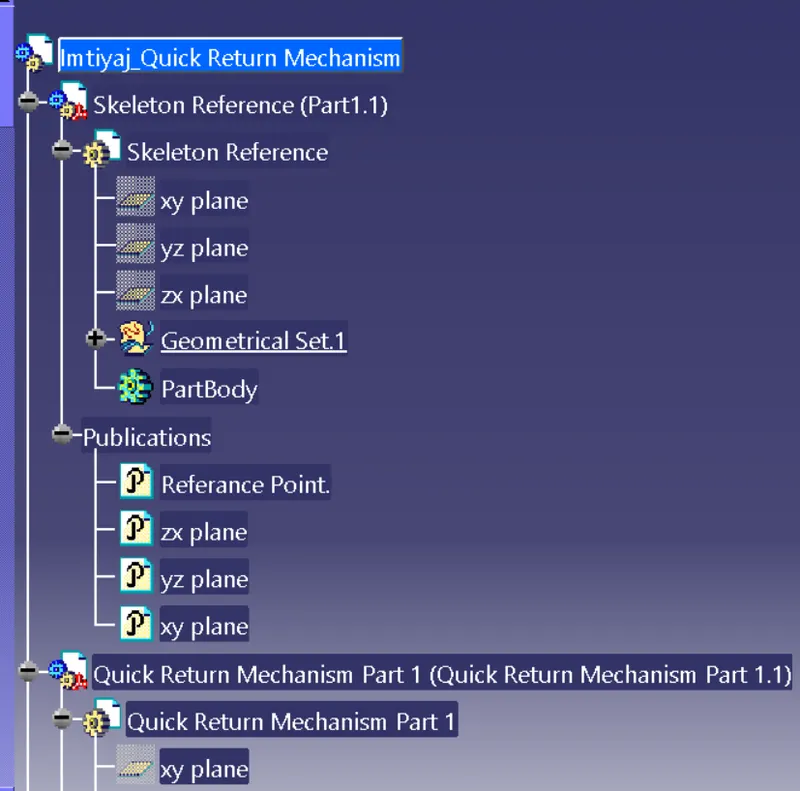

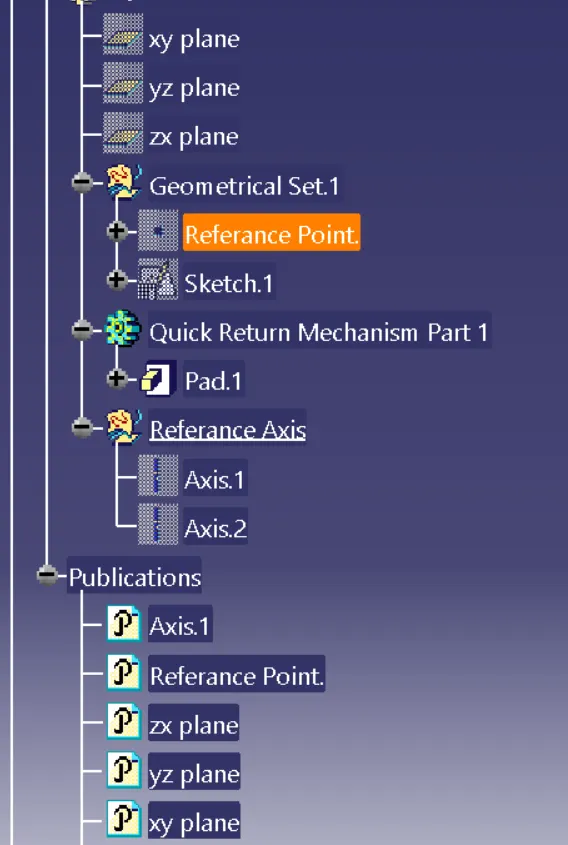

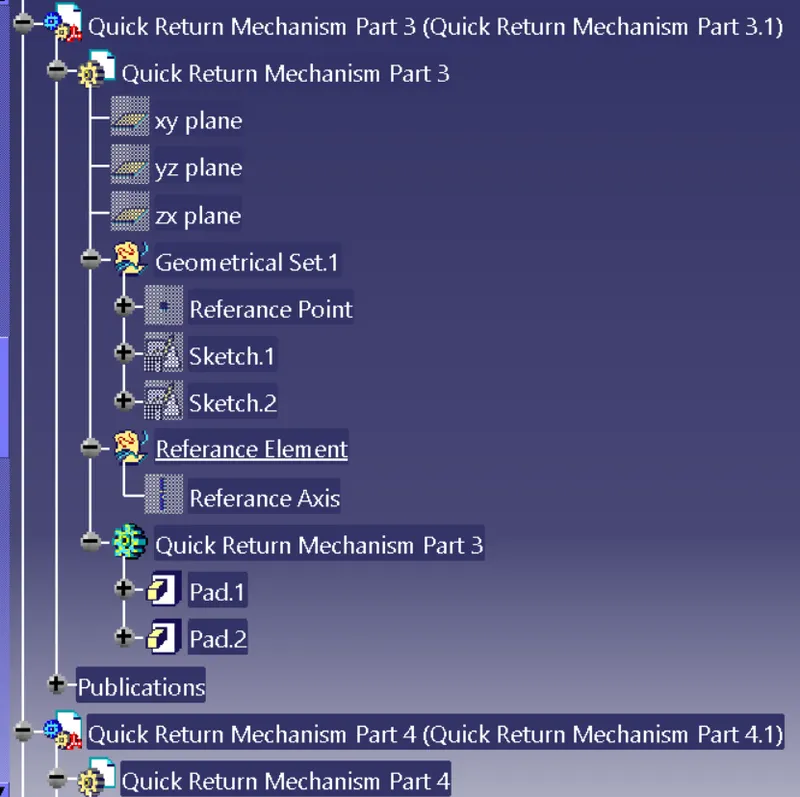

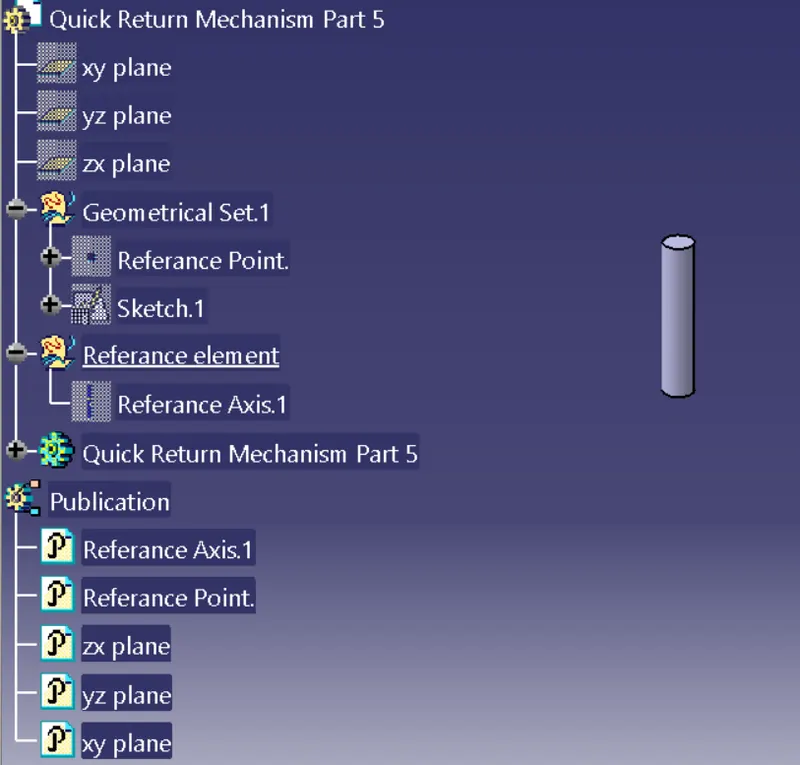

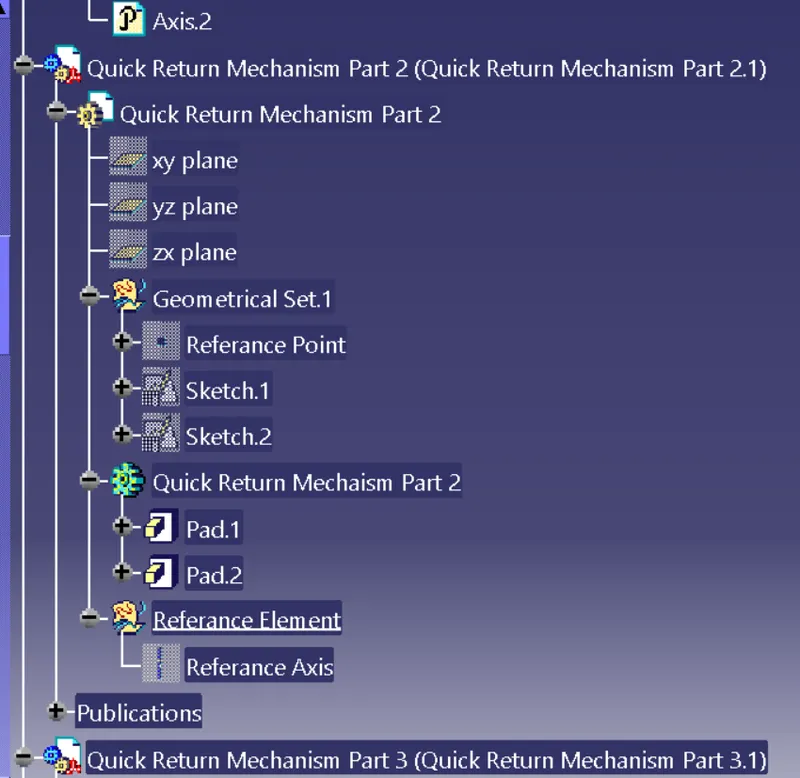

Feature tree

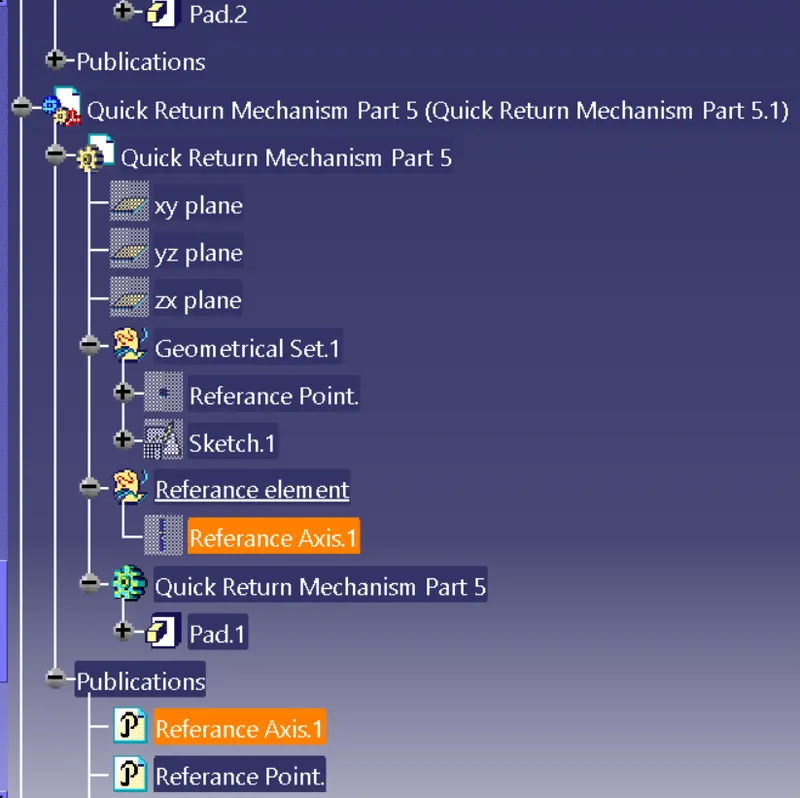

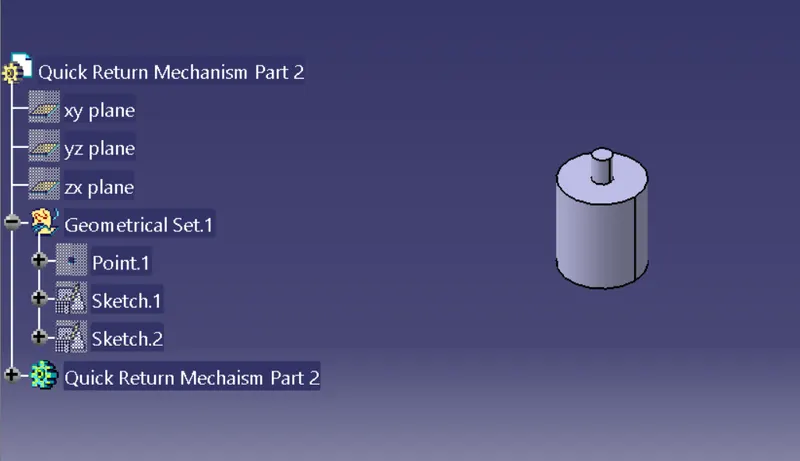

Feature tree 1 Feature tree 2 Feature tree 3
Feature tree 4 Feature tree 5 Feature tree 6
Feature tree 7
Model 1- Quick Return Mechanism- 2D drawing Creation

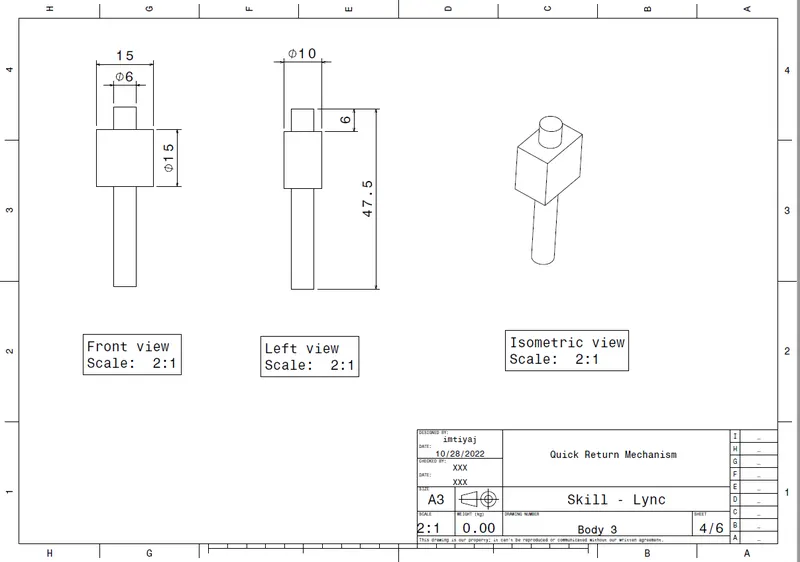

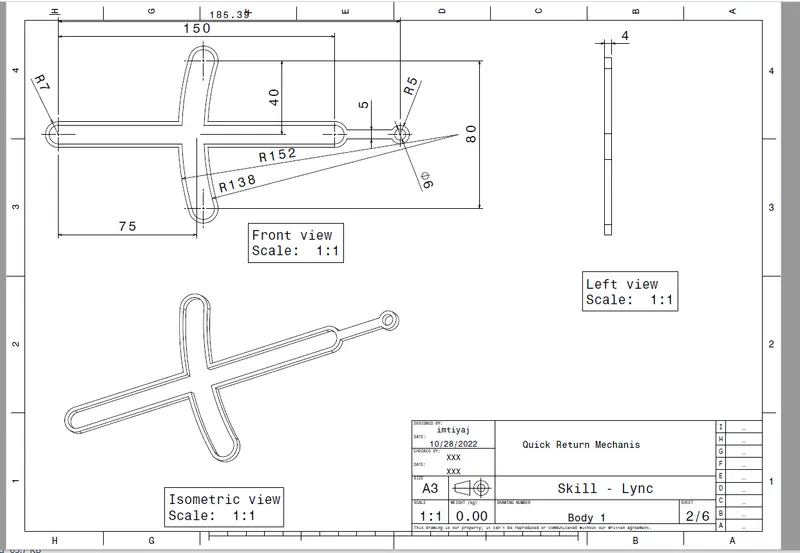

DRAFTED DRAWINGS :-

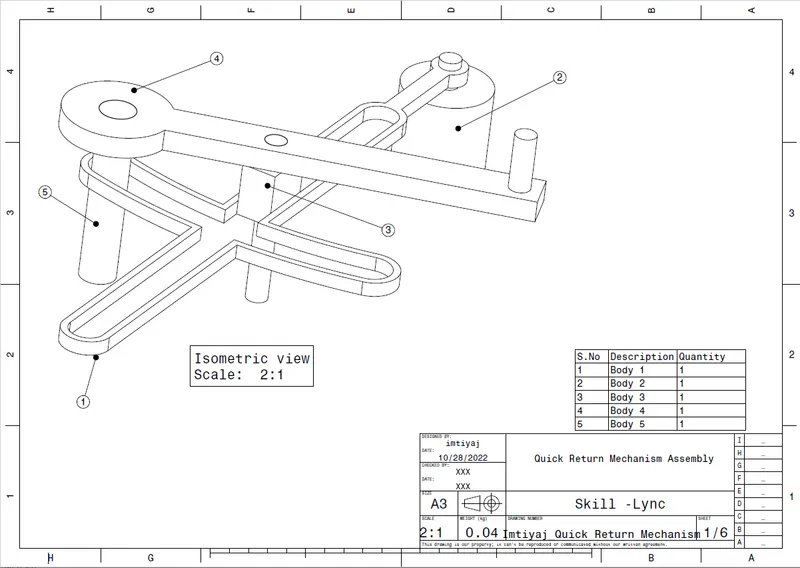

Final Assembly

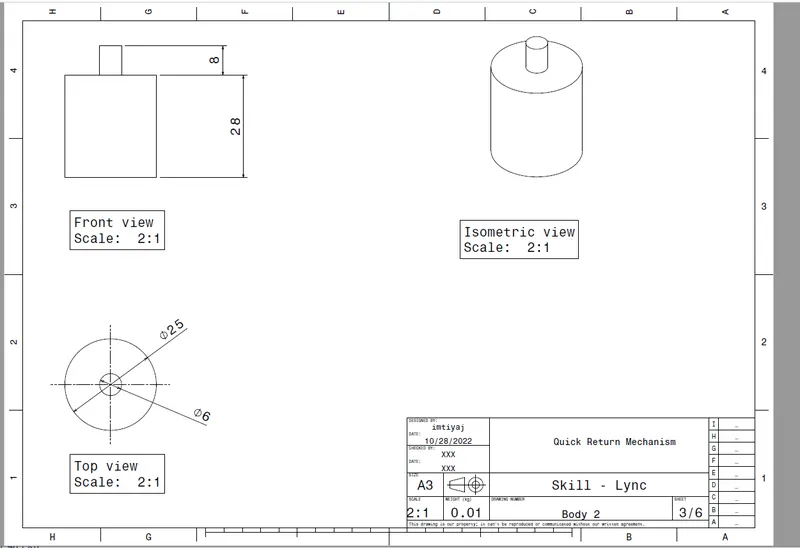

Part 1
Part 2
Part 3

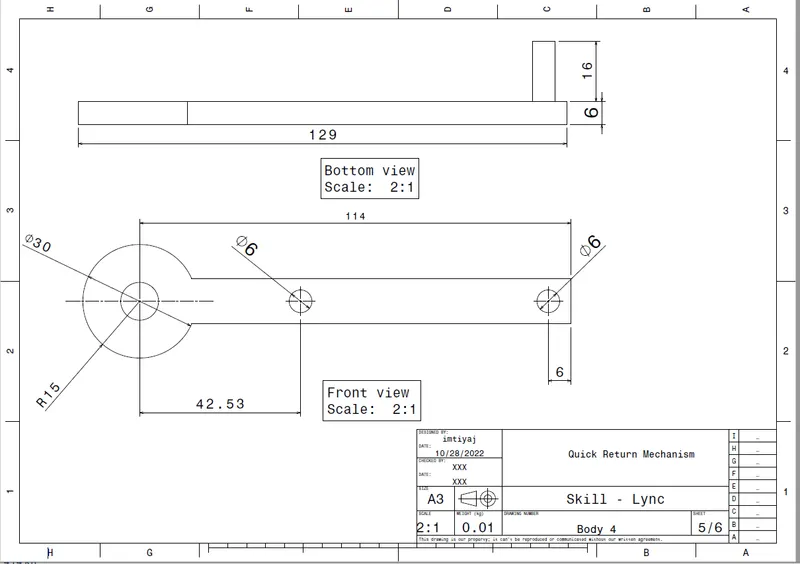

Part 4

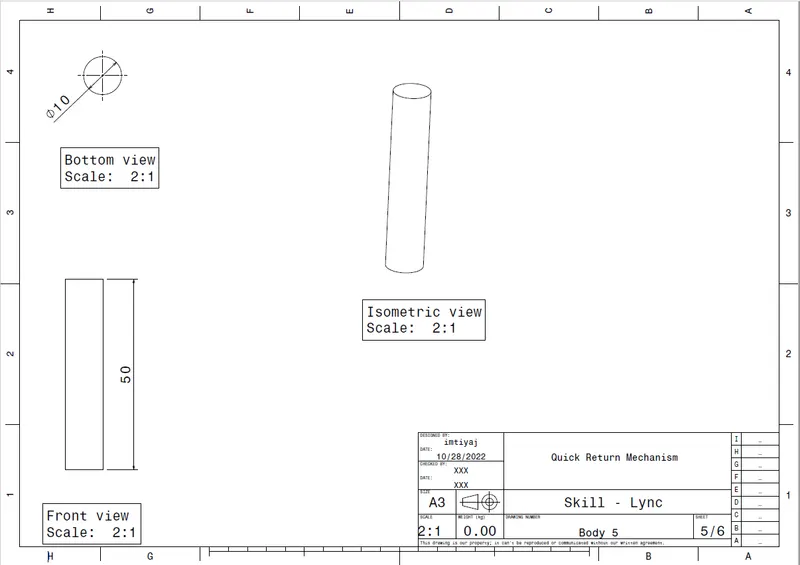

Part 5
Model 2 - CV Joint - Part design and Assembly
CV JOINT ASSEMBLY :-
1) Create a all sketch by using positioned sketch command
2) Ensure that all the sketches in iso- constrained
Part 1

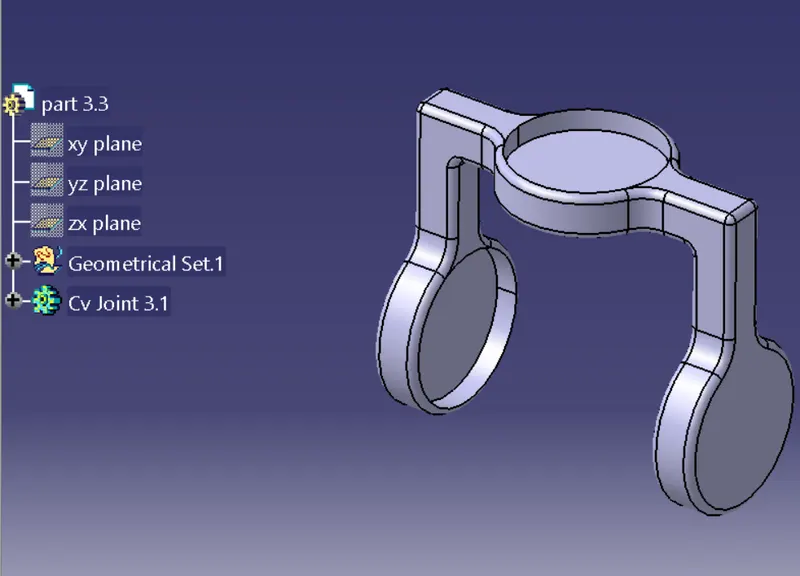

Part 2
Part 3
ASSEMBLE ALL CATPART
1) Create a new CATproduct and insert all the above separate CATPART by using existing component command.
2) Create a reference elements for all catparts.
3) Add Reference elements like axis, points wherever we need

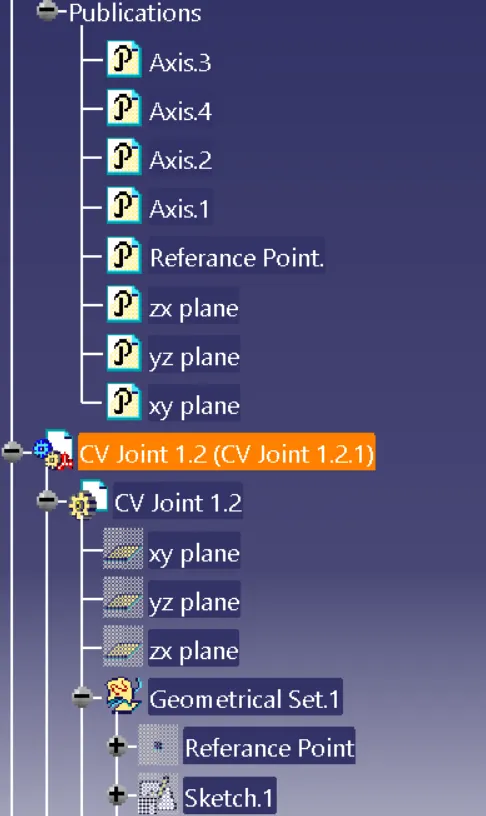

4) Use publication tool to make all the necessary elements like planes,points,axis to make visible.
5) Make the reference part fixed.
6) Now using Constrain, Offset tools assemble the each parts to one another.

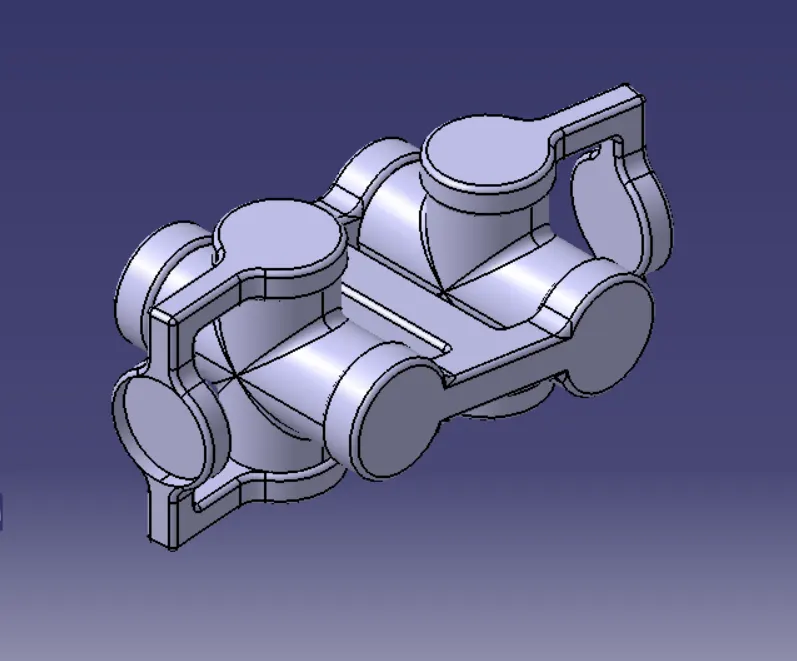

Final Assembly

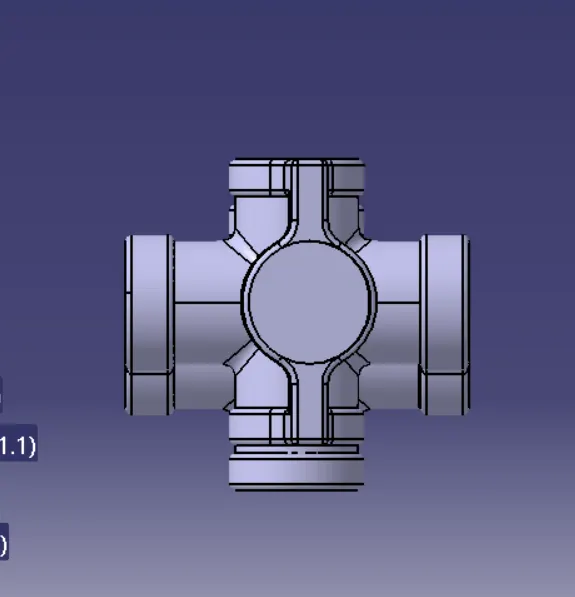

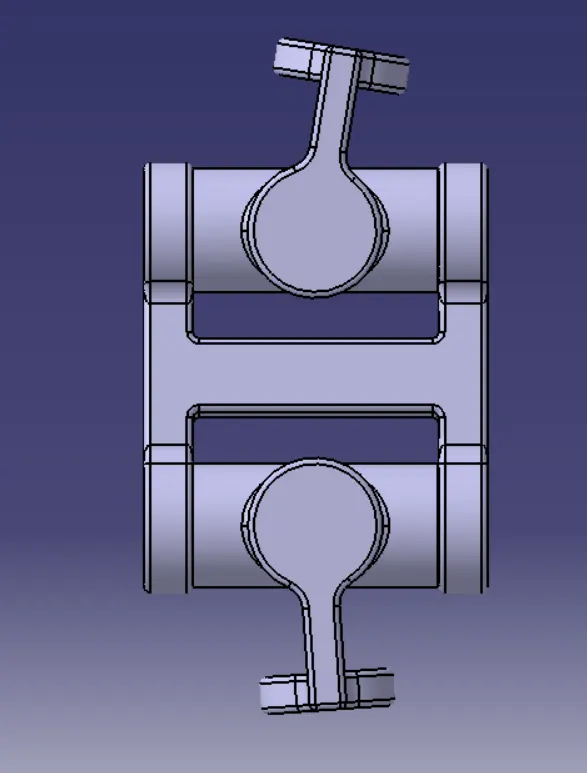

Isometric View

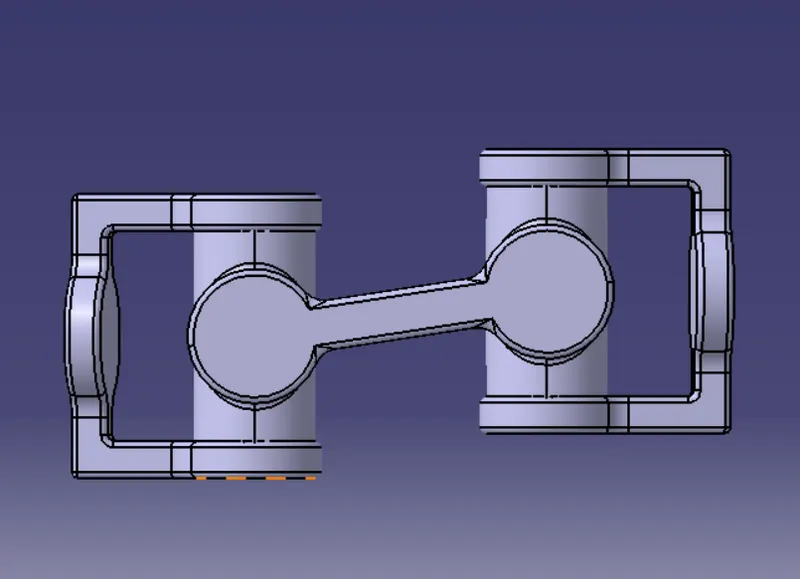

Front View
Left view.
Top View

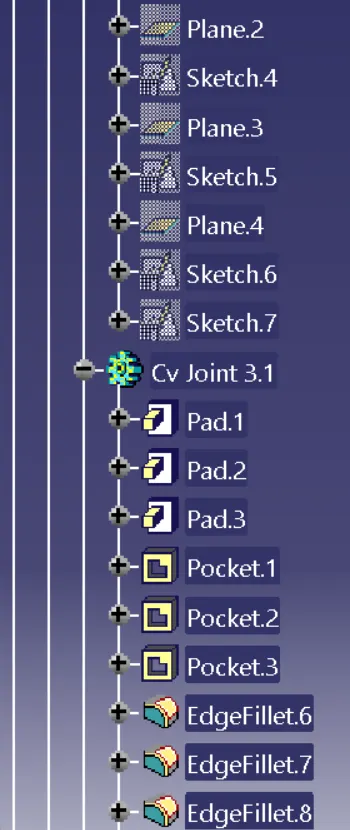

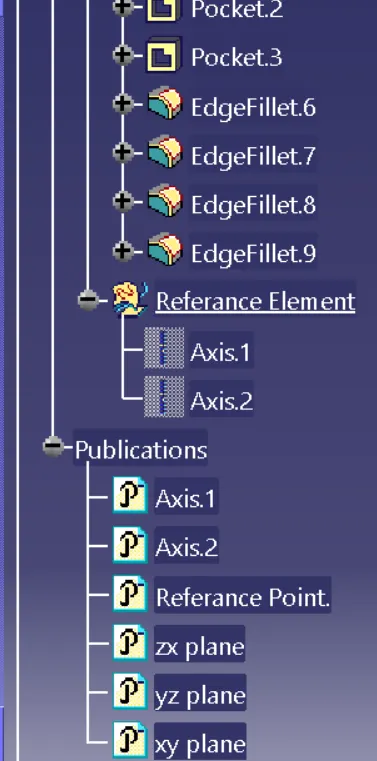

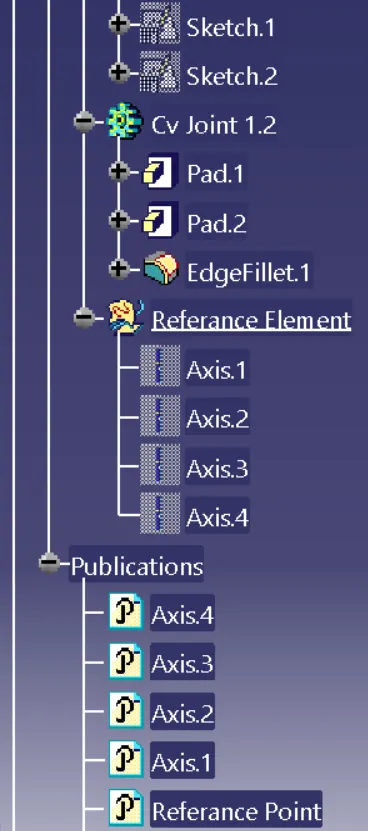

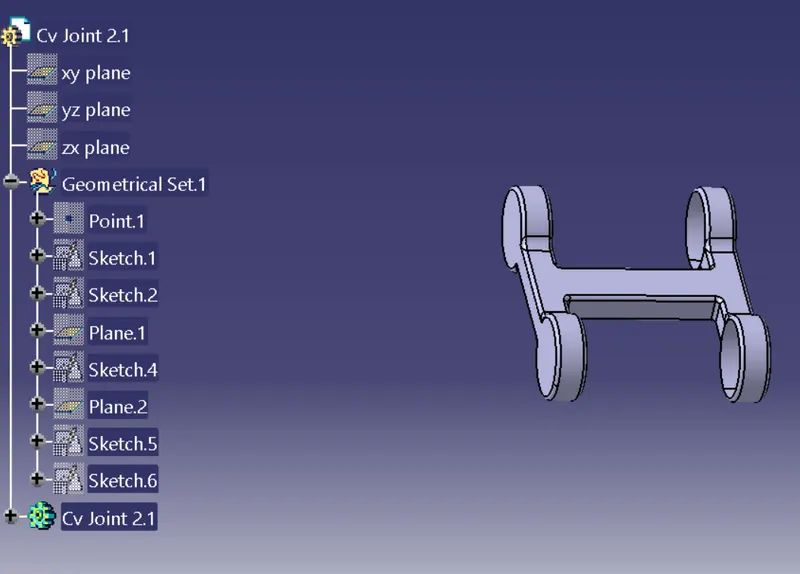

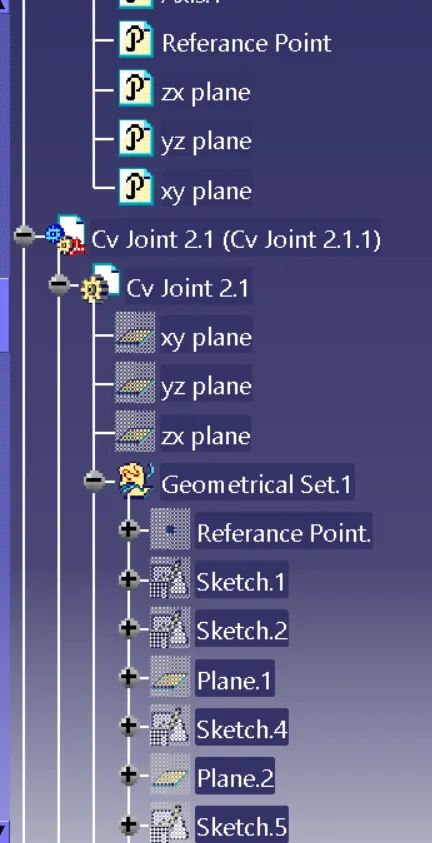

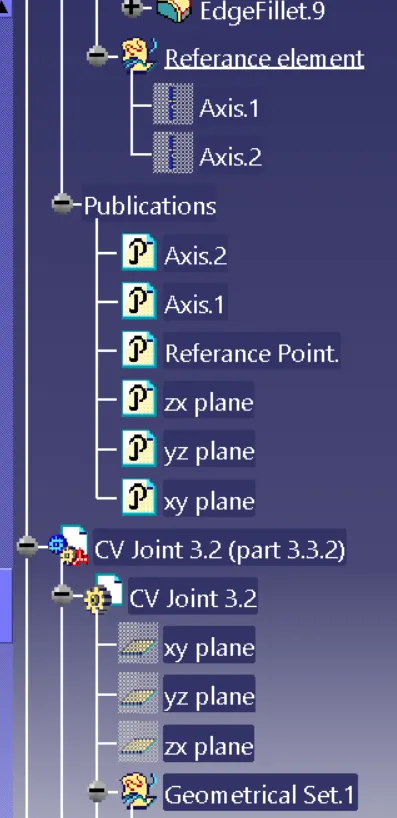

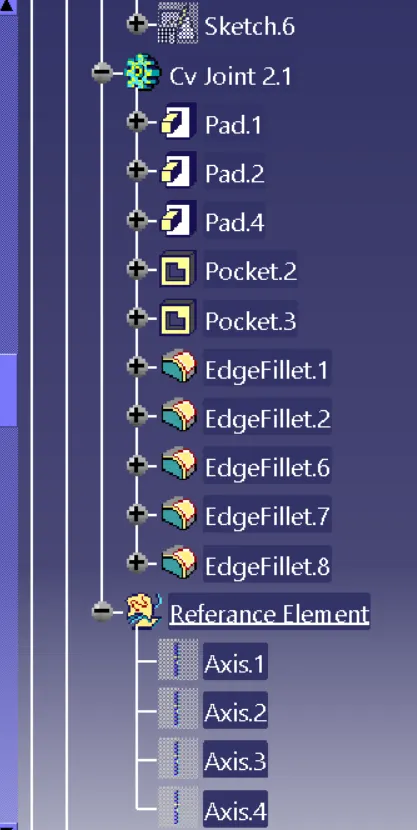

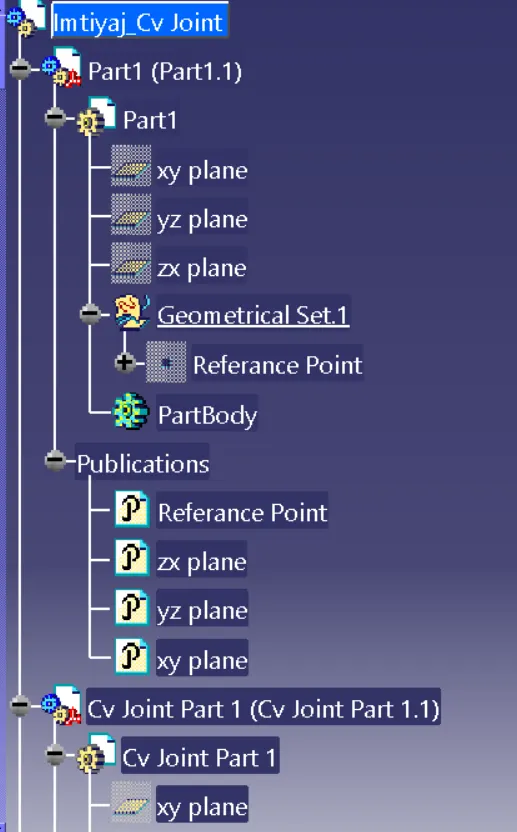

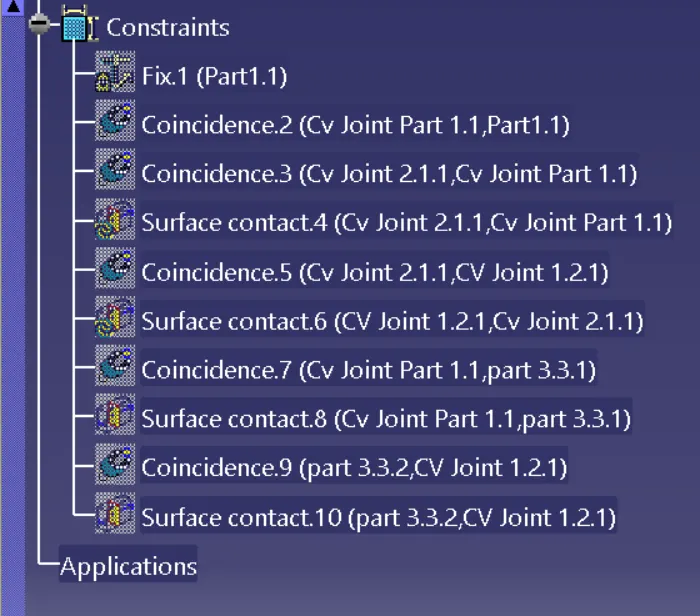

Feature tree

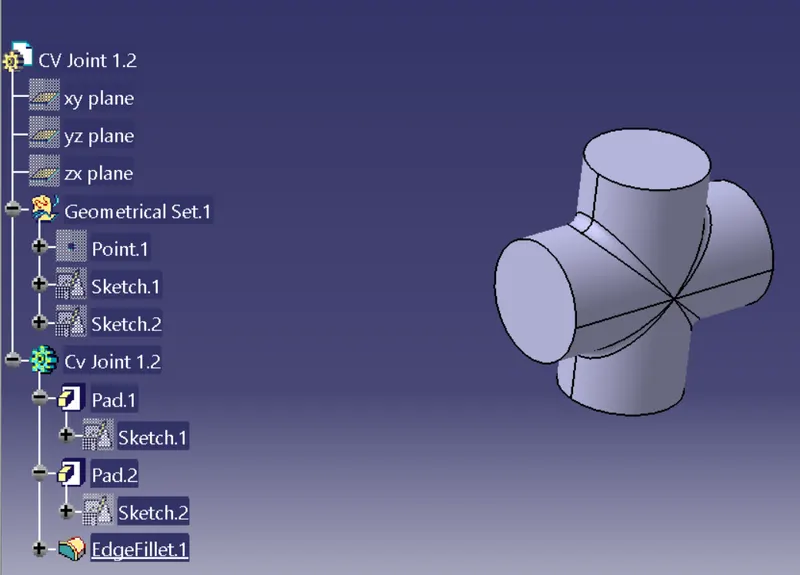

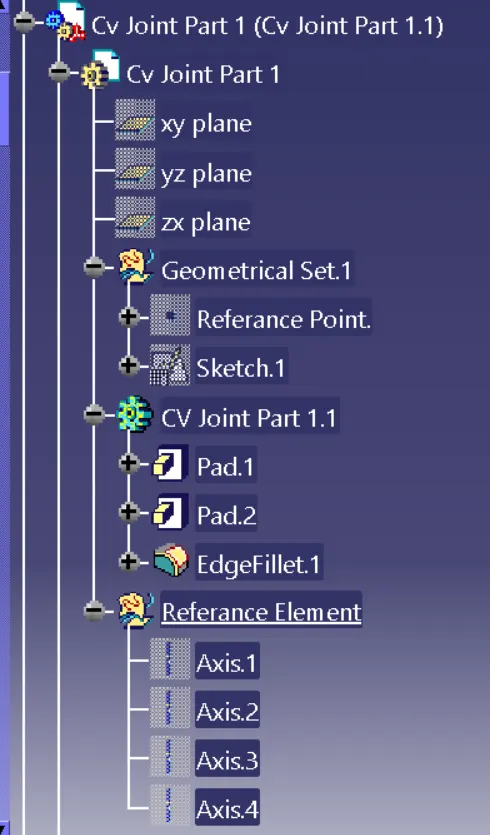

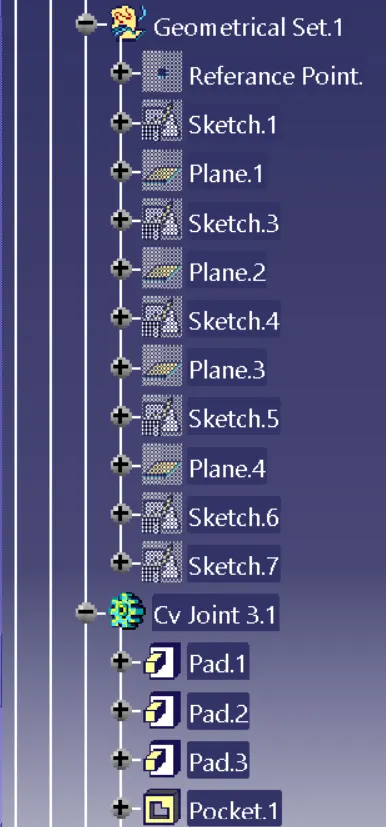

Feature tree 1 Feature tree 2 Feature tree 3 Feature tree 4

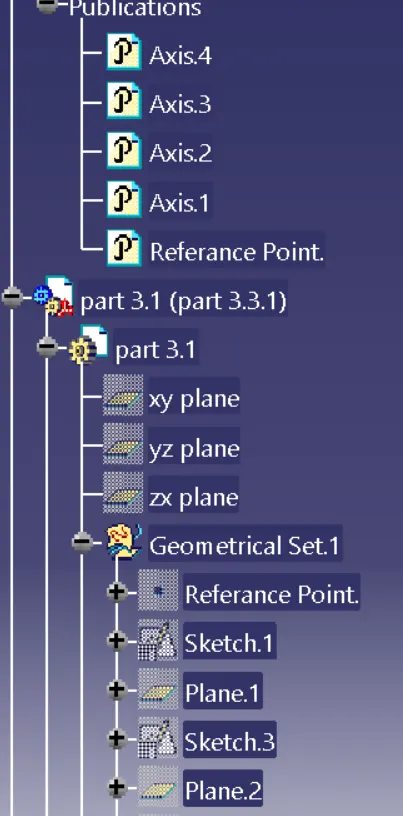

Feature tree 5 Feature tree 6 Feature tree 7 Feature tree 8
Feature tree 9 Feature tree 10 Feature tree 11 Feature tree 12
Feature tree 13

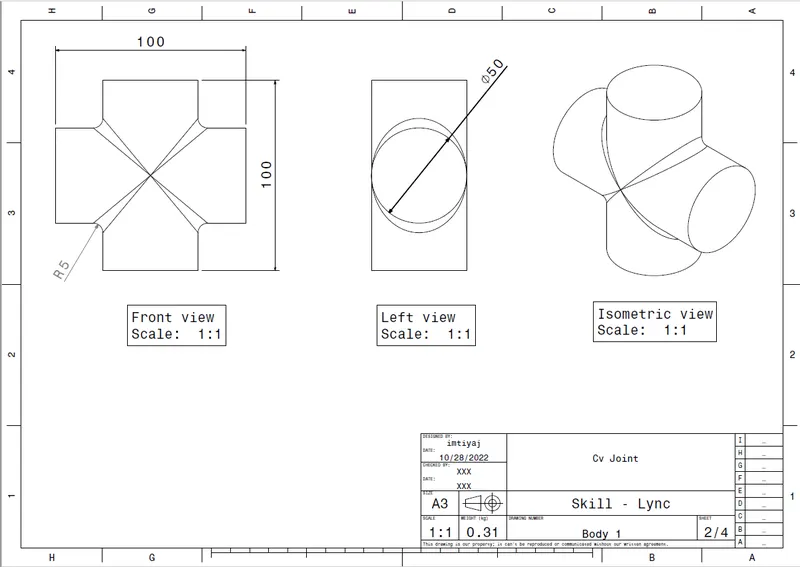

Model 2- CV Joint- 2D drawing Creation

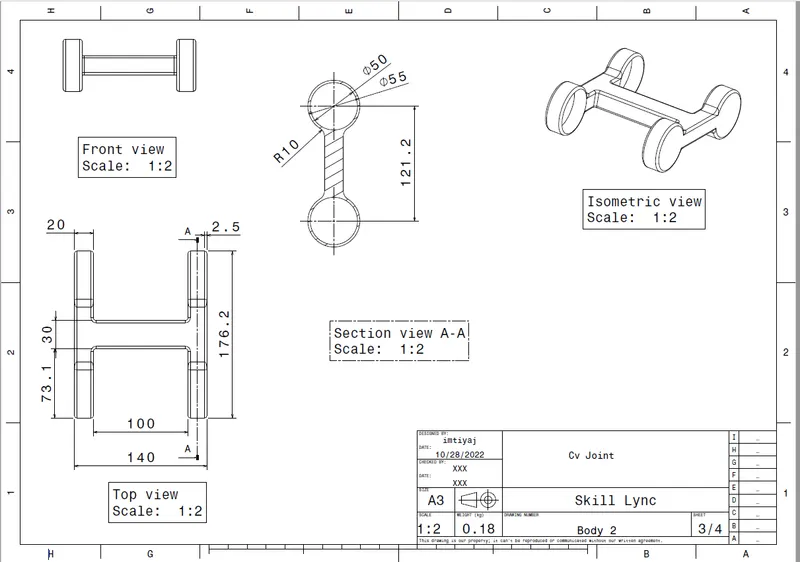

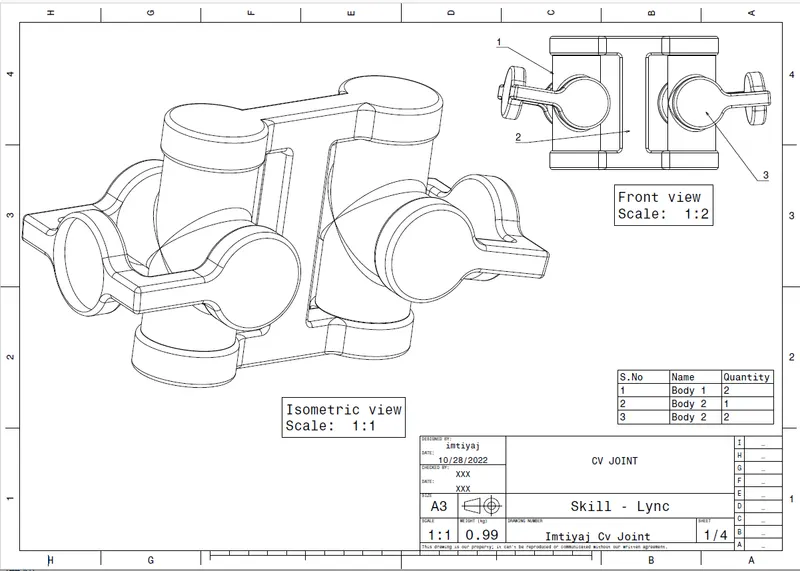

DRAFTED DRAWINGS :-
Final Assembly
Part 1
Part 2

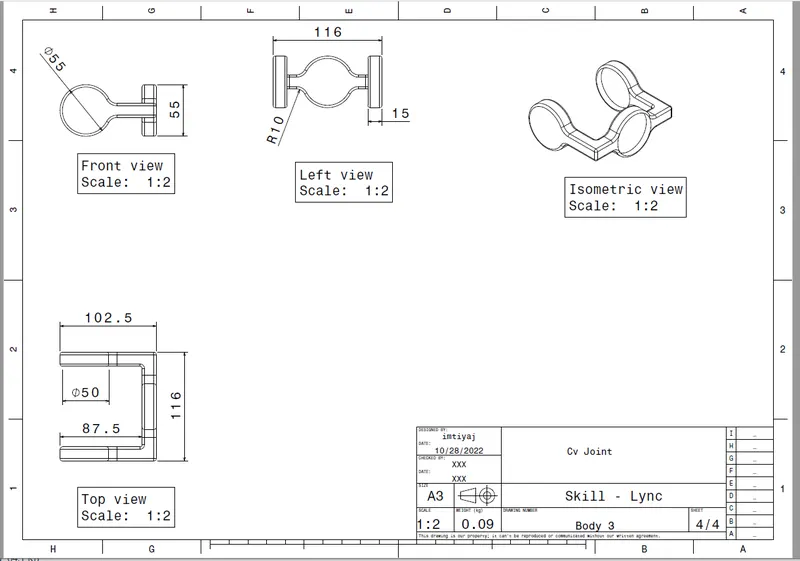

Part 3
