Week 10- Assembly Workbench
- MODEL-1
- CREATE MODELS AS PER GIVEN IN DRAWING

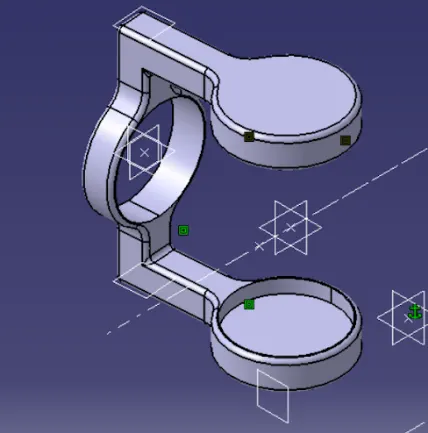

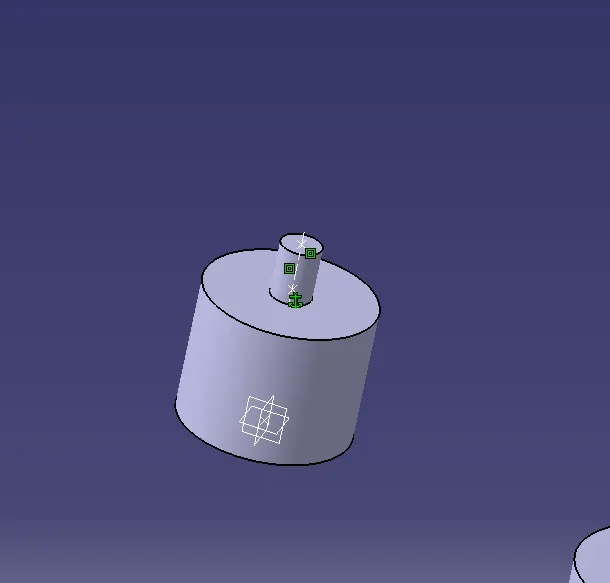

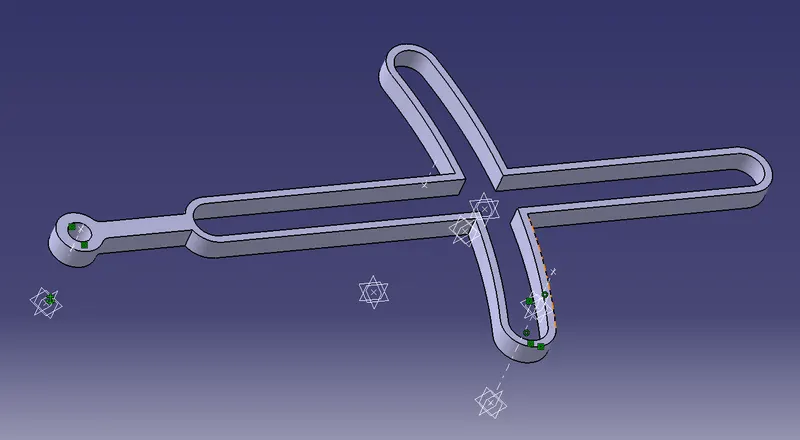

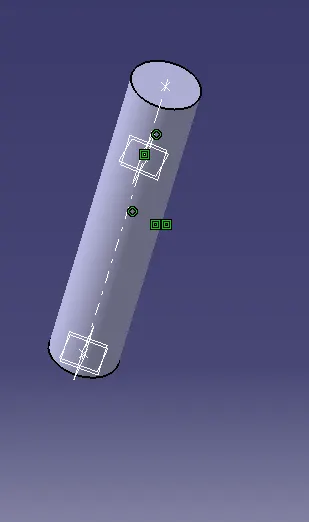

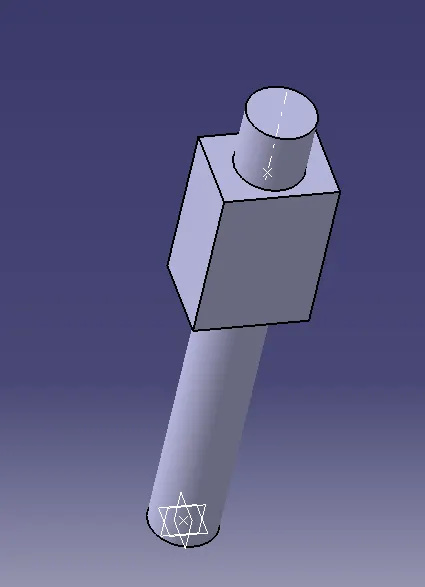

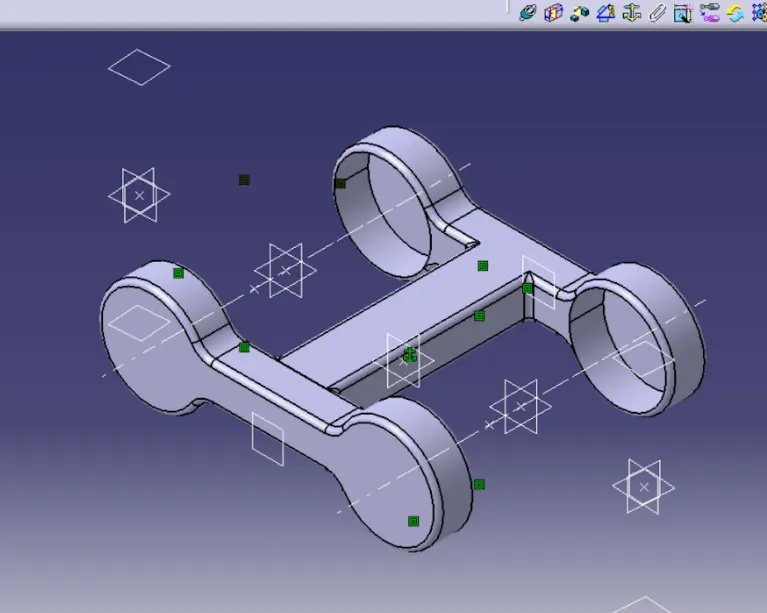

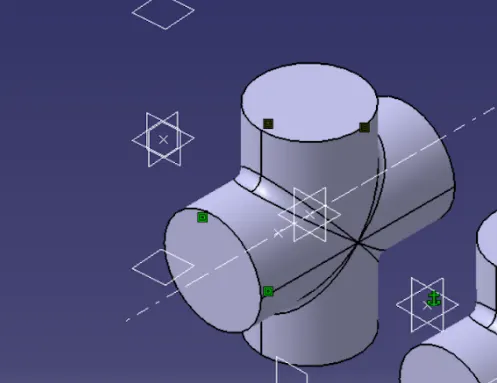

- DESIGN THE DRAWING IN PART WORKBENCH IN PROPER PROCEDURES

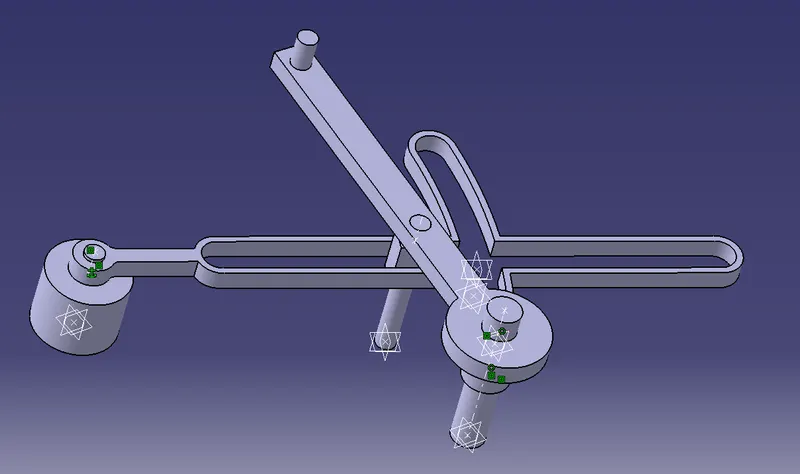

- AFTER CREATING ALL MODELS WE NEED TO WORK IN ASSEMBLY WORKBENCH
- WE NEED TO COPY ALL MODELS AND PASTE INTO THE ASSEMBLY WORKBENCH
- THEN WE NEED TO CREATE REFRANCE AXIS AND REREFERENCEOINT ON EACH MODEL
- USE MANIPULATION TOOL FOR MOVEMENT AND ROTATION TO DIFFERENT AXIS
- BY PLACING IN PROPPER POSITION WE NEED TO CONSTRAIN MODELS
- COINCIDENT CONSTRAIN AND CONTACT CONSTRAIN IS USED FOR THIS TASK
2.MODEL-02
- DO SAME PROCEDURES AS DONE IN MODEL-1
