MODELING AND ASSEMBLY OF CV JOINT AND QUICK RETURN MECHANISM

REPORT

ASSEMBLY WORKBENCH

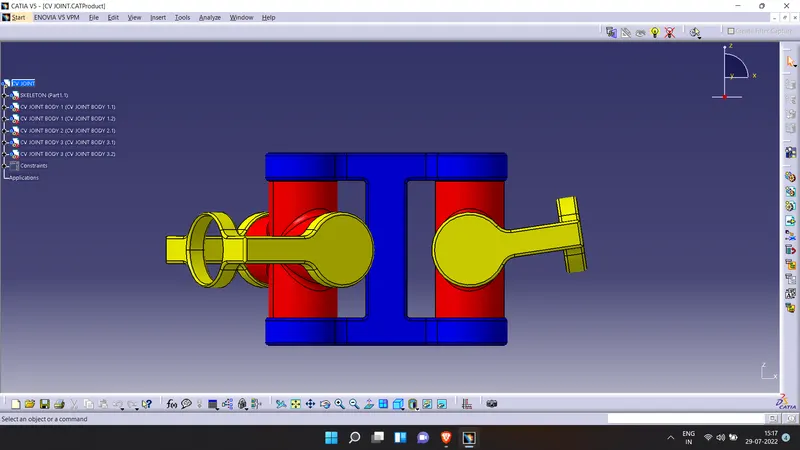

MODEL 1

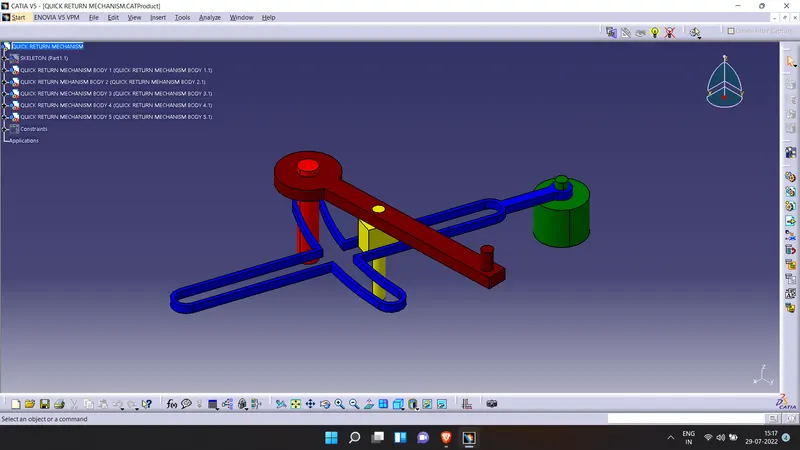

MODEL 2

METHODOLOGY

1. 1. Each individual parts were created using the part workbench with respect to the given diagrams.
2. Boolean operations were used in creating the parts
3. A new product was created in the assembly workbench.
4. Each parts were inserted into the new product assembly.
5. Constraints were used to assemble the parts together.
