Week 10:- 2D Detailing Challenge

To draft a Key Sheet for the complete fixture assembly created in challenge 8 and also draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8

1) Key Sheet Detailing

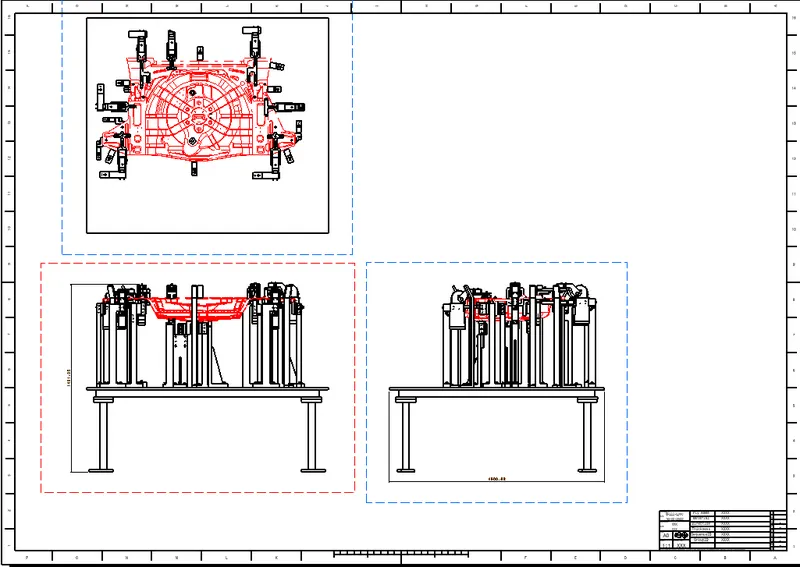

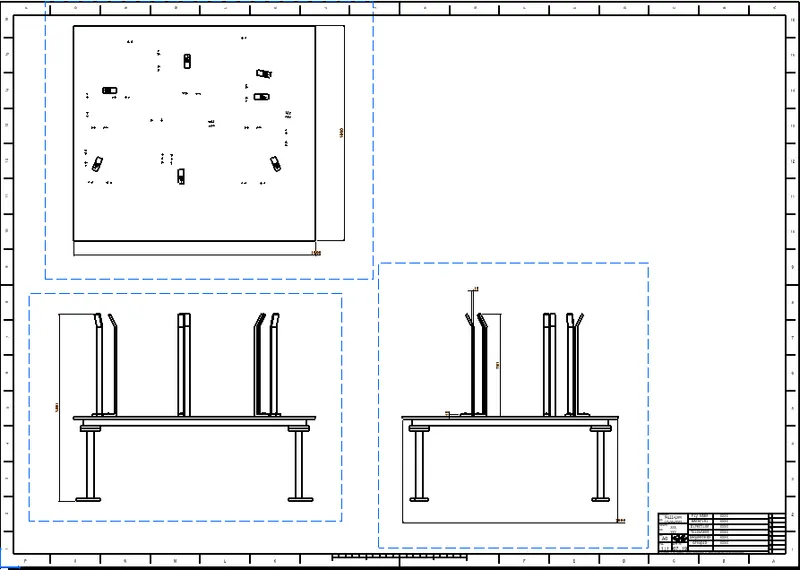

The images below show the drafting of the key sheet for the model that was created

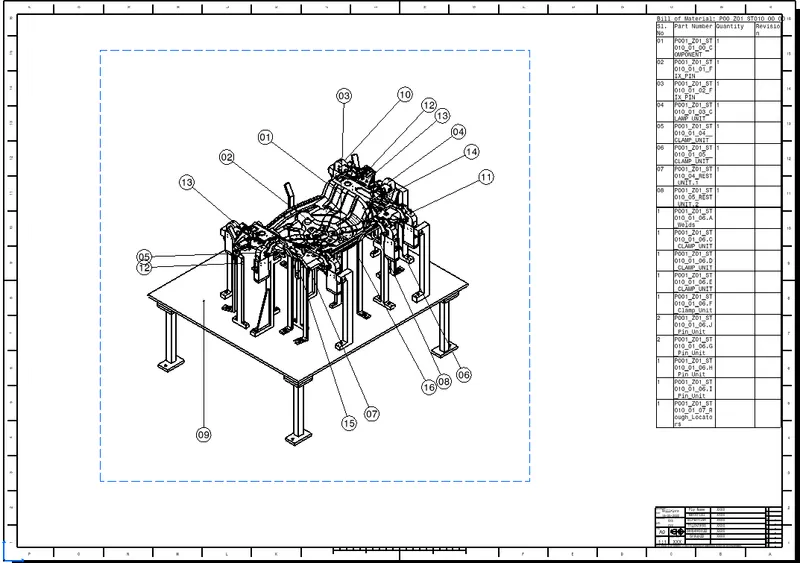

Thus the Key sheet detailing for the fixture assembly is done and the bill of materials for the entire assembly has been added.

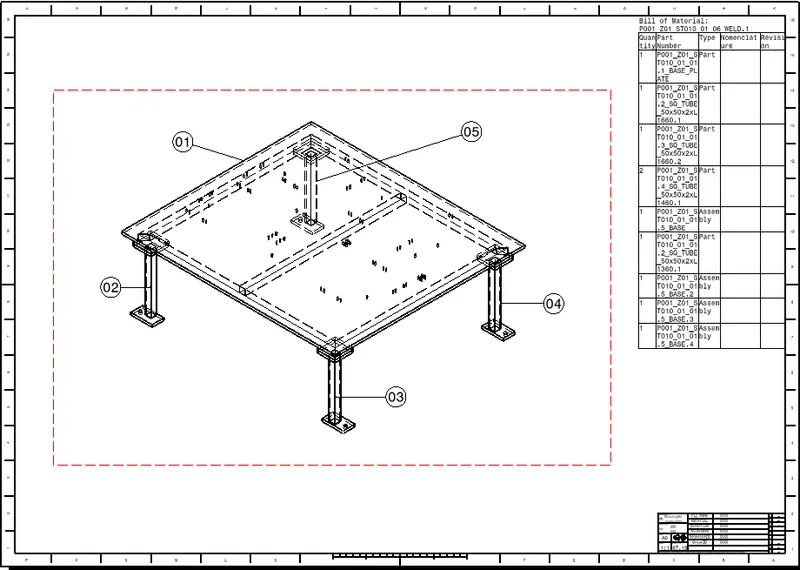

2) Base Unit Detailing

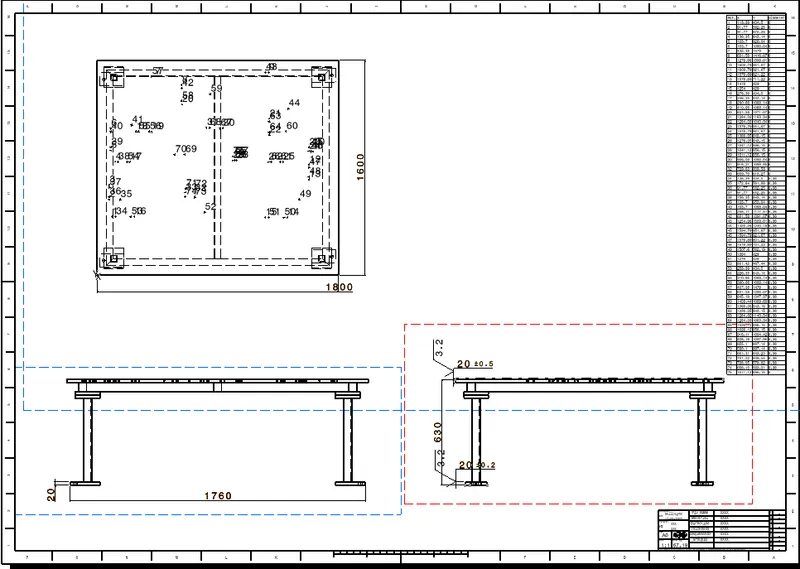

This image has the table with the hole dimensioning on the base unit

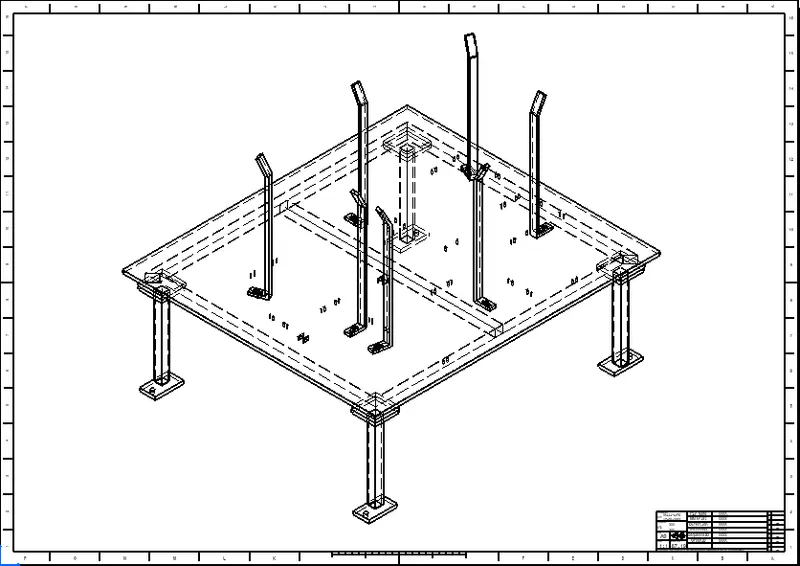

The 2D detailing of the base unit is done but the next 2 images show the same unit with the presence of the Rough Locators in the detailing

2) Pin Unit Detailing

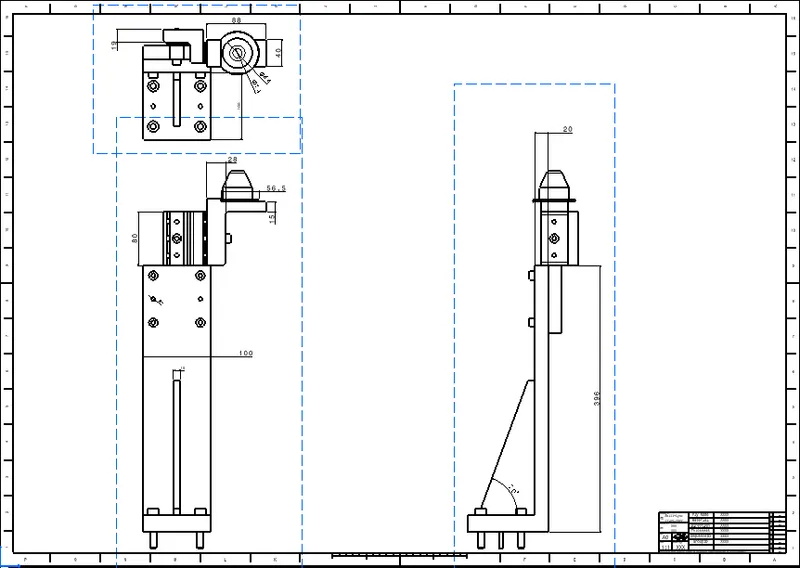

2.A) Pin Unit Assembly

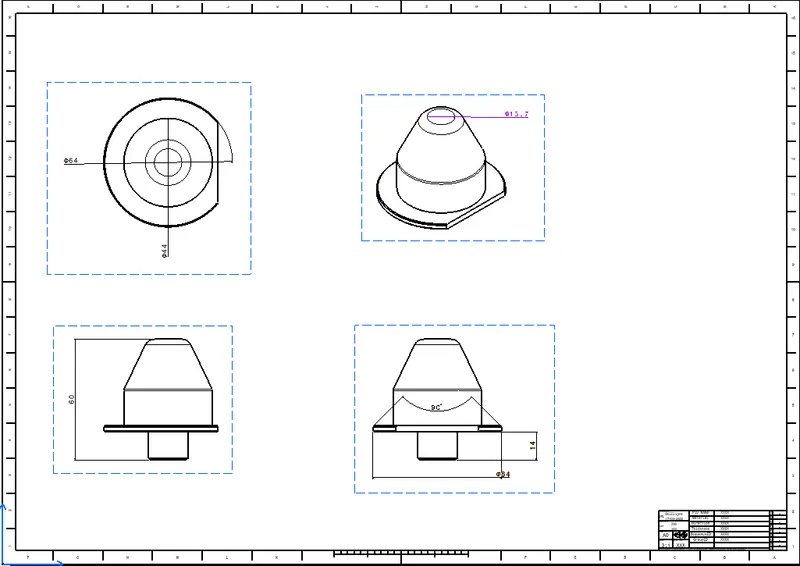

2.B) Pin

2.C) Pin Retainer

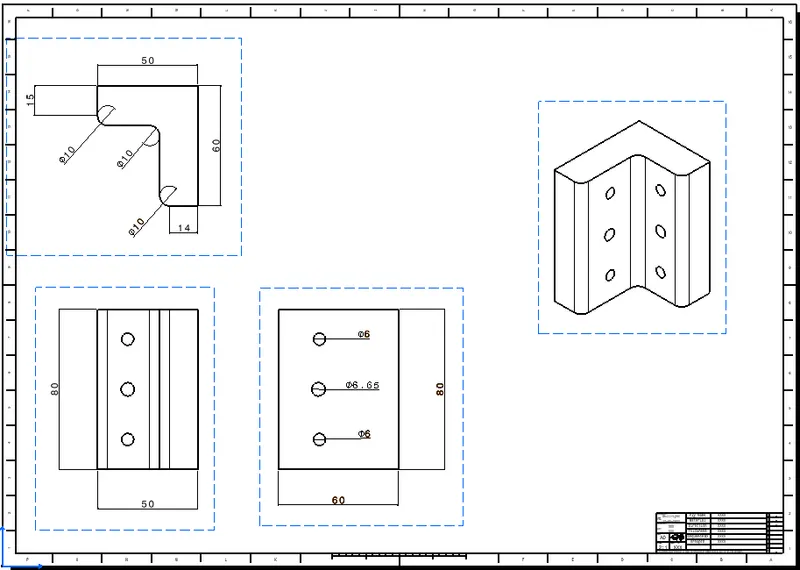

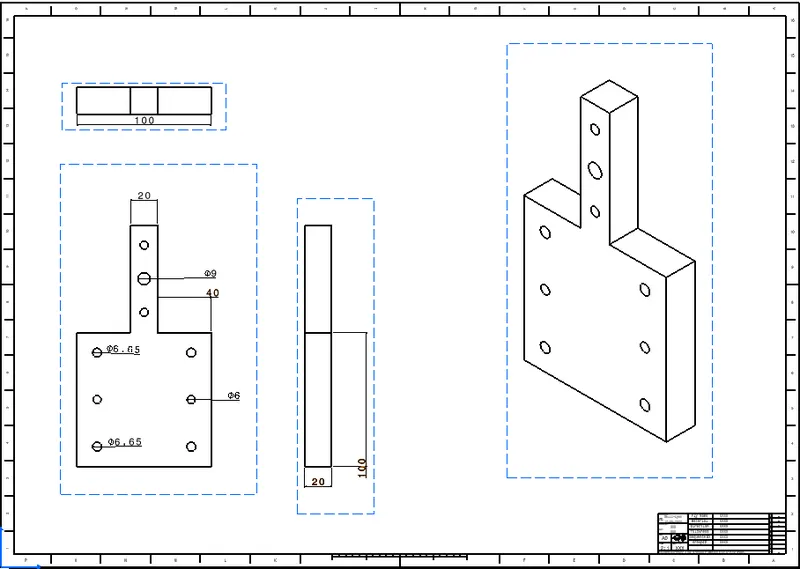

2.D) L-Block

2.E) Blade

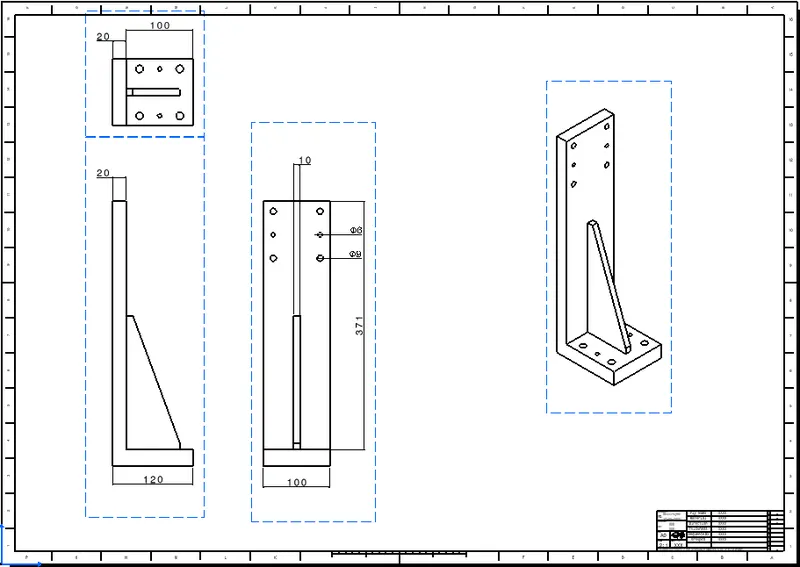

2.F) Riser

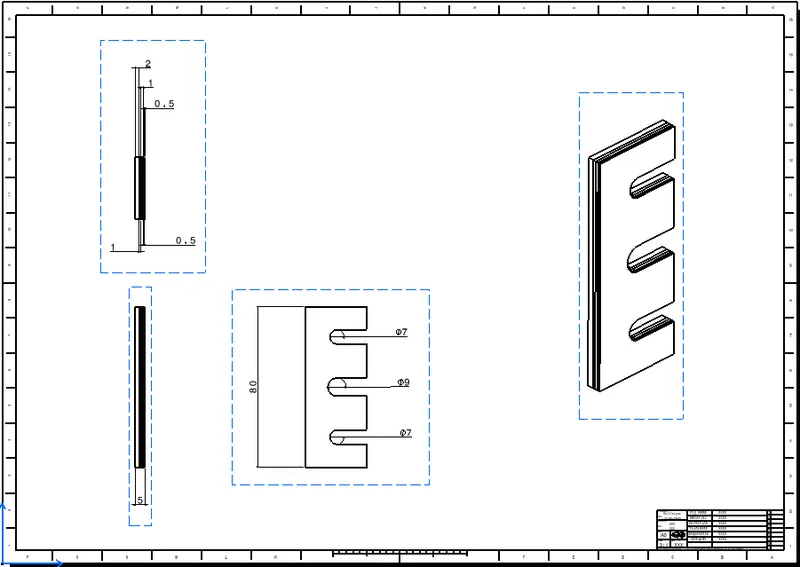

2.G) Shim Pack

Conclusion: The detailing of the Key Sheet, Base unit and the one fix pin unit has been done as the required standards.
