Week 9:- 2D Detailing Challenge-2
Aim

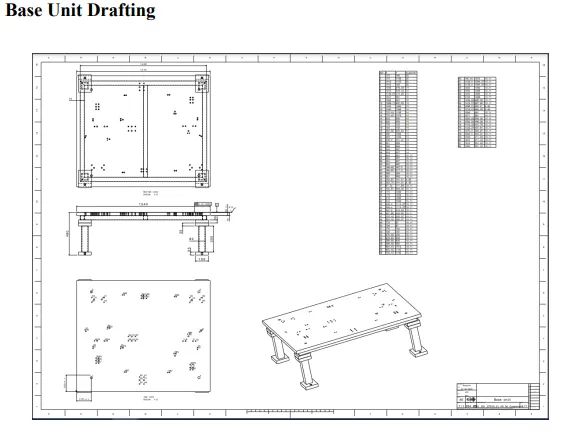

Draft a key sheet for the complete fixture assembly created in challenge 8. And draft a base unit and the fix pin unit drawing with all child parts for the complete fixture assembly from challenge done in challenge 8.

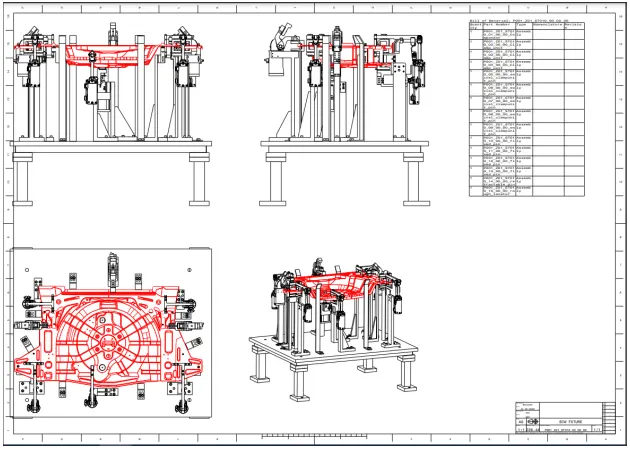

Key Sheet for the complete fixture assembly

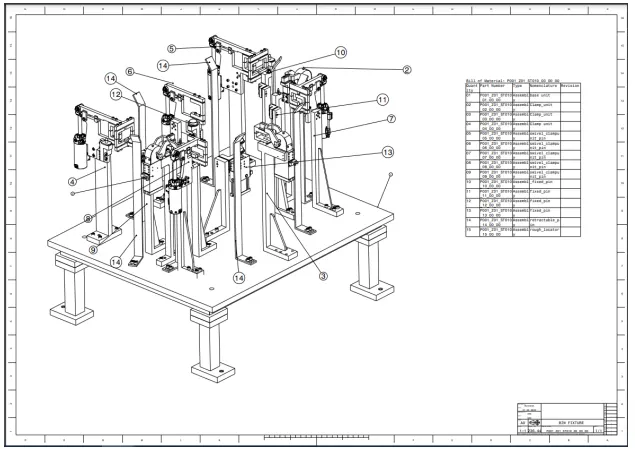

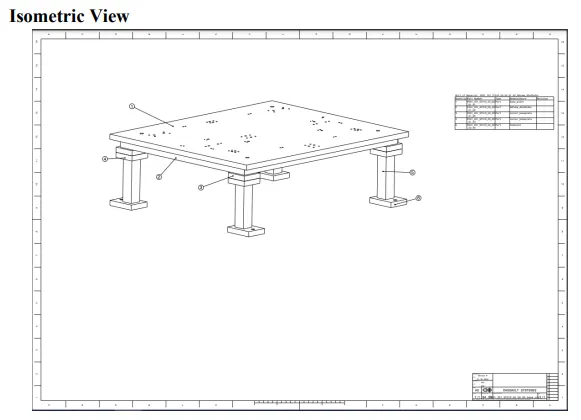

Isometric view of fixture assembly

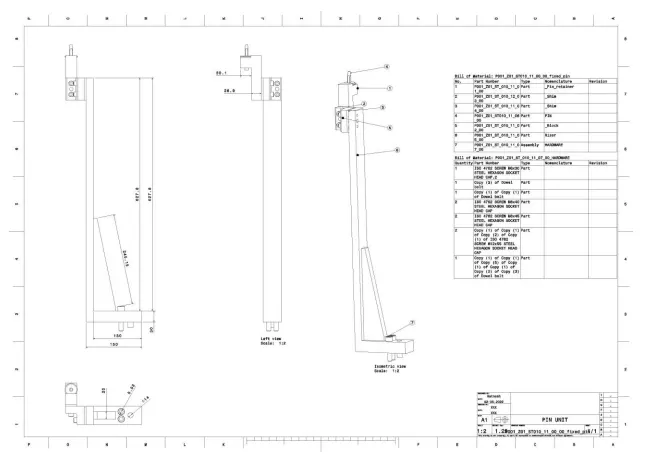

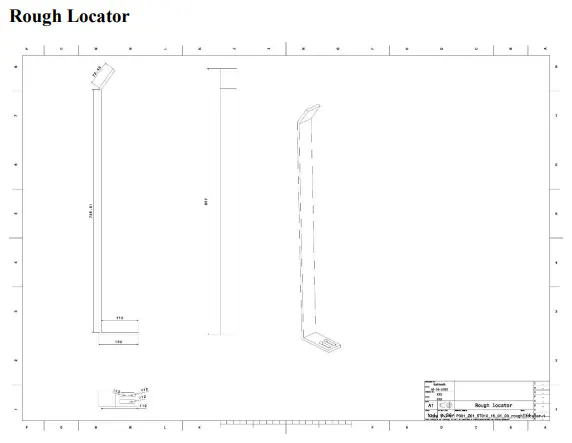

Drafting of Pin UNIT

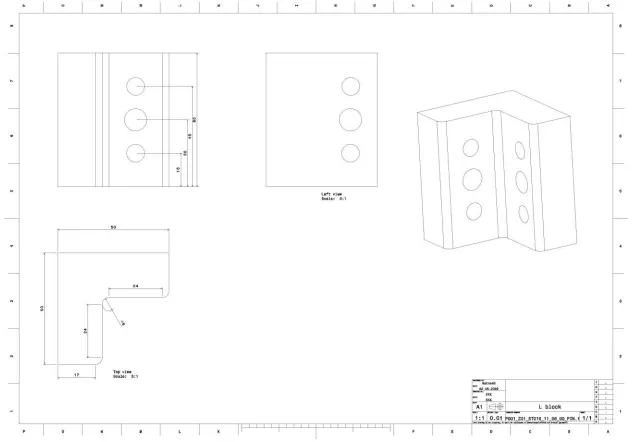

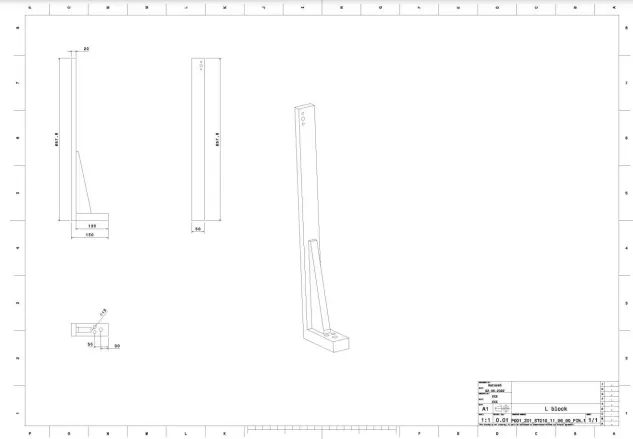

L Block of Pin Unit

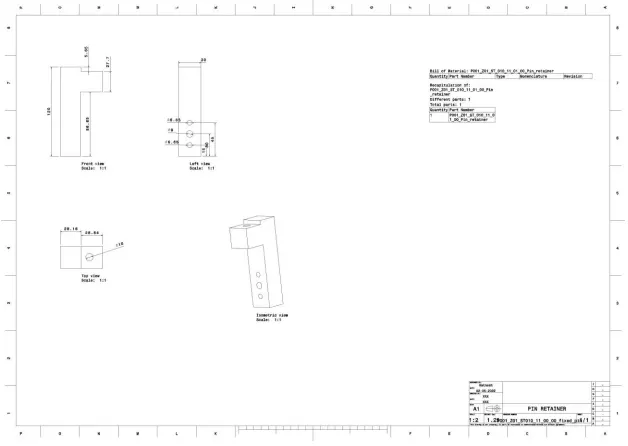

PIN Retainer

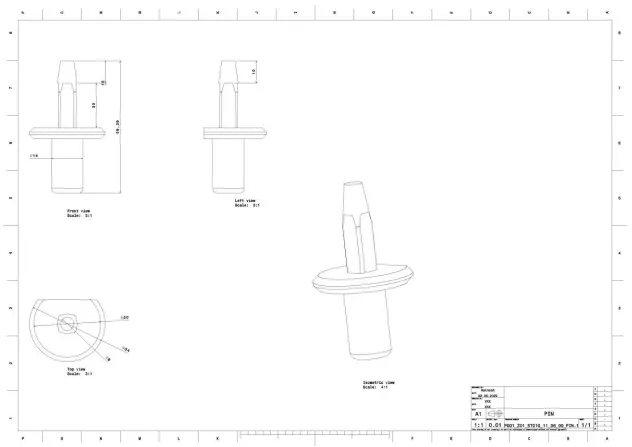

PIN

Riser

Conclusion

A detailed drafing of the complete fixture assembly, base unit and pin unit were done. A proper dimensioning were provided to the parts.
