Week 10:- 2D Detailing Challenge

OBJECTIVES:

• To draft a Key Sheet for the Complete Fixture assembly.
• To draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly of the given panel.

1. Key Sheet for the complete Fixture assembly: (P001_Z01_ST010_00_00)

• Keysheet- It is an index of units and their placements on the tool base. It shows placement and location of that particular unit on the tool base where exactly to be positioned. It has a standard template being used as per the company standards.
• It shows orthogonal or isometric view of the entire fixture assembly.

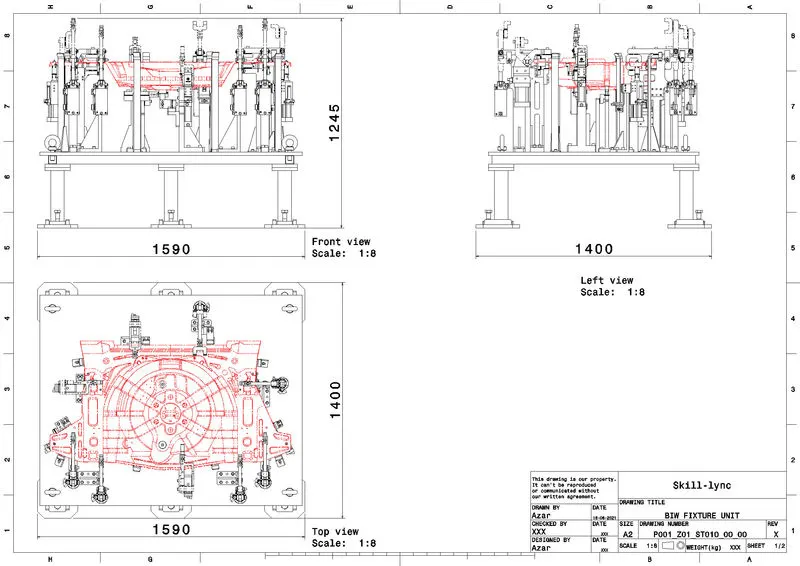

Orthographic projection view of fixture assembly: (Sheet.No: 1/2)

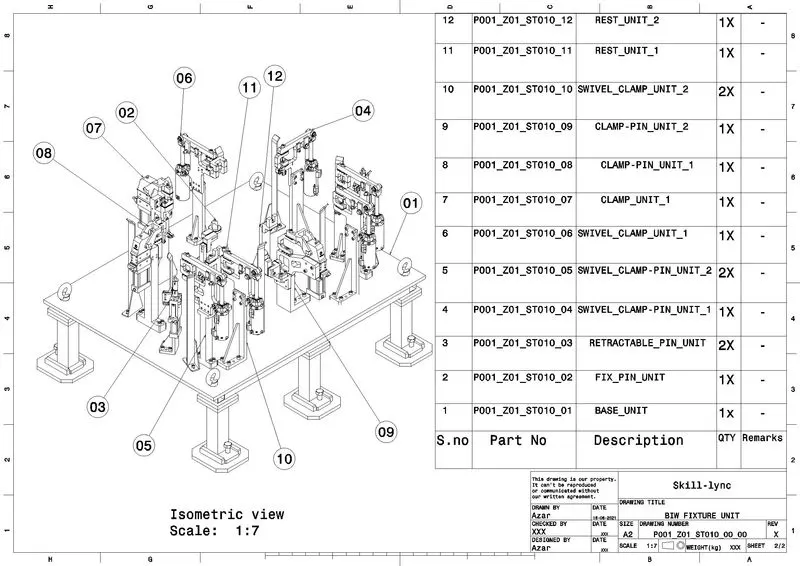

Isometric view of fixture assembly: (Sheet.No: 2/2)

2. Drafting a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly:

A. Base unit: (P001_Z01_ST010_01_00)

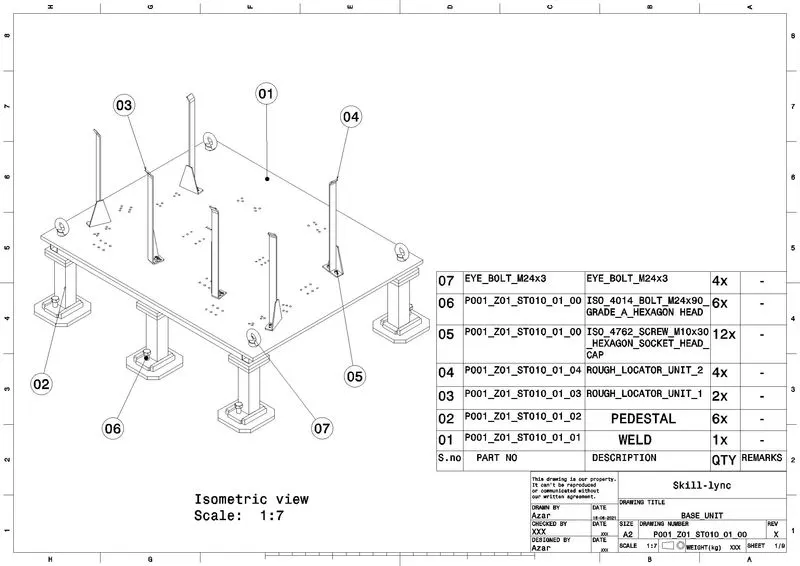

Isometric view of base unit: (Sheet.No: 1/9)

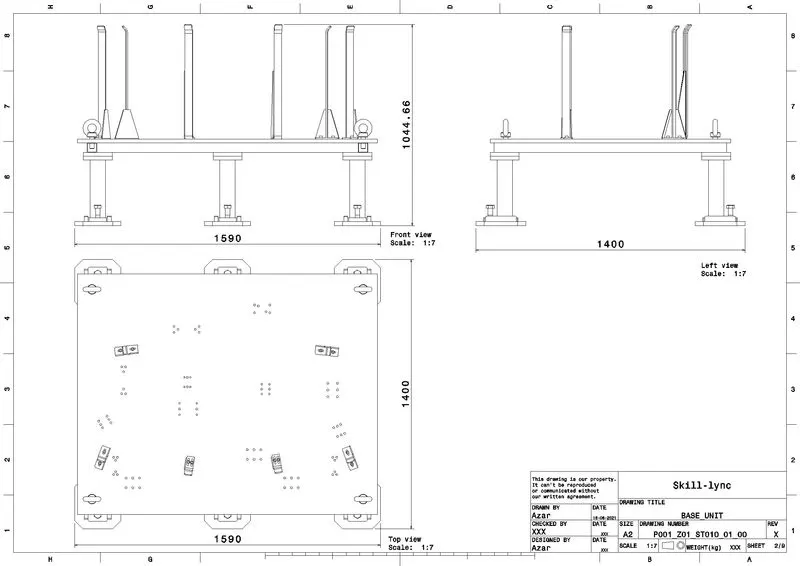

Orthographic view of base unit: (Sheet.No: 2/9)

Detailing of base plate/Weld: (P001_Z01_ST010_01_01)

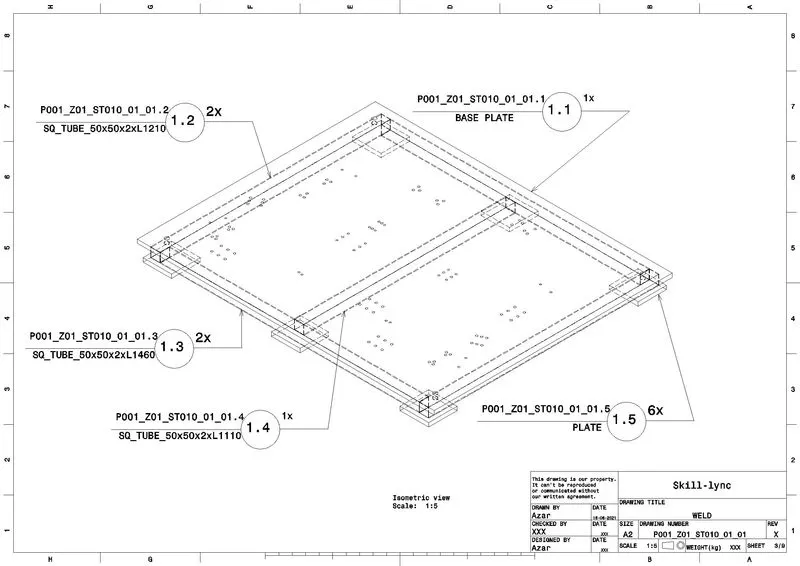

Isometric view of base plate: (Sheet.No: 3/9)

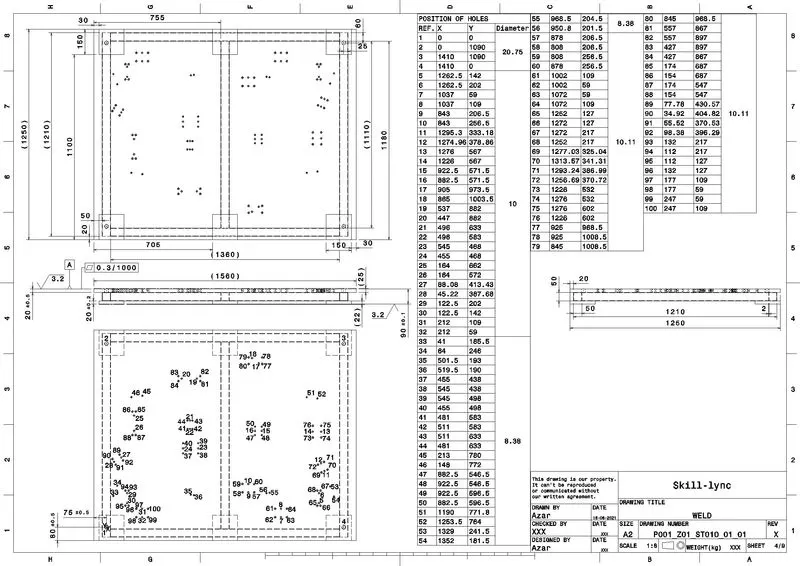

Orthographic projection view of base plate: (Sheet.No: 4/9)

Detailing of Pedestal: (P001_Z01_ST010_01_02)

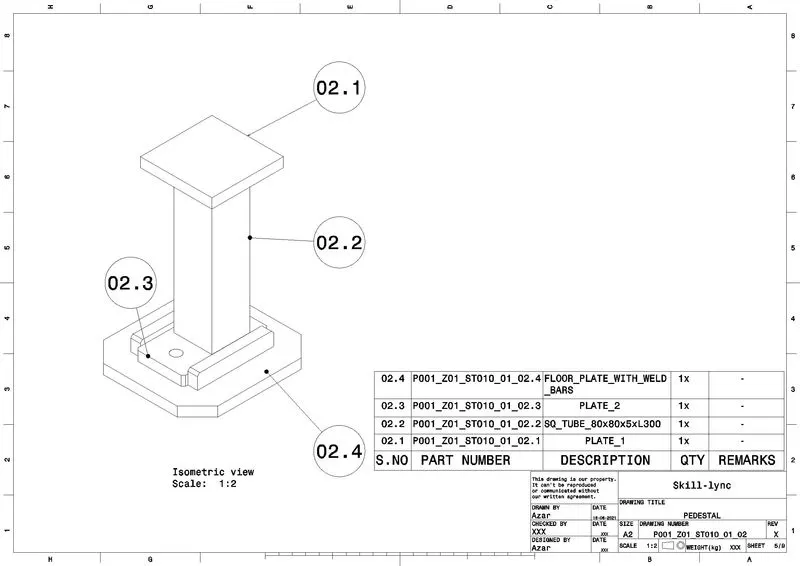

Isometric view of Pedestal: (Sheet.No: 5/9)

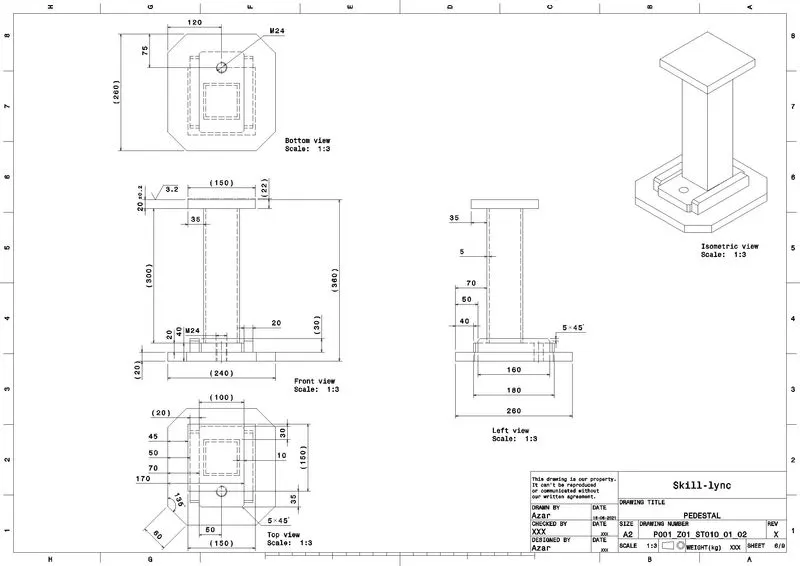

Orthographic projection view of Pedestal: (Sheet.No: 6/9)

Detailing of Rough-locators:

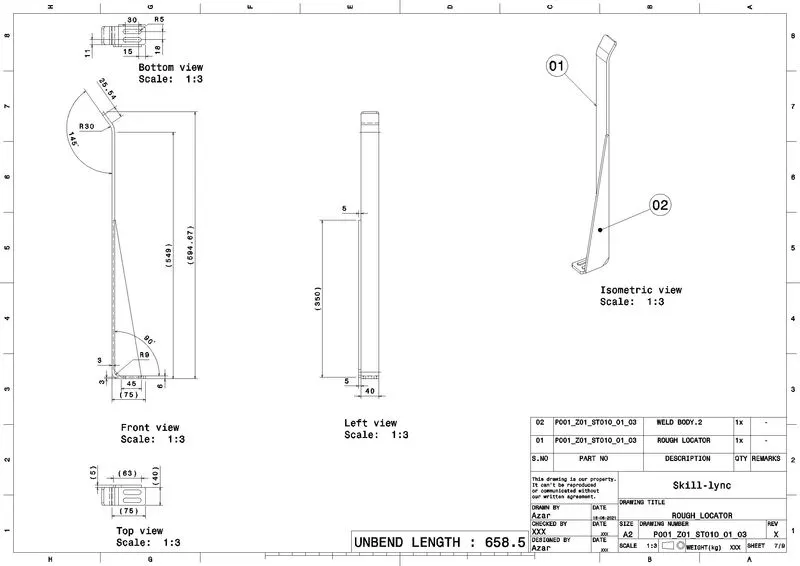

P001_Z01_ST010_01_03: (Sheet.No: 7/9)

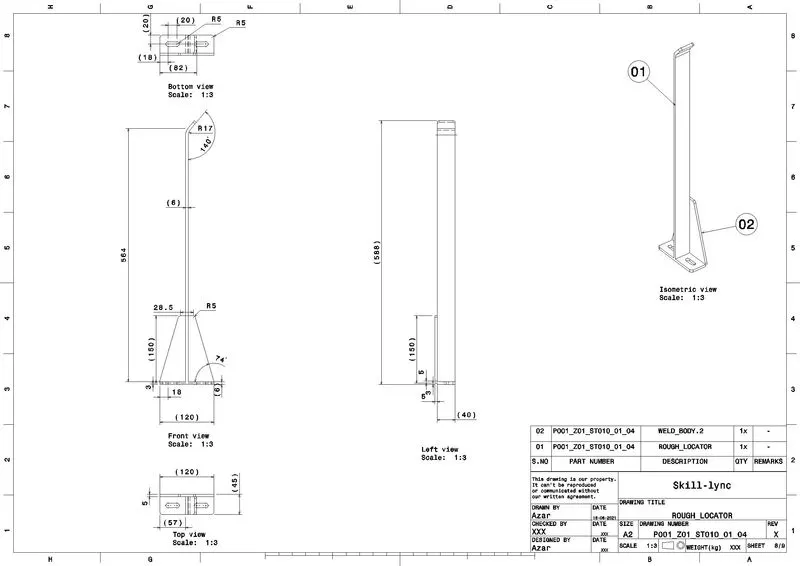

P001_Z01_ST010_01_04: (Sheet.No: 8/9)

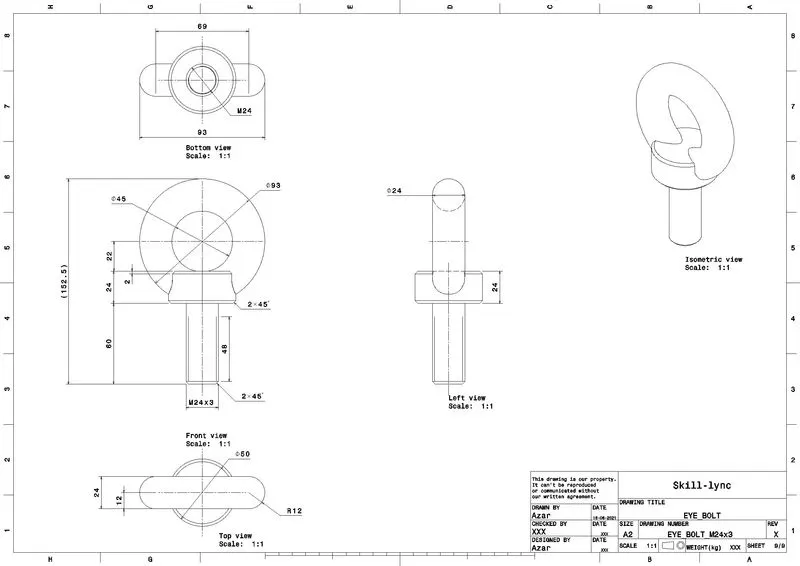

Detailing of Eye_bolt_M24x3: (Sheet.No: 9/9)

B. Detailing of Fixed Pin Unit: (P001_Z01_ST010_02_00)

• The fixture assembly has only one fixed pin unit(not included retracting/clamp-pin units) to which the detailed drawings are given below:

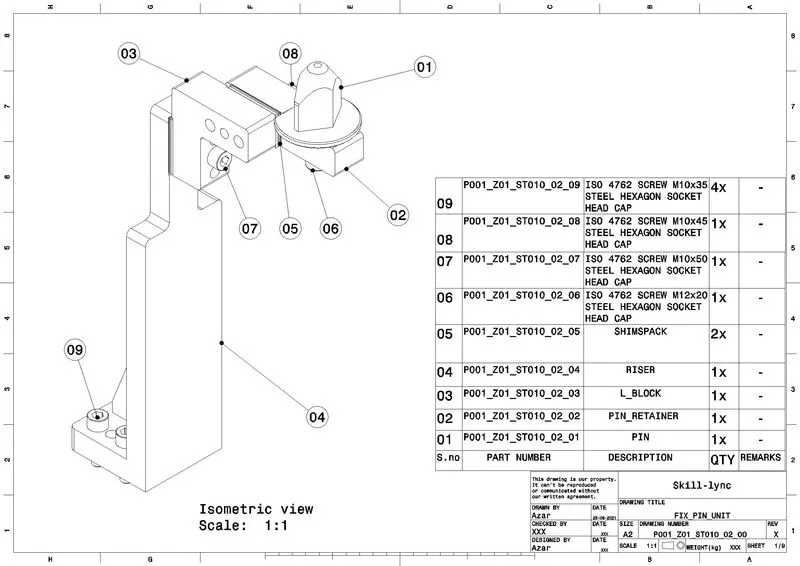

Isometric view of Fixed pin unit: (Sheet.No: 1/7)

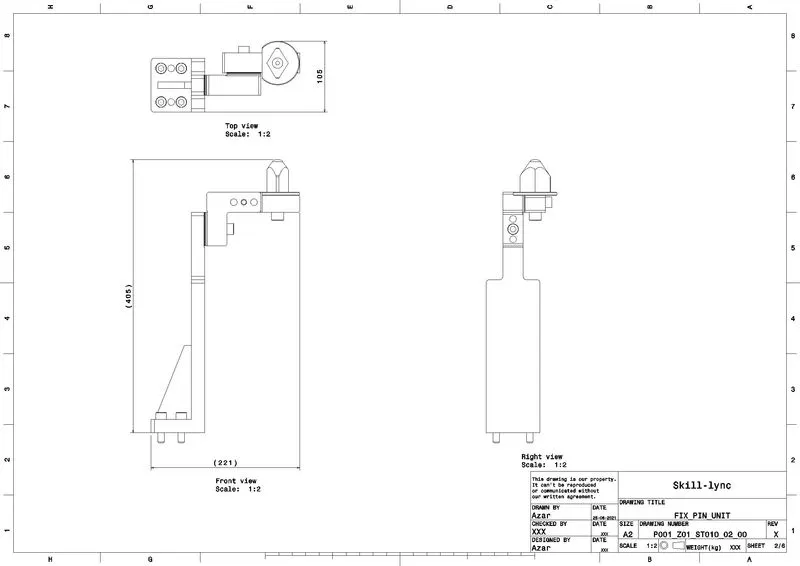

Orthographic projection view of Fixed pin unit: (Sheet.No: 2/7)

Detailing of Pin: (P001_Z01_ST010_02_01)

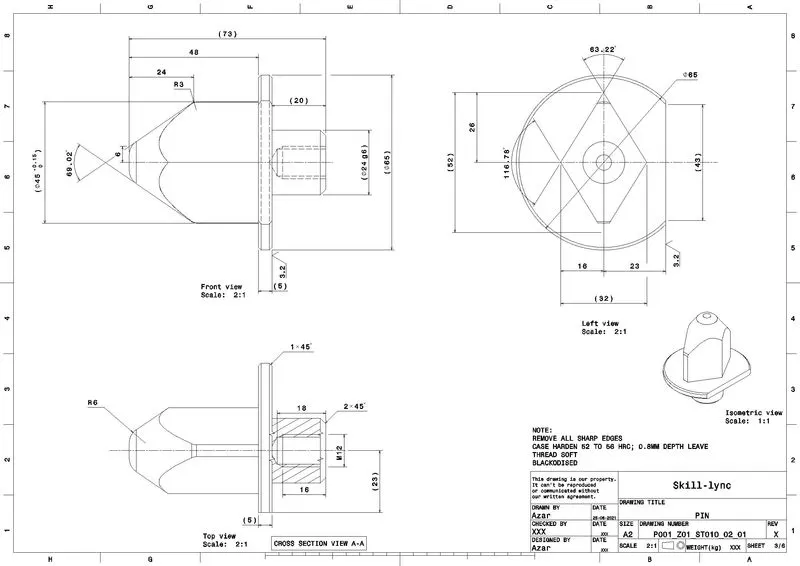

Ortho & Iso- view of Pin: (Sheet.No: 3/7)

Detailing of Pin_Retainer: (P001_Z01_ST010_02_02)

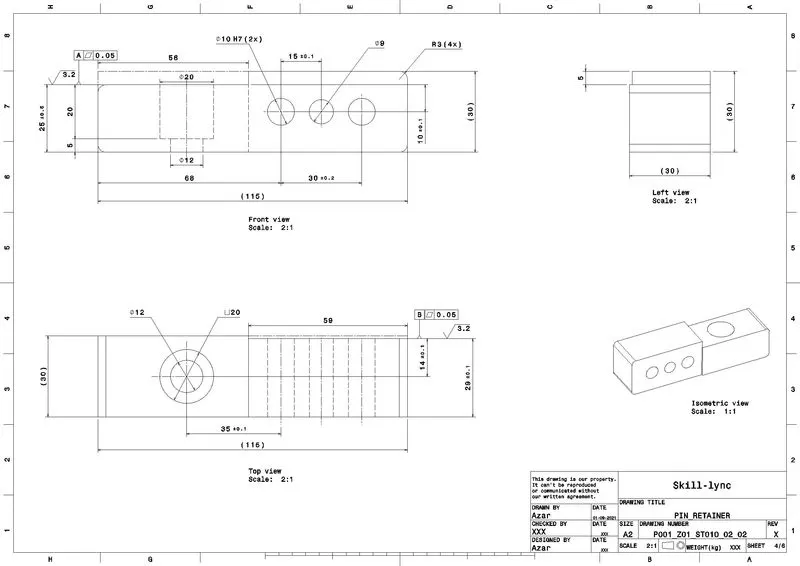

Ortho & Iso- view of Pin retainer: (Sheet.No: 4/7)

Detailing of L-Block: (P001_Z01_ST010_02_03)

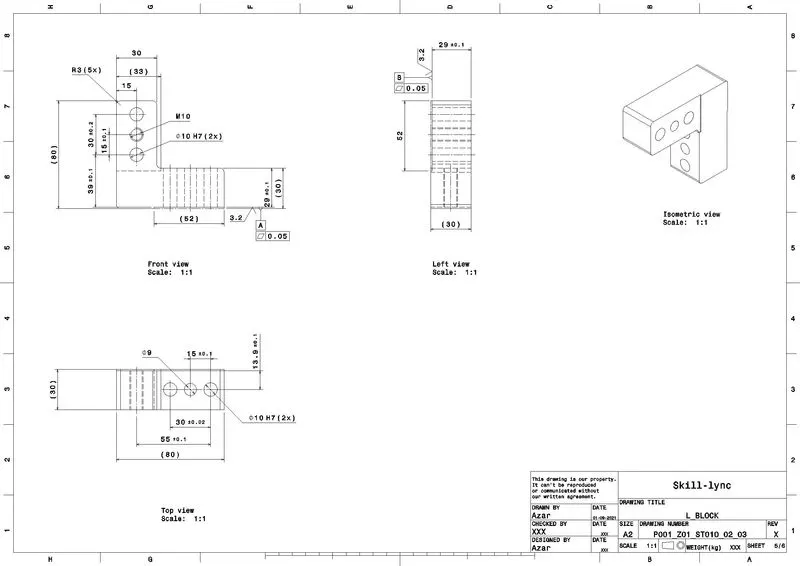

Ortho & Iso- view of L-Block: (Sheet.No: 5/7)

Detailing of Riser: (P001_Z01_ST010_02_04)

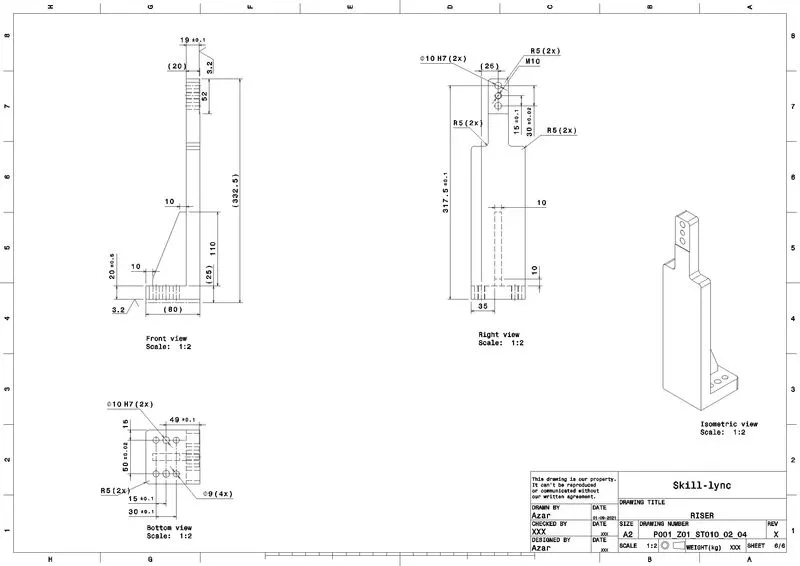

Ortho & Iso- view of Riser: (Sheet.No: 6/7)

Detailing of Shims: (P001_Z01_ST010_02_05)

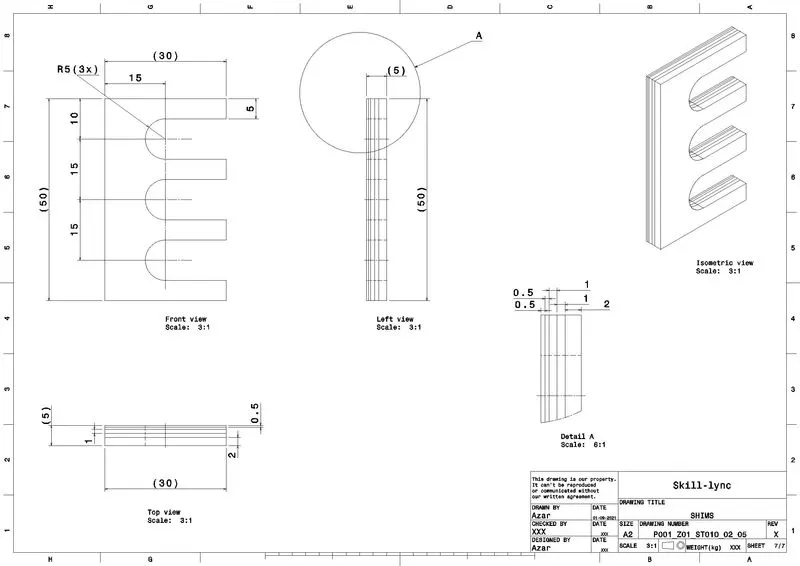

Ortho & Iso- view of Shims: (Sheet.No: 7/7)

Conclusion:

Hence, drafting of keysheet for the complete fixture assembly is done along with detailed drawings of the base unit and fixed pin unit of the fixture.
