Week 1 Understanding Different Battery Chemistry

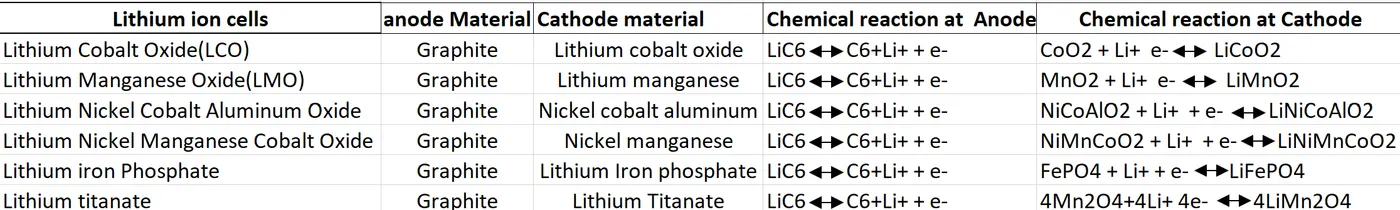

1.Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells.Give your detailed explanation on it

1.Lithium Cobalt oxide:

Lithium Cobalt Oxide (LiCoO2) is a mature battery technology, characterized by a long cycle life and high energy densities. The cathode consists of a cobalt oxide and anode is of graphite carbon. The cathode has a layered structure and during discharge, lithium ions move from the anode to the cathode. The flow reverses on charge. The drawback of Li-cobalt is a relatively short life span, low thermal stability and limited load capabilities (specific power).

2.Lithium Manganese Oxide:

Lithium Manganese (LiMn2O4) battery cell's cathode is made out of lithium manganese oxide. It forms a three-dimensional spinel structure which improves ion flow on the electrode, which results in lower internal resistance and improved current handling, in comparsion with Cobalt based batteries. This three dimensional spinel architecture also exhibits high thermal stability and enhanced safety, but at the cost of cycle, calendar life, and energy density. Pure Li-manganese batteries are no longer commonly, they may only be used for special applications. Recent trends indicate that most Li-manganese batteries are blended with lithium nickel manganese cobalt oxide (NMC) to improve the specific energy and prolong the life span, and is popular in most Electric Vehicles.

3.Lithium Nickel cobalt Aluminum oxide:

Lithium Nickel Cobalt Aluminum Oxide (LiNiCoAlO2) cathode material is highly thermally stable cathode material, doping the lithium nickel cobalt oxide with aluminum both stabilizes its thermal and charge transfer resistance. NCA shares similarities with NMC in offering high specific energy, reasonably good specific power and a long life span.

The anode reaction remains the same as in other lithium-ion cells. The cathode reaction involves the combination of lithium ions with NMC, resulting in the formation of LiNi0.33Mn0.33Co0.33O2.

High energy and power densities, as well as good life span, make NCA a candidate for EV powertrains

4. Lithium Nickel Manganese cobalt oxide:4. Lithium Nickel Manganese cobalt oxide:

Lithium Nickel Cobalt Manganese (Li(NiCoMn)O2) batteries are made of cathode materials which is combination of nickel, manganese and cobalt, typically one-third nickel, one-third manganese and one-third cobalt, also known as 1-1-1. Similar to Li-manganese, NMC can be tailored to serve as Energy Cells or Power Cells, like other lithium-ion battery varieties, NMC batteries can have either a high specific energy density or a high specific power. They however cannot have both properties in the same pack. For example, NMC in an 18650 cell for moderate load condition has a capacity of about 2,800mAh andcan deliver 4A to 5A. NMC in the same cell size can be optimized for specific power with capacity of about 2000mAh, but capable of delivering a continuous discharge current of 20A.

5.Lithium Iron Phosphate:

In Lithium Iron Phosphate (LiFePO4) Batteries phosphate is used as cathode material, Li-phosphate offers good electrochemical performance with low resistance. This nano-scale phosphate material for cathode in Lithium Ion batteries is most viable option because of its low cost,environmental friendliness, long cycle and calendar lives (chemical stability) and good capacity (170 mAh/g). Doping with transition metals results in reduction of internal impedance. LiFePO4 batteries are incombustible in case of misuse during charging or discharging, they are more stable during overcharge or short circuit conditions and they can withstand high temperatures without decomposing. LFP is more tolerant to full charge conditions and is compartively less vunerable to stress even if kept at high voltage for a prolonged time.

6.Lithium Titanate:

Lithium Titanate ((Li2TiO3)/(Li4Ti5O12)) battery is a modified Li Ion battery in which the graphite in the anode is replaced by Li-titanate which forms a spinel structure. LTO is the safest Anode Material for Lithium Ion Cells. As there is no volume changes upon charging and discharging, LTO chemistry battery exhibits maximum cyclic stability.The cathode can be LMO or NMC 622 or LFP, or any other regular lithium battery Chemistry. Depending on selected cathode chemistry the LTO single cell voltage would range from 1.5 Vmin to 2.85 Vmax with nominal operating voltage of around 2.2V to 2.40V.LTO can be fast charged and can deliver a high discharge current of 10C. Even the cycle life is higher than regular Li-ion batteries. LTO exhibits excellent low-temperature discharge characteristics (capacity of 80 percent at –30°C). Thermal stability under high temperature is comparitively better, highly tolerant to operational abuses and can comfortably perform up to 55 °C and can go up to 65 °C.

2.Compare the differences between each type of Li+ion batteries based on their characteristics

solution:

1.Lithium manganese cobalt:

2.Lithium Iron Phosphate (LiFePO4 or LFP):

• Excellent thermal stability: LFP batteries are highly stable and can withstand high temperatures without thermal runaway.
• Longer lifespan: They have a longer cycle life compared to LCO and LMO batteries, making them more durable.
• Lower energy density: LFP batteries have a lower energy density but compensate with other advantages.Commonly used in energy storage systems, electric buses, and other applications where long lifespan and safety are important.

3.Lithium Nickel Cobalt Aluminum Oxide (LiNiCoAlO2 or NCA):

• High energy density: NCA batteries provide one of the highest energy densities among Li-ion batteries.
• High specific power: They can deliver high power output, making them suitable for electric vehicles and high-performance applications.
• Limited thermal stability: NCA batteries can be sensitive to high temperatures, requiring careful thermal management.Often used in electric vehicles, aerospace applications, and some high-end consumer electronics.

• Balanced characteristics: NMC batteries offer a balance between energy density, power output, and thermal stability.Wide range of compositions: NMC batteries come in different ratios of nickel, manganese, and cobalt, allowing for customization.Commonly used in electric vehicles, energy storage systems, and portable electronics. 5

• High cycle life: LTO batteries have an exceptionally long cycle life,
• Low energy density: LTO batteries have a lower energy density compared to other Li-ion chemistries.
• Enhanced safety: LTO batteries have a high level of safety due to their low risk of thermal runaway or overheating.
• Lower voltage: LTO batteries typically have a lower nominal voltage compared to other Li-ion chemistries
