Week 1 Stress Concentration on a Plate with hole

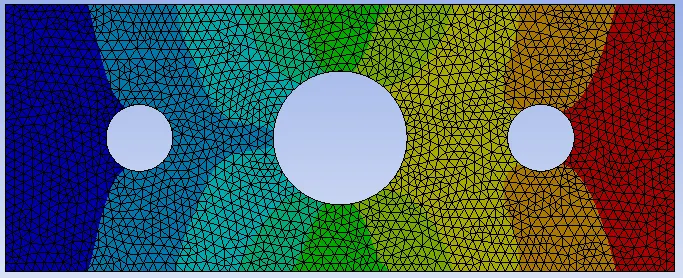

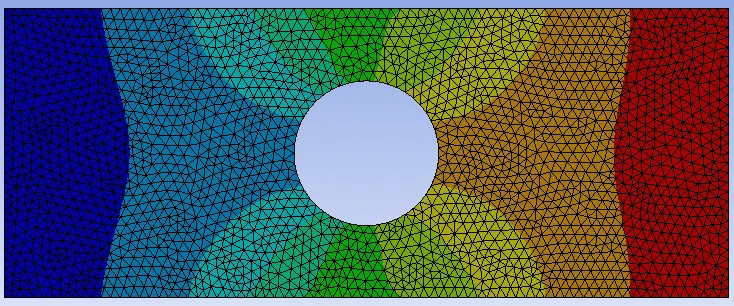

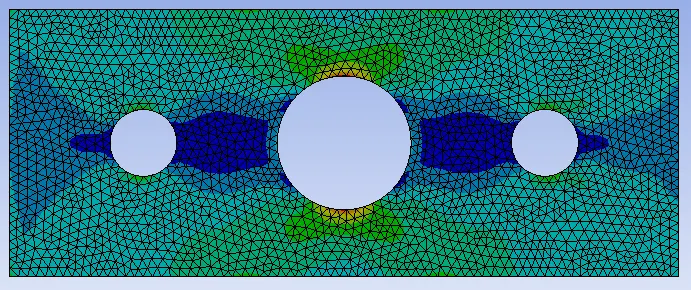

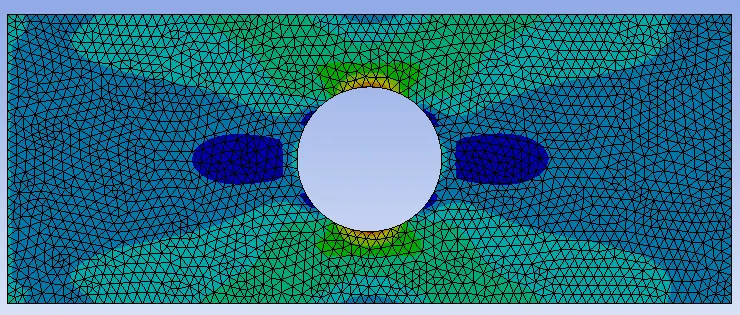

CASE NO RESULT STRESS ANALYSIS RESULT DEFORMATION ANALYSIS DEFORMATION mm MAXIMUM STRESS DEVELOPED AT 500 N MPa CASE - 1 2.7493e-004 0.60121 CASE - 2 2.9729e-004 0.57887 From an analysis perspective, Case - 2 design will be selected. As the stress developed is transferrring to more areas of the plate, maximum stress developed…
