Week 1 Spur Gear Challenge

Objective:

Case 1- Using Cast Iron(ductile) as a material, carry out a static structural analysis to find out Equivalent Stress, Total Deformation and Stress intensity

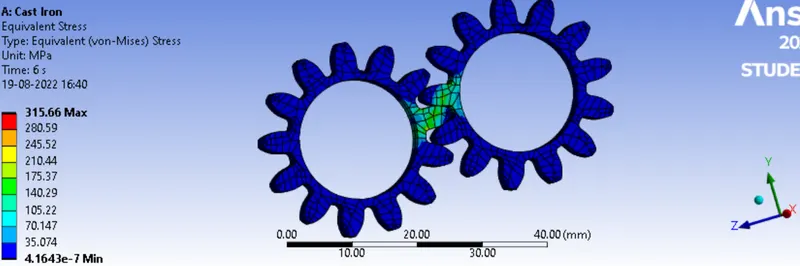

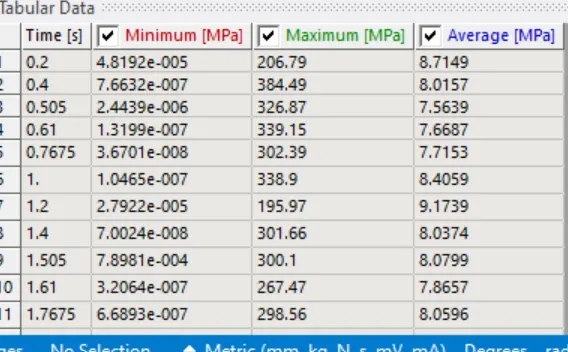

Equivalent Stress -

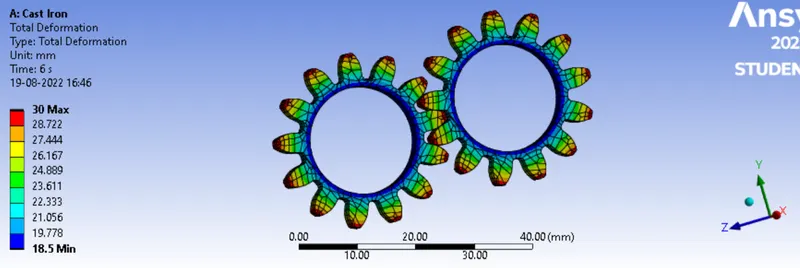

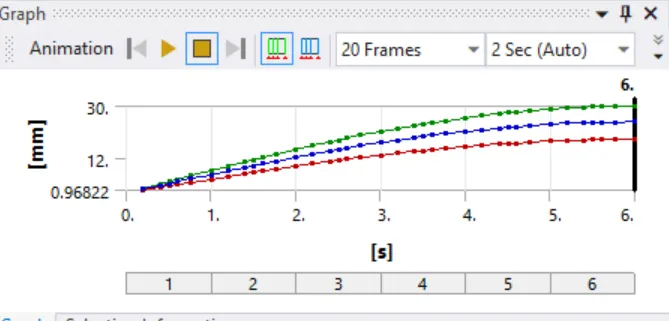

Total Deformation -

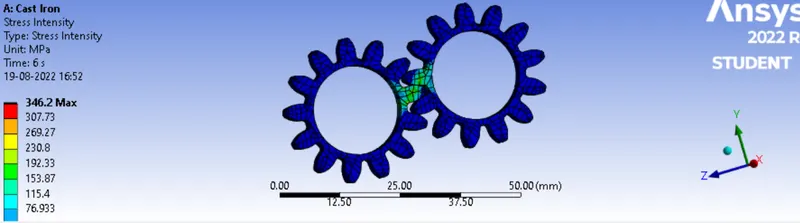

Stress Intensity:

Case 2- Using Cast Steel as a material, carry out a static structural analysis to find out Equivalent Stress, Total Deformation and Stress intensity

Cast Steel:

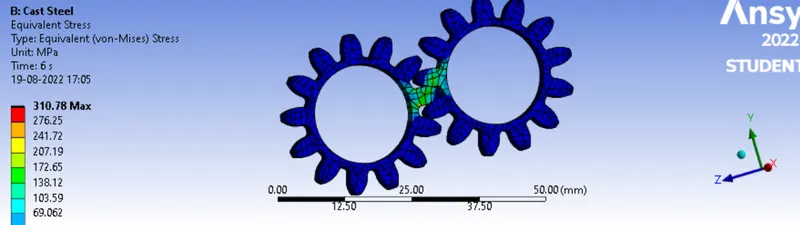

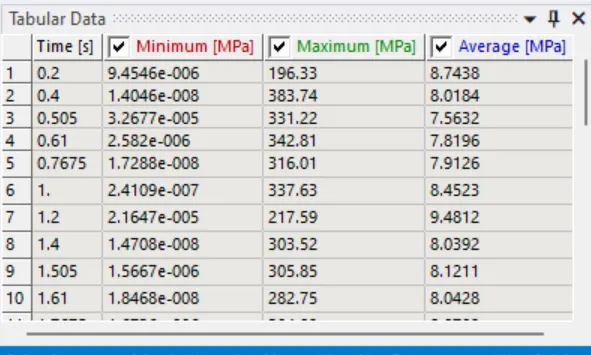

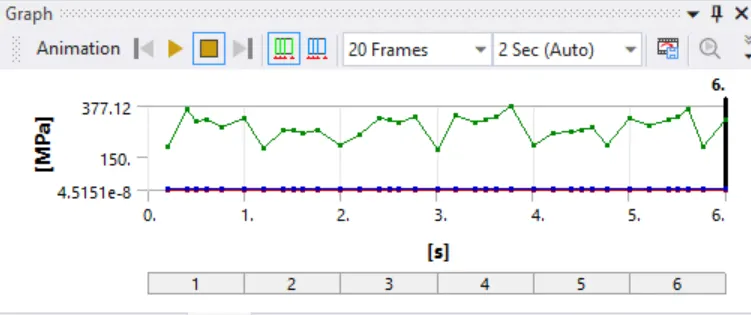

Equivalent Stress:

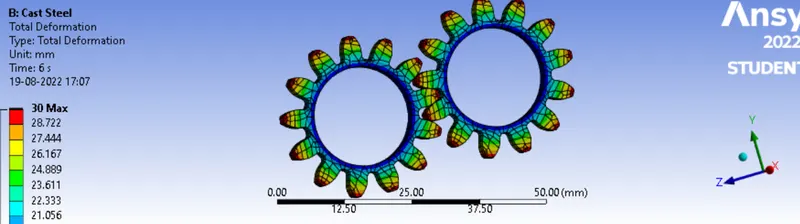

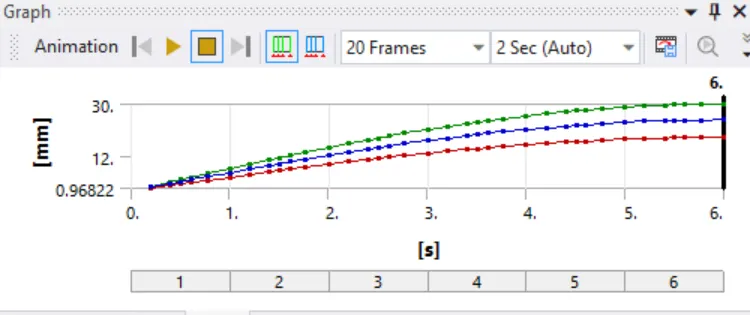

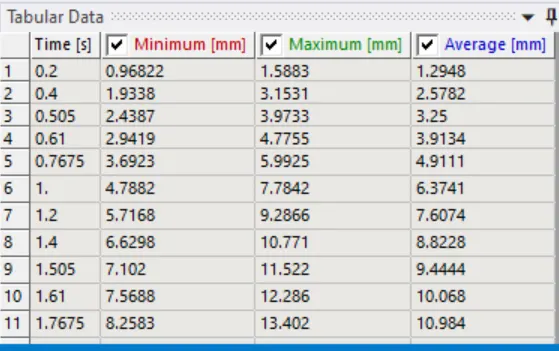

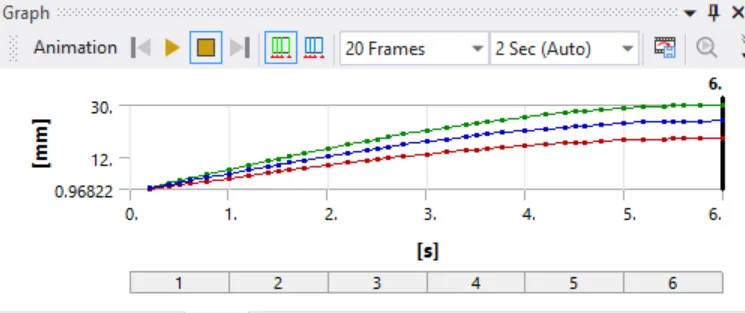

Total Deformation -

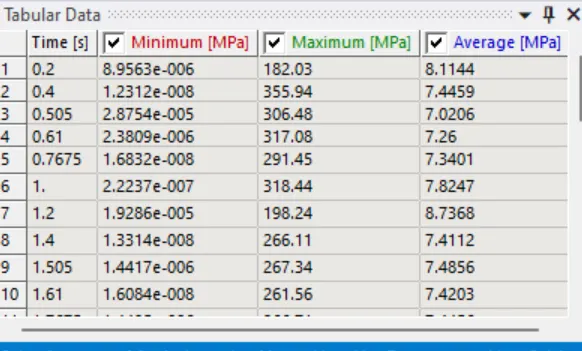

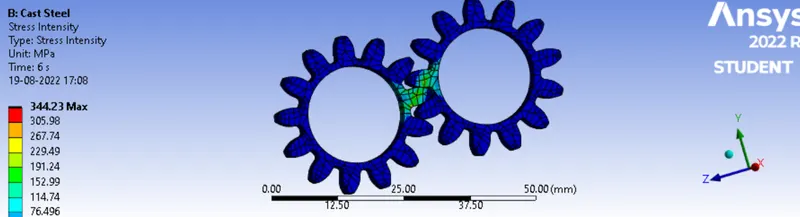

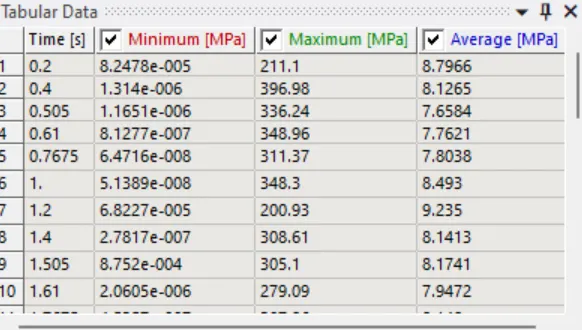

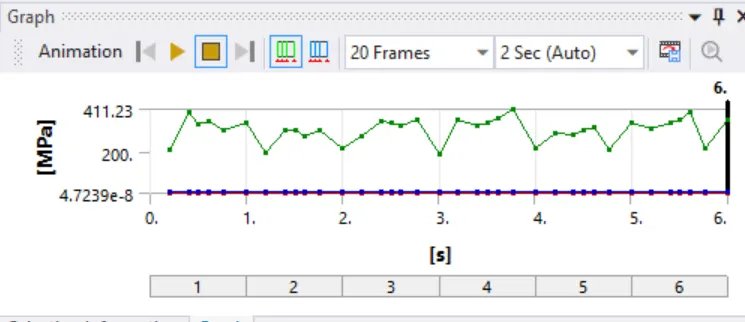

Stress Intensity:

Case 3- Cast Bronze

Using Cast Bronze as a material, carry out a static structural analysis to find out Equivalent Stress, Total Deformation and Stress intensity

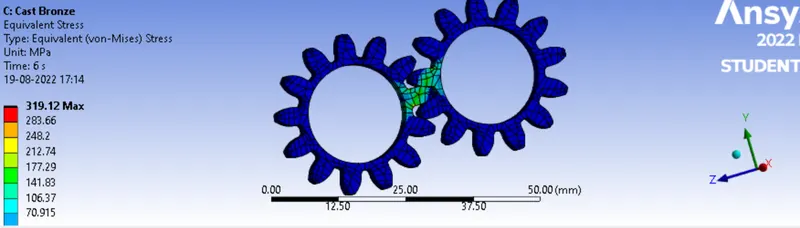

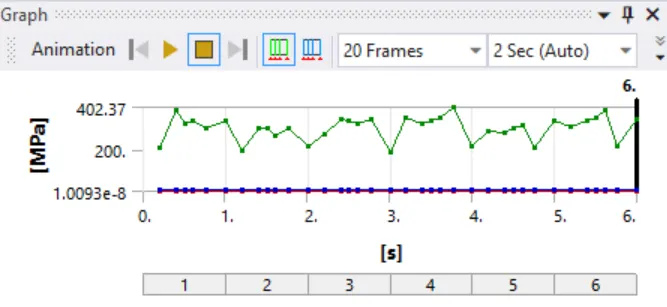

Stress Equivalent -

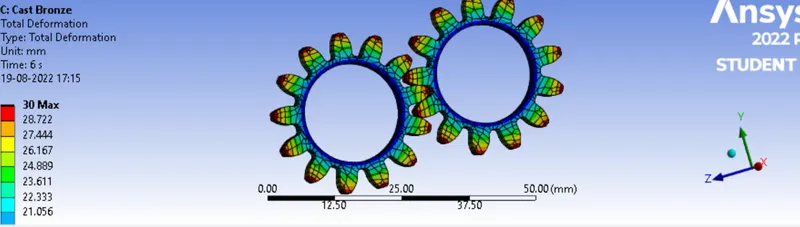

Total Deformation :

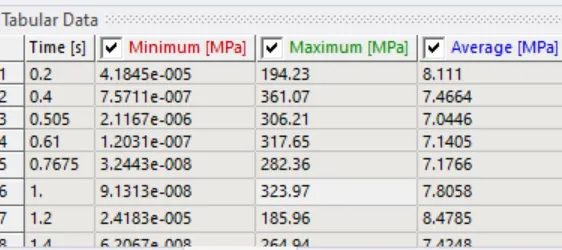

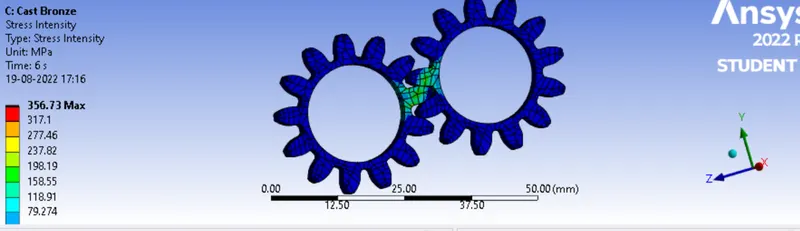

Stress Intensity :

Report:

S.No	Material	Equivalent Stresses	Total Deformation	Stress Intensity
1	Cast Iron	315.66	30	346.2
2	Cast Steel	310.78	30	344.23
3	Cast Bronze	319.12	30	356.73

Fracture can be found where stress Intensity is maximum in all the three cases.
