Week 1 Spur Gear Challenge

AIM:

Objective 1:

• Case 1:


Using Cast Iron(ductile) as a material, carry out a static structural analysis to find out Equivalent stress, Total deformation and Stress intensity(Learn about what stress intensity is). Find location for possible fracture

• Case 2:

Using Cast Steel as material, perform the same analysis for the results as in Case 1.

• Case 3:

Using Cast Bronze as material, perform the same analysis for the results as in Case 1.

Objective 2:

Write a detailed report comparing the results of the three cases and conclude which material would you recommend based on these results.

Procedure:

• Open the ANSYS work Bench and we should selecet the static structural from the left side component box and draw to the panel.
•
• We should edit the Engineering Geomentry for the required given property as cast iron.

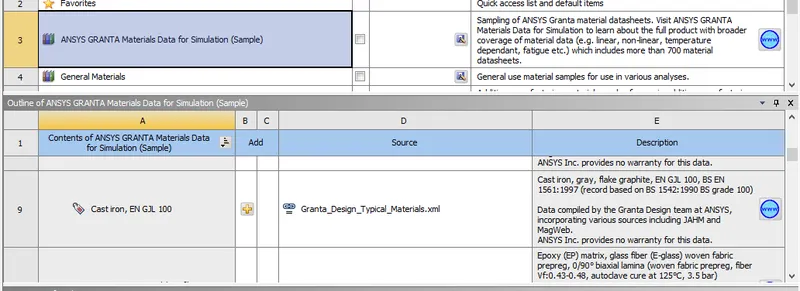

• Go the Ansys Grant material data and we should find the cast iron from the give Data.
•

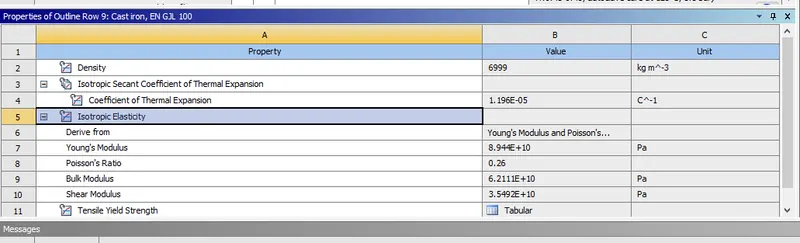

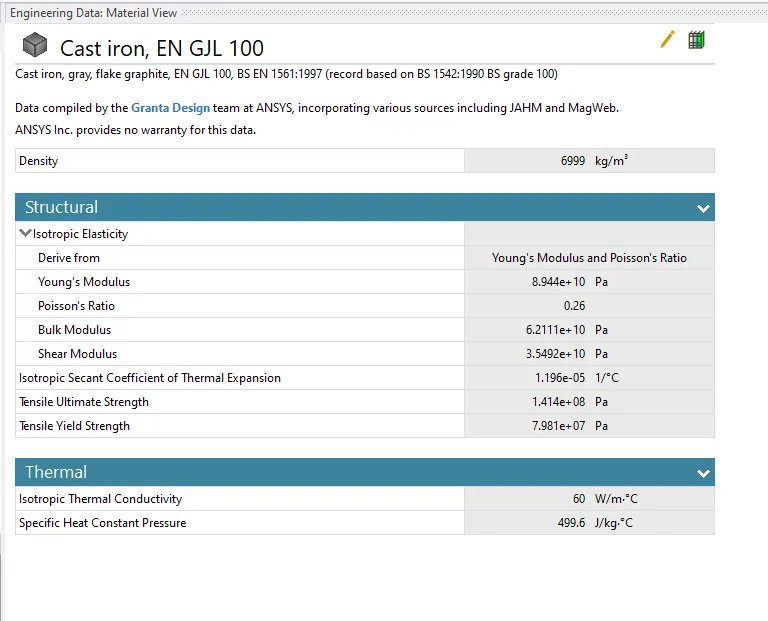

• These are the properties of the Given cast iron ie density,Youngs modulus,possion ratios.
•

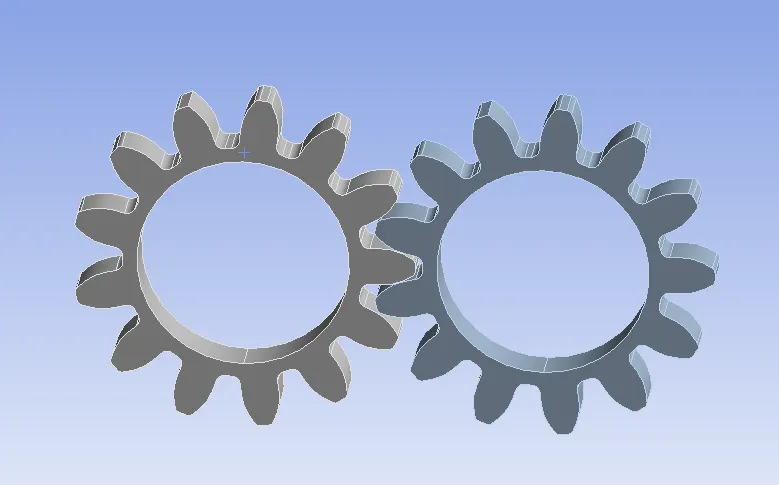

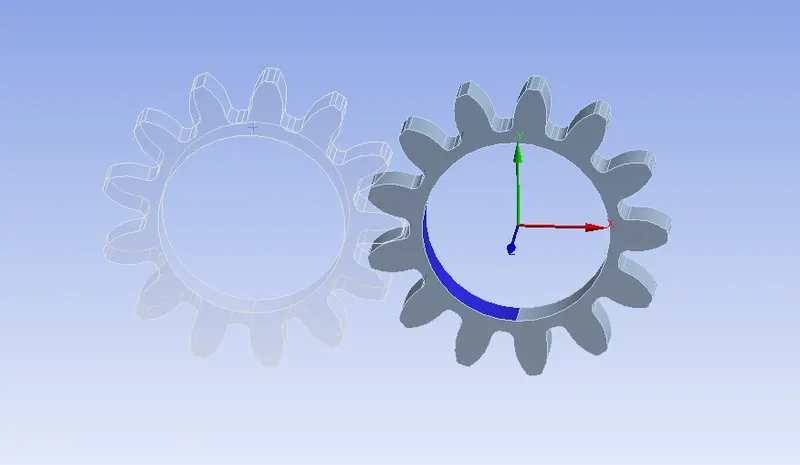

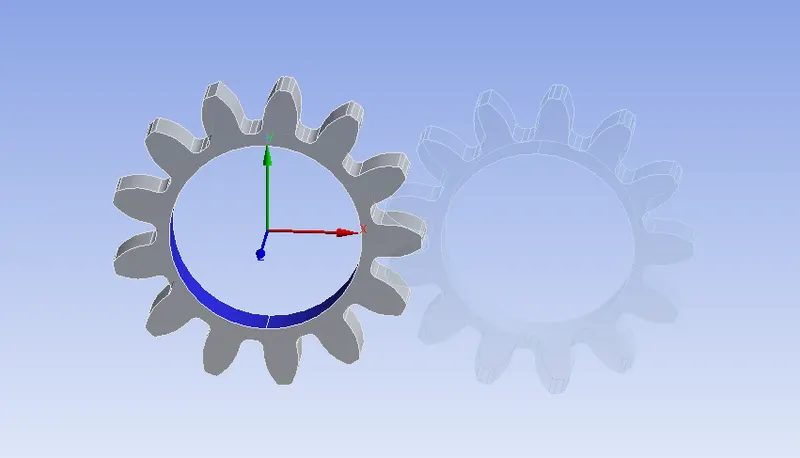

• After the select the proper material we should go to the geomentry and import the spur gear model from the data.
•
•
• After downloading the model we should have to rename the spur gear as right and left.

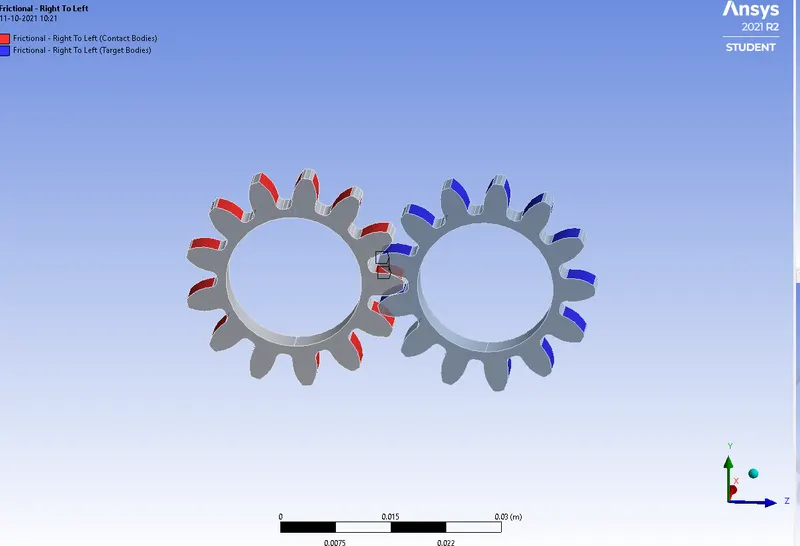

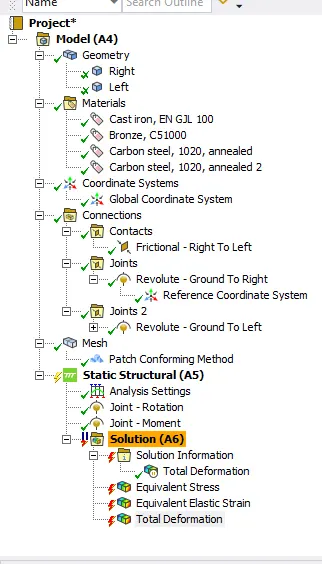

• After that we should provide the contact to the both gears.Go to connection>contact>Select the tooth of the both geomentry.
•
• After that we should have to create the joints to the both surface from right to left.
•
•

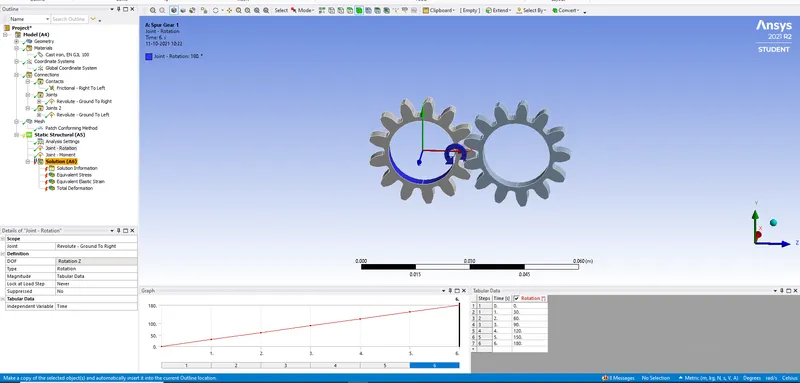

• we should have to provide the revolute joints to both and we should have to provide the roation to the joints with 0 dgrees to 180 degrees.
•

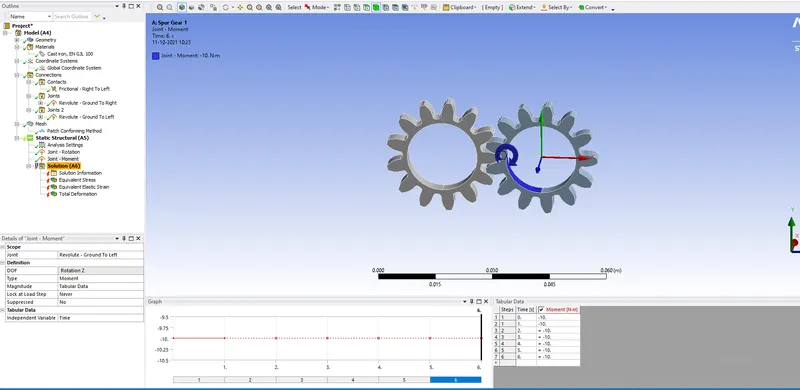

• we should also provide the moment to the model.
•
•

Cast Iron

•

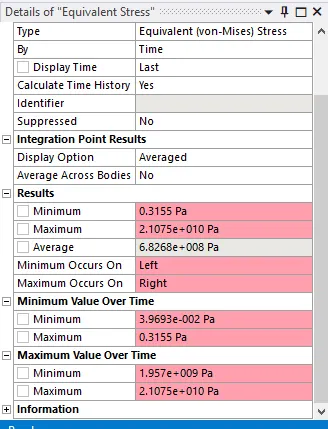

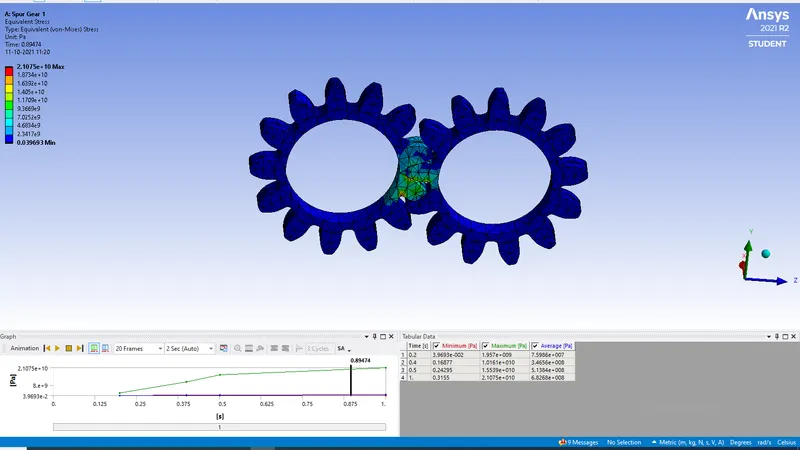

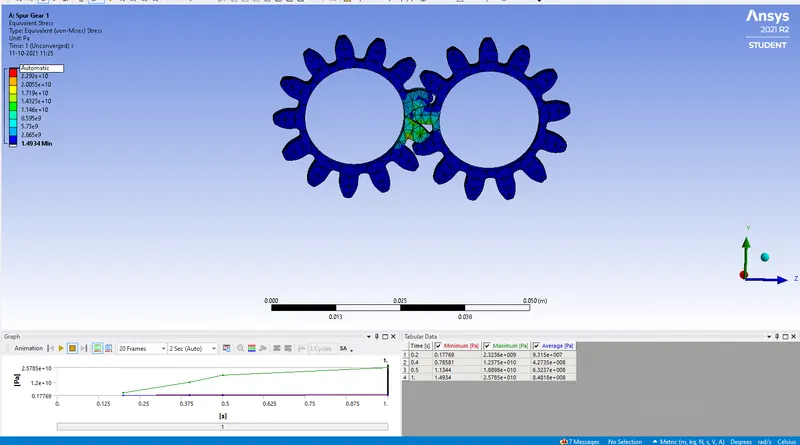

Stress

•

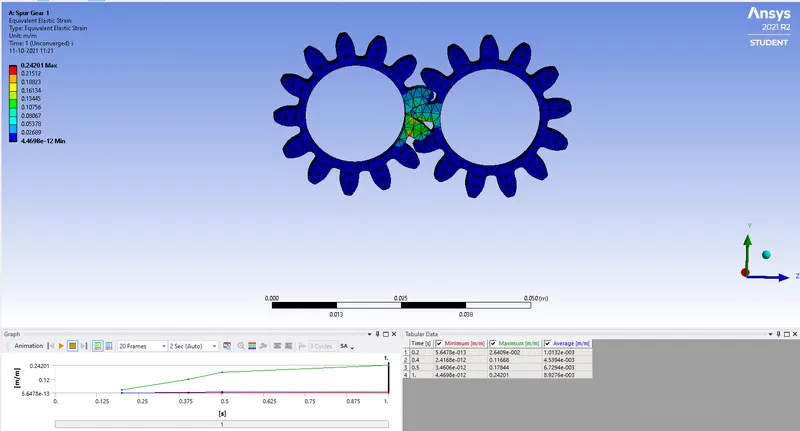

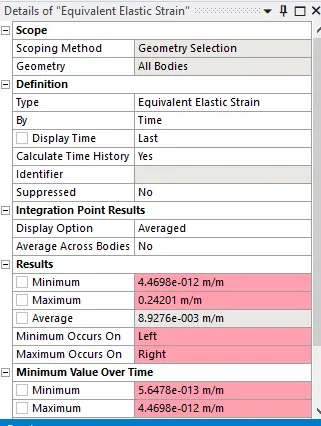

Strain

•
•

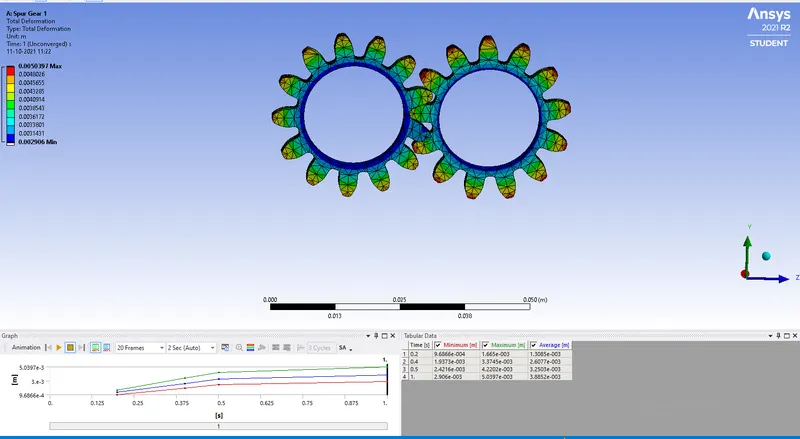

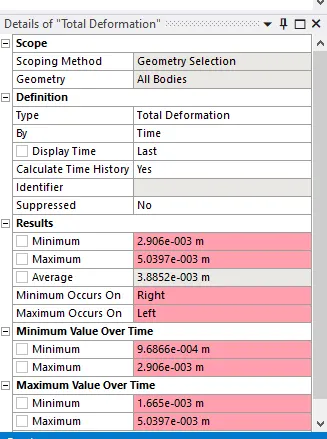

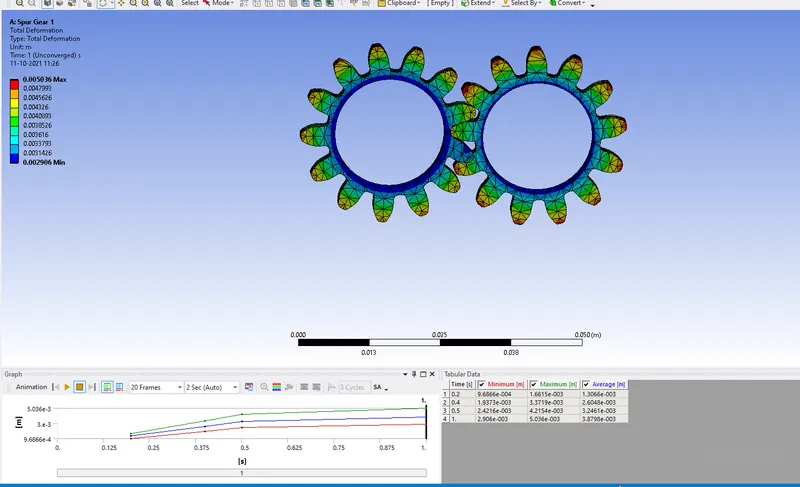

Total Defromation

•
•

Cast Bronze:

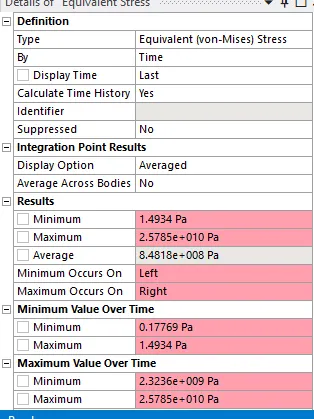

Stress

•
•

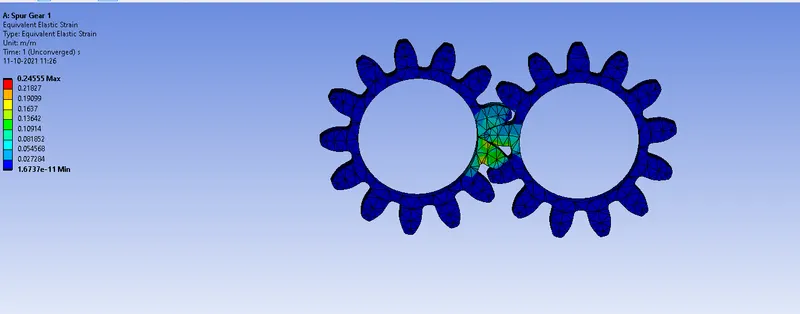

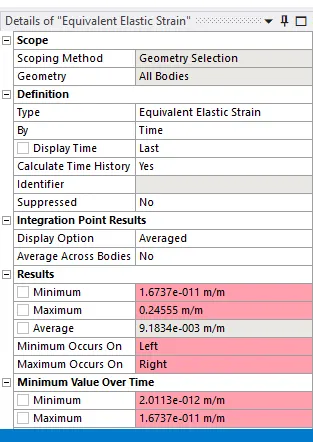

Strain

•
•

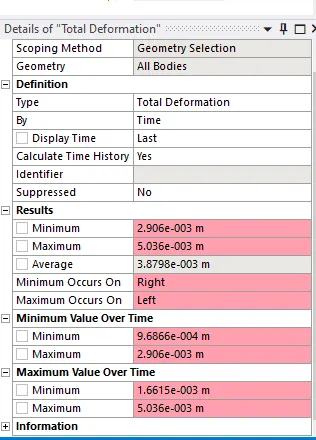

Total Deformation

•
•

Cast Steel

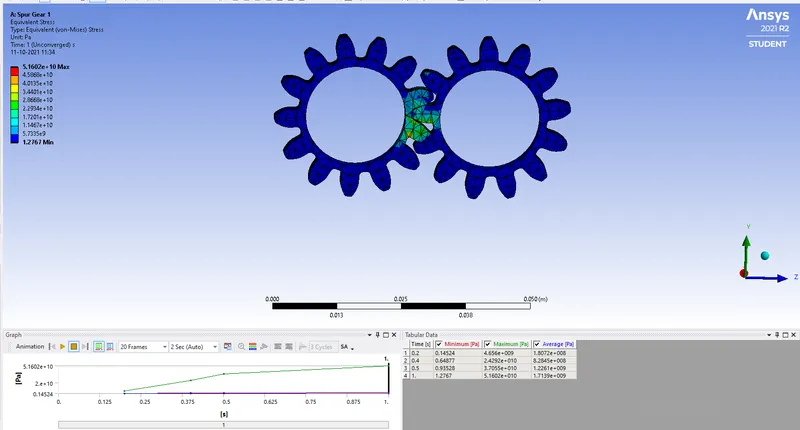

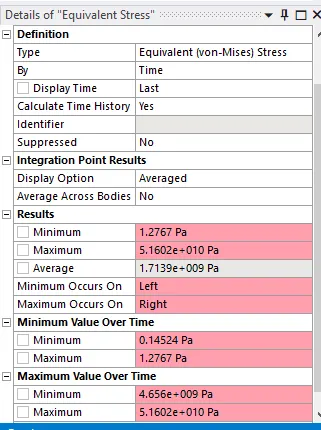

Stress

•
•

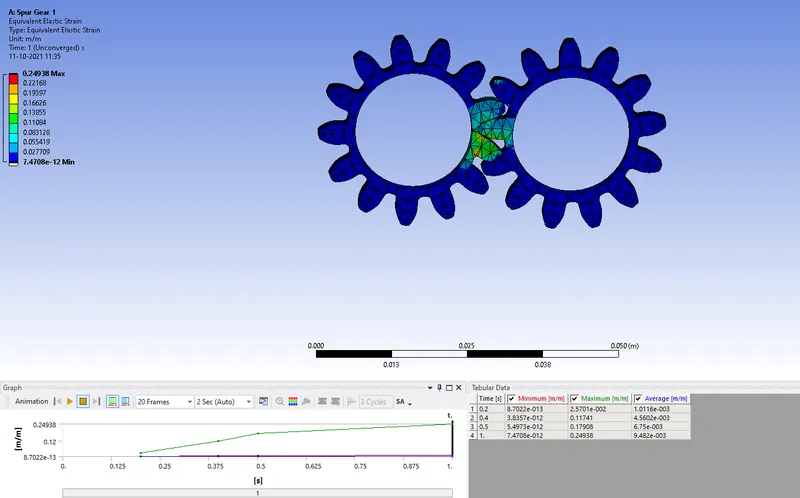

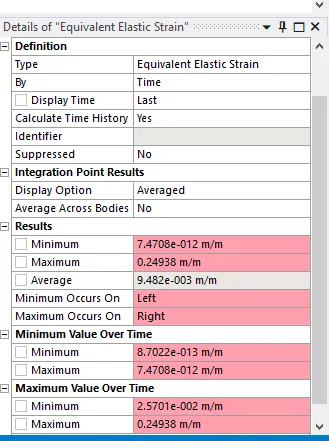

Strain

•
•

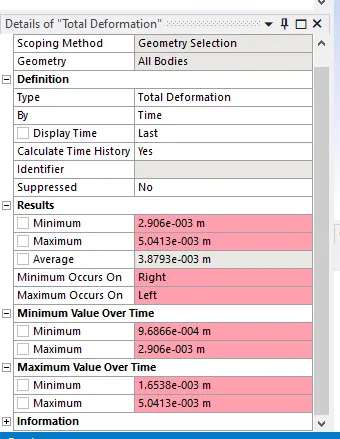

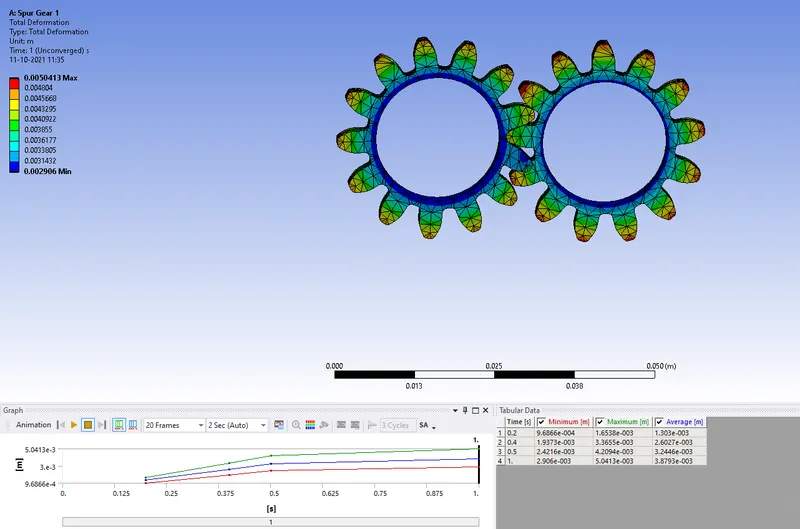

Total Deformation

•
•

Comparssions of the results:

Material Stress strain Total Deformation

Max Min Max Min Max Min

Cast Iron 2.107e+010pa 0.3155pa 0.24210m/m 4.4698e-012m/m 5.0397e-003 2.906e-003m

Cast Bronze 1.4934pa 2.5785e+10pa 0.2455m/m 1.6737e-011m/m 5.036e-003m 2.906e-003m

Cast Steel 5.1602e+010pa 1.2767pa 0.24938m/m 7.4708e-012m/m 5.0413e-003m 2.906e-003m

For the all this material stress is maximum obtained at the Tooth of the teeth.Similary the strees intensity is also measured at the Maximum deformation.

Equivalent Stress: Cast Steel>Cast Iron> Cast Bronze

Stress Intensity: Cast Steel>Cast Iron> Cast Bronze.

CONCLUSION:-

Static structural analysis was carried out successfully on spur gear having the following types of materials,

Case-1: Cast Iron
Case-2: Cast Bronze
Case-3: Cast Steel
Based on the traditional strength of materials approach i.e., from the results of Equivalent stress and Total deformation for all the cases of spur gear,

case-2: Cast bronze is the preferred choice of material.

Based on the fracture mechanics approach i.e., from the results of Stress intensity for all the cases of spur gear,

case-3: Cast steel is the preferred choice of material.

The recommended choice of material is Cast Iron.
