Week 1- Mixing Tee
case 1
- Short mixing tee with a hot inlet velocity of 3m/s.

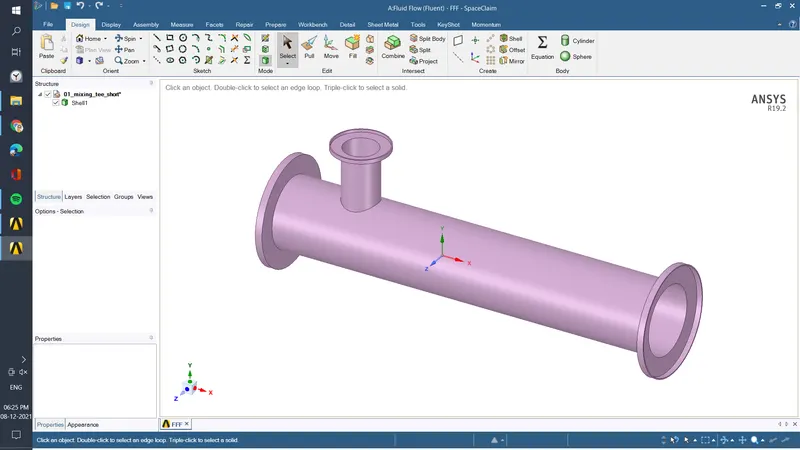

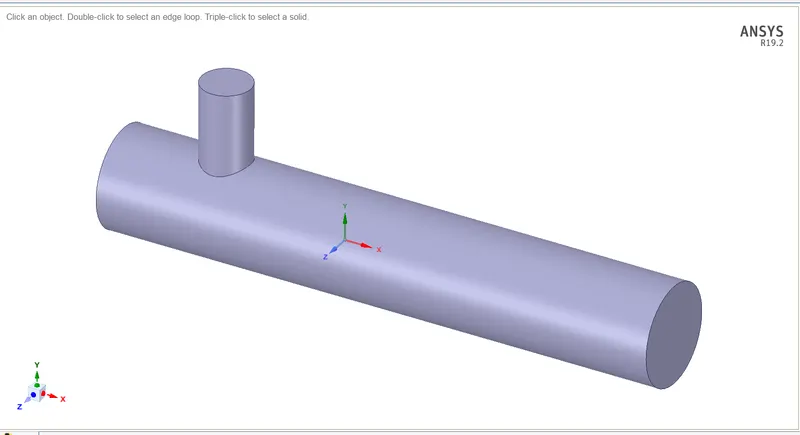

Geometry

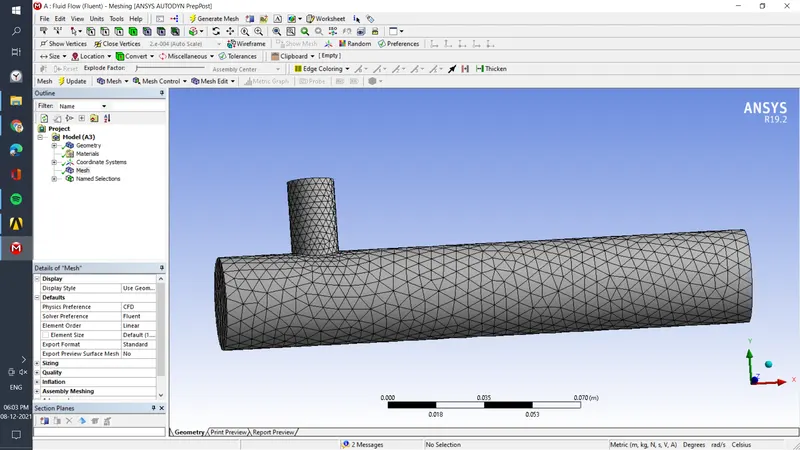

mesh
*autometed genaretd mesh
total number of nodes 2881
total number of elemants 123984
- Momentum ratio of 2.

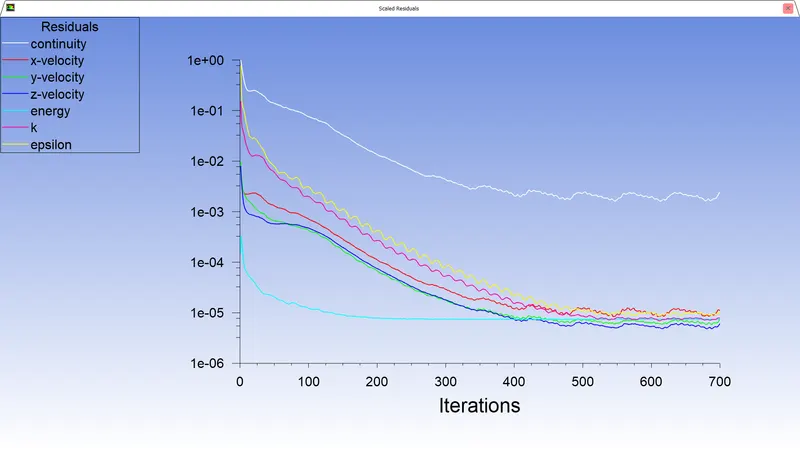

Residuals graph
Number of iterations for convergence at 420
total number of iterations given -700

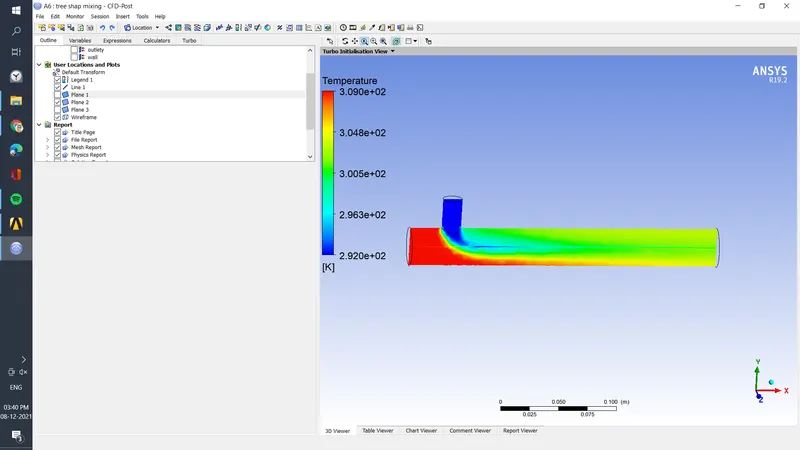

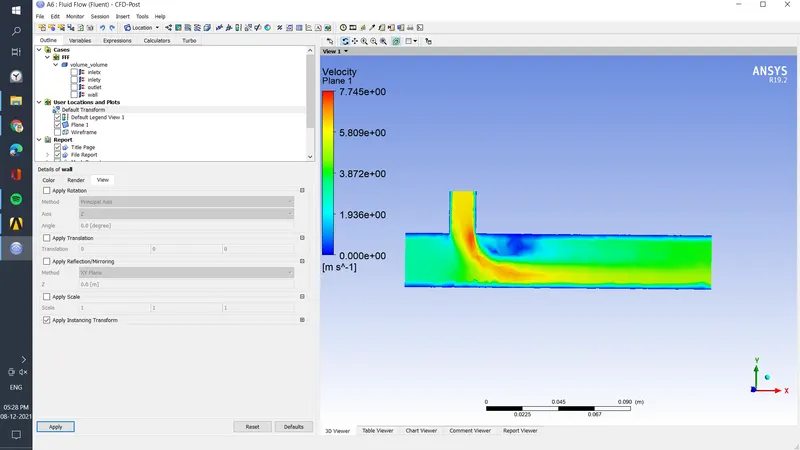

velocity change in the middle of plane
it shows that yinlet (cold air) have velocity given

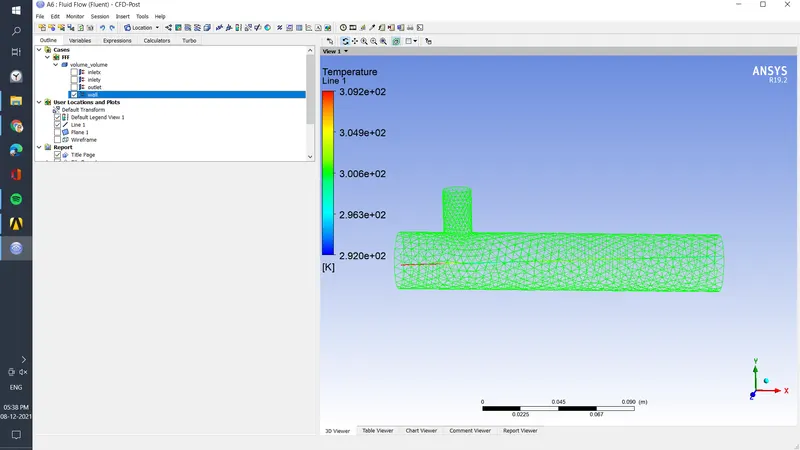

Temperature variation line graph
we can see that high temperature at inlet nearly 300k but at outlet 300k

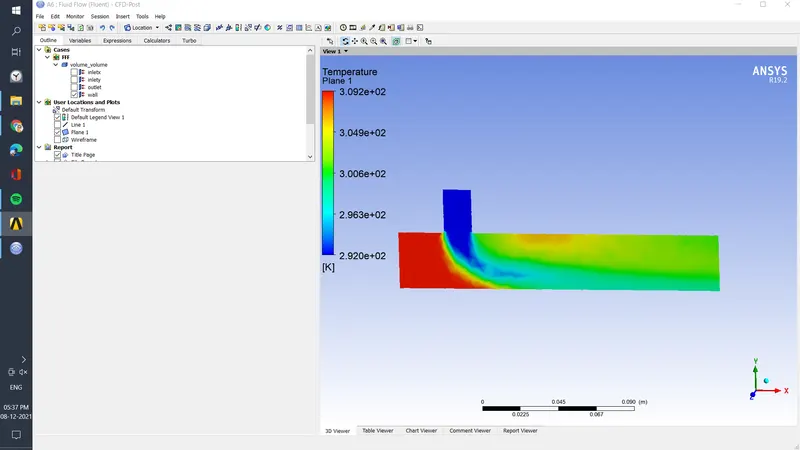

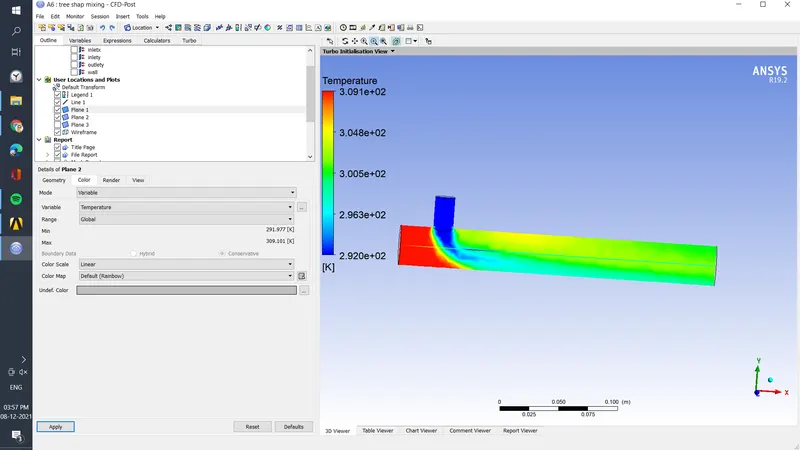

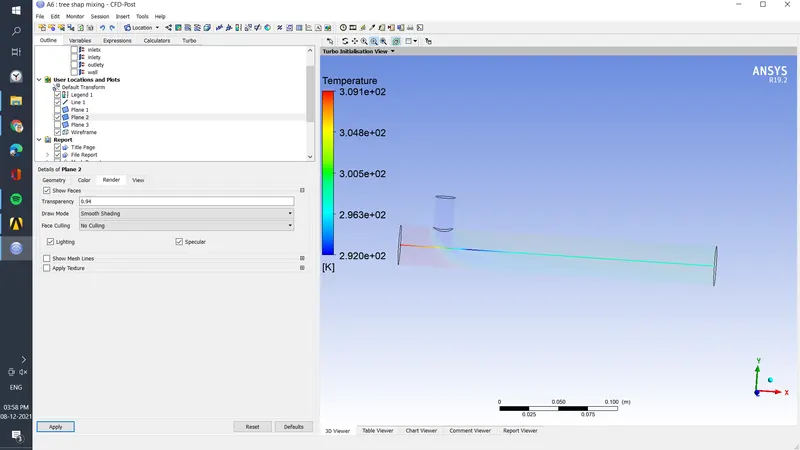

Temperature variation graph
we can see that high temperature at inlet nearly 300k but at outlet 300k
- Momentum ratio of 4.

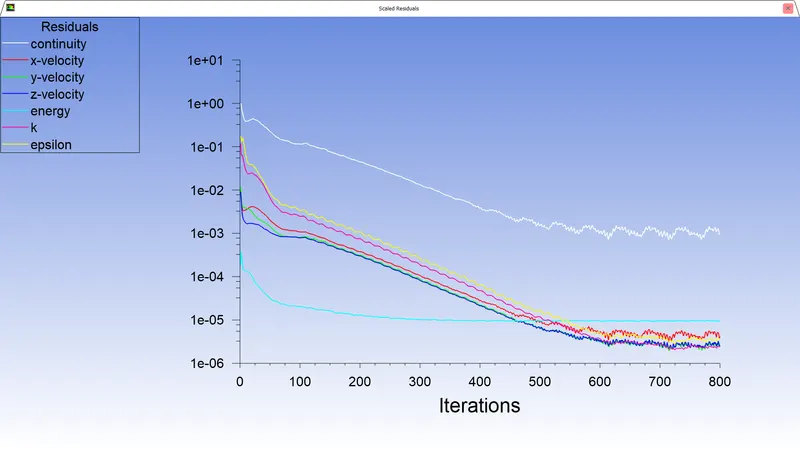

Residuals graph
Number of iterations for convergence at 570
total number of iterations given -800

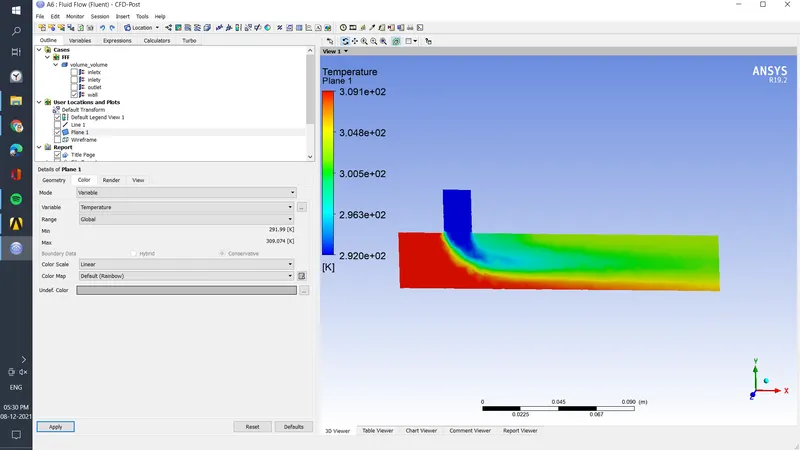

Temperature variation graph
we can see that high temperature at inlet nearly 300k but at outlet 300k

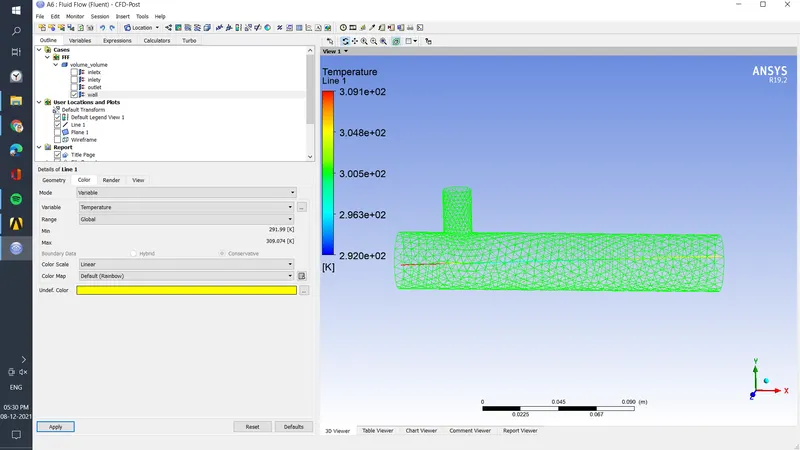

Temperature variation line graph
we can see that high temperature at inlet nearly 300k but at outlet 300k
case 2
- long mixing tee with a hot inlet velocity of 3m/s

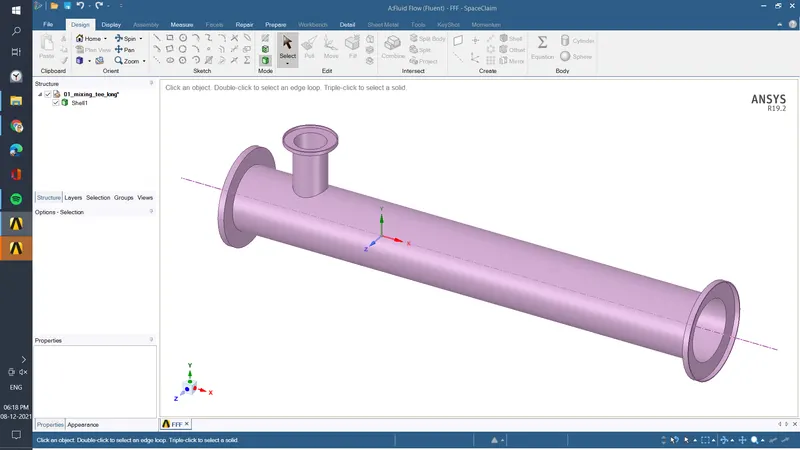

Geometry

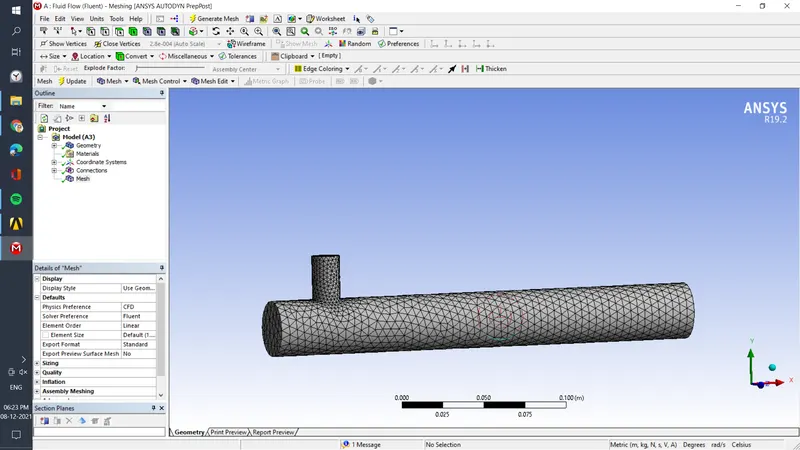

mesh
*autometed genaretd mesh
total number of nodes 3483
total number of elemants 15640
- Momentum ratio of 2.

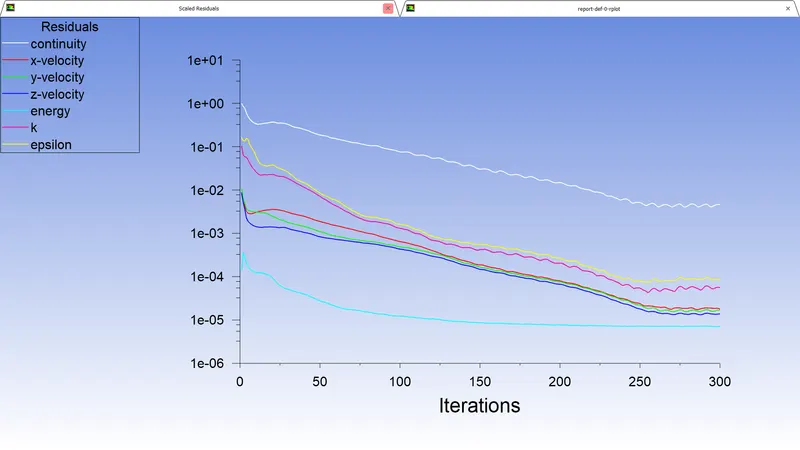

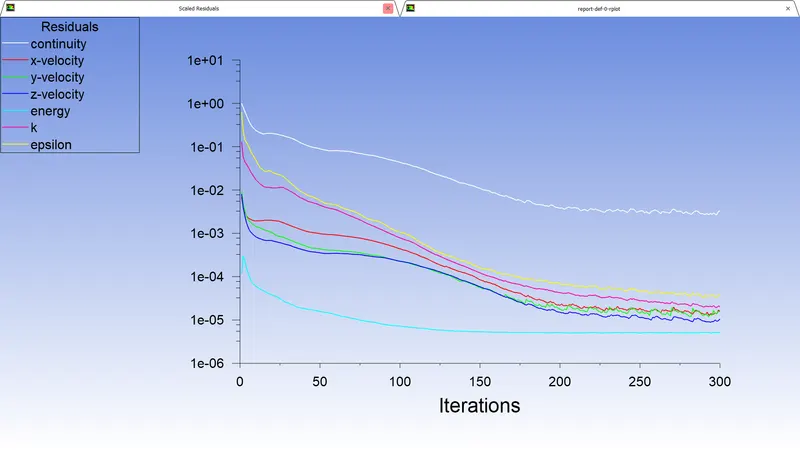

Residuals graph
Number of iterations for convergence at 275
total number of iterations given -300
Temperature variation graph
we can see that high temperature at inlet nearly 300k but at outlet 300k
Temperature variation line graph
we can see that high temperature at inlet nearly 300k but at outlet 300k
- Momentum ratio of 4
Residuals graph
Number of iterations for convergence at 265
total number of iterations given -300
Temperature variation graph
we can see that high temperature at inlet nearly 300k but at outlet 300k
Temperature variation line graph
we can see that high temperature at inlet nearly 300k but at outlet 300k
| long | short | |
|
Cell count |
15640 | 12984 |
|
Average outlet temperature |
290k | 300k |
|
Number of iterations for convergence |
265 | 570 |
*longer one has low outlet temperature
*longer one has a higher number of count
*shorter took more iteration to converger
