Week 1 : Exploring the GUI of GT-POWER

Week 1 : Exploring the GUI of GT-POWER

Questions

1. Explore the GUI of GT SUITE and list down modules available with brief descriptions.

GT-SUITE is the industry-leading simulation tool with capabilities and libraries aimed at a wide variety of applications and industries. It offers engineers functionalities ranging from fast concept design to detailed system or sub-system/component analyses, design optimization, and root cause investigation.

Industries using GT- Suite

• ON/OFF Highway Vehicles
• Aerospace Industry
• Marine
• Electric Vehicles
• Power Generation
• Industrial Machinery

Multiphysics Platform

The foundation of GT-SUITE is a versatile multi-physics platform for constructing models of general systems based on many underlying fundamental libraries:

• Flow library (any fluid, gas or liquid or mixture)
• Acoustics library (both non-linear and linear)
• Thermal library (all types of heat transfer)
• Mechanical library (kinematics, multi-body dynamics, frequency domain)
• Electric and Electromagnetic library (circuits, electromechanical devices)
• Chemistry library (chemical kinetics)
• Controls library (signal processing)
• Built-in 3D CFD and 3D FE (thermal and structural)

Modern Software and unique capabilities

(1) Fusion of 1D and 3D simulation in one tool

(2) Imports solid models from CAD to create 1D and 3D models

(3) Performs embedded 3D(CFD) and 3D FE thermal /structural modeling with all boundry conditions provided by the simulated surrounding complete system

• GT-SUITE: It contains all GT libraries and capabilities. The ideal choice for full vehicle design and analysis, GT-SUITE offers an all-inclusive package that provides an important cost advantage to users.
• Engine Performance and Acoustics
• Exhaust After treatment
• Evaporative Emissions
• Cooling Systems and Thermal Management
• Air Conditioning/Waste Heat Recovery
• Fuel injection
• Hydraulics and Pneumatics
• Lubrication Circuits
• Vehicle and HEV Fuel Economy and Performance
• Transmission and Shift Quality
• Crank train and Crankshaft Dynamics
• Valve Train Kinematics and Dynamics
• Timing and Front End Drive Systems
• Battery Modeling Electrical Equivalent

• GT-POWER: The industry-leading software for engine simulation with a detailed cylinder model and combustion analysis.
• Engine Performance and Acoustics
• Exhaust After Treatment
• Evaporative Emissions

• GT-SUITEmp: It Serves as a multi-physics platform to construct models in a wide range of applications including Cooling Systems and Thermal Management, Vehicle and HEV Fuel Economy, Hydraulics and Pneumatics, and many more.
• Exhaust After treatment
• Evaporative Emissions
• Cooling Systems and Thermal Management
• Air Conditioning/Waste Heat Recovery
• Fuel injection
• Hydraulics and Pneumatics
• Lubrication Circuits
• Vehicle and HEV Fuel Economy and Performance
• Transmission and Shift Quality
• Crank train and Crankshaft Dynamics
• Valve Train Kinematics and Dynamics
• Timing and Front End Drive Systems
• Battery Modeling Electrical Equivalent

In addition to the above, GT also bundles various tools and models:

2. Locate the following settings:

Time Control Flag:

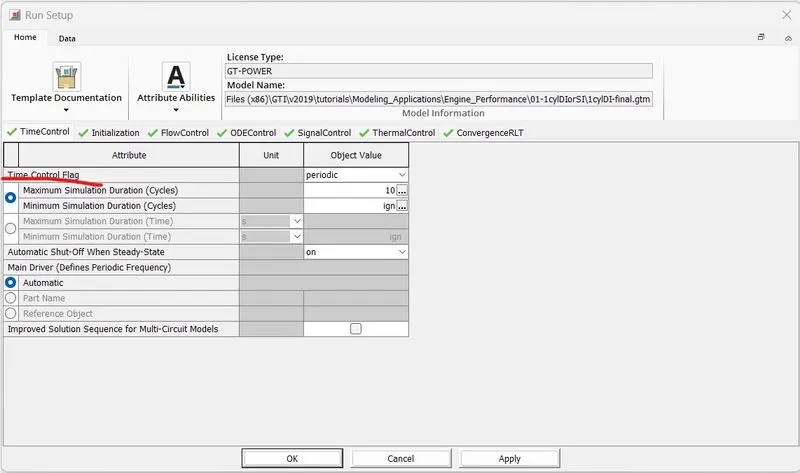

• Open the GUI of GT_suite and open the flow control Tab>Home Tab > RunSetup >Time Control. In the given table the Time Control Flag is Available

Time control flag are of two type continous and periodic used according to case setup. For Engine application Time control flag is periodic and for other applications continous option. In max. simulation Duration we define time for which setup will run to get converged solution.

Time step and solution control

• Open the GUI of GT_suite and open the flow control Tab>Home Tab > RunSetup >Flow Control.There we can observe the Time Step and Solution Control

Time step define duration of simulation result to converge. we can control time step and solution with option automatic shut off when steady state . with on option when solution converge it will automatically stop run setup.

Integrator/Solver type

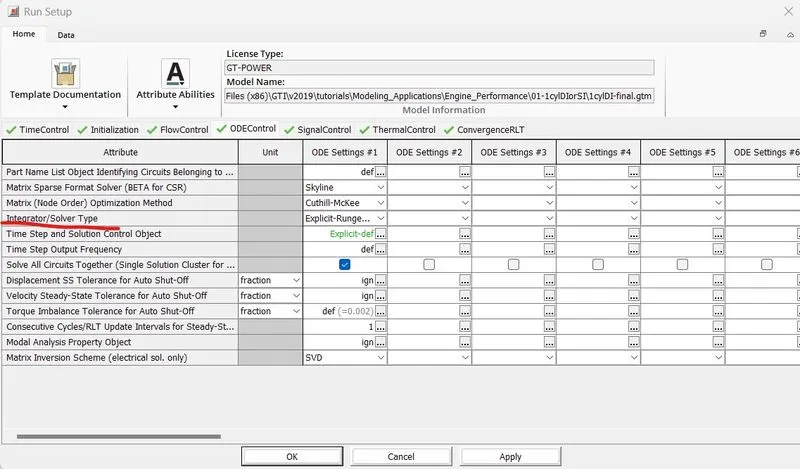

• Open the GUI of GT_suite and open the flow control Tab>Home Tab > RunSetup >ODE Control.There we can observe the Integrator/Solver Type

Explore the intercooler tutorial and note down all settings of:

• Run setup
• Advanced setup
• Plot setup
• Output setup

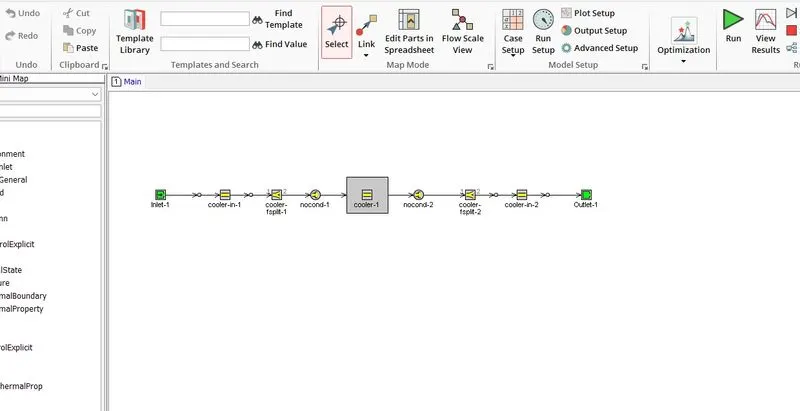

Open the Gt suite and click on Files and then select Tutorials then select Engine Performance and then 6cylDITurbo and then select the intercooler_final.gtm

Thus the intercooler set up will pop up on the screen.

Run Setup

• In this module all the settings are done according to the results of our Simulation to obtain the exactly results.It Contains the different Setups like Time Control,Intialization,Flow Control,ODE Control,Signal Control,Thermal Control,Convergence RLT.
• Each Settings have a different Attributes to run the simulation.we can go through all this sections detailed in the below images

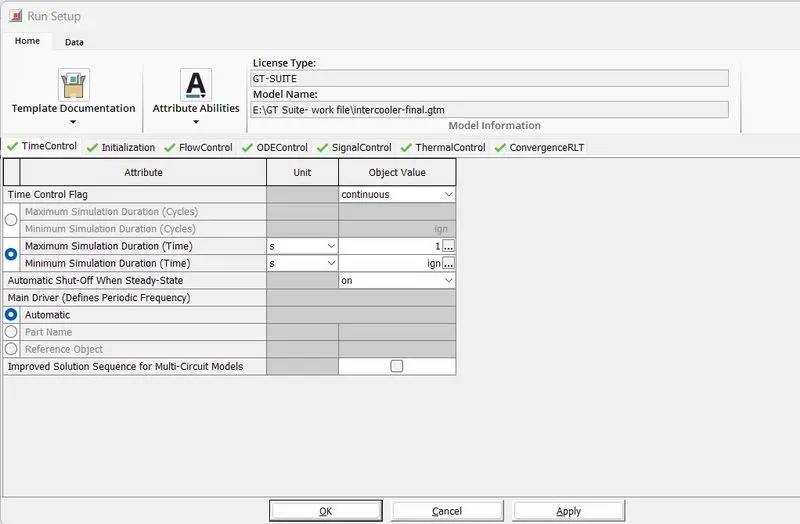

Time Control

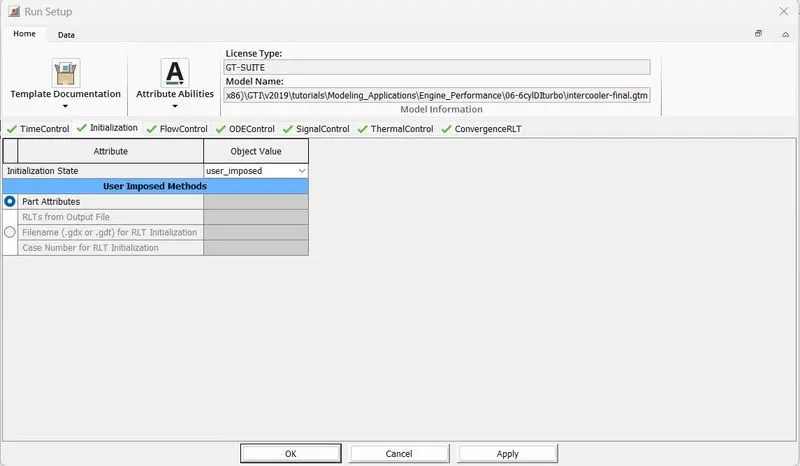

Initilization

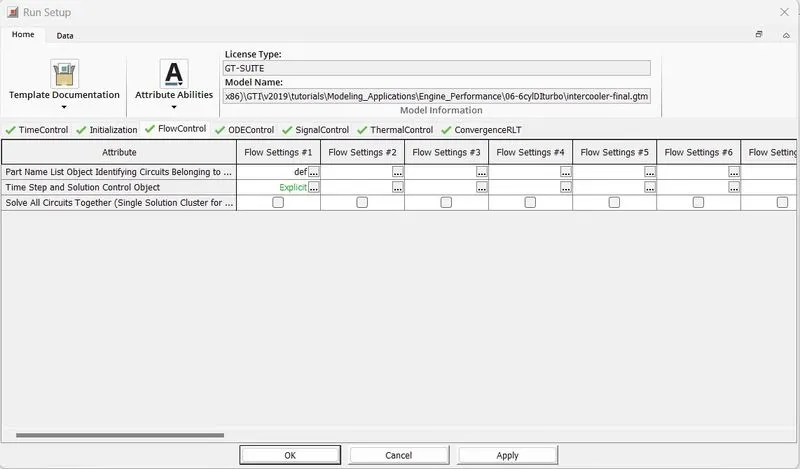

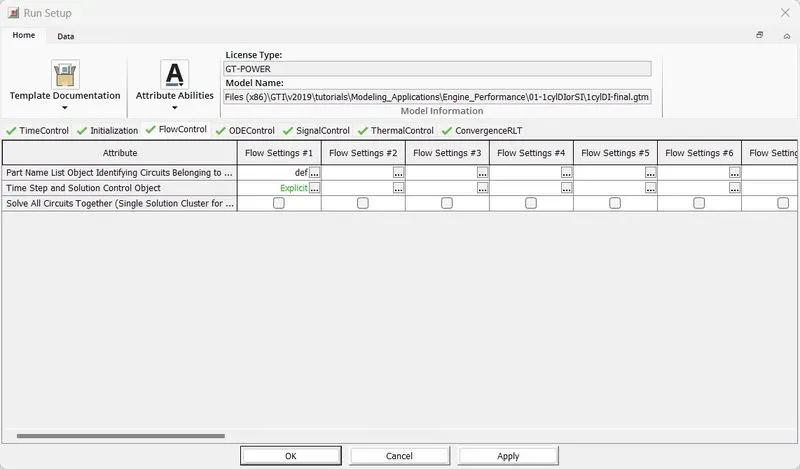

Flow Control

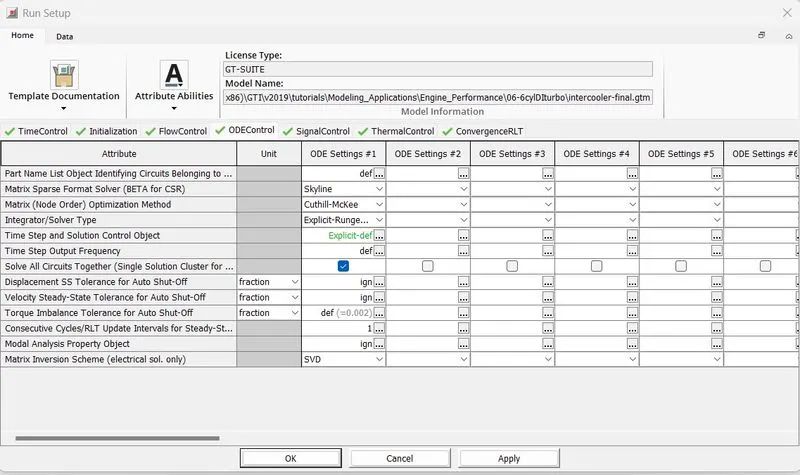

ODE Control

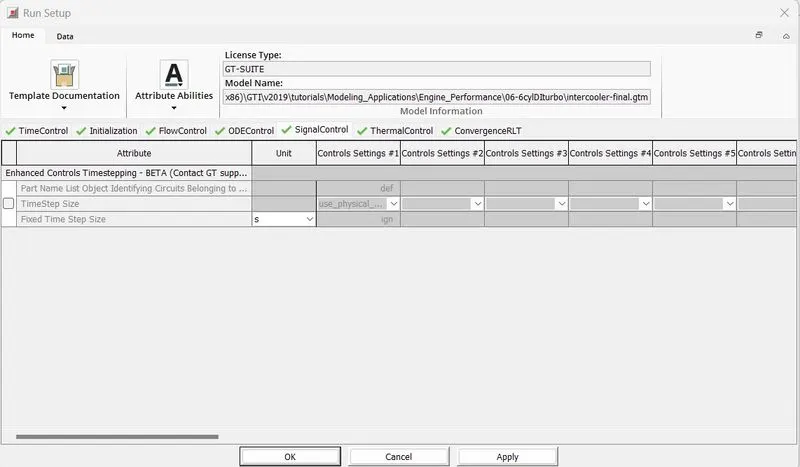

Signal Control

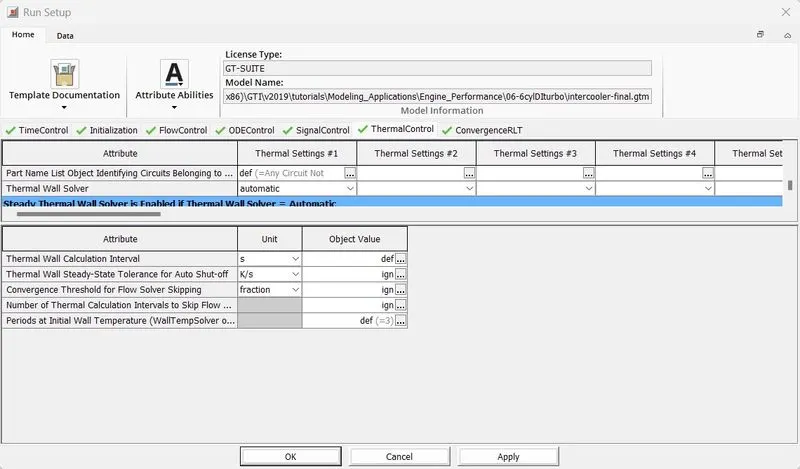

Thermal Control

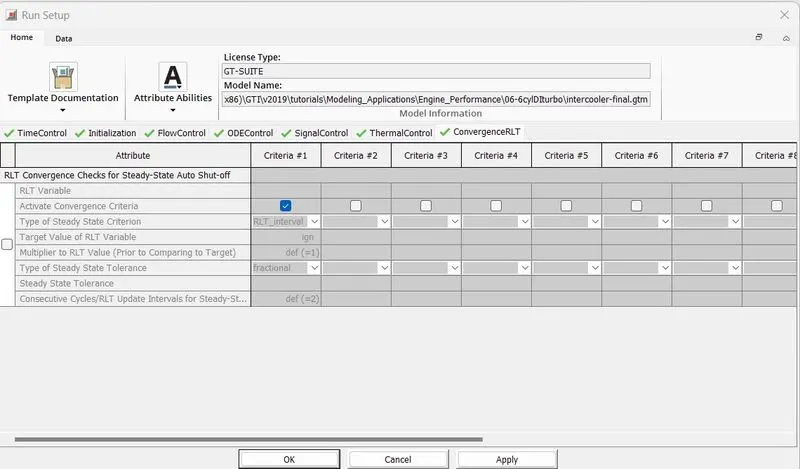

Convergence RLT

Advanced setup

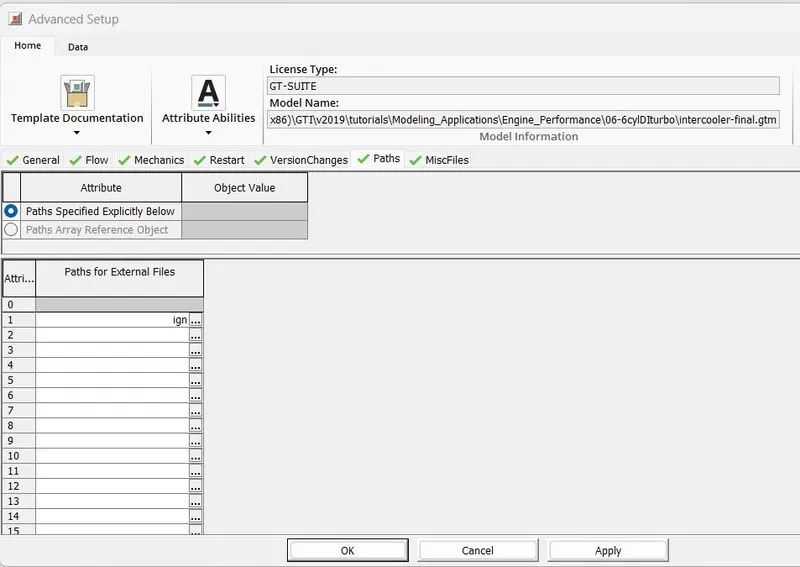

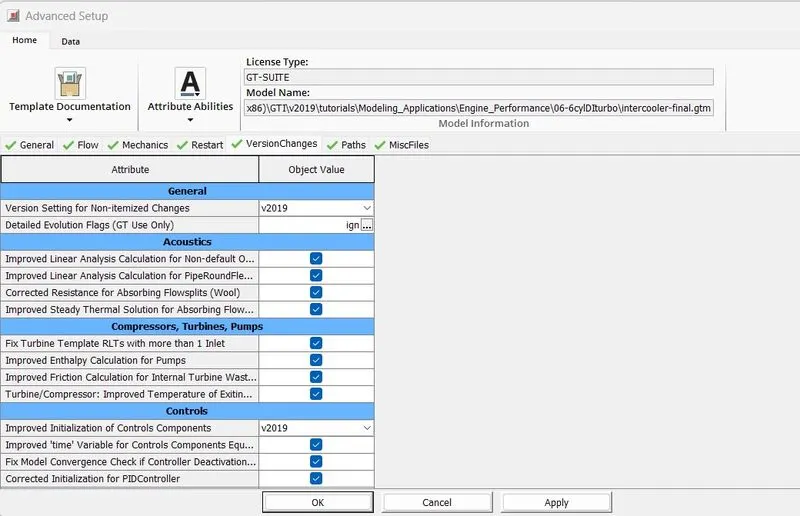

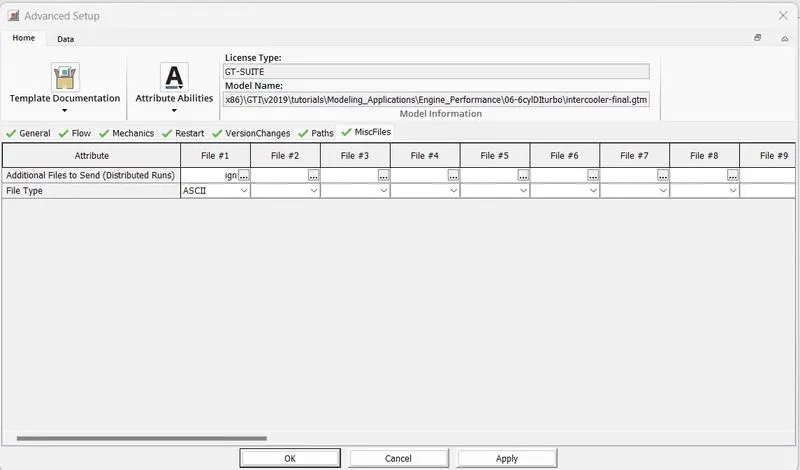

• Advanced Setup also have the different Attributes and we can go through all this sections detailed in the below images.It Contains the different Setups like General,FLow,Mechanics,Restart,Version Changes,Paths,MiscFiles
• Each Settings have a different Attributes to run the simulation.we can go through all this sections detailed in the below image

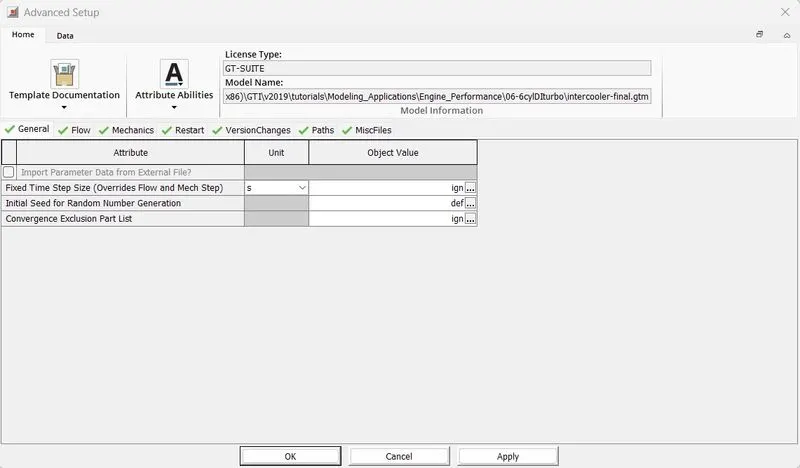

General

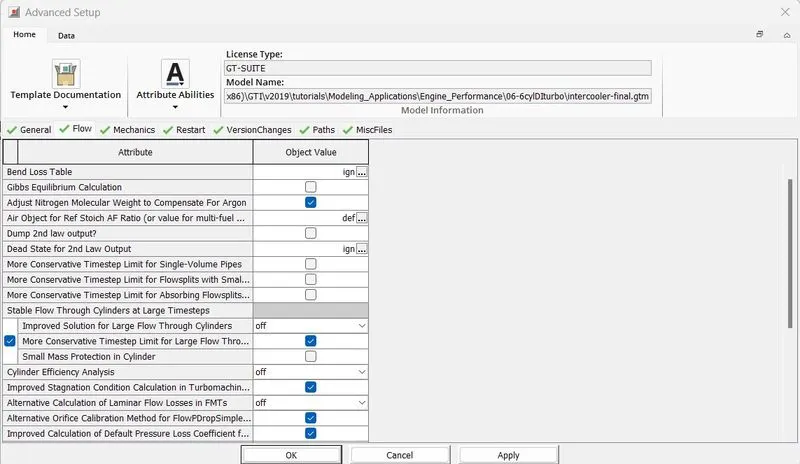

Flow

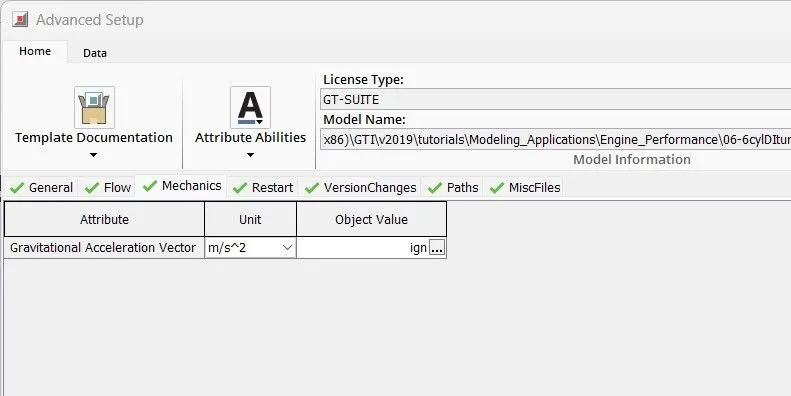

Mechanics

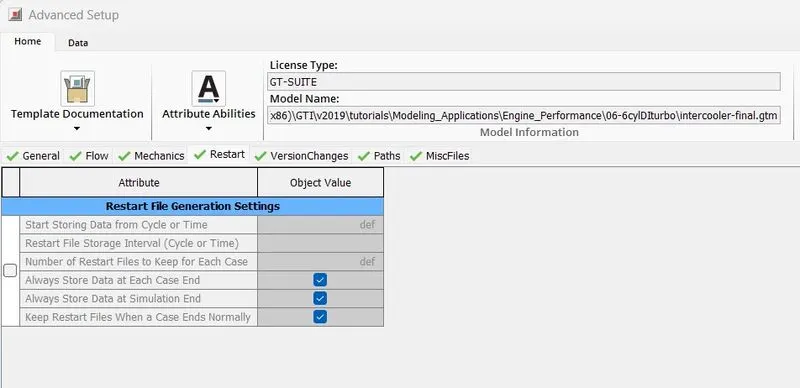

Restart

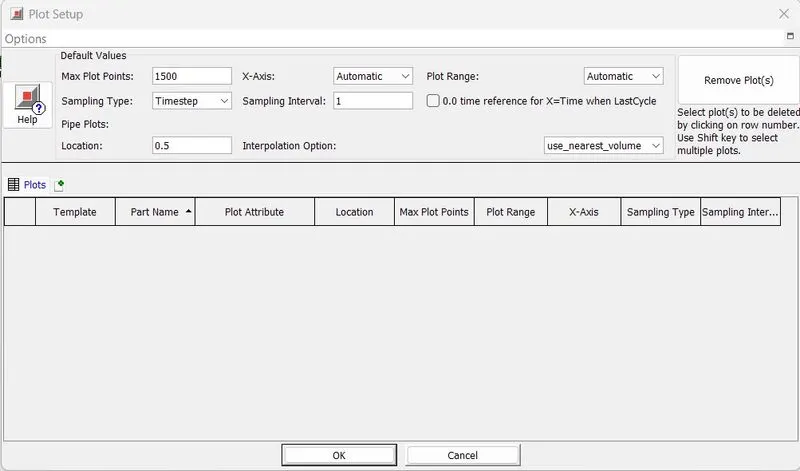

PLOT SETUP

• Plot Setup, which is found under the "Run" pull-down menu, gives the user a variety of options to change the way in which the plots are requested. If no changes are requested, the Default Values, as specified in the top right corner of the Plot Setup Dialog, will be used. A button called "Remove Plot(s)" is available to remove unwanted plot requests from Plot Setup. All plots requested in individual parts will be stored regardless of whether the user chooses to use Plot Setup.

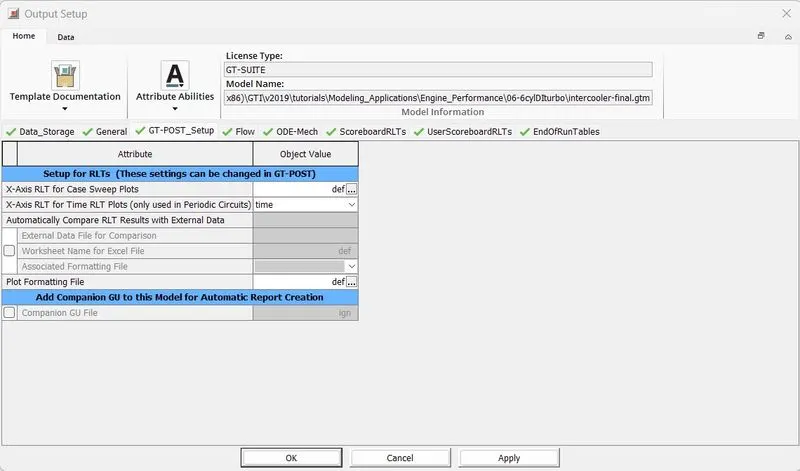

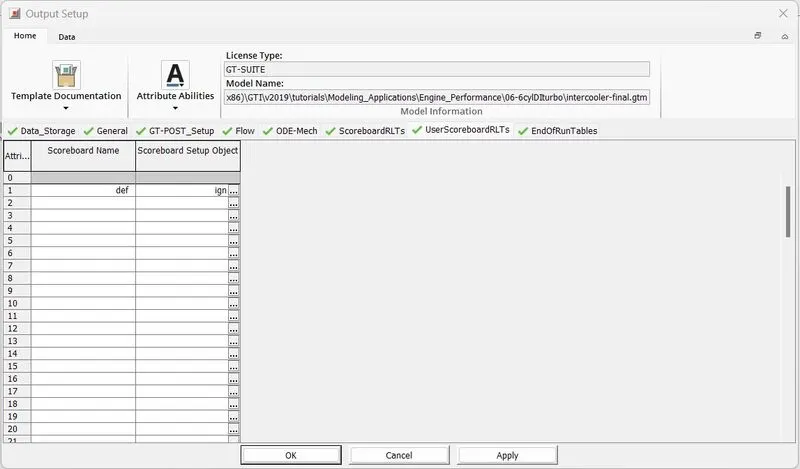

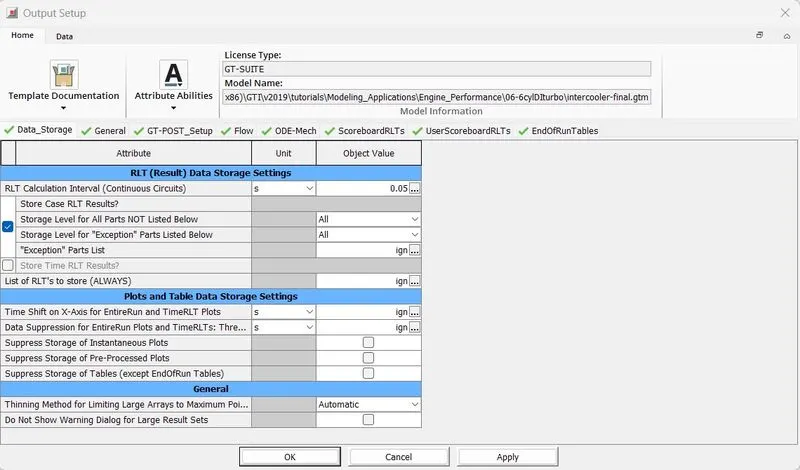

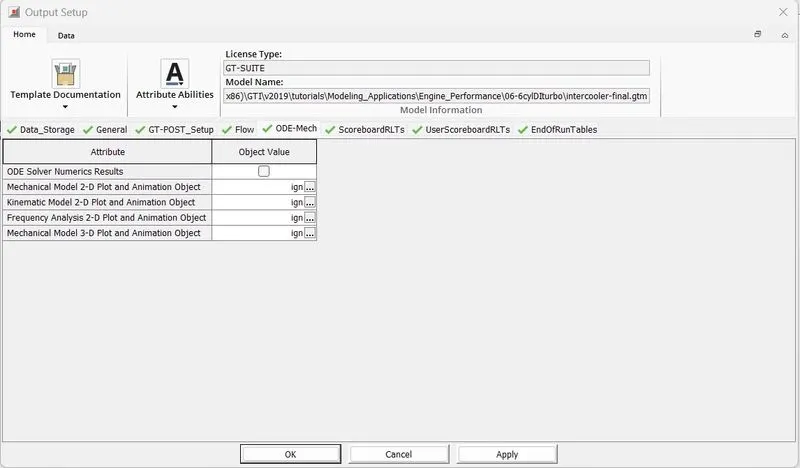

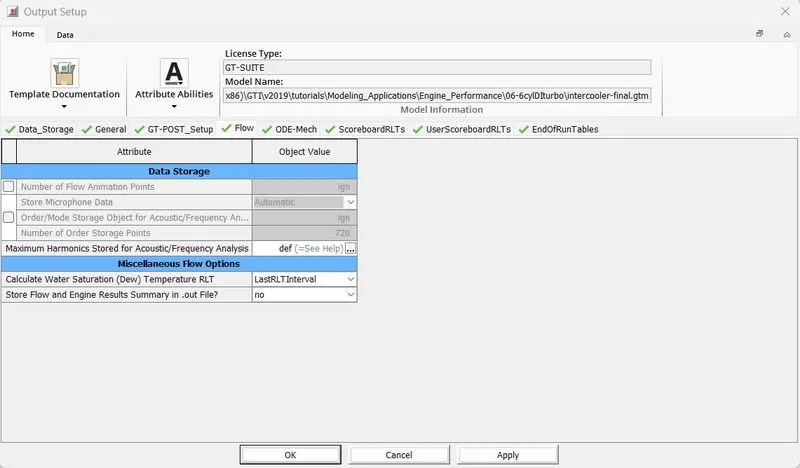

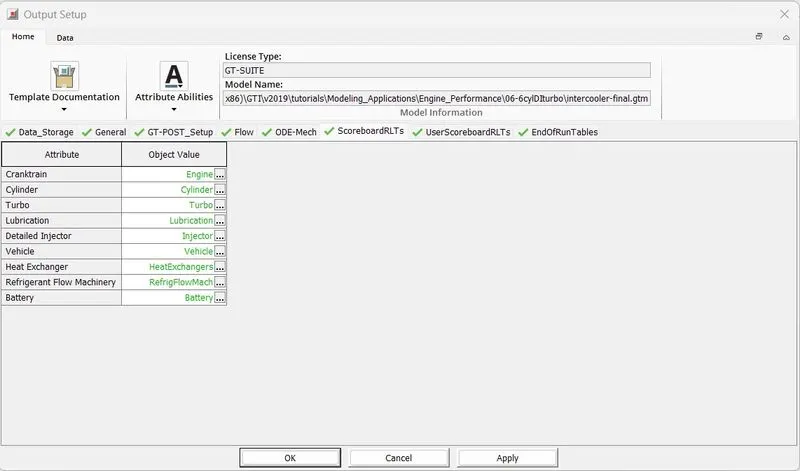

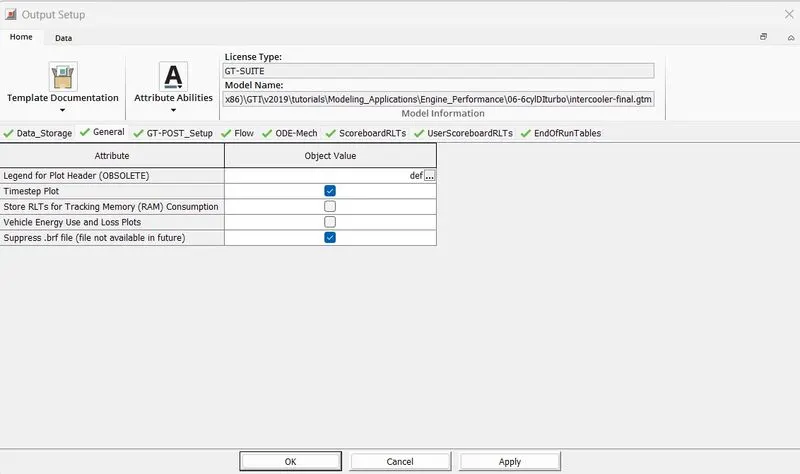

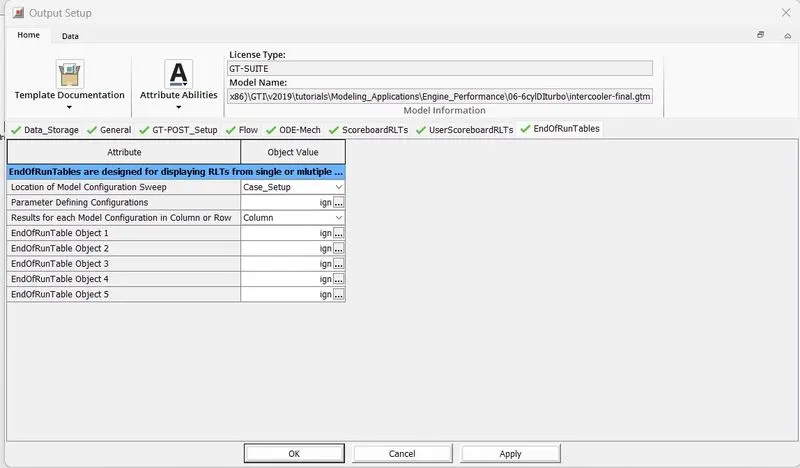

Output Setup

Problem:

Given

• Diameter of cooler inlet and outlet pipe= 50 mm
• Length of the CAC= 1000 mm
• Inlet mass flow rate = 1200 kg/ h at 100 degC
• Outlet pressure 2 bar at 30 deg C

• Calculate the Average heat transfer at Charge air cooler (CAC)
• Calculate pressure drop across CAC

Answer

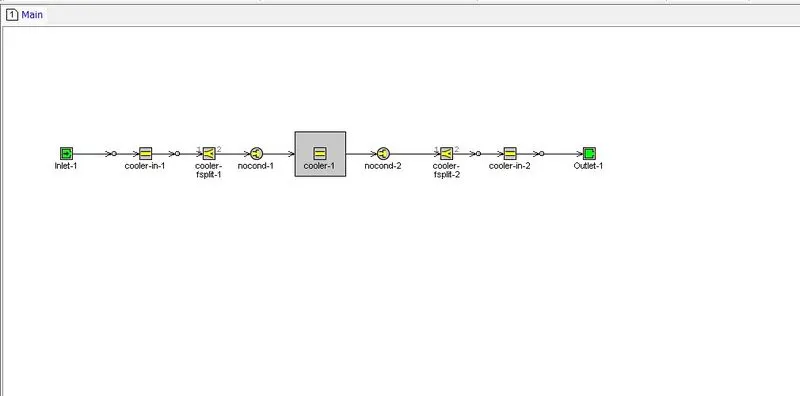

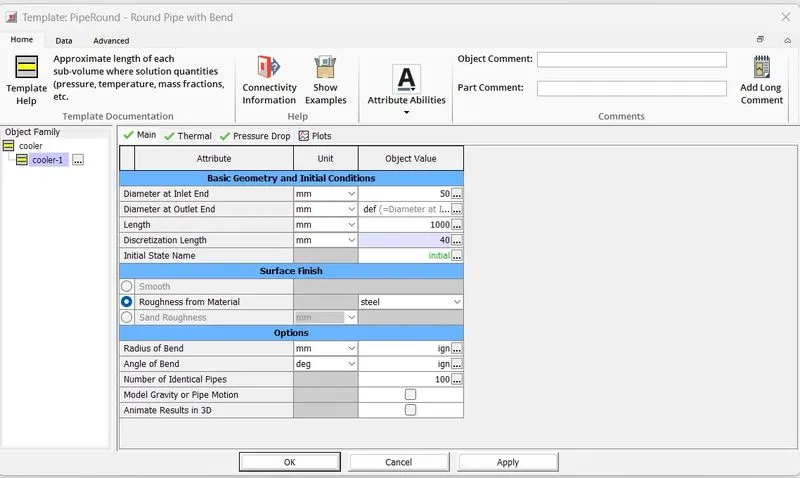

• Now by double clicking on the intercooler-1and box will pop up and change the diameter of the inlet and outlet =50 mm and also the Length of the CAC=1000 mm Which is shown below:

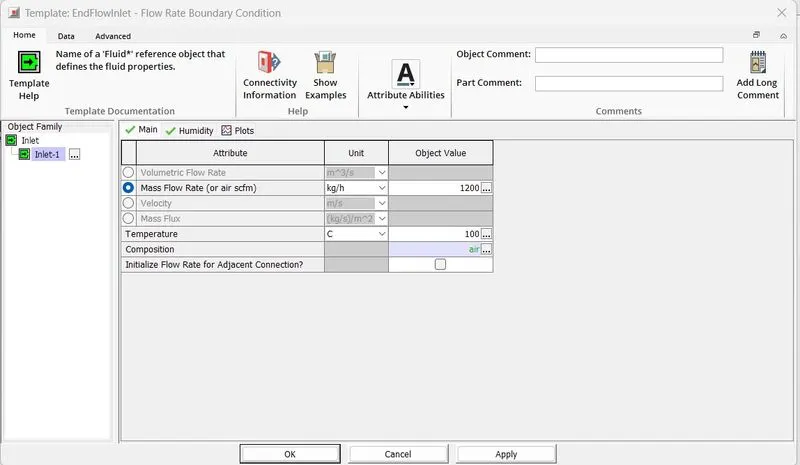

Setting the boundary conditions

Run setup

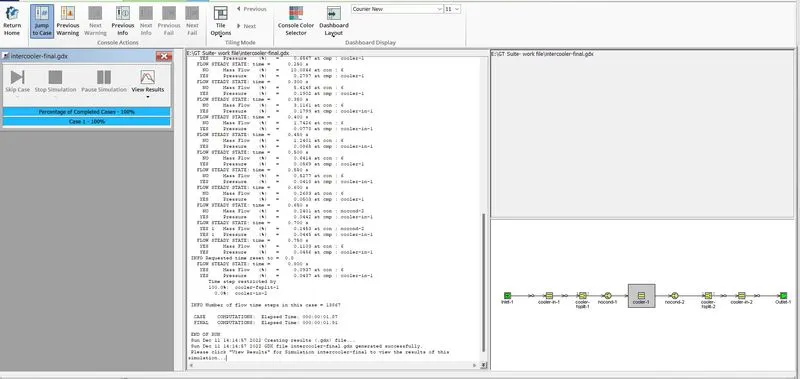

Simulation completed

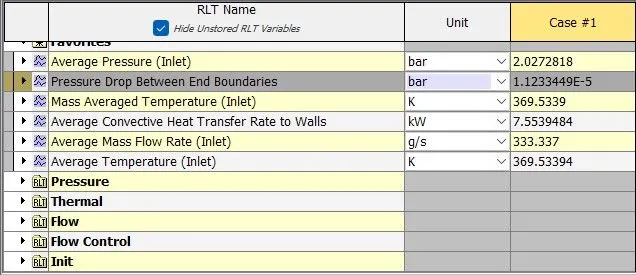

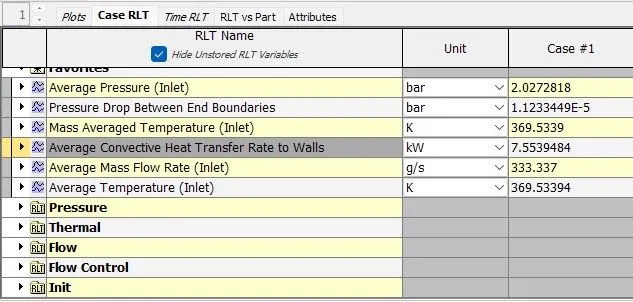

Average Convective Heat Transfer Rate to Walls = 7.5539484 kW

Pressure Drop btw End Boundaries = 1.1233 bar
