Week - 1 - Consistency of Units

Consistency of units in LS-DYNA

Aim: Convert the given measurement into different system unit and findout their conversion factor.

Theory:

Different industries use different system of units as per their convenience. The units for the basic measurement quantities, mass distance and time - dictate how the other derived quantities will be expressed. For example, automotive industries use kg,mm,ms as their standard unit system. Construction industries are likely to use tonne,m,s as their unit system. Similarly, PCB simulation in electronic industry uses gm, micrometer,ms as their system of units.

LS-DYNA doesn't have a default system of units. User needs to input material properties and physical dimensions according to a consistent system of units as per their choice. This warrants that to use LS-DYNA in different circumstances, users has to be conversant with converting quantities from one system of units to another.

Value of the following measurements are given as follows:

MASS 1kg
LENGTH 1m
TIME 1s
FORCE 1N
STRESS 1Pa

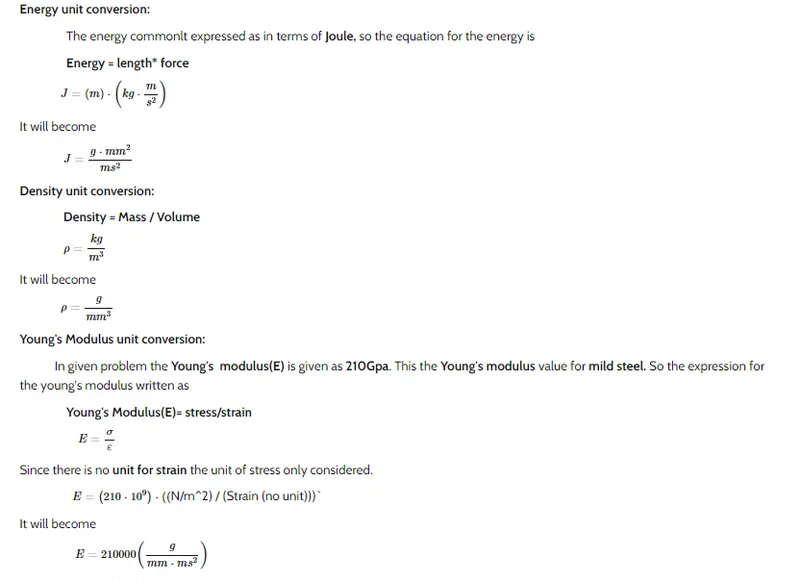

ENERGY 1Nm
DENSITY 1Kg/m3
YOUNG'S Modulus 210GPa

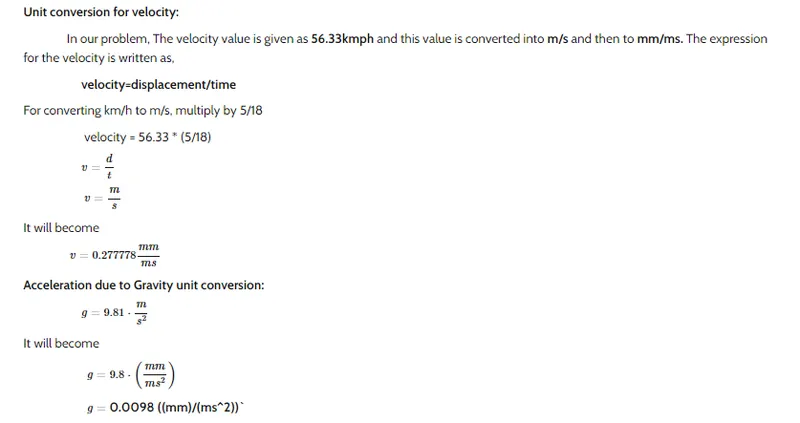

Velocity 56.33KMPH
GRAVITY 9.8m/s2

Now, here are a few system of units:

Kg cm ms

Kg cm s

gm mm ms

kg m s

g cm s

g cm us

g mm s

ton mm s

slug ft s

kg mm s

g cm ms

kg mm ms

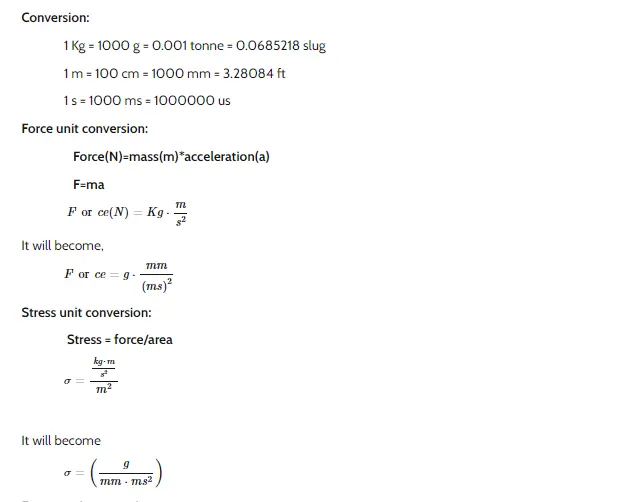

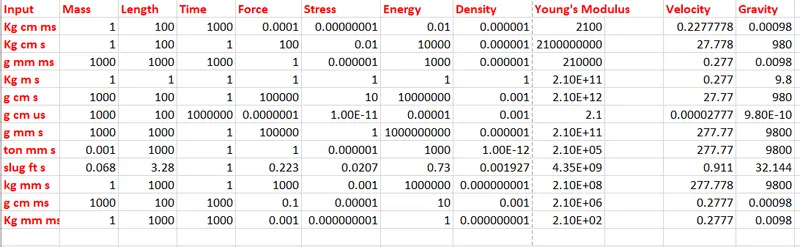

In calculation the conversion of values with respect to unit are important, and basic measurement quantity are mass(Kg), length(m) and time(m), now we need to convert the measurements into above mentioned system of units

Conclusion:

The given input measurement are converted into respective unit system that we used in LS-Dyna
