Vehicle Ride 1

1. 1)recommended rear frequency =1.3004HZ
2. front sprung mass frequency=1.15HZ

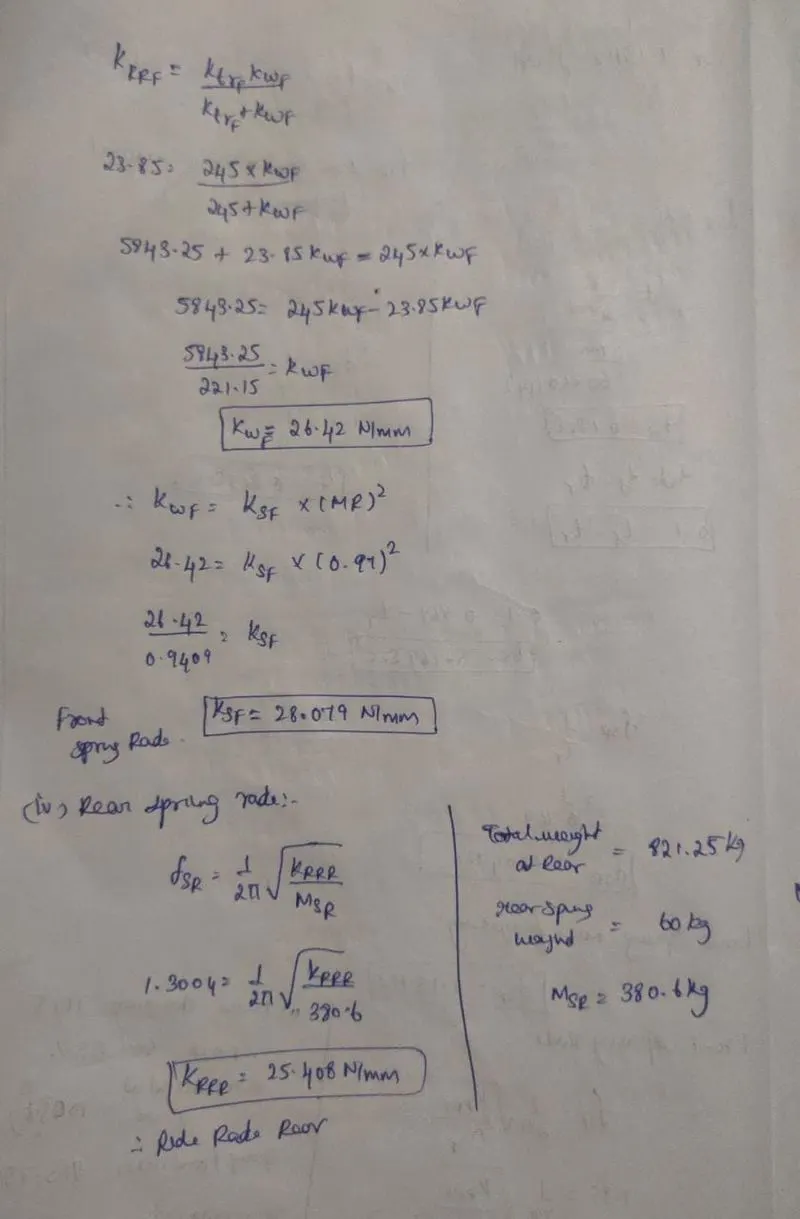

3. front spring rate=28.079N/mm

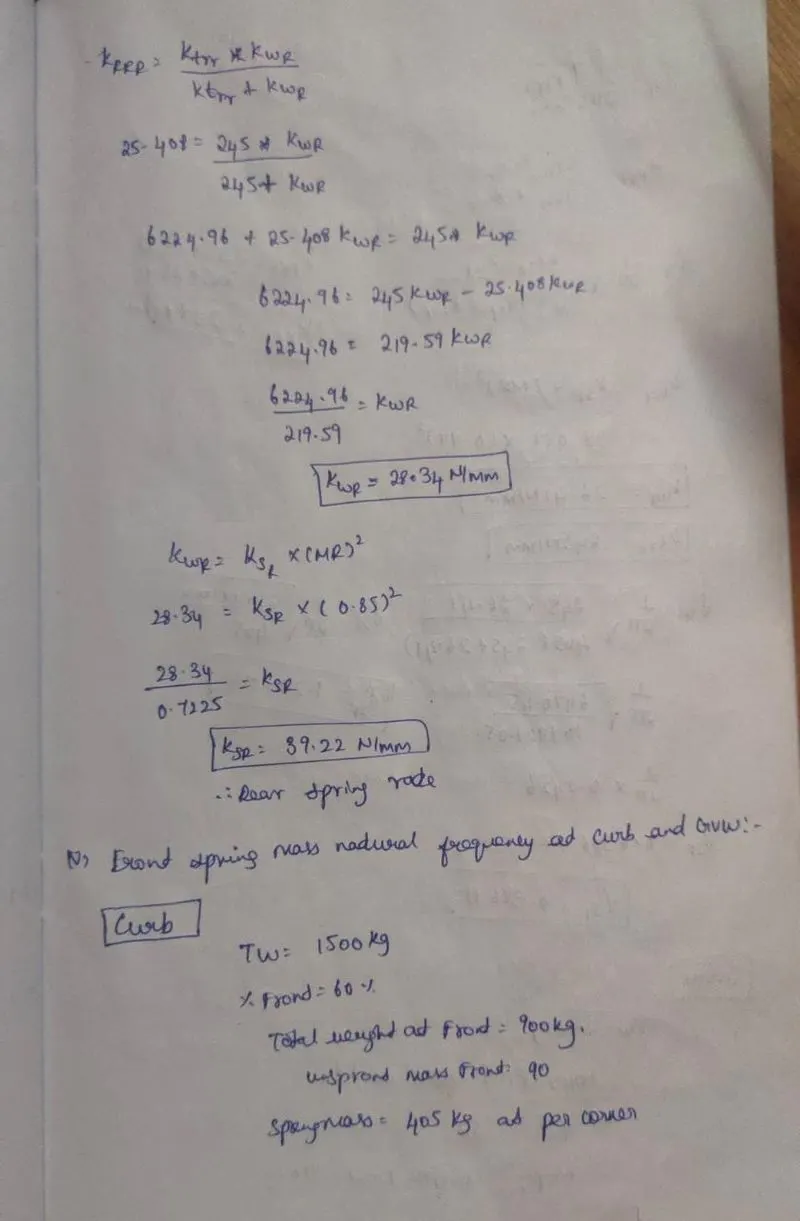

4. rear spring rate=39.22N/mm

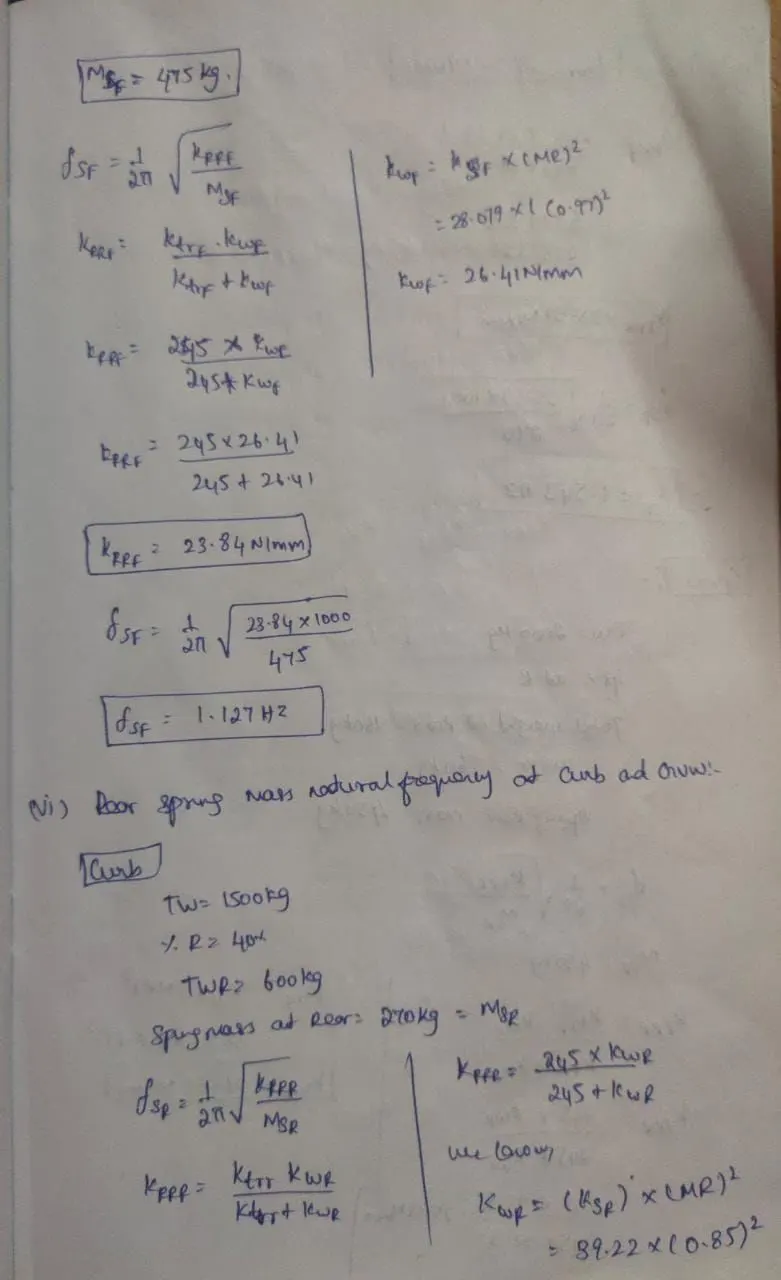

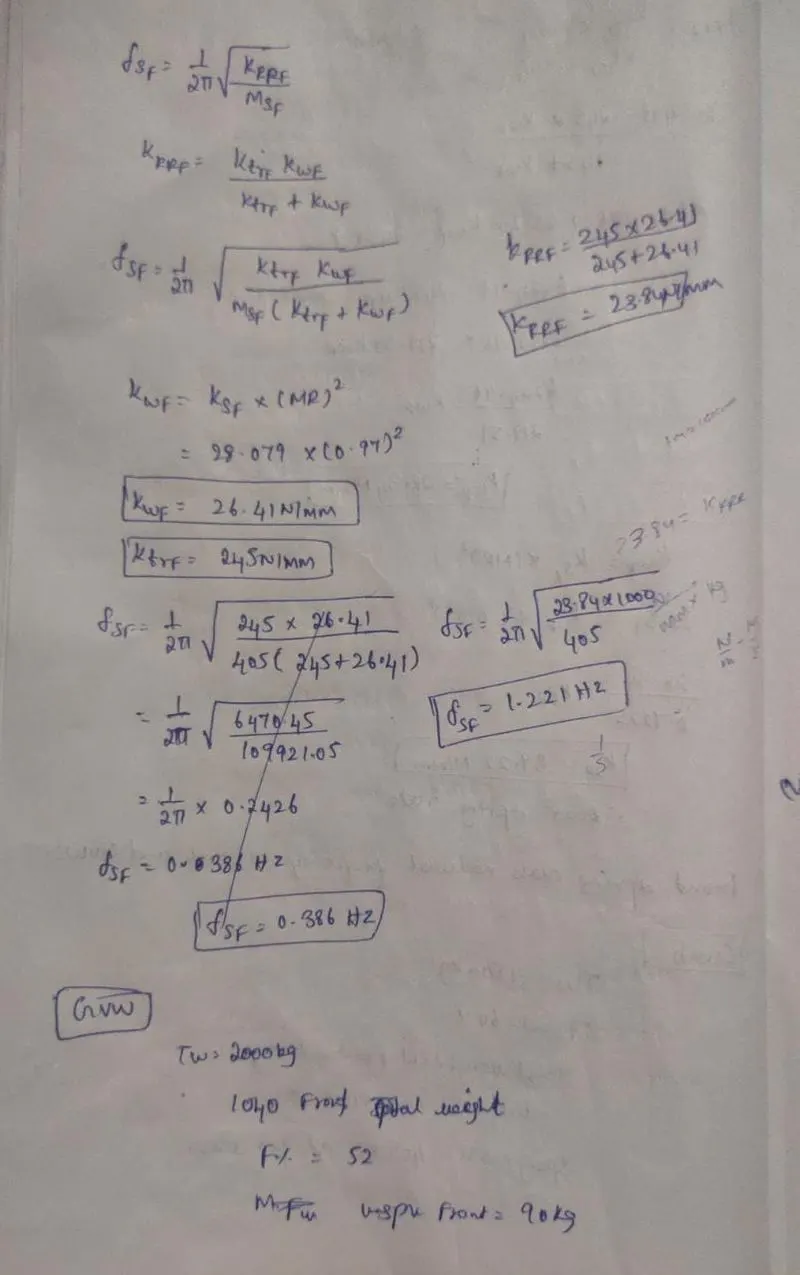

5. front sprung mass natural frequency at curb and GVW=1.221HZ,1.127HZ.

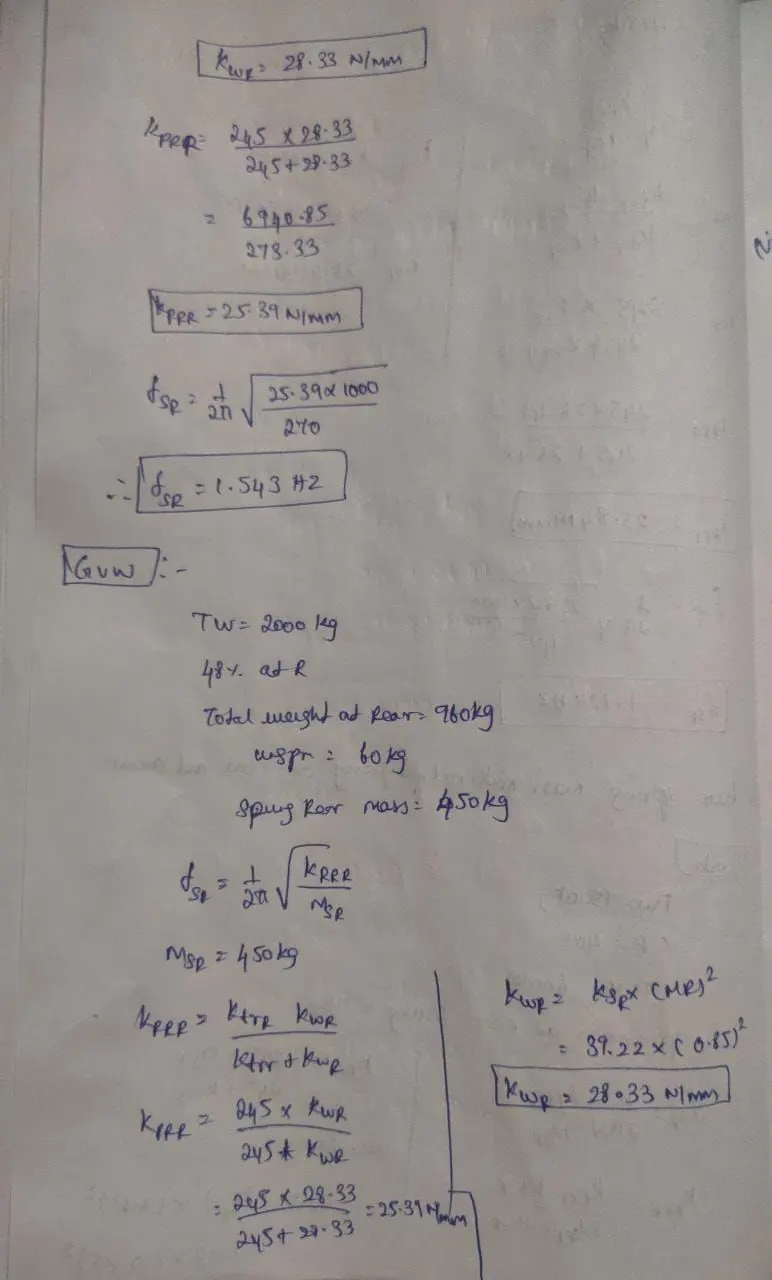

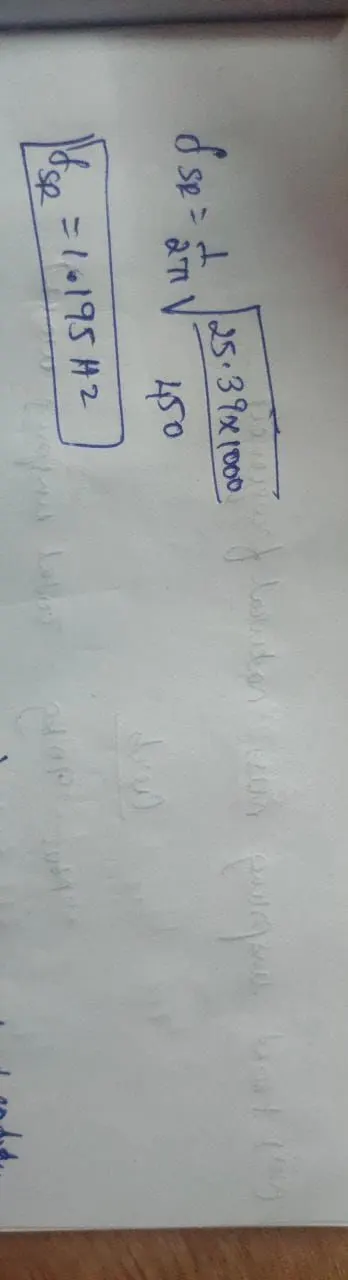

6. rear sprung mass natural frequency at curb and GVW=1.543HZ,1.195Hz

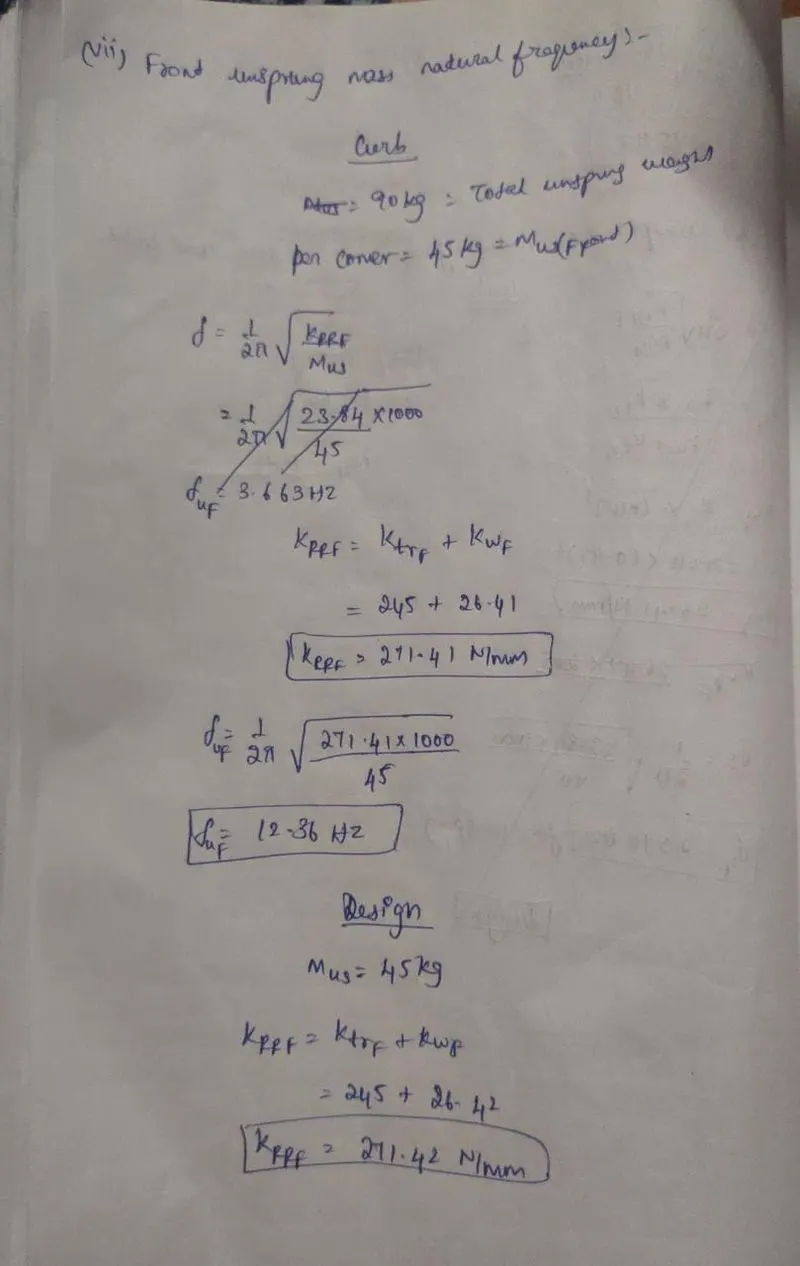

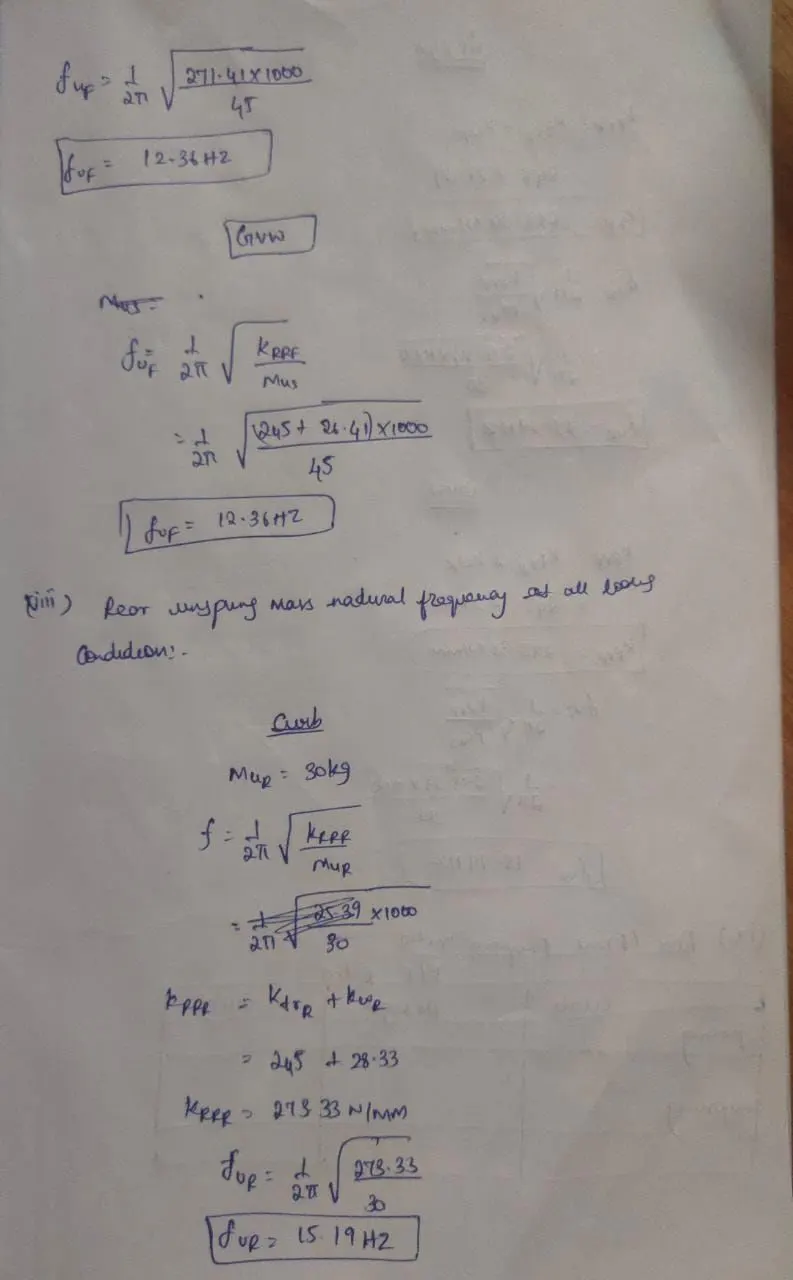

7. front unsprung mass natural frequency at all condition=12.36Hz

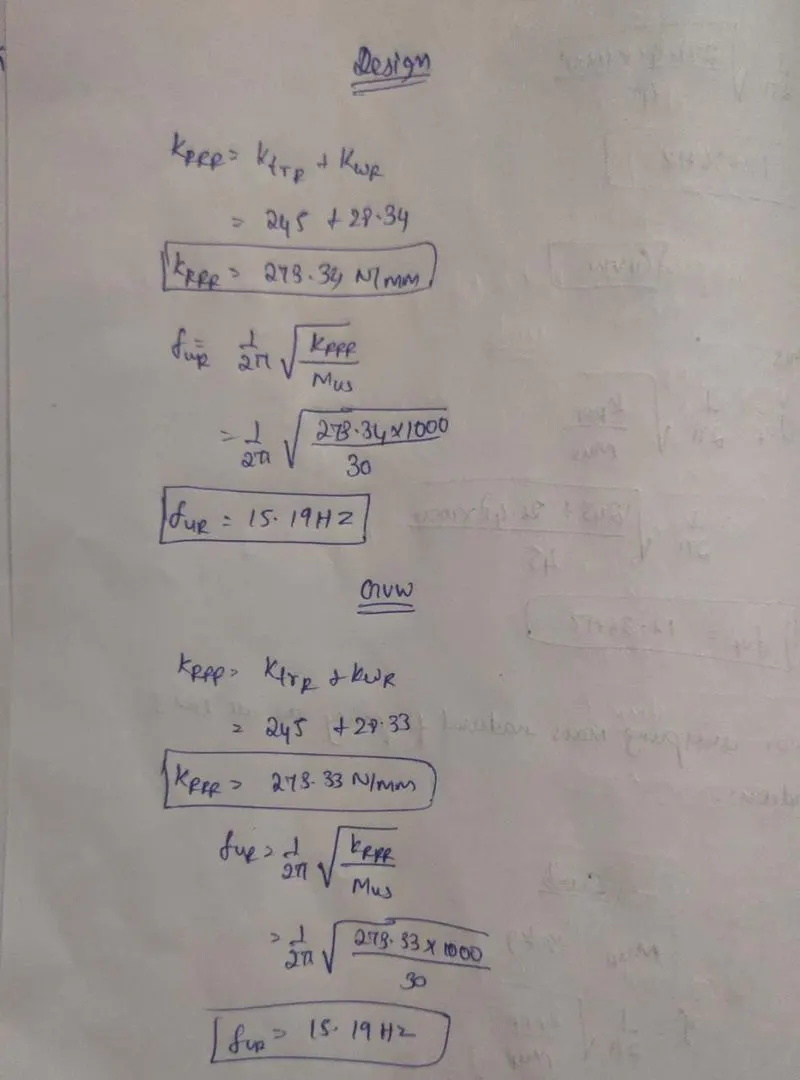

8. rear unsprng mass natural frequency at all condition=15.19Hz
9. rear/front frequency ratio=

   	curb	design	GVW
   sprung	1.263	1.1307	1.0603
   unsprung	1.228	1.228	1.228




2)https://drive.google.com/file/d/1t_wP7t3mwNDrc253zM2bMbYiKEvcpgyy/view?usp=sharing
