Vasavi_External Exam_Tekla

AIM : To Analyze and Design a Boiler shed structure as per IS code in Tekla Structural Designer

TOOLS REQUIRE : Construction levels, model tool, grid lines, file, manage property set, columns, beams, frames, loads, load cases, wall panels, roof panels, bracings, analyse, validate, etc.

PROCEDURE :

• Firstly open tekla software
• Now create a new file from above tool bar to start the design of structure
• Now select model tool from above tool window

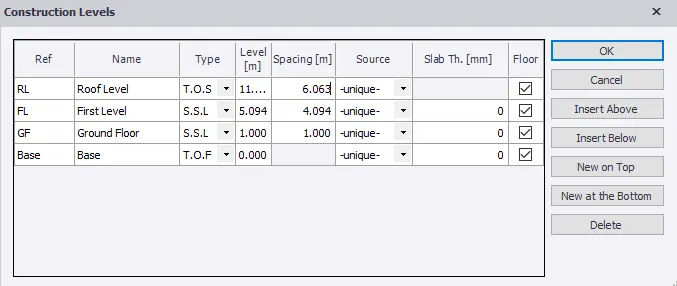

• Now select construction levels from model tool bar and add required levels accordingly and click ok

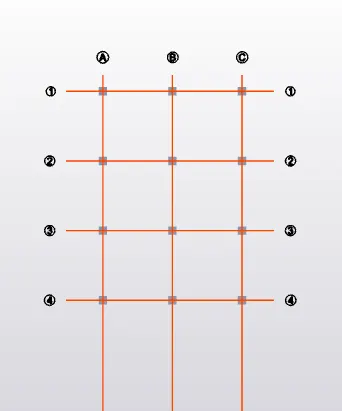

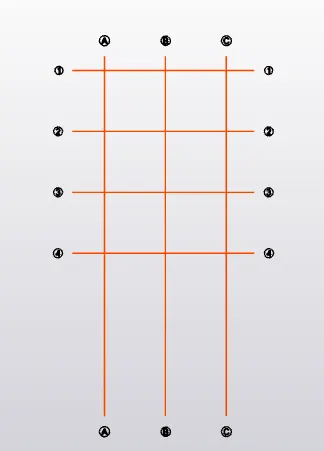

• Now select grid tools and draw required horizontal and vertical grid lines using parallel quick tool
• Now select manage property sets tool and create members like concrete columns, steel columns, steel beams, rafter beams, ridge beam with required grades accordingly to the project

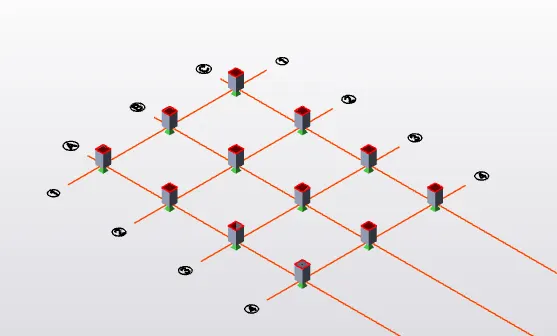

• Now place concrete columns where ever required in the plan

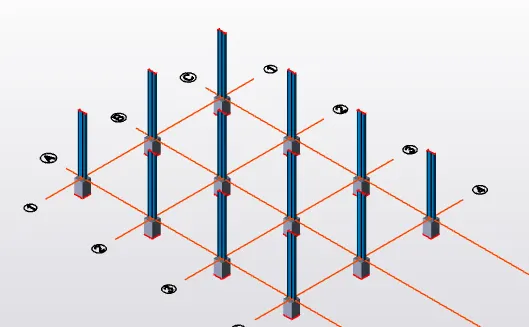

• Now place steel columns on the concrete columns accordingly to the plan

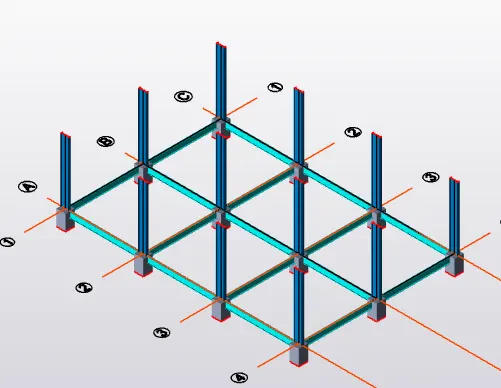

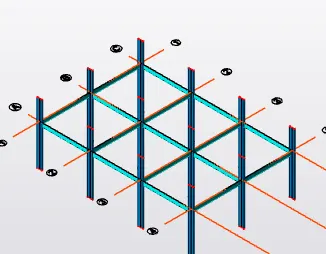

• Now place steel beams accordingly to the plan
• Now to give extra strength and support to the structure provide secondary beams

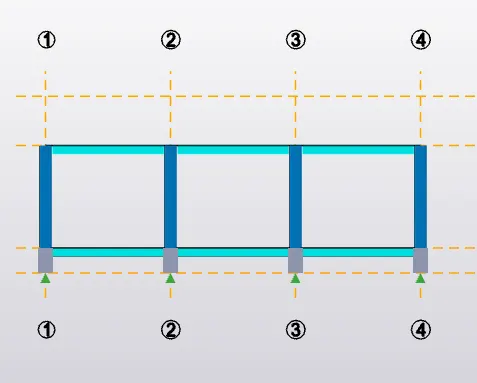

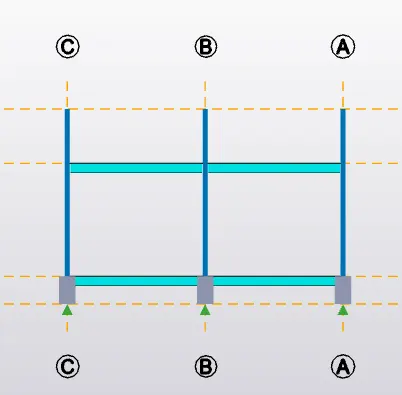

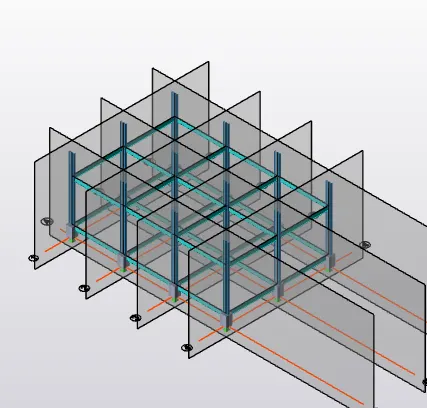

• Now select the frames tool and create frames which will be useful to do the remaning work
• Now validate the model and check for any errors

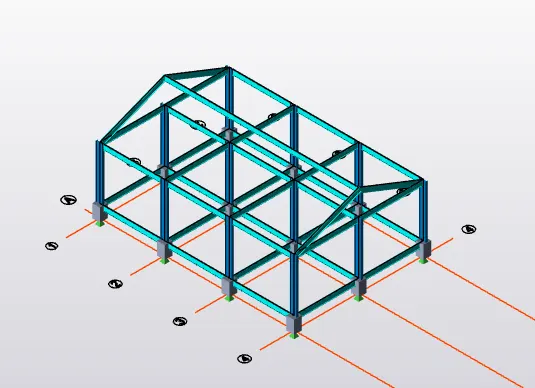

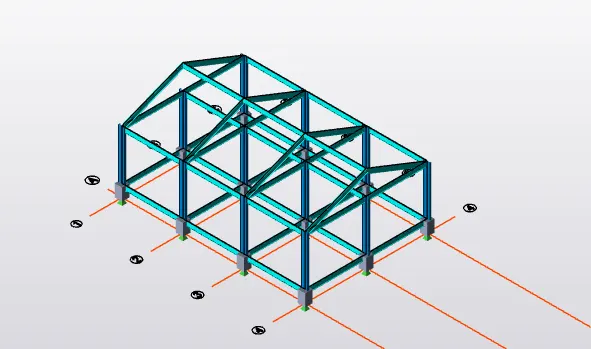

• Now select the particular frame and then construct the rafter beam, ridge beam using high grade steel bars

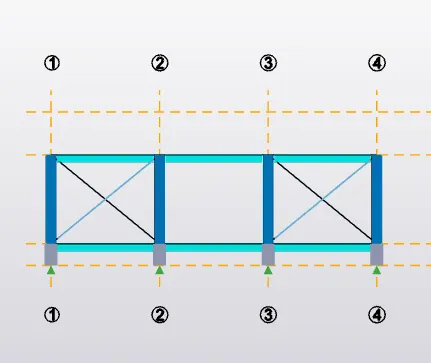

• Now select bracing and place the bracings at required places

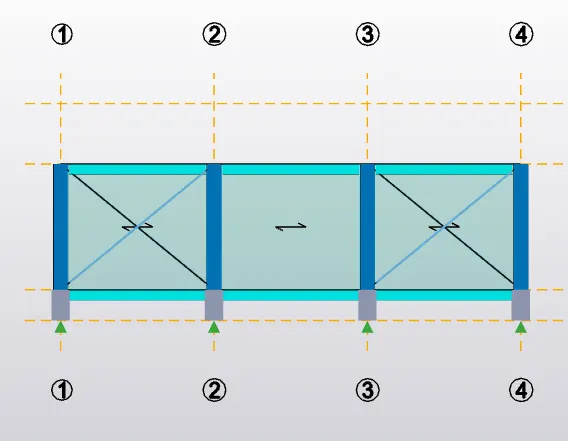

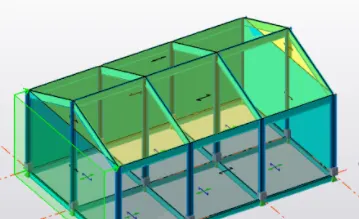

• Now place wall panels and roof panels at required places
• Now perform the crane load calculations

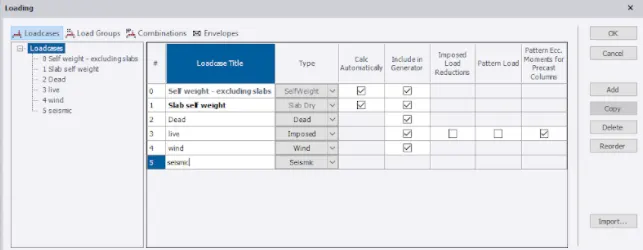

• Now click on the loads tool and create required loads like dead load and live loads

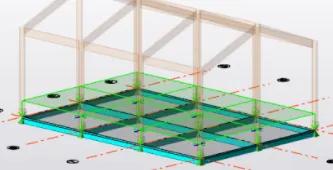

• Now create slabs to the structure by clicking on slabs on beam option
• Now place live and dead loads on the structure as per IS standard codes
• Now create new wind loads with both + Cpi and -Cpi values

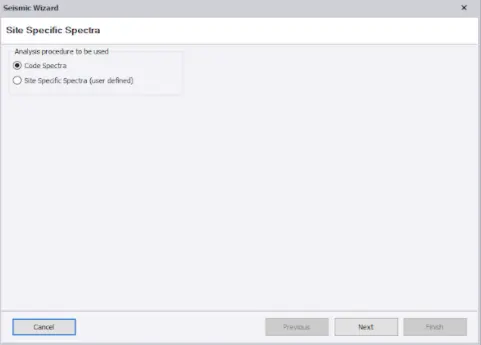

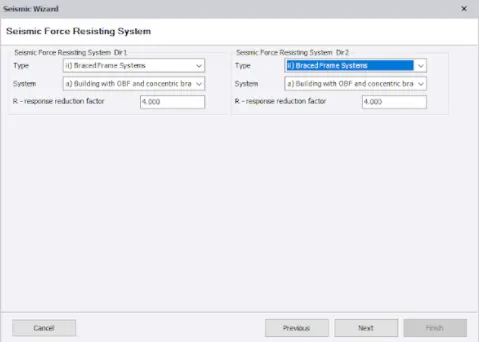

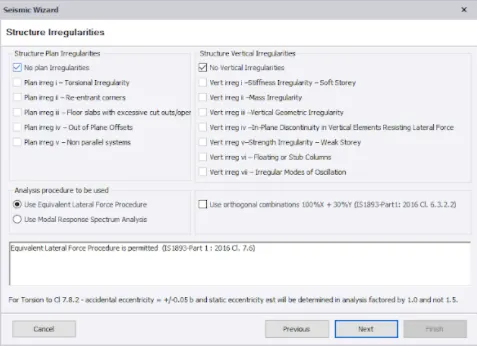

• Now add seismic loads to the structure
• Now analyse the structure for any errors

RESULT :

Therefore by following above procedure design of the structure has been done successfully
