Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

Q1:Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

Aim and introduction:To export the revit model to Navisworks

Procedure:

Steps:

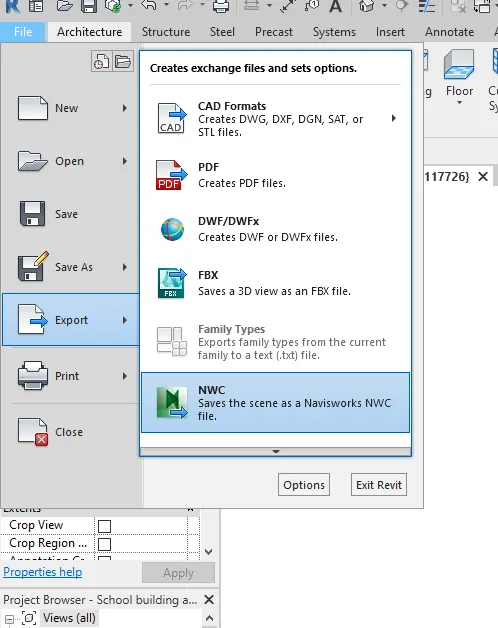

• Go to the revit software
• Install the Navisworrks manage
• Naviswork exporter
• Export to NWC
• Save the file in .nwc formal
• Open in Navisworks manage

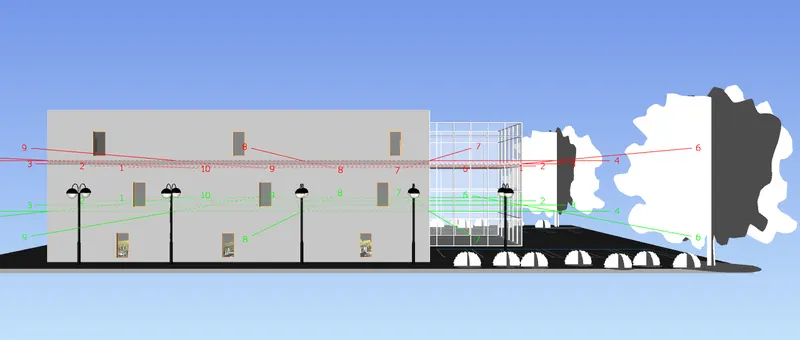

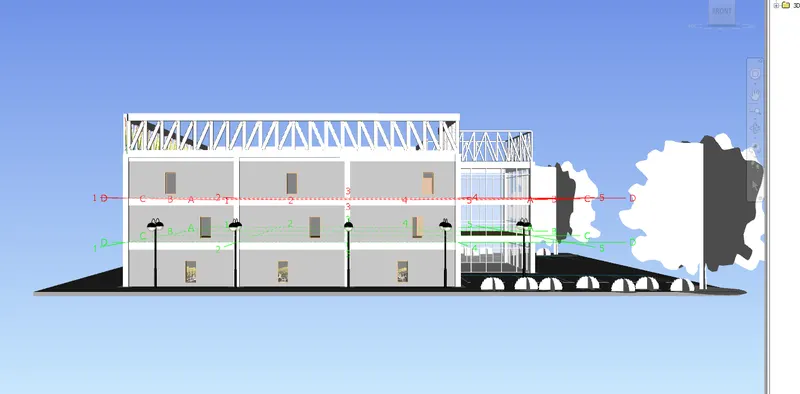

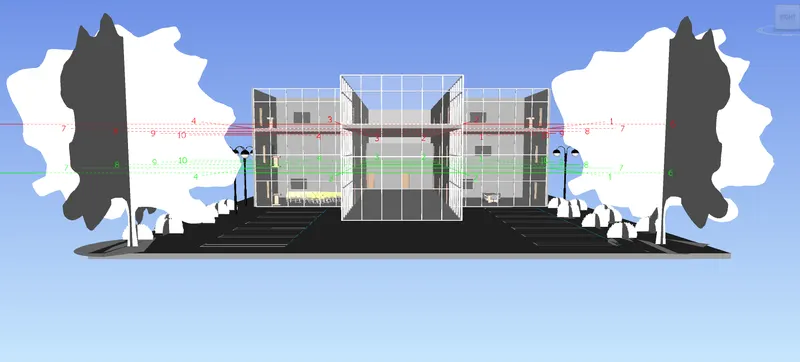

Results:Exporting the Revit models to Navisworks

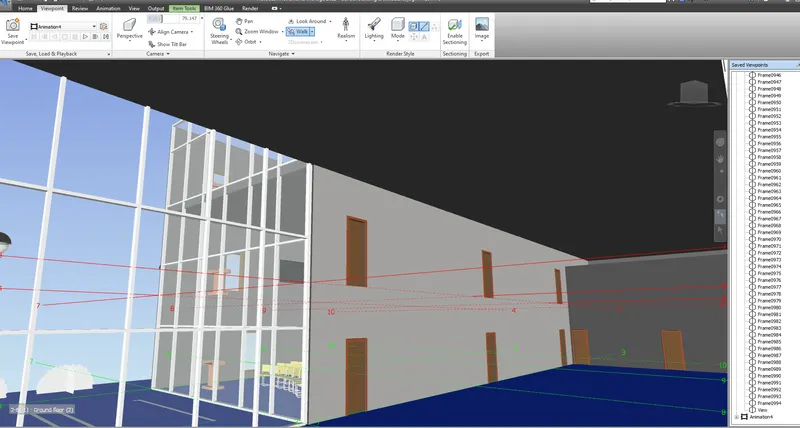

Q2: Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

Aim and introduction:To Use Navigate Tool to walk around the model

Procedure:

Steps:

• Go to the walk in the navigation tab
• And move the cursor in which position we have to walk
• Save the viewpoint in that we have record option and record the walk

Results: Using the Navigate Tool to walk around the model

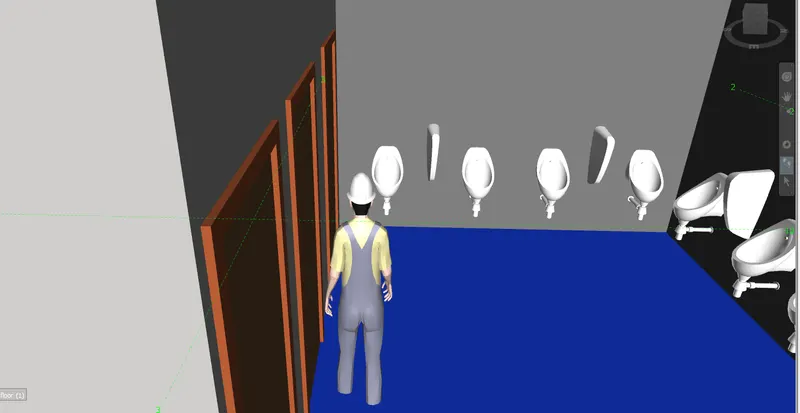

Q3:Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

Aim and introduction:To Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

Procedure:

Steps:

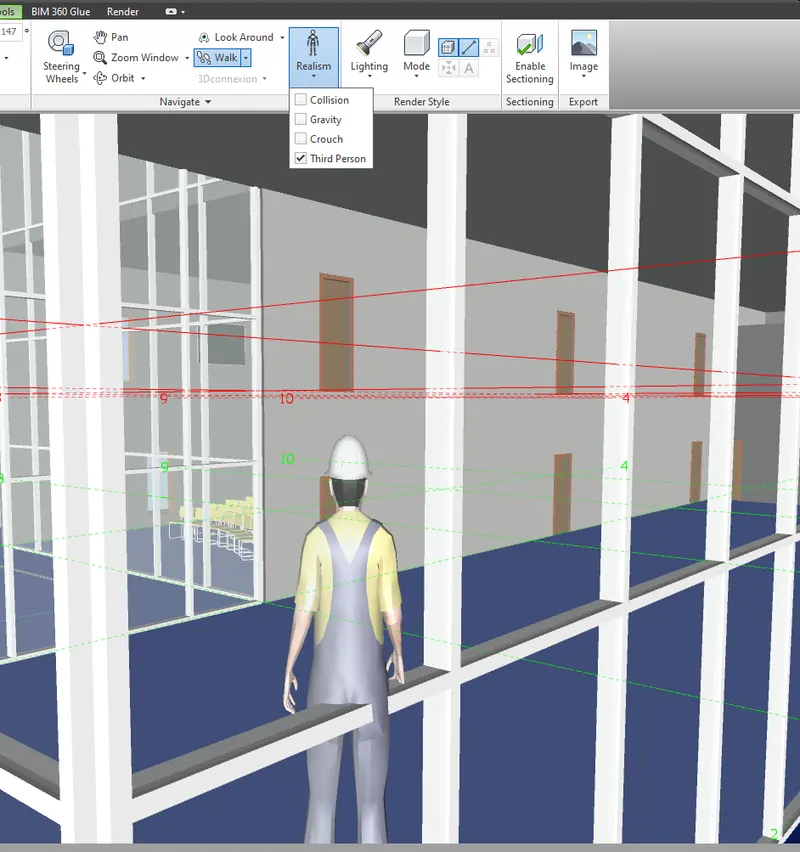

• Go to the Realism
• Third person
• Walk
• Move the cursor to walk

Results:Using Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

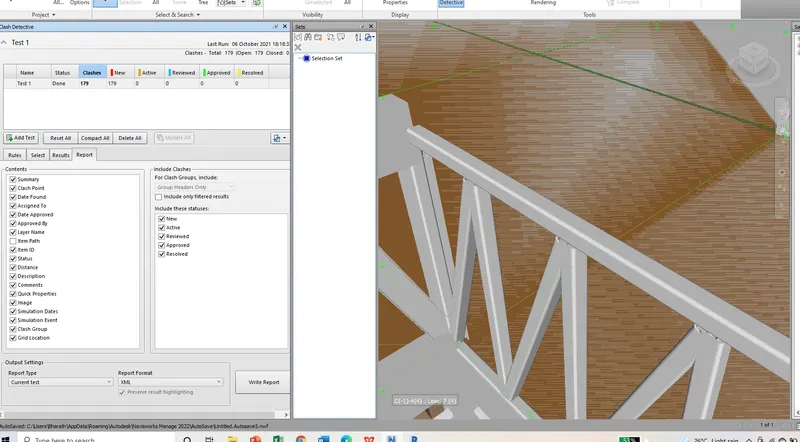

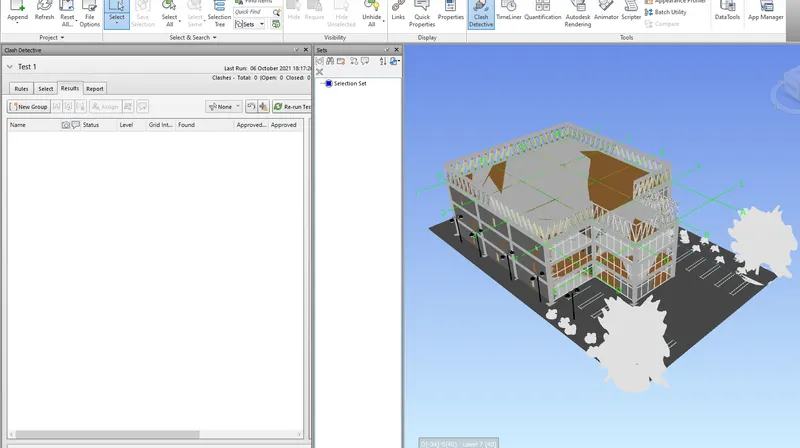

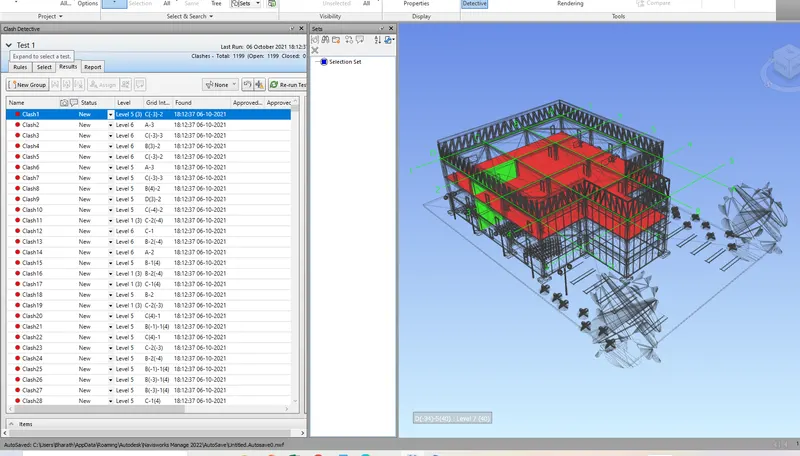

Q4:Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

Aim and introduction:Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models

Procedure:

Steps:

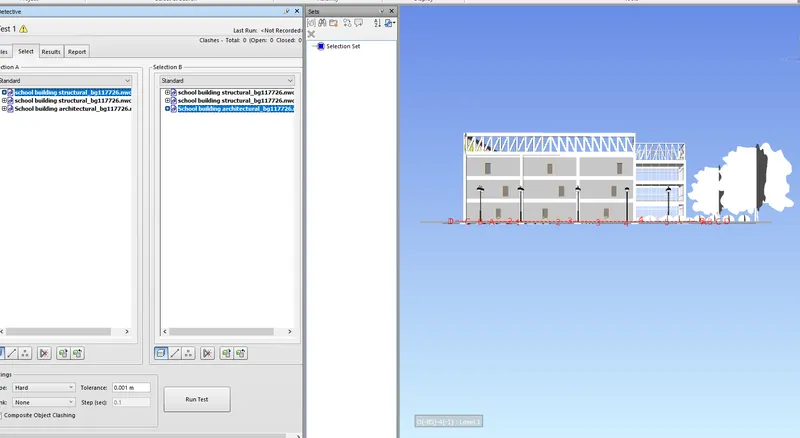

• Go to the navisworks

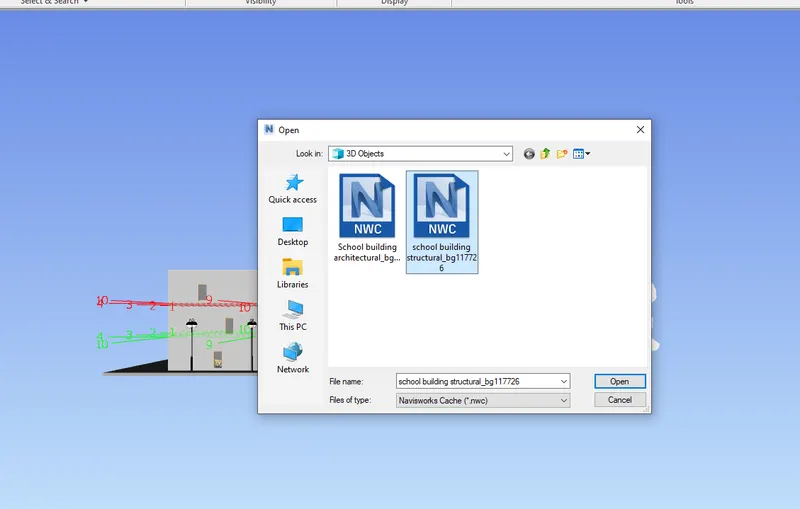

• The two files are selected both architectural and structural

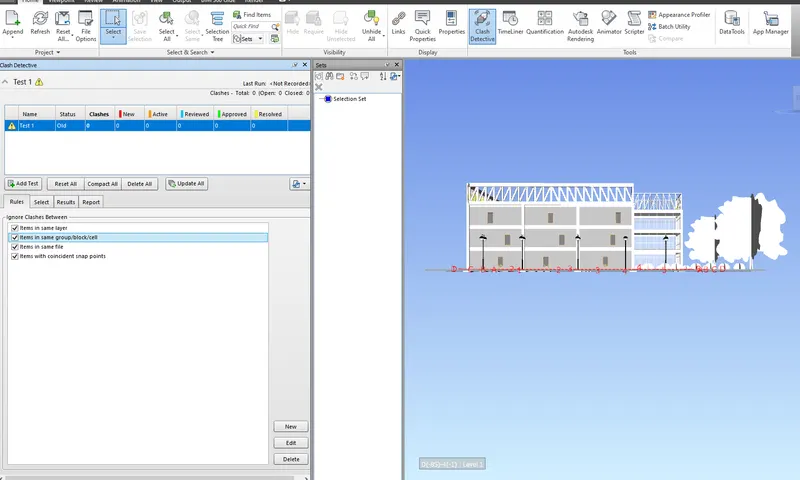

• Clash detective is selected
• Select the area of clash
• Run the clash detective

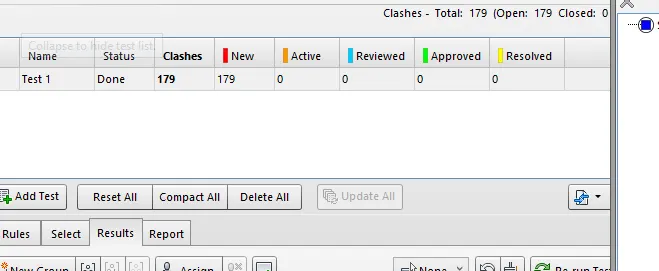

• List of clashes are detected

Results:Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models

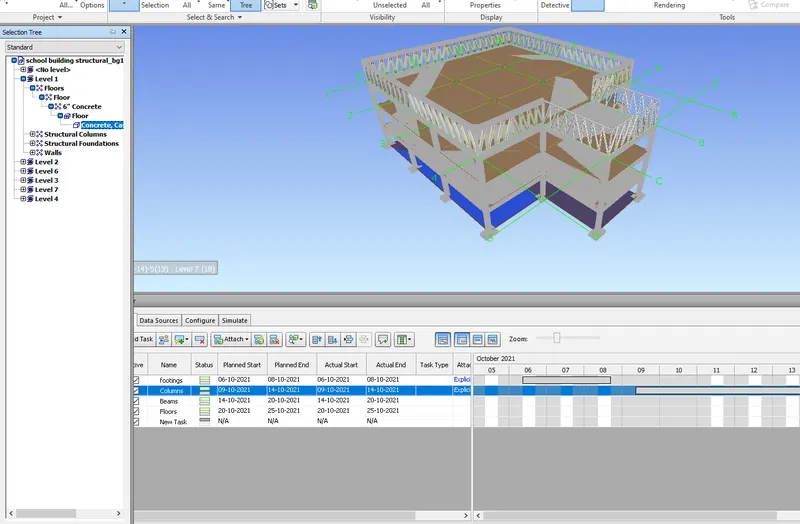

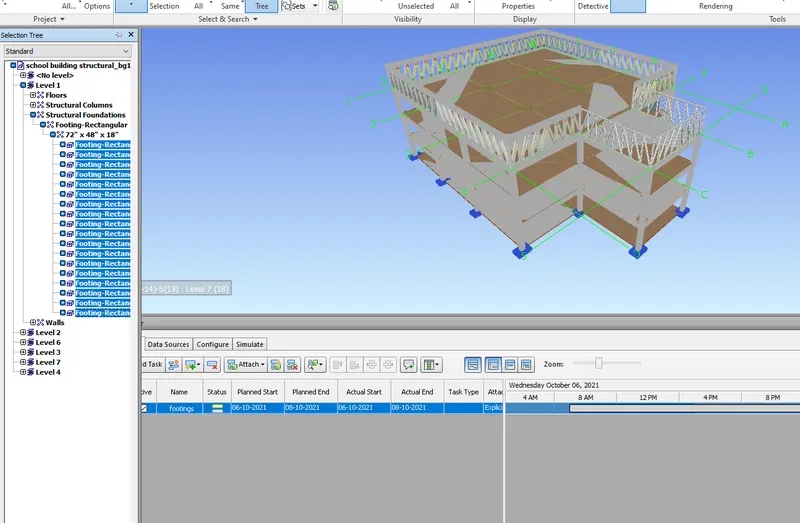

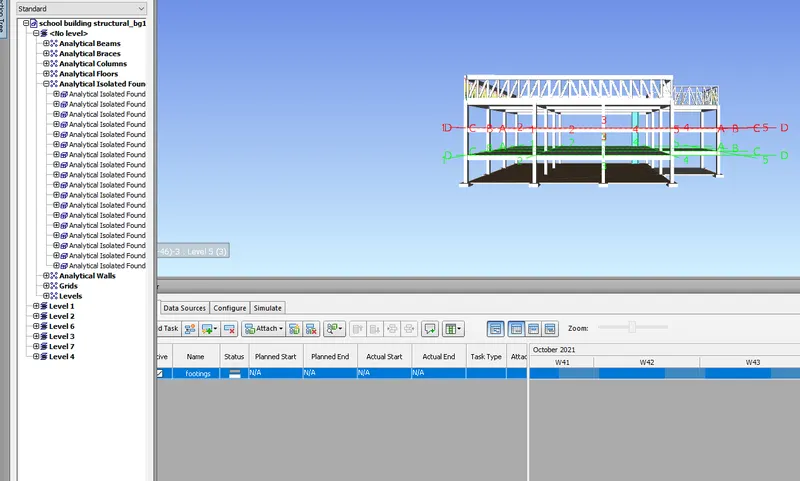

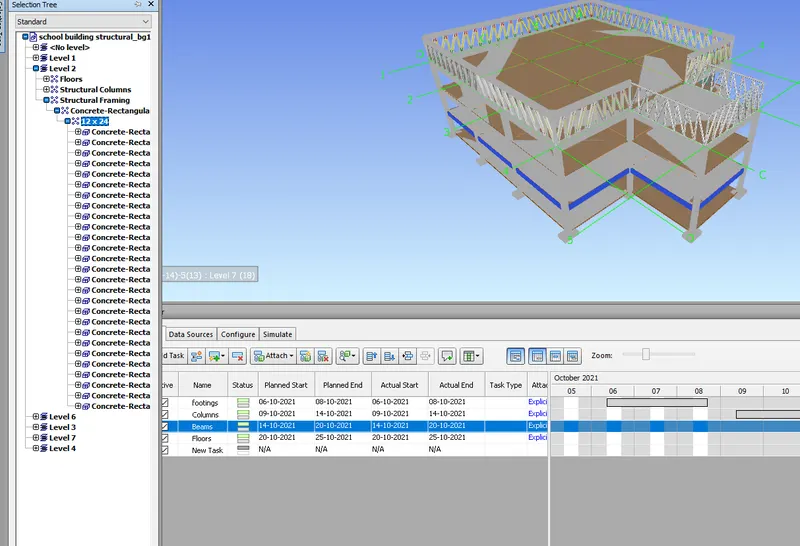

Q5: Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

Aim and introduction:Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

Procedure:

Steps:

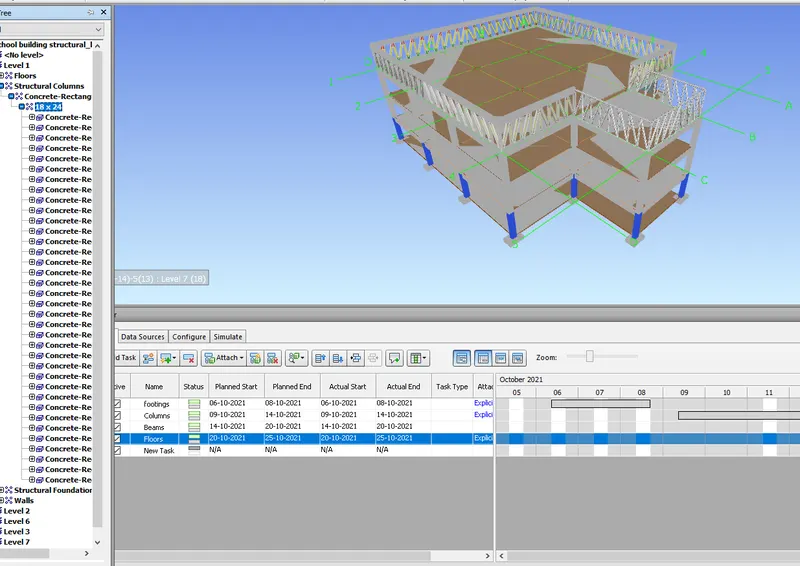

• Insert the structural template

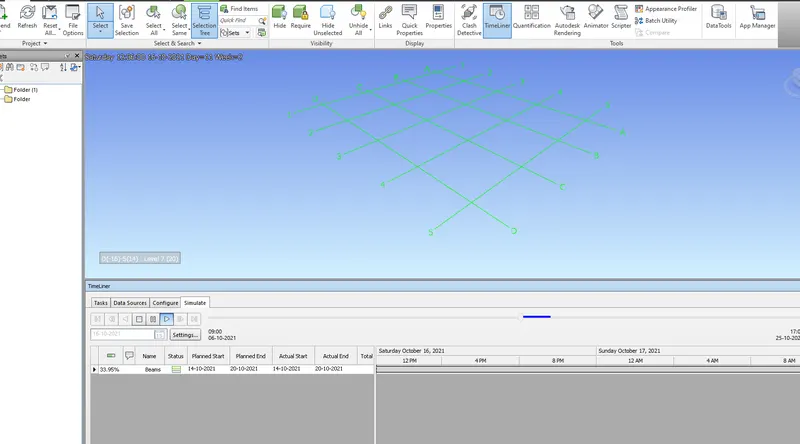

• And go to the timeliner
• Add the tasks
• Actual start and end dates
• Selection tree is used for the select the structures
• Attach the selection to the tasks
• Then simulate

Results: Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
