Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

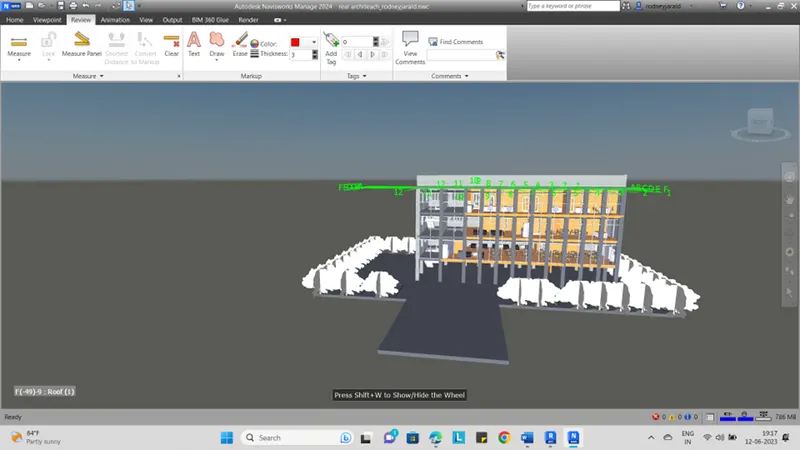

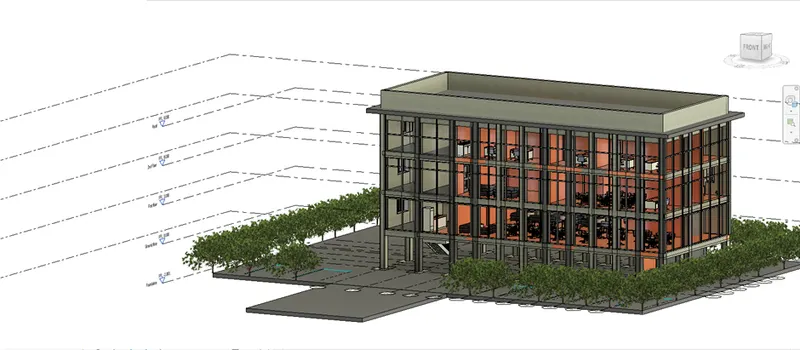

1. Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
Aim :
TO Use the Architecture/ Structure Project file developed by you in Week 6 to 8
PROCEDURE :

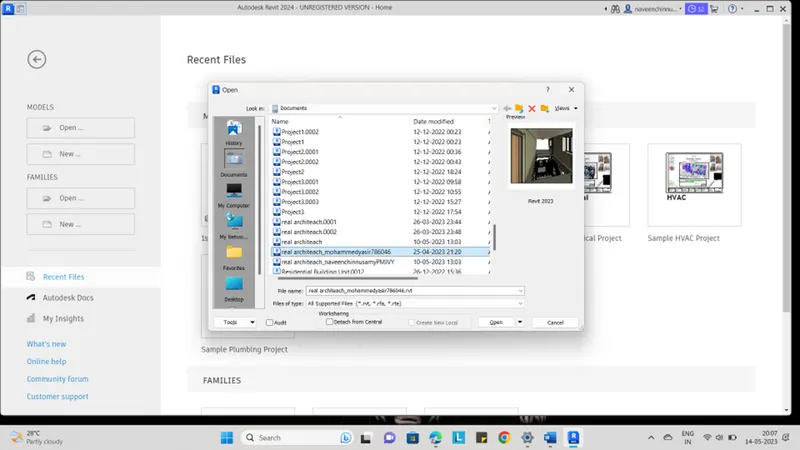

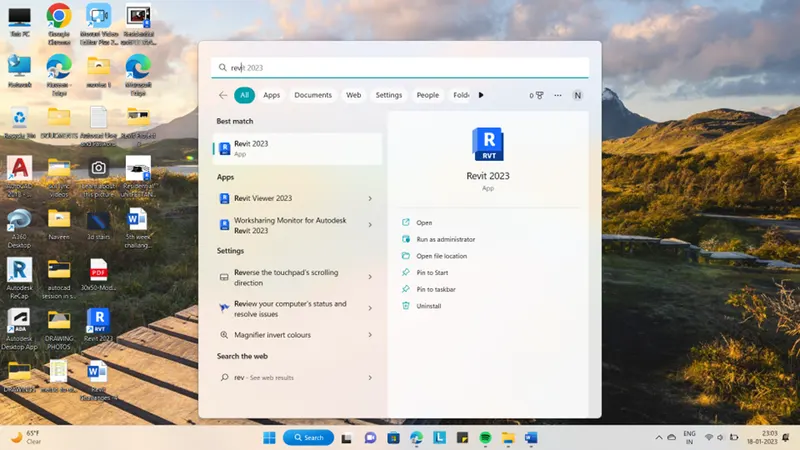

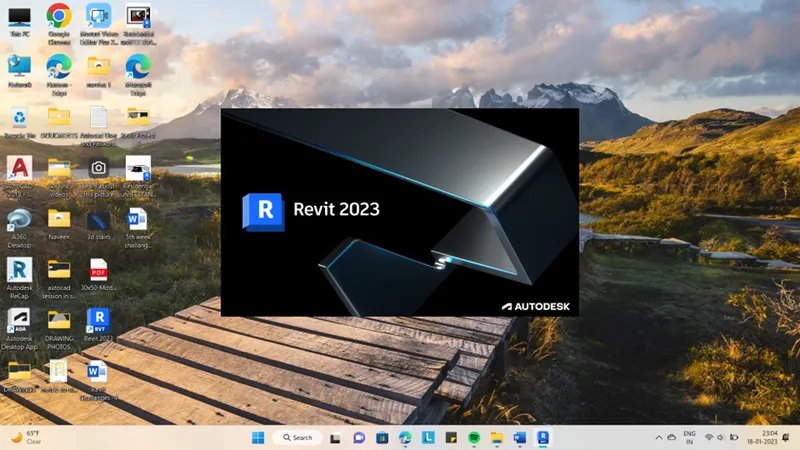

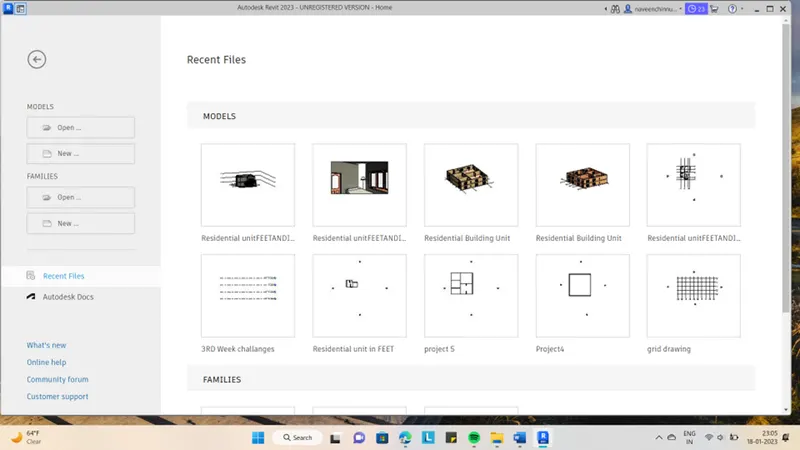

- Open “REVIT 2024” software
- Click “OPEN”

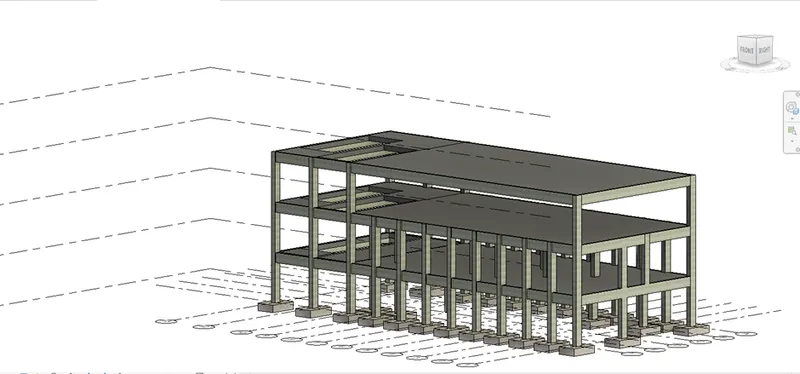

- Select Your “ARCHITECUTE & STRUCTURAL DRAWING ” which is we already created in week 6 to 8

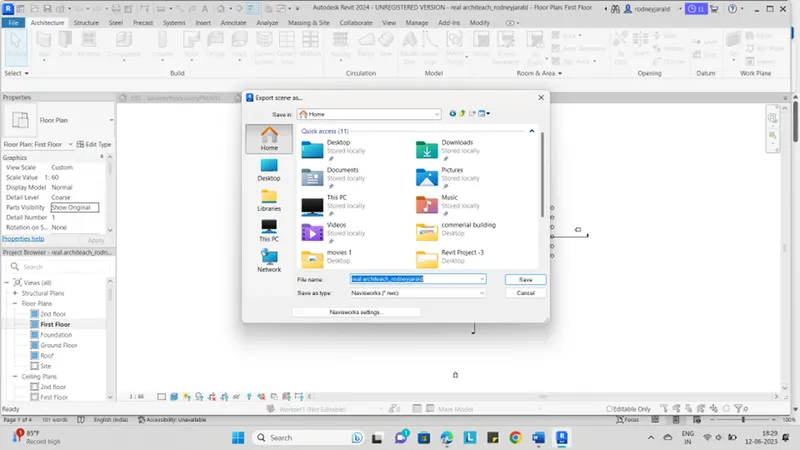

- Go to “FILE” option than
- U will get option called “EXPORT”
- There u will have option is “NWC”

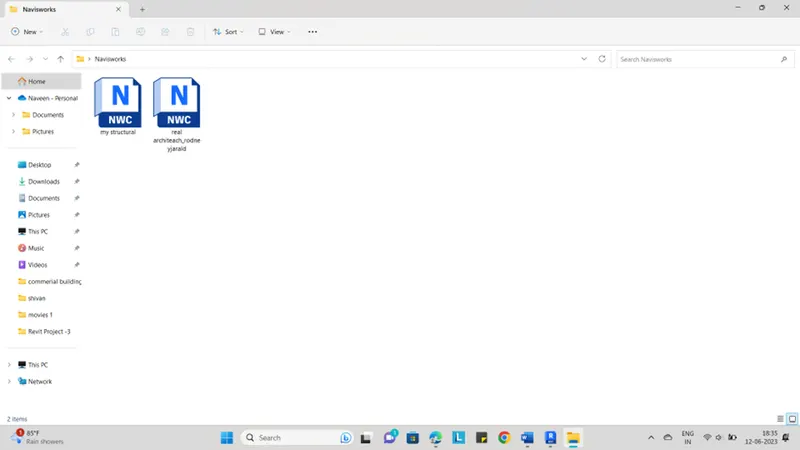

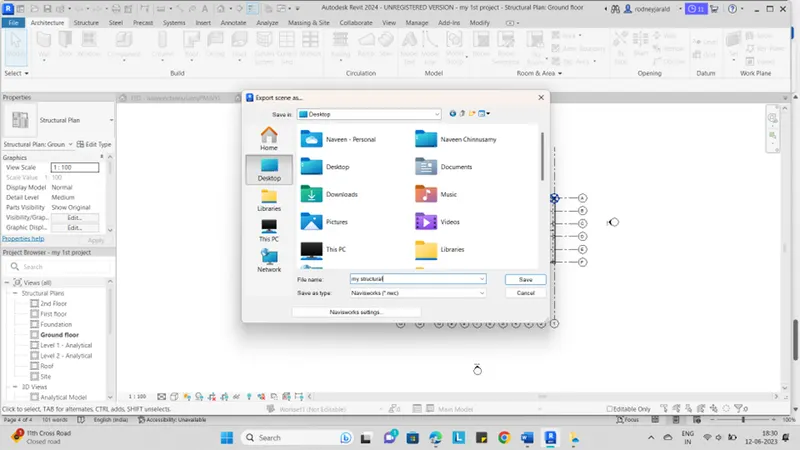

- U will get dialog to save “NWC file”
- Click “SAVE” option
- Finally show the result .
RESULT :
Go to Revit Software > open “ARCHITURAL & STRUCTURAL DRAWING” > go to “FILE” option >Click “EXPORT” Option > Click “Navisworks NWC” > finally Click “SAVE”
2.Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
AIM:
To Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
PROCDURE :
- Open “Autodesk NAVISWORKS 2024”

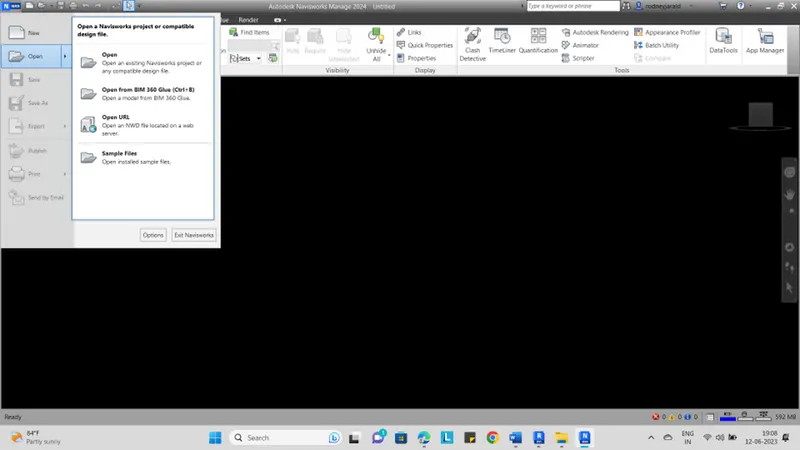

- Click “FILE” option
- Than click “OPEN “

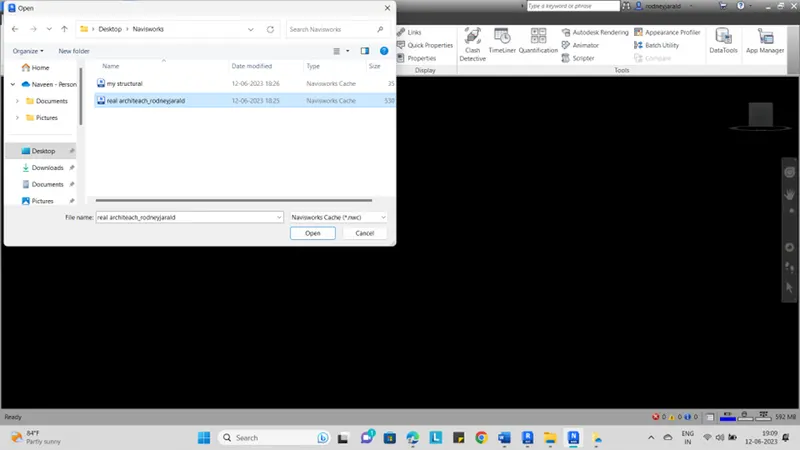

- Open the “NAVISWORKS NWC file “
- Select “ARCHITRUAL DRAWING “ which is we already created past challenges
- Then zoom into the building

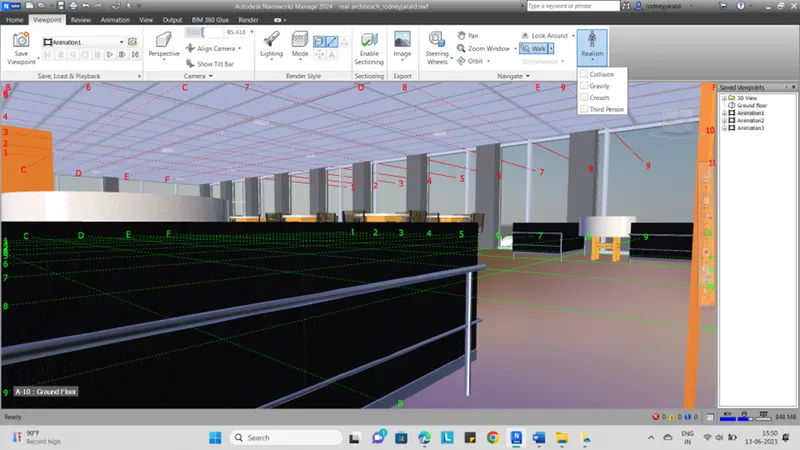

- Go to “VIEW POINT” option

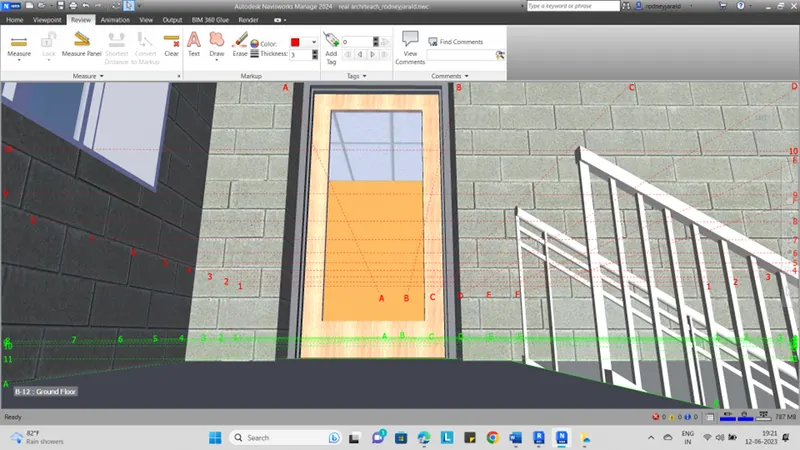

- Click “WALK “ option
- If you want to “RECORD “ your walk
- Click “SAVE VIEW POINT”
- Then give a name as “Ground floor “
- Then “Start Recording “
- Go to “ANIMATION”

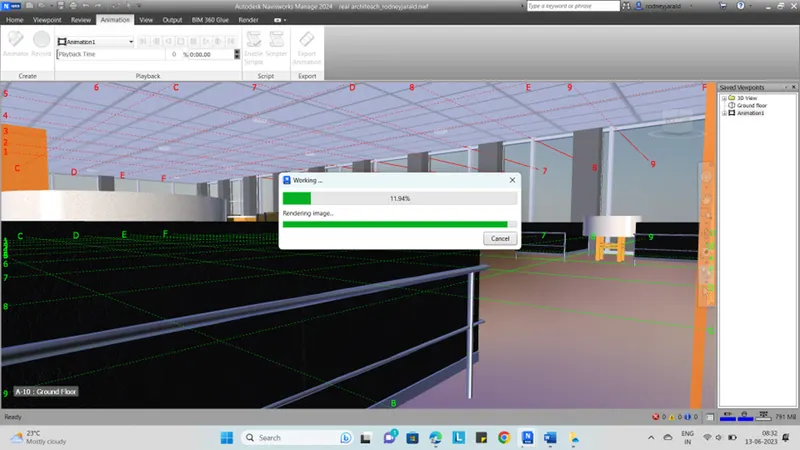

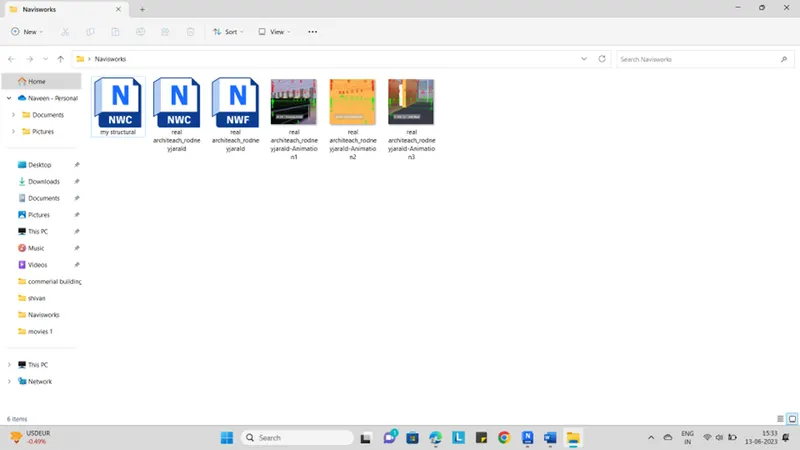

- There is option called “EXPORT ANIMATION ”

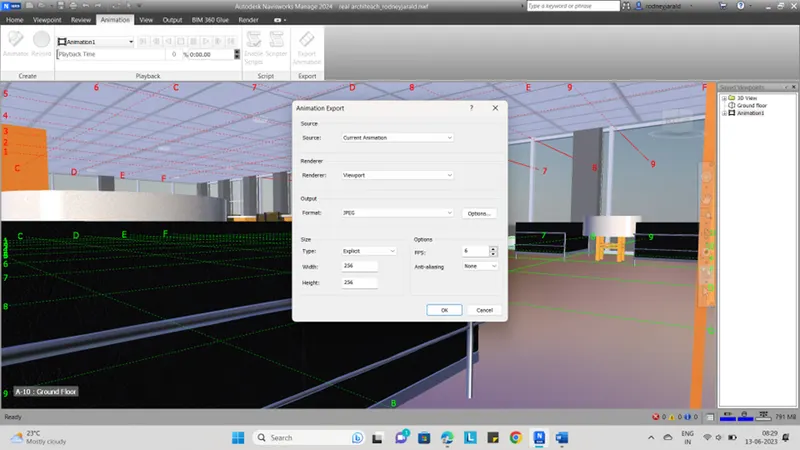

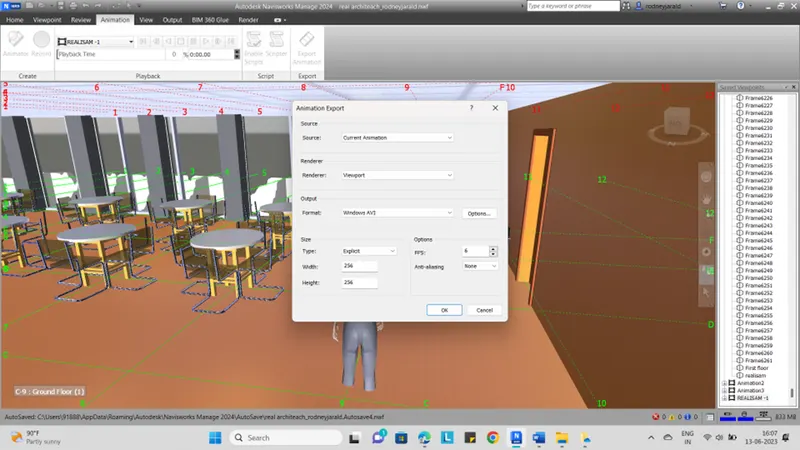

- U Will get dialog box called “Animation Export”
- There u can changes format as “Windows AVI”
- Finally show the result
RESULT :
Open “EXPORTED NWC FILE” > Go to “VIEW POINT” option > click “WALK” option > click “SAVE VIEW POINT” > Drop down the save view point click “RECORDE“ option > Slowly walk through your model > Click “STOP” > Go to “Animation” >”EXPORT” animation > click “SAVE”
3.Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file
AIM :
To Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file
PROCDURE :
- Open “Autodesk NAVISWORKS 2024”
- Click “FILE” option
- Than click “OPEN “
- Open the “NAVISWORKS NWC file “
- Select “ARCHITRUAL DRAWING “ which is we already created past challenges
- Then zoom into the building
- Go to “VIEW” point
- Click “REALISAM “ option

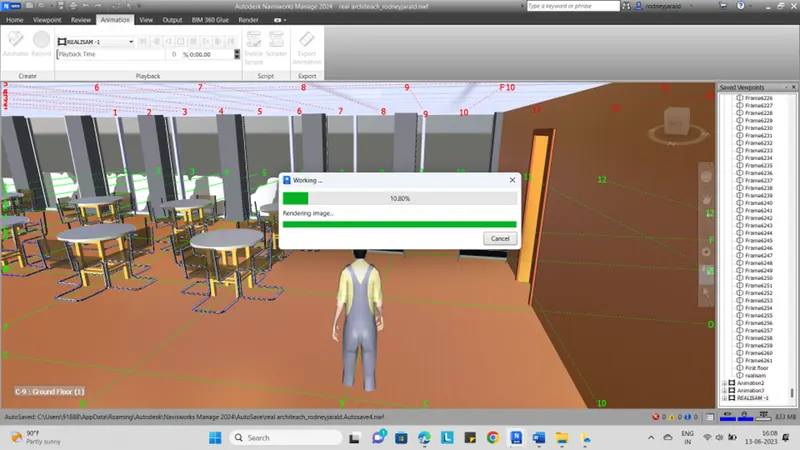

- Than click “THIRD PERSON” option

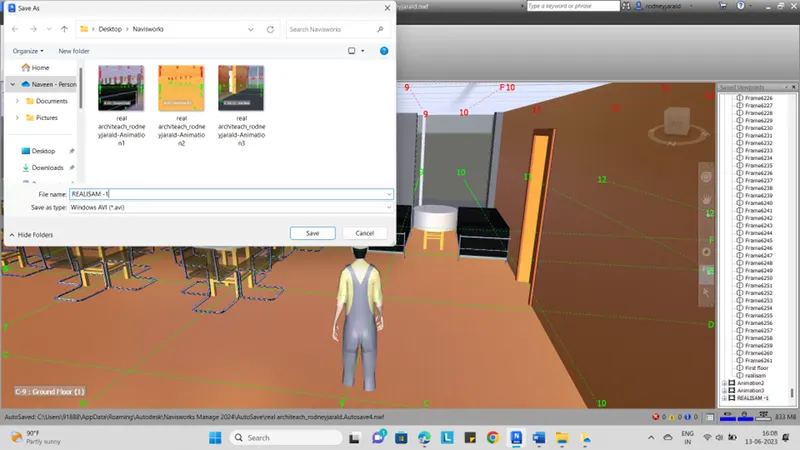

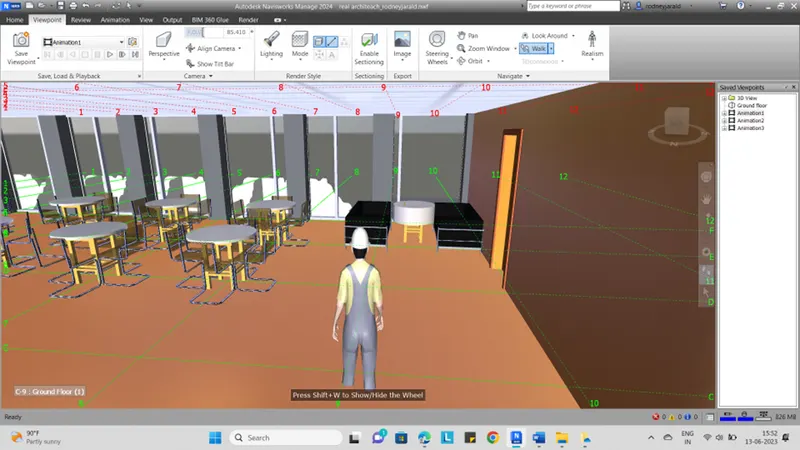

- Once you click “THIRD PERSON” , the person will appear in the screen
- Go to “SAVE VIEW POINT “
- Give a name as “REALISAM “
- Click Start “RECORD” option
- Than “STOP” recording option
- Then go to “animation “ tap
- Click “EXPORT ANIMATION “
- Give a name and click “SAVE “ option
- finally show the result
RESULT :
Open “EXPORTED NWC FILE” > Go to “VIEW POINT” option > click “REALISAM” option > click “THIRD PERSON “ > click “SAVE VIEW POINT” > Drop down the save view point click “RECORDE“ option > Slowly walk through your model > Click “STOP” > Go to “Animation” >”EXPORT” animation > click “SAVE”
4. Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
AIM:
TO Embed both architecture and structure *.nwc file to your Navisworks file.
PROCUDRE:
- Open “Autodesk NAVISWORKS 2024”
- Click “FILE” option
- Than click “OPEN “
- Open the “NAVISWORKS NWC file “
- Select “ARCHITRUAL DRAWING “ which is we already created past challenges

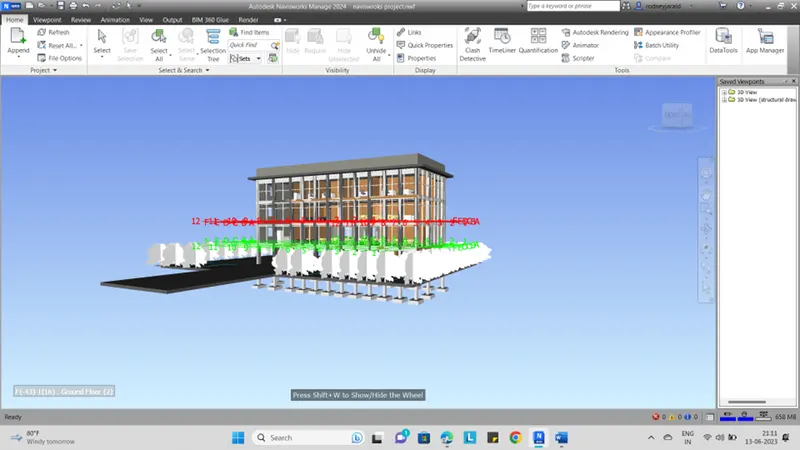

- Go to “HOME” tap

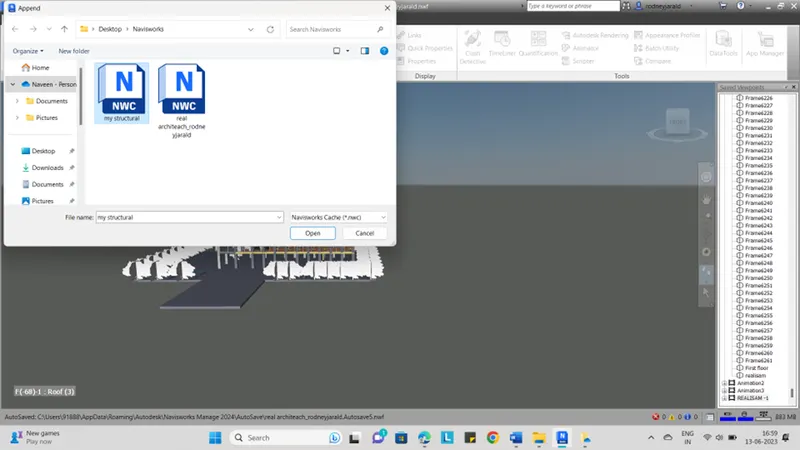

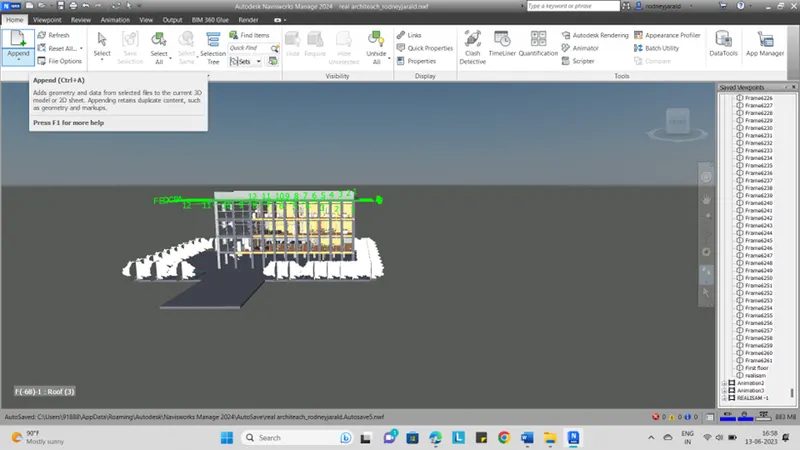

- Click “APPEND “ tool
- Open “STRUCTURAL DRAWING”
- It will be showing in the “Navisworks drawing”
- Go to “HOME” tap

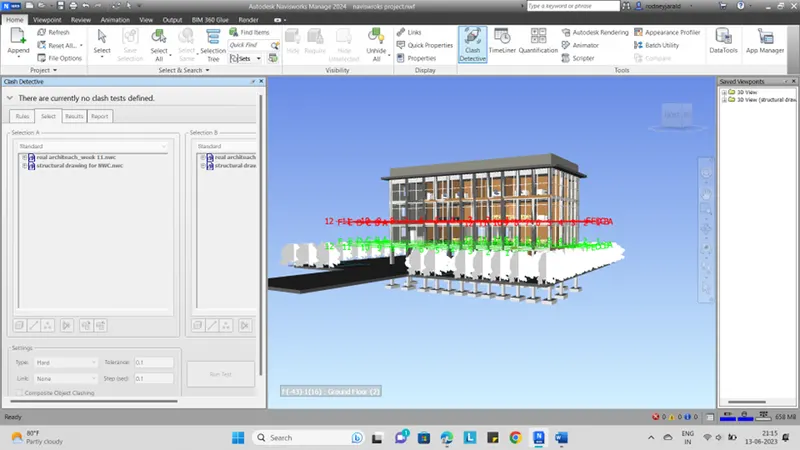

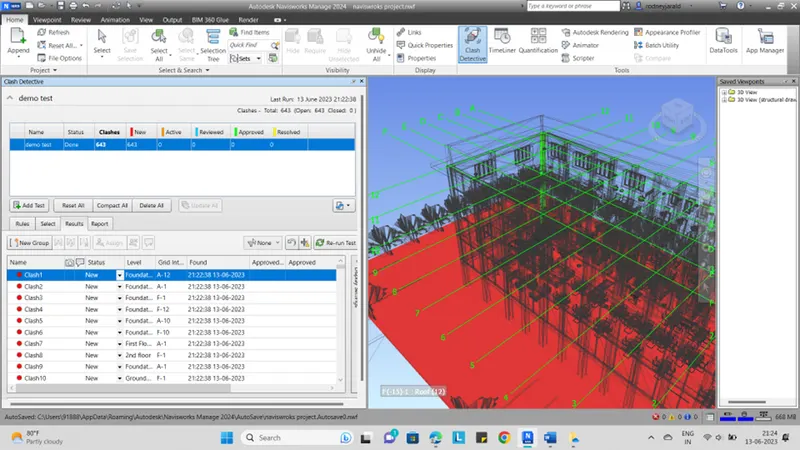

- Click “CLASH DETECTIVE”
- Once you click the “CLASH DETECTIVE” u will get dialog box called “CLASH DETECTIVE”

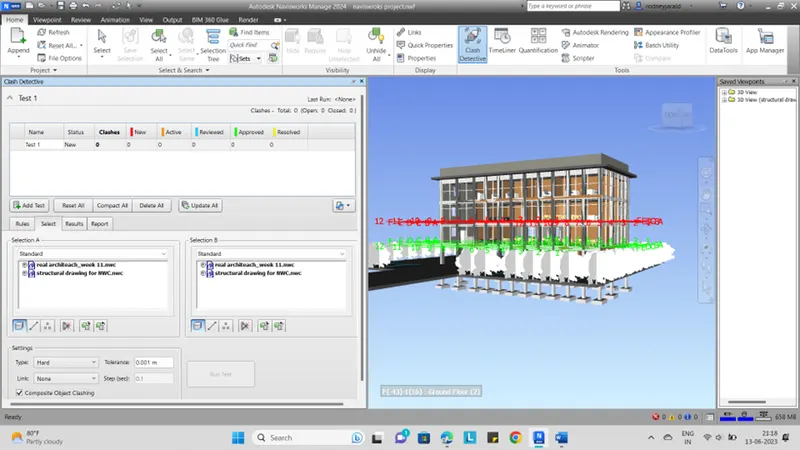

- Click “ADD TEST” option
- Rename the test as “DEMO TEST”
- Click “Architectural “ In selection “A”
- Click “STRUCTURAL “ in Selection “B”
- Than choose “SURFACE “ option
- Than click “RUN TEST”

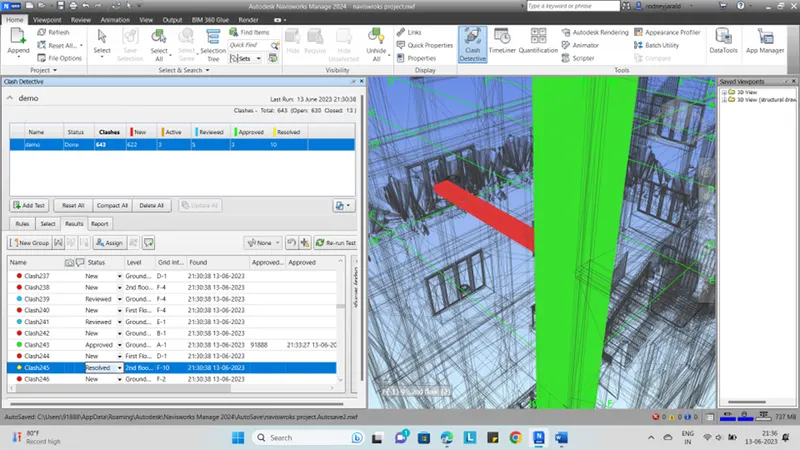

- Once “RUN TEST” is done
- U will get “Total number clash” in your system
- Than u will get option called “NEW, ACTIVE, REVIEWED , APPROVED, RESOLVED
- Need solve the clash each and every clashes
- Finally show the result
RESULT :
5. Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
AIM :
- Open “Autodesk NAVISWORKS 2024”
- Click “FILE” option
- Than click “OPEN “
- Open the “NAVISWORKS NWC file “
- Select “ARCHITRUAL drawing “ which is we already created past challenges
- Go to “HOME” tap

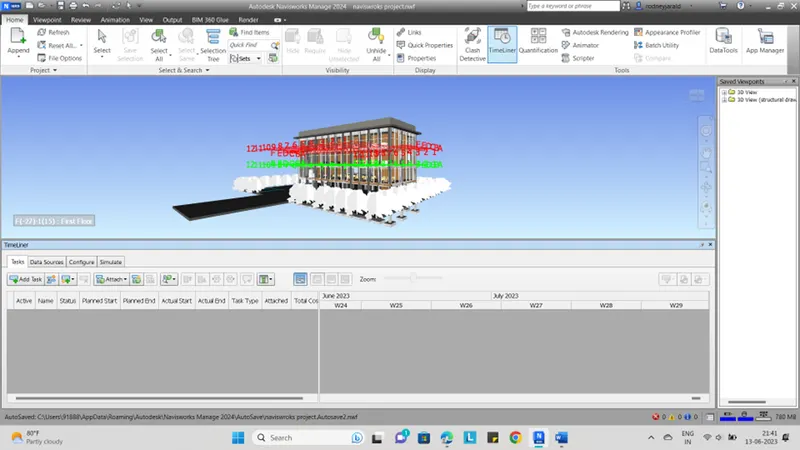

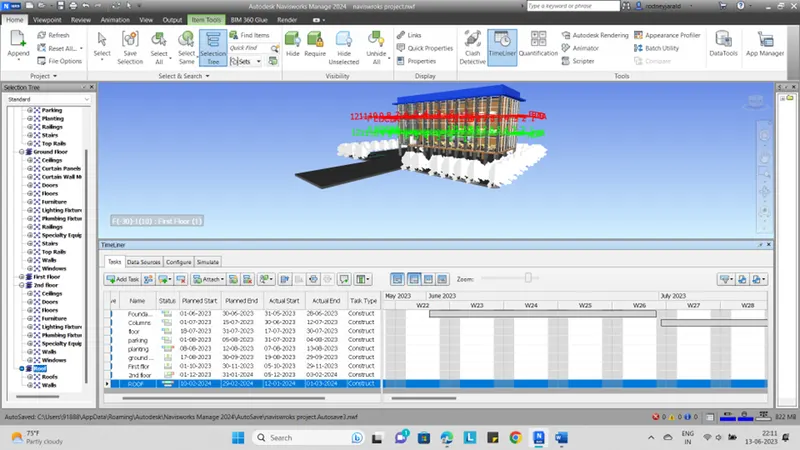

- Click the “TIME LINER”
- Go to the “ADD TASK “ option
- Rename task name as “FOUNDATION”
- Give a “PLANNED DATE , PLANNED END , ACTUAL END , TASK TYPE”
- Similarly need to add each and every element Like “Foundation, columns , ground floor , first floor , 2nd floor and roof “

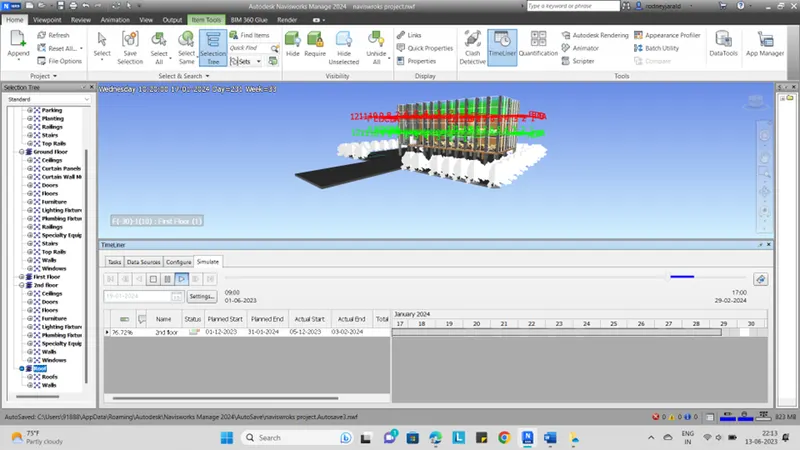

- Finally give “SIMULATE “ and show the “RESULT “
RESULT :
