Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

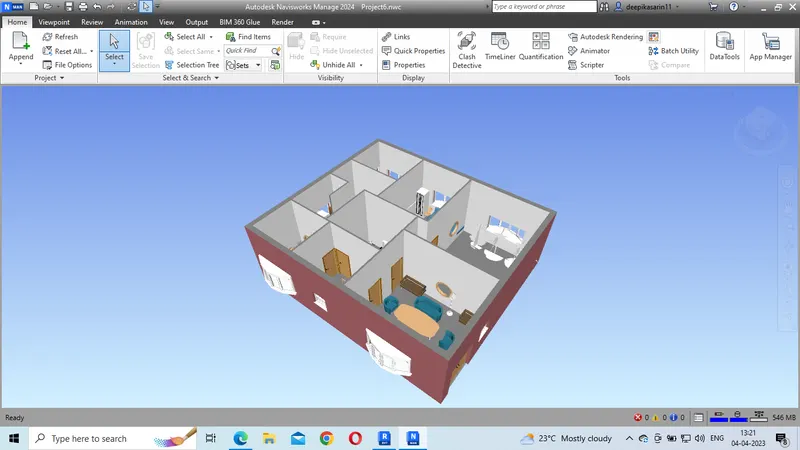

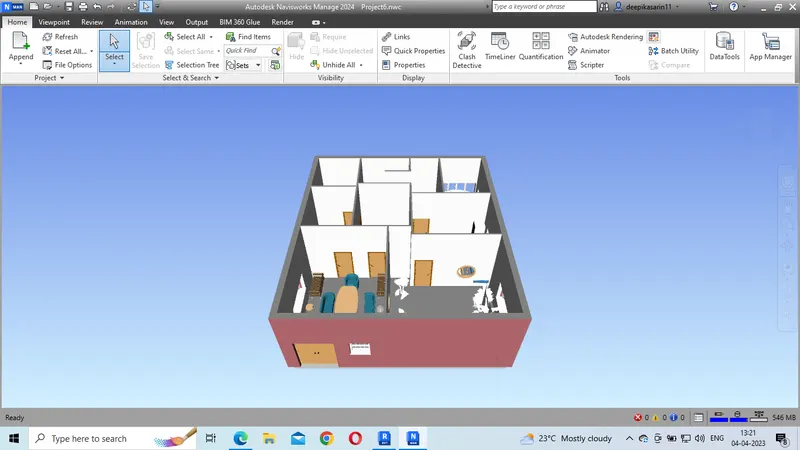

ANS 1. AIM- TO EXPORT THE FILE TO THE NAVISWORKS MANAGE.

PROCEDURE- 1. OPEN THE REVIT PROJEC.

2. GO TO THE FILE MENU AND GO TO THE EXPORT OPTION.

3. CHOOSE THE NCS TO EXPORT THE FILE TO THE NAVISWORKS.

4. IF NCS OPTION IS NOT SEEN, GO TO THE GOOGLE AND DOWNLOAD THE NAVISWORKS EXPORT UTILITY 2023.

RESULT- THE FILE WILL BE EXPORTED TO THE NAVISWORKS.

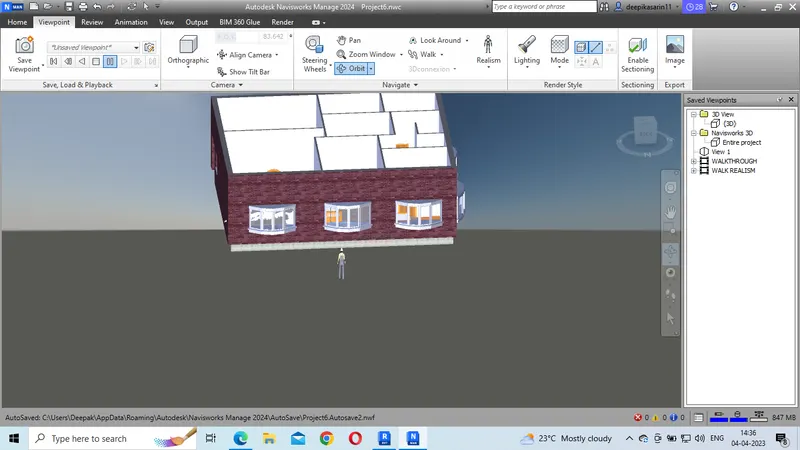

ANS 2. AIM- TO CREATE WALKTHROUGH OF YOUR PLAN IN NAVIESWORK.

PROCEDURE- 1. GO TO THE VIEWPOINT.

2. SELECT THE OPTION OF WALKTHROUGH.

3. THEN GO TO THE PAN OPTION AND SET THE CAMERA ANGLES PROPERLY.

4. RECORD THE WALKTHROUGH.

5. NOW GO TO THE ANIMATION AND EXPORT THE FILE IN A CHOSEN FORMAT.

RESULT- THE DESIRED AIM IS ACHIEVED.

ANS 3. AIM- TO CREATE A REALISM WALKTHROUGH THE MODEL.

PROCEDURE- 1. CLICK ON THE REALISM OPTION IN THE VIEWPOINT.

2. THEN A THIRD PERSON OPTION IS CHOSEN.

3. WE CAN CREATE ANOTHER WALKTHROUGH.

RESULT- THE DESIRED AIM IS ACHIEVED.

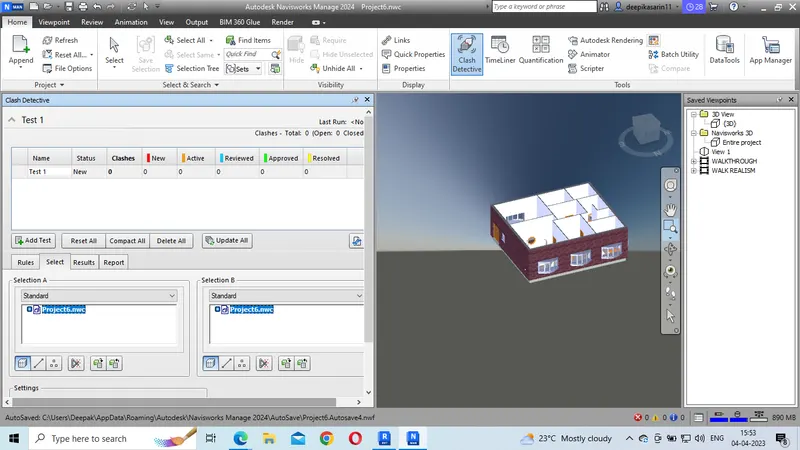

ANS 4. AIM - DETECTION OF CLASH IN THE ARCHITECTURAL AND STRUCTURAL FRAMEWORK.

PROCEDURE- 1. NOW WE WILL SUPERIMPOSE THE TWO PROJECTS AND DO IT BY USING APPEND COMMAND.

2. WE WILL ALSO GO TO THE CLASH DETECTION COMMAND.

3. WE WILL ADD THE TWO PROJECTS AND THEN RUN THE TEST.

4. THE RESULT WILL GIVE THE CLASH POINTS IN THE PROJECT.

RESULT- AS THE PROJECT PREPARED BY US IS A SIMPLE ARCHITECTURAL MODEL, WE HAVE GOT NO CLASH POINTS.

BUT EVEN WHEN WE HAVE THOSE CLASHES WE CAN MARK THEM WITH DIFFERENT ANNOTATIONS SO THAT WE MUST DIFFERENCIATE THOSE CLASHES THAT CAN BE EASILY RESOLVED WITH THOSE THAT CAN BE DIFFICULT TO RESOLVE.

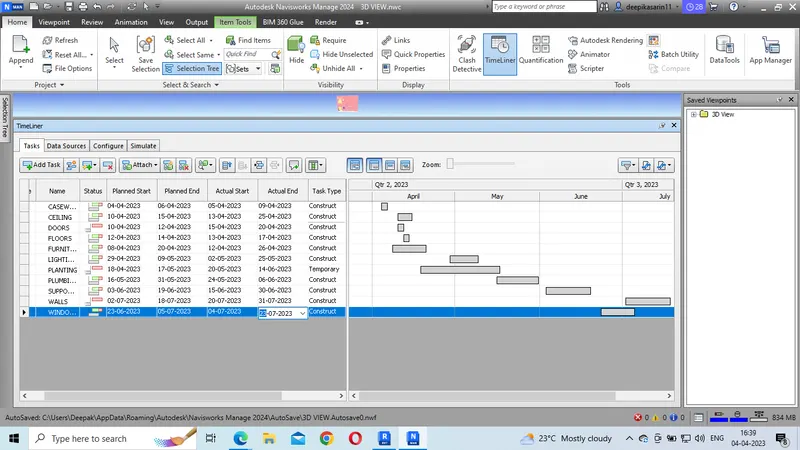

ANS 5. AIM- USING THE TIMELINER FEATURE, SCHEDULE THE DIFFERENT TASKS OF THE PROJECT.

PROCEDURE- 1. FIRSTLY OPEN THE TIMELINER TASKBAR.

2. THEN FROM THE SELECTION TREE, SELECT THE DIFFERENT TASKS.

3. TO THESE DIFFERENT TASKS ASSIGN SOME PLANNED TIME AND THEN WRITE DOWN THE ACTUAL TIME.

4. ATTACH THESE TASKS TO THE CURRENT PROJECT.

5. AFTER IT IS COMPLETED, JUST SIMULATE THE PROJECT.

RESULT- IN THIS WAY THE DESIRED AIM IS ACHIEVED.
