Introduction:

Naviswork is a 3D design review package for microsoft windows.It is used primarily in construction industries to complement 3D design packages such as autodesk Revit, Autocad etc.. Naviswork allows user to open and combine 3D models; navigate around  them in real time  and review model using a set of tools including comments,readlining, viewpoint and measurements. A selection pf plug-ins ehances the package adding interferance detection, 4D time simulation, photo realastic rendering andPDF- like publishing.

Naviswork has a number of built-in functionalities:

• Roamer: The core part allows user to open models from a range of 3D design and laser scan forats and combine them into a single 3d model. User can navigate around the model in real-time and review the model with  a range of mark - up tools.
• publisher: This allows user to publish the completet 3D model into a single NWD dile that can be freely opened by any one using freedom, afree viewer.
• Clash detective: A functionality to enable interference detetion. this means user can select parts of the model and look for places where the geometry conflicts. This is  for finding faults in the design.
• Renderer: with the renderer, user can apply materials and lighting to the model and produce photo realastic images and animations.
• Qualification: By taking off the model, user can automatically can make materials estimates, measures areas and count building componenets.
• Timeliner: Adds 4D simulation so the user can link geometry to times and dates and to simulate the construction or demolition of the model over time, Also links with project scheduling software to importtask data.
• Animator: A feature that allows the user to animate the model and interact with it.
• Scripter: That allows the user to setup a collection of actions that he/she want to happen when certain events condtions are met.

1. Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

ANSWER:

Aim:

 To export the revit architecture and structure model created in week-6 challenge to naviswork cache file following the export settings.

PROCEDURE:

• Initially open the autodesk account and download the naviswork manage software.
• Now, open the architecture model created in week-6 challenge in the revit software.

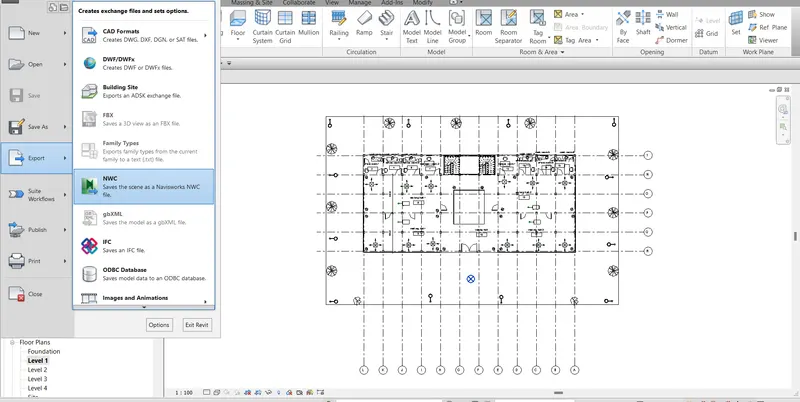

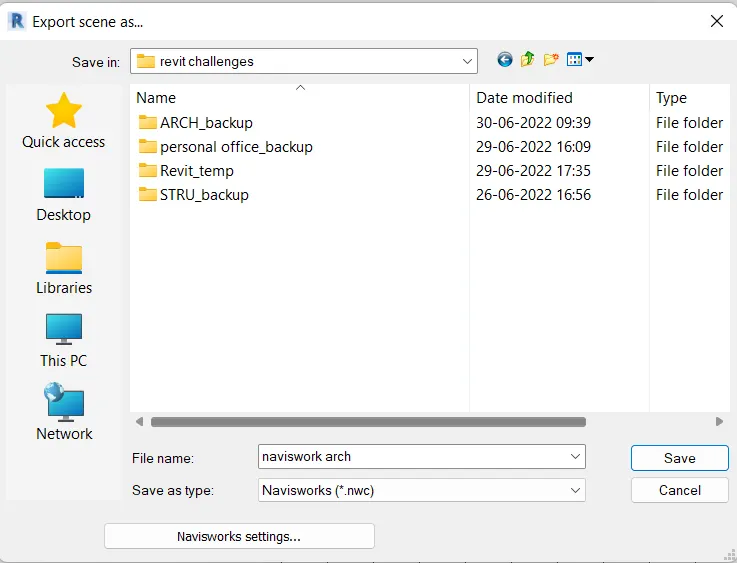

• Then go to file--> export--> NWC file.

• Now, save the file.



• Hence, the file is exported

RESULT:

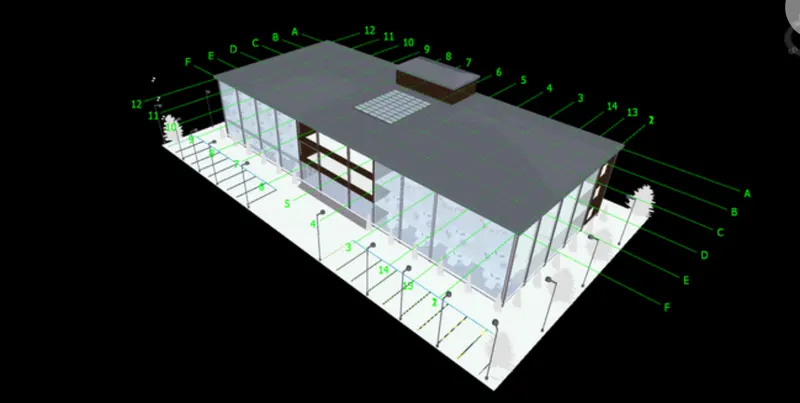

The architecture model of the office building is successfully exported to the naviswork cache file.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

ANSWER:

AIM:

To Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

PROCEDURE:

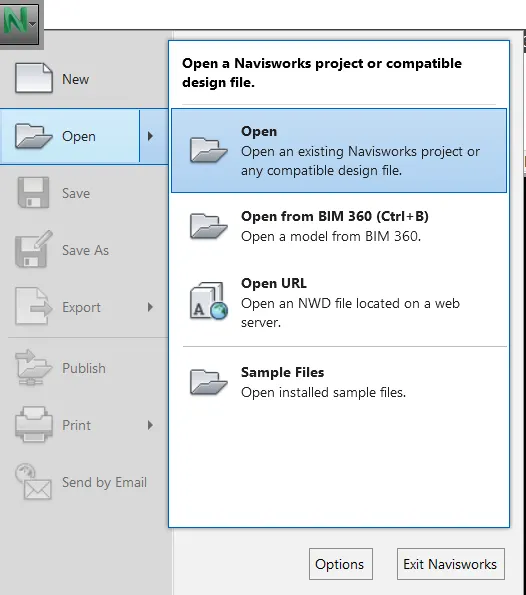

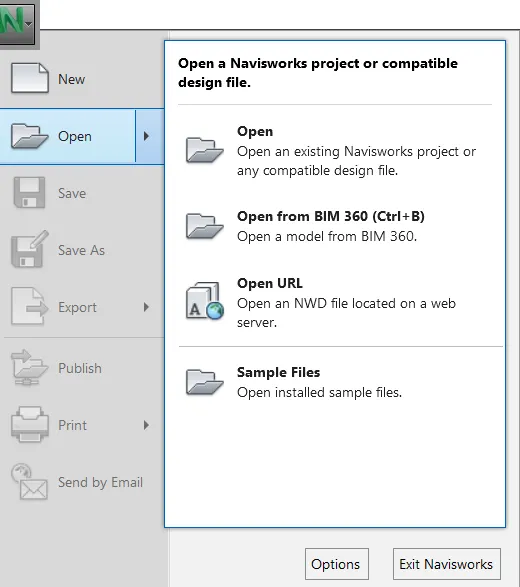

• Initially oprn then architecture file in the naviswork.





• Now, go to  walk option in the viewport tab of the naviswork software.

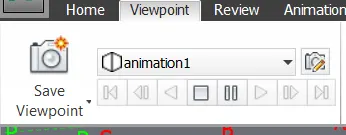

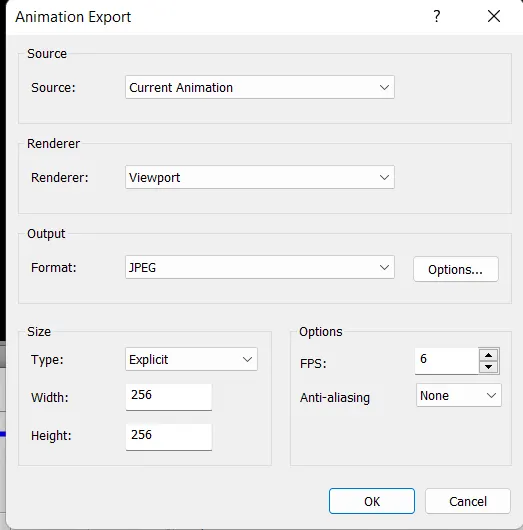

• Use the record option in the save viewport option to record animated view of each and everyroom

• Entrance area:

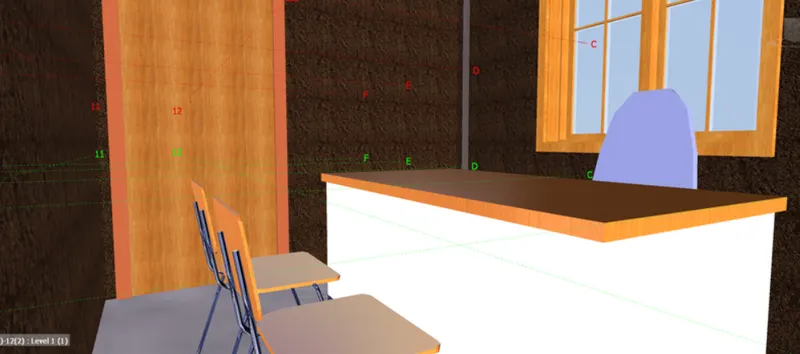

• Manager room:

• Work station cum confrence area:

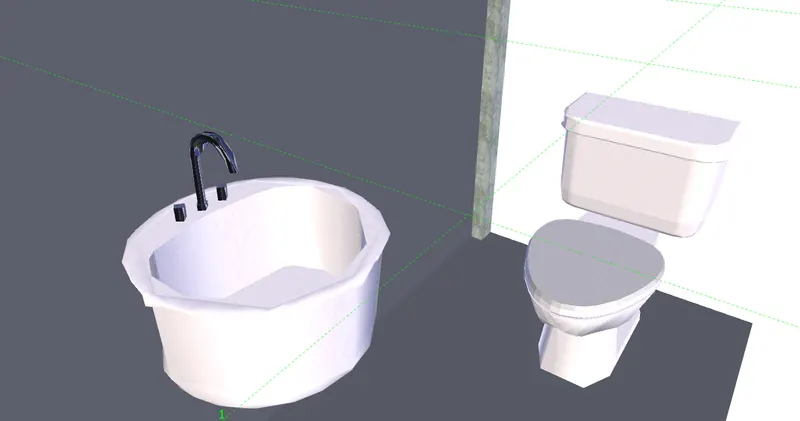

• Wash room:

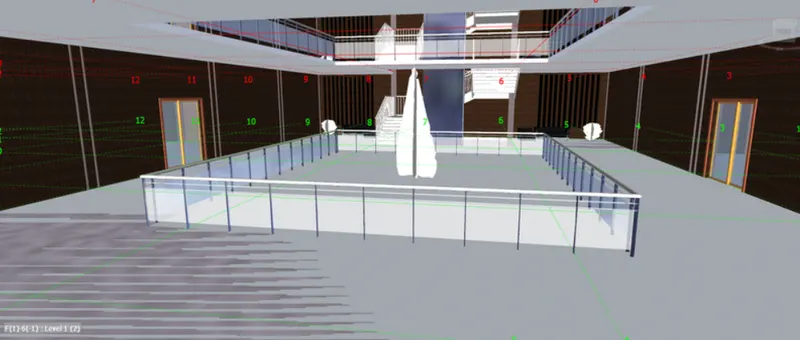

• Courtyard:



• Hence, walk through the building complete.



RESULT:

Walk around the model is completed.

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

ANSWER:

AIM:

To Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

PROCEDURE:

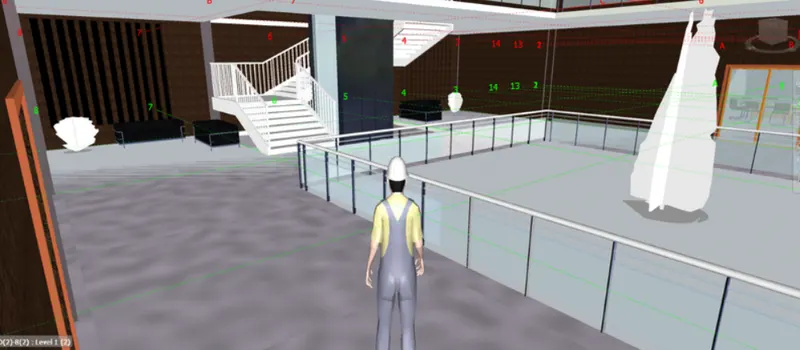

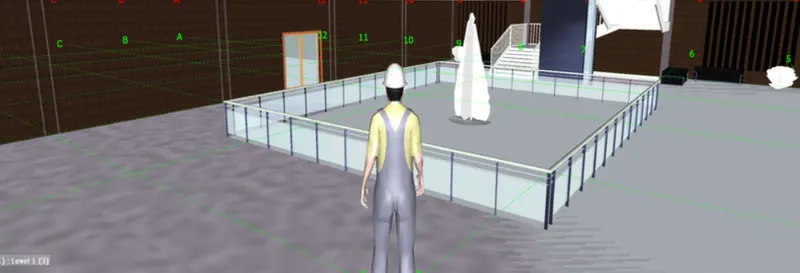

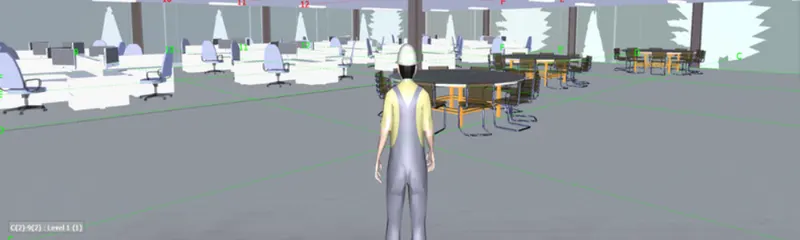

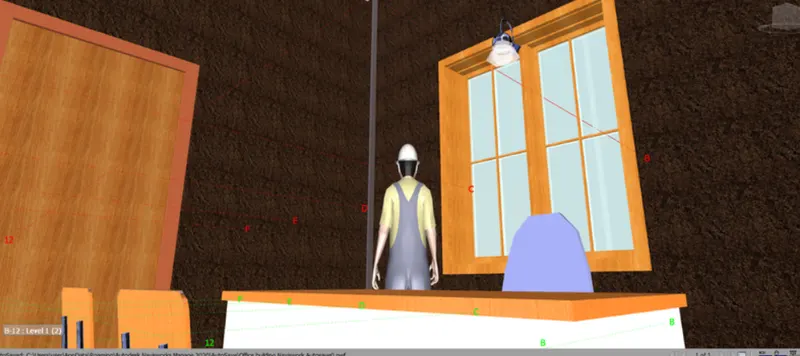

• In the Naviswork software under the viewport tab go to realism and in realism choos third person.

• Now, again record the moving from save viewport option.


• Entrance area:

• Manager room:

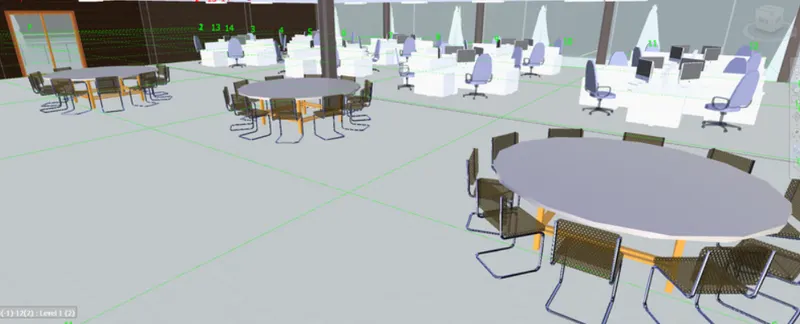

• Work station cum confrence area:

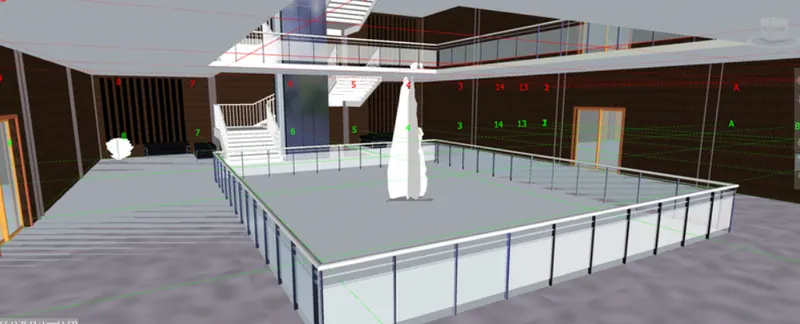

• Courtyard:

• Hence, the realism walk around is completed.

RESULT:

Walk through the model using realism is completedly  successfully.

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
              a. Run the Clash Detection Test
              b. Study the clashes between the two models
              c. List which of the clashes could be approved
              d. List which of the clashes could be neglected ( will be taken care later)
              e. List which of the clashes can be resolved
              f. Save the results after color coding the clashes to the Navisworks file
               in Navisworks

ANSWER:

AIM:

To create the clash detection test between the two models.

PROCEDURE:

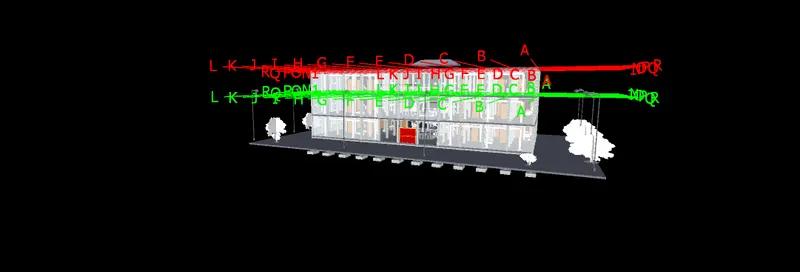

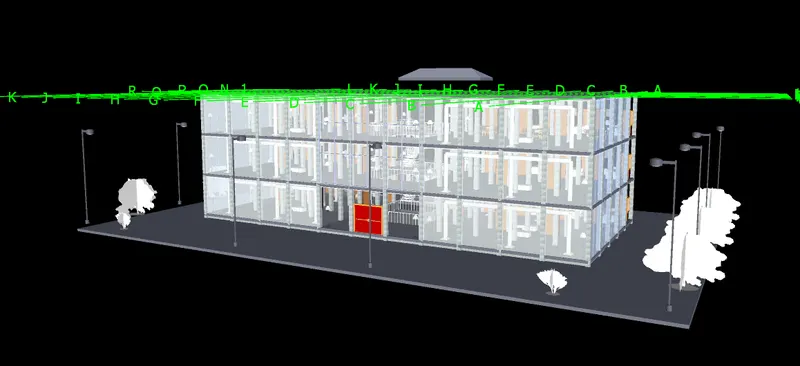

• Initially append the strctural model to this architectural model.

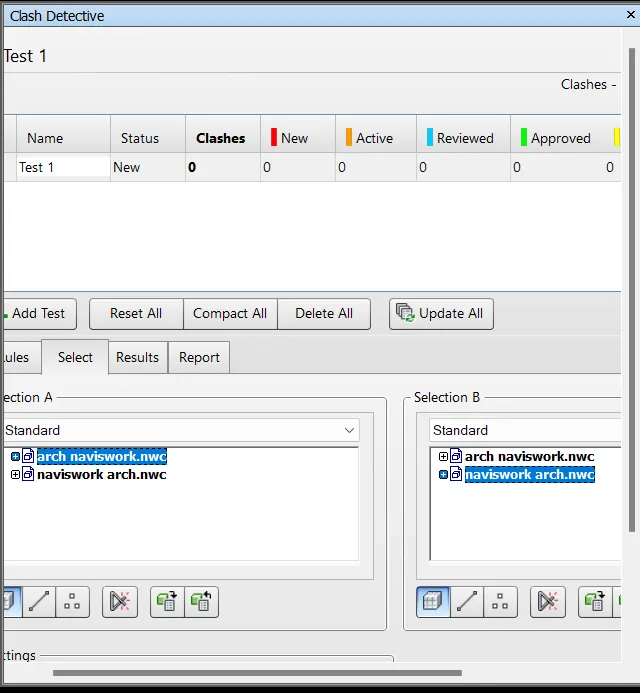

a. Run the Clash Detection Test

• Initially go to home tab and in that choose clash detective icon.

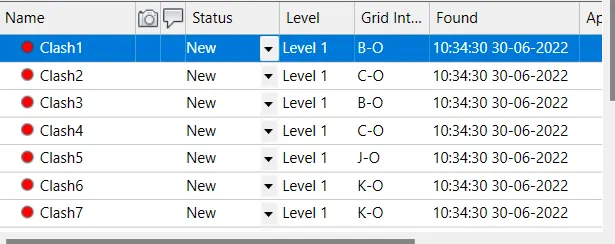

b. Study the clashes between the two models:

• Study the clashes between two models:




c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved

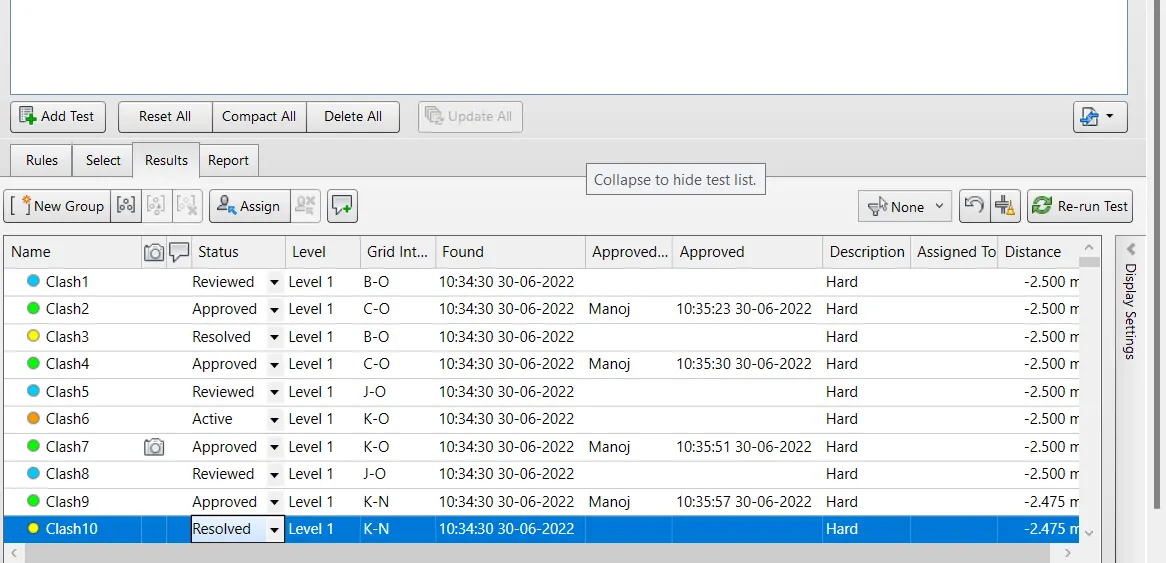

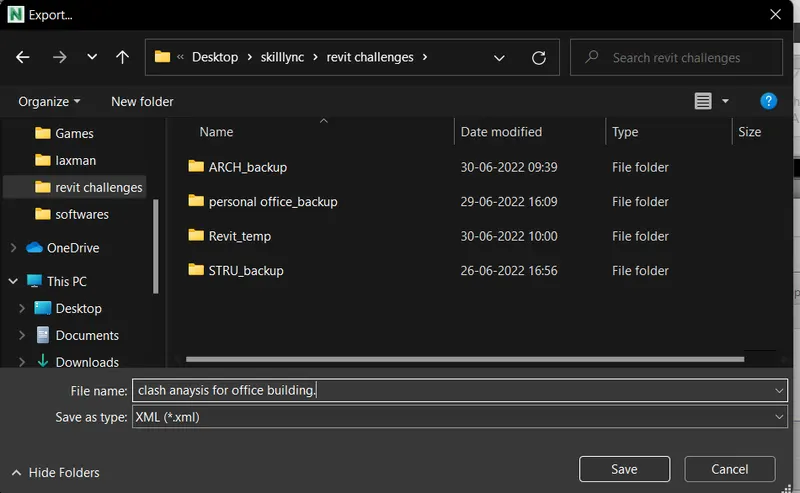

f. Save the results after color coding the clashes to the Navisworks file in Navisworks



• Hence, completed.

RESULT:

The Naviswork  clas analysis have been successfully carried out.

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

ANSWER:

AIM:

 To Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation

PROCEDURE:

• Initially open the structural model in the Revit.
• Then go to file menu--> Export--> NWC file.

• Now, open the structural model in Naviswork software.

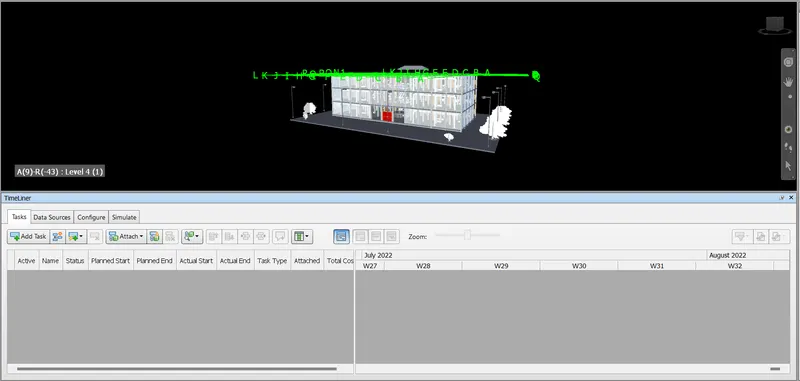

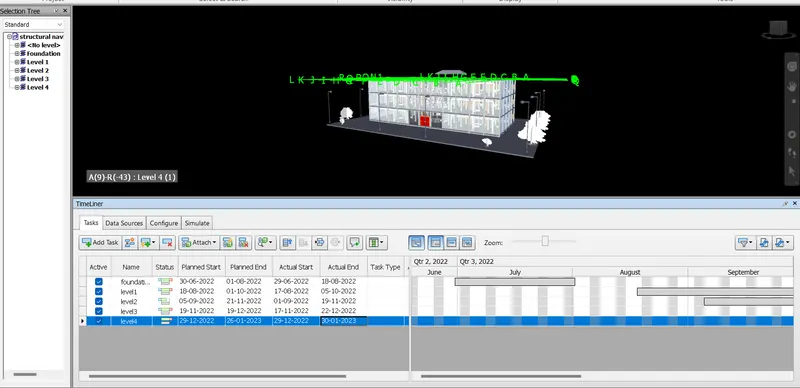

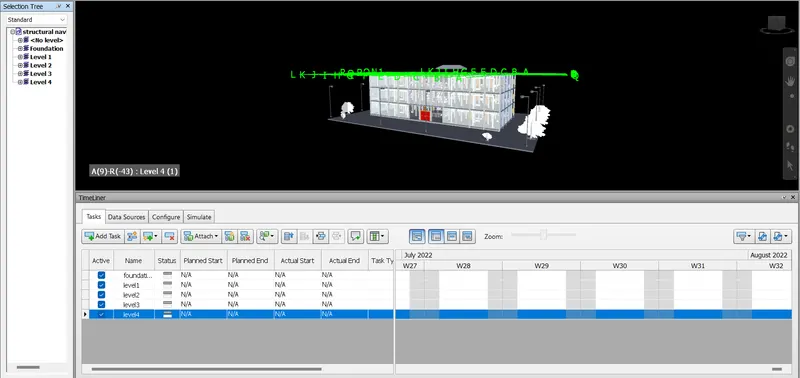

• Now, go to timeliner in the home tab.

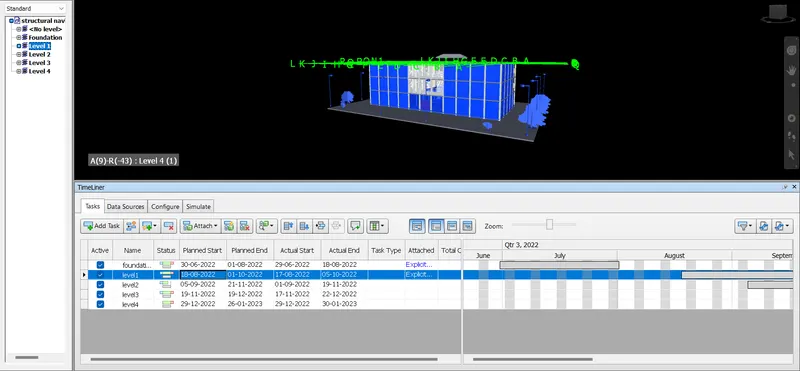

• Click add task option available in the timeliner to add new tasks.




• Next we have to update the planned and actual dates and provide type(construct)

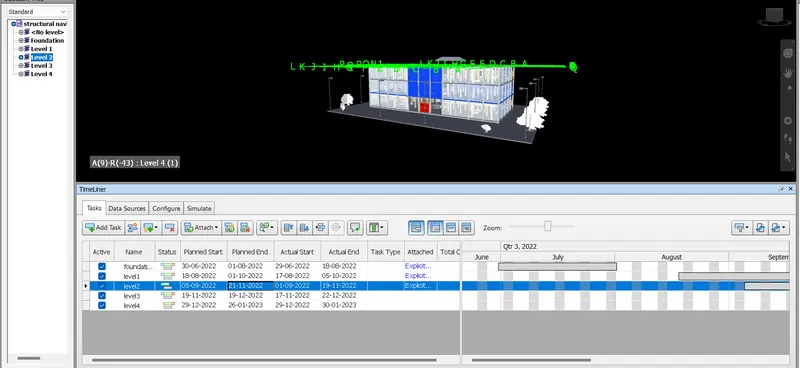

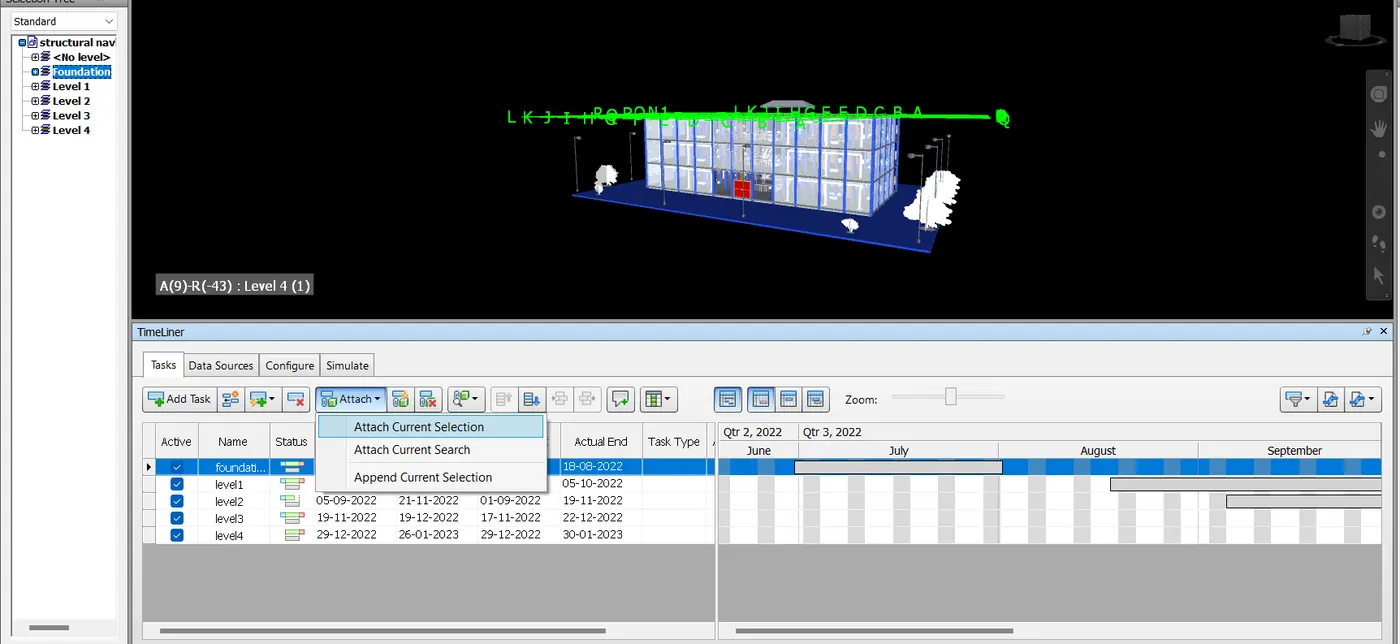

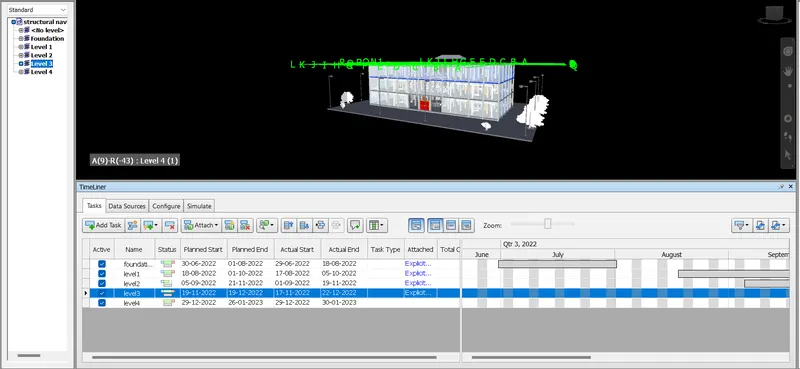

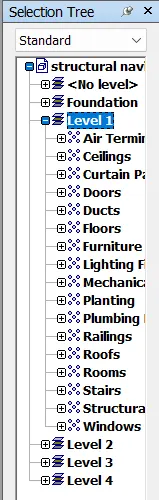

• Now, we attach the tasks from the selection tree
  Fondation attach

  Level-1 attach

  Level-2 attach

  Level-3 Attach

  Level-4 Attach

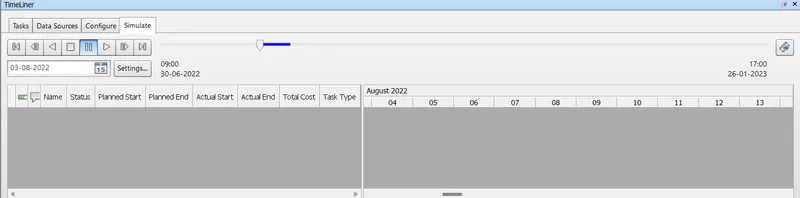

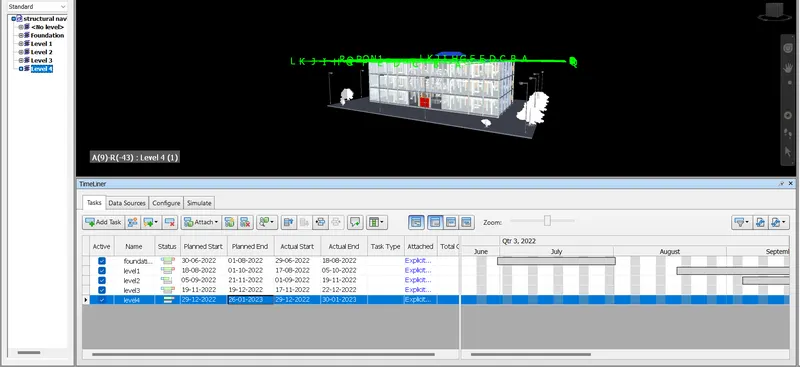

• Click on simulate and record it and save the work.



• Hence, the timeliner simulation is completed.




RESULT:

Timeliner feature in the Naviswork has been successfully completed and the result is given below:
