Understanding the concepts on Degrees of Freedom

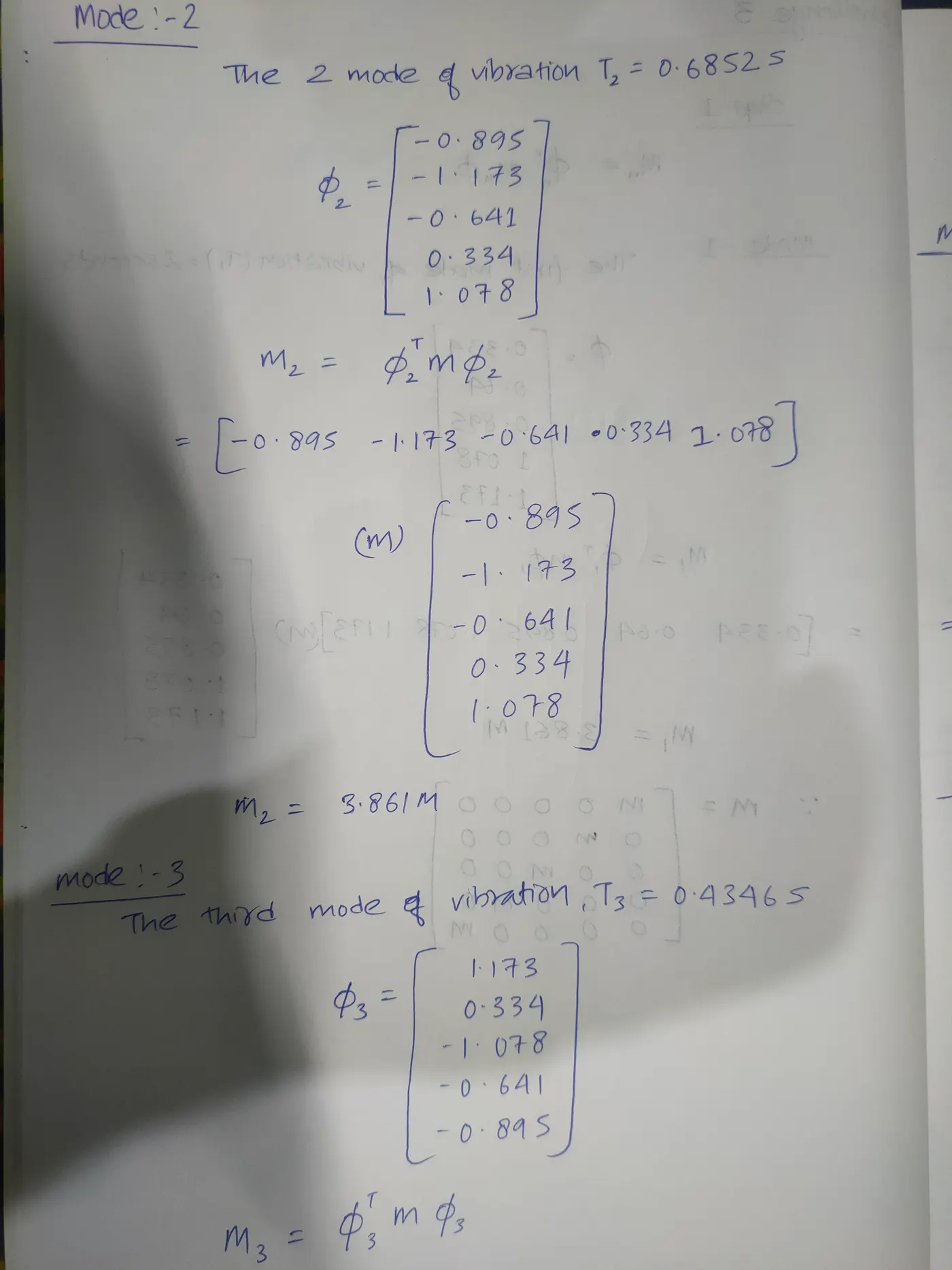

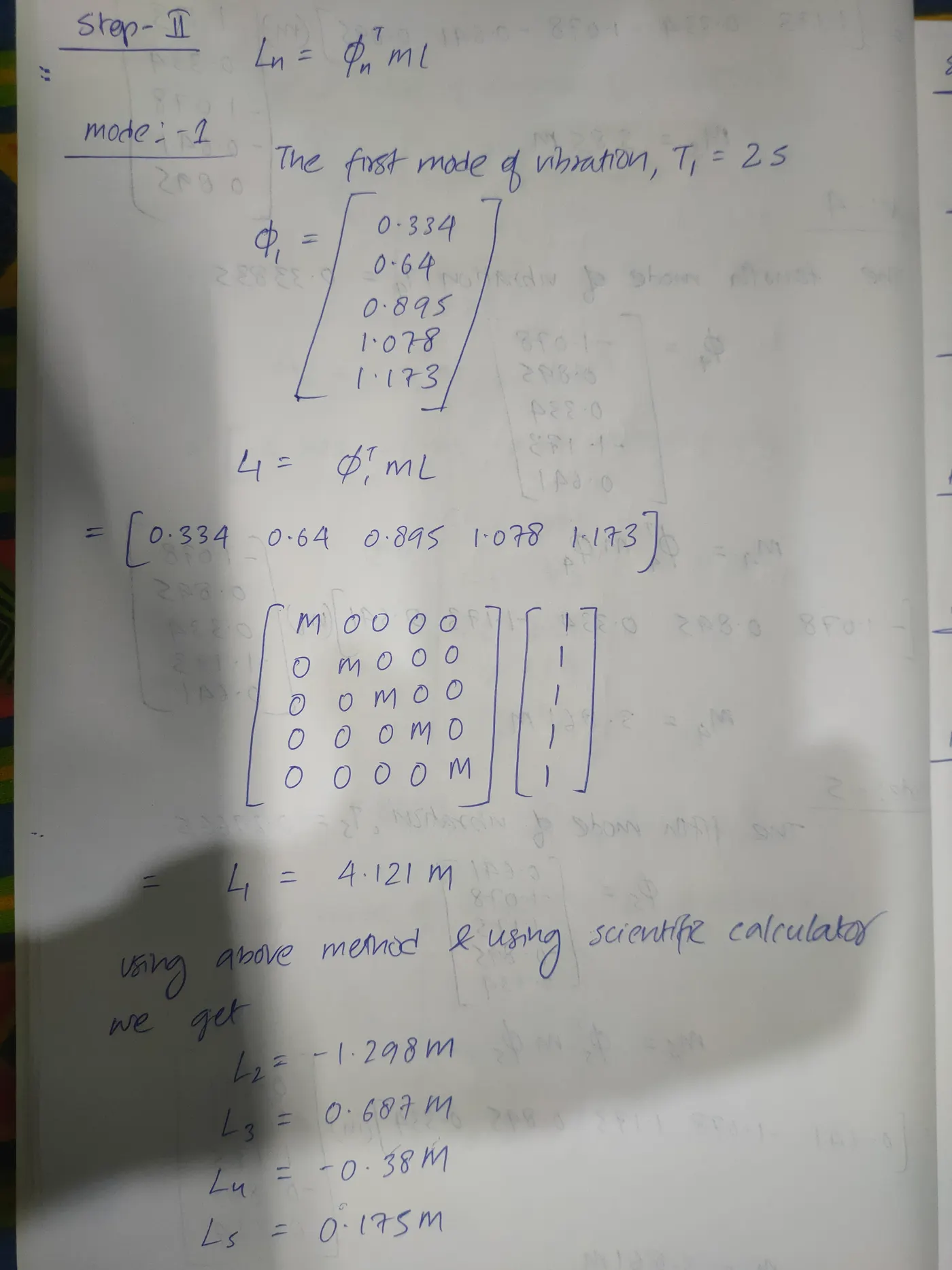

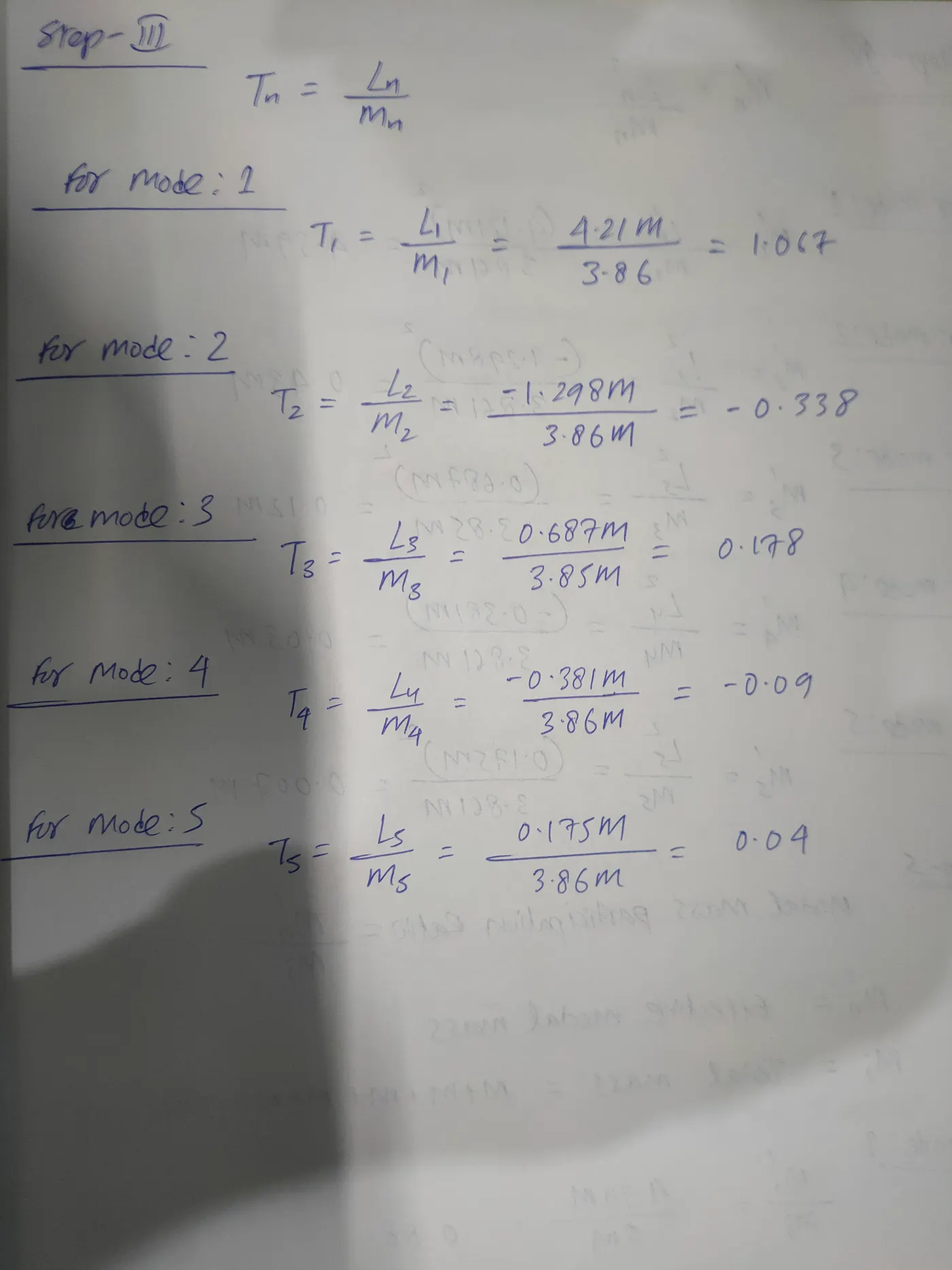

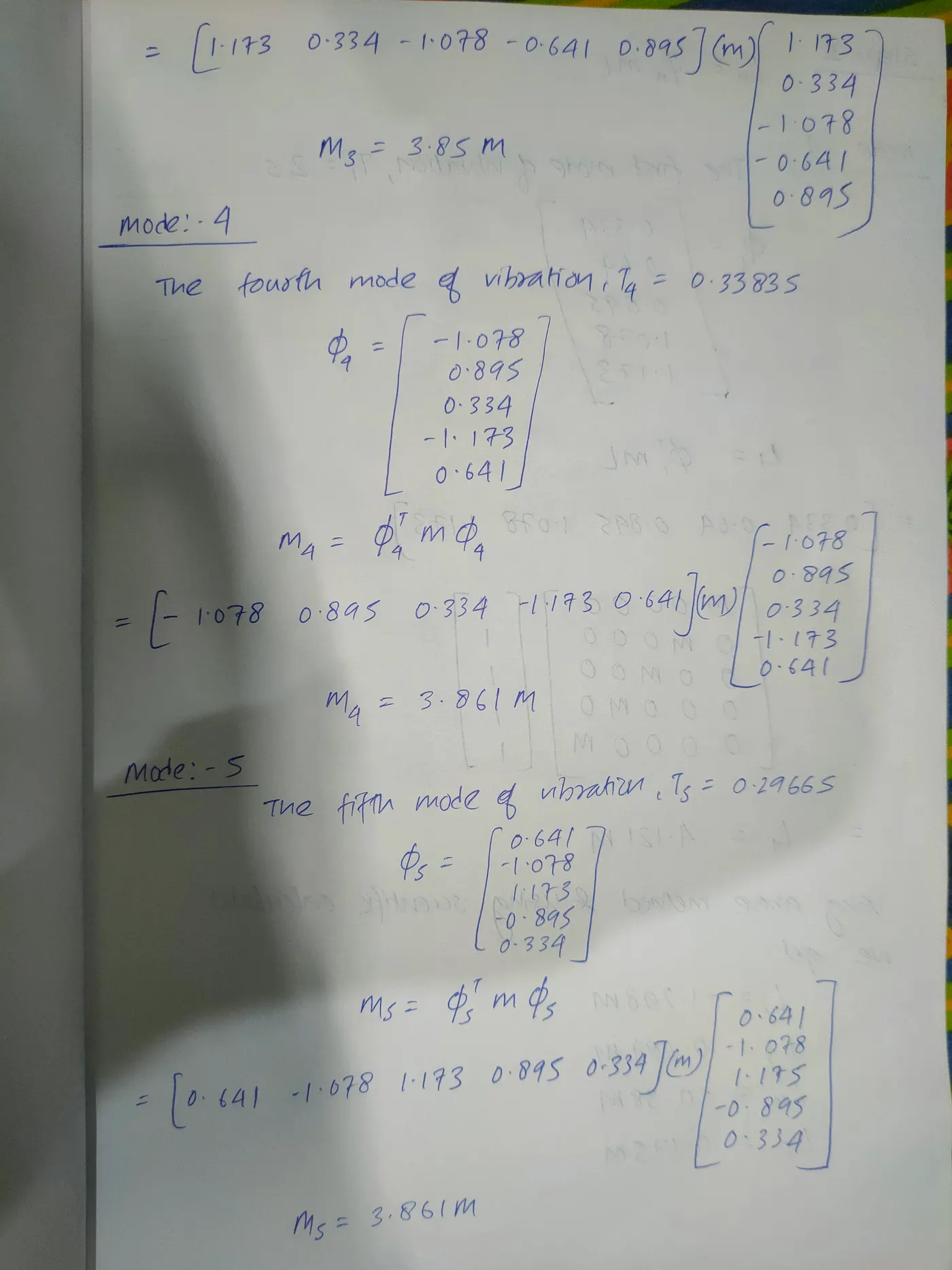

AIM:- To compute Ln , Mn and Γn for each of the five modes from the given equations.

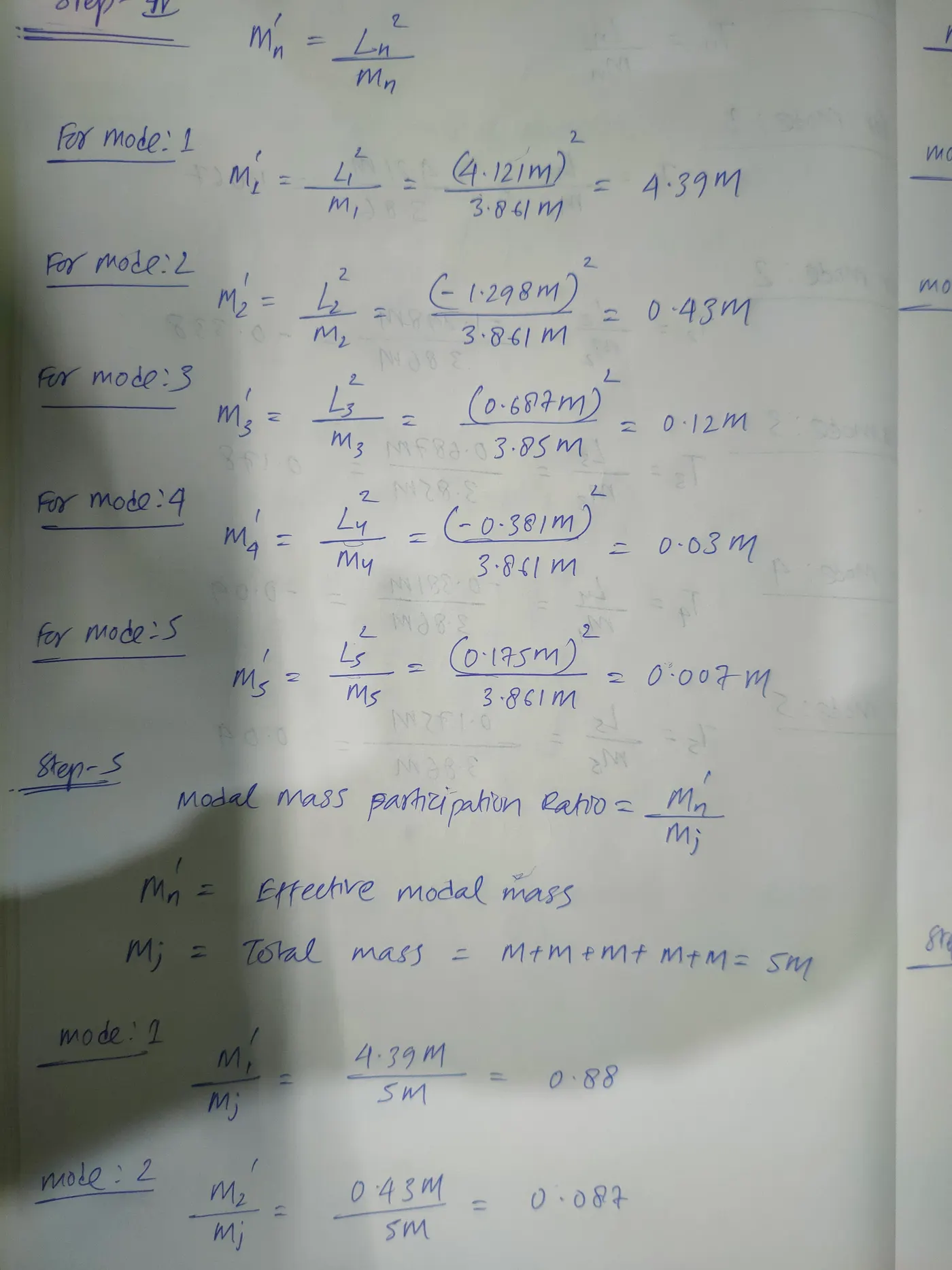

To calculate the effective modal mass Mn* and the modal mass participating ratio for the 5 modes.

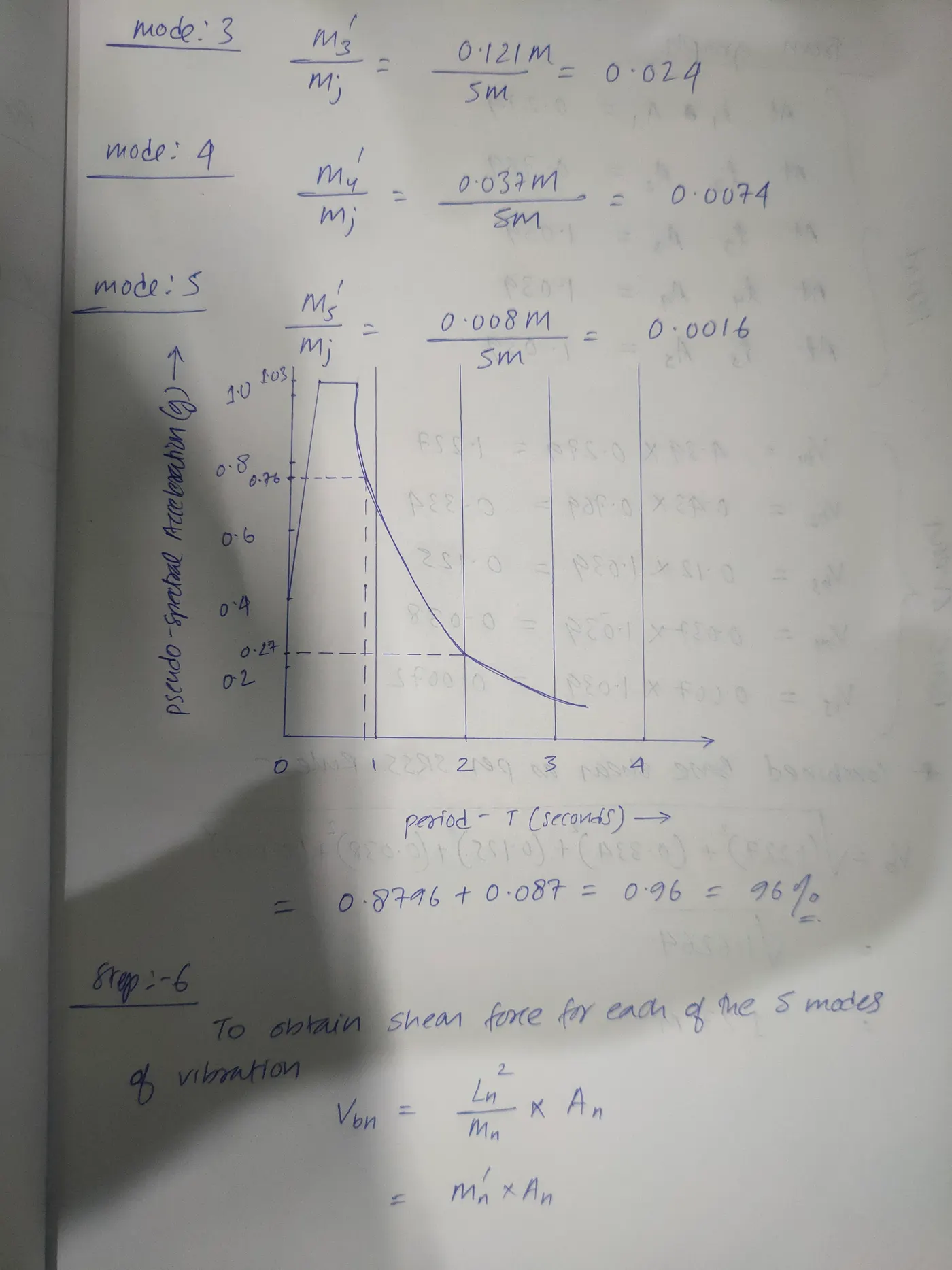

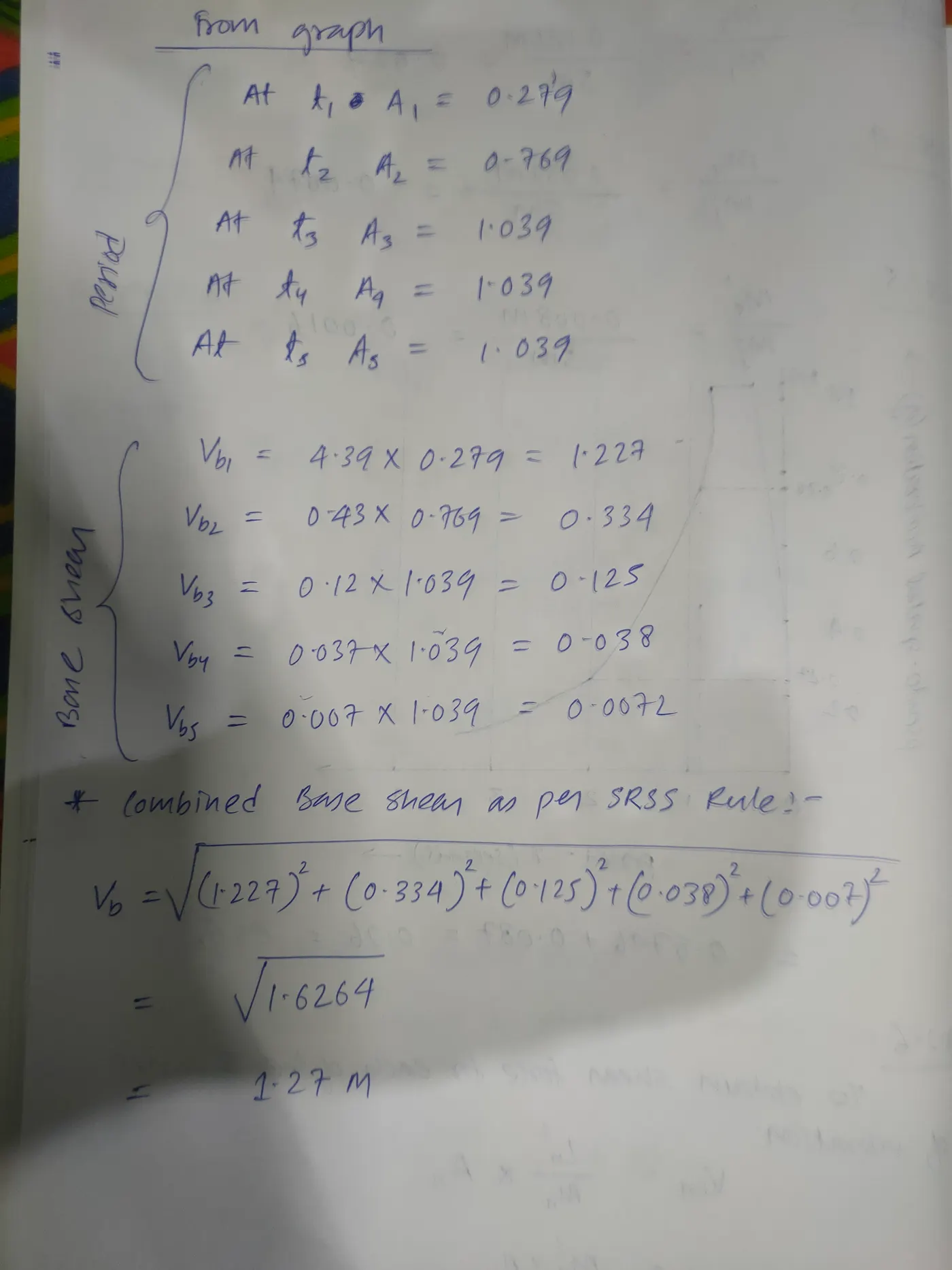

To obtain the base shear for each of the 5 modes of vibration and the combined base shear as per SRSS rule.

PROCEDURE:-

Step:-1
