Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Aim:

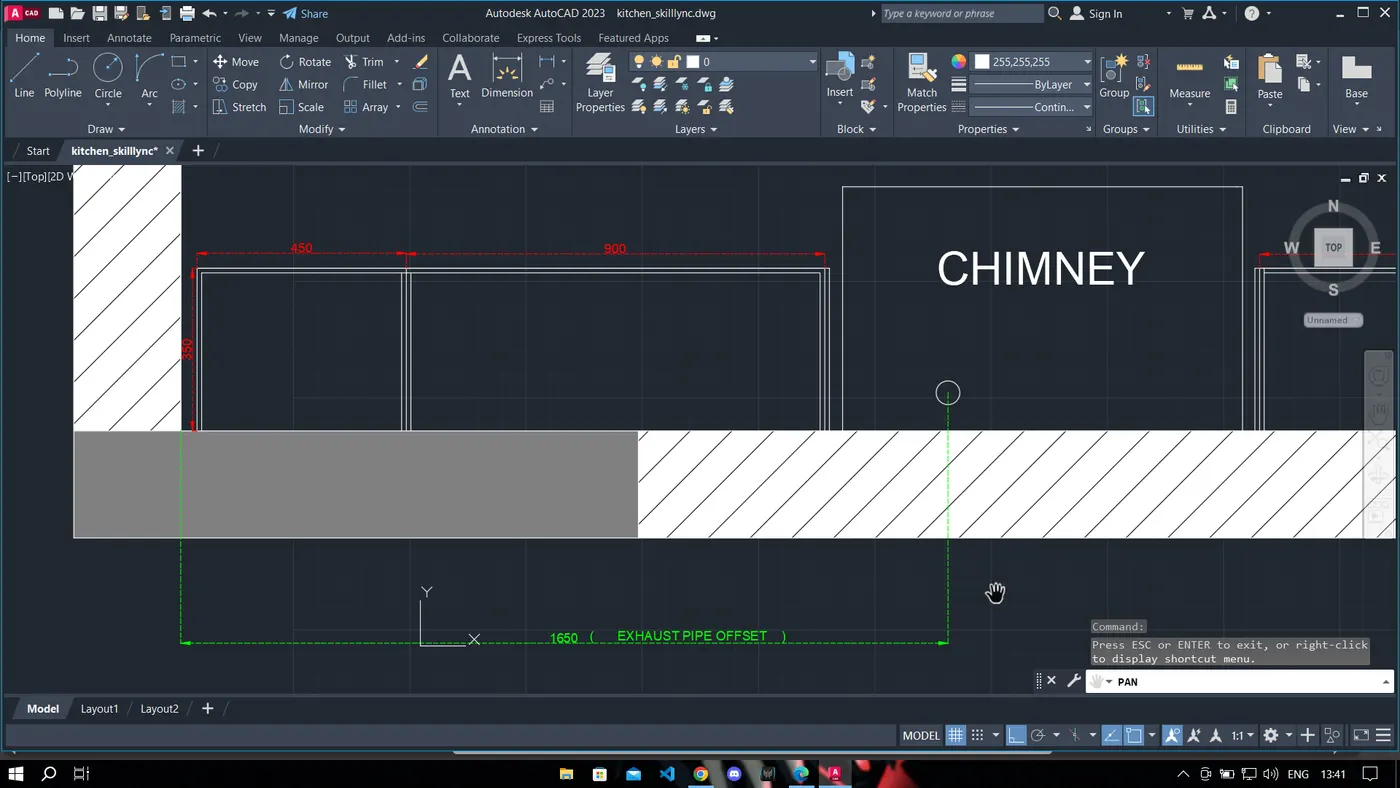

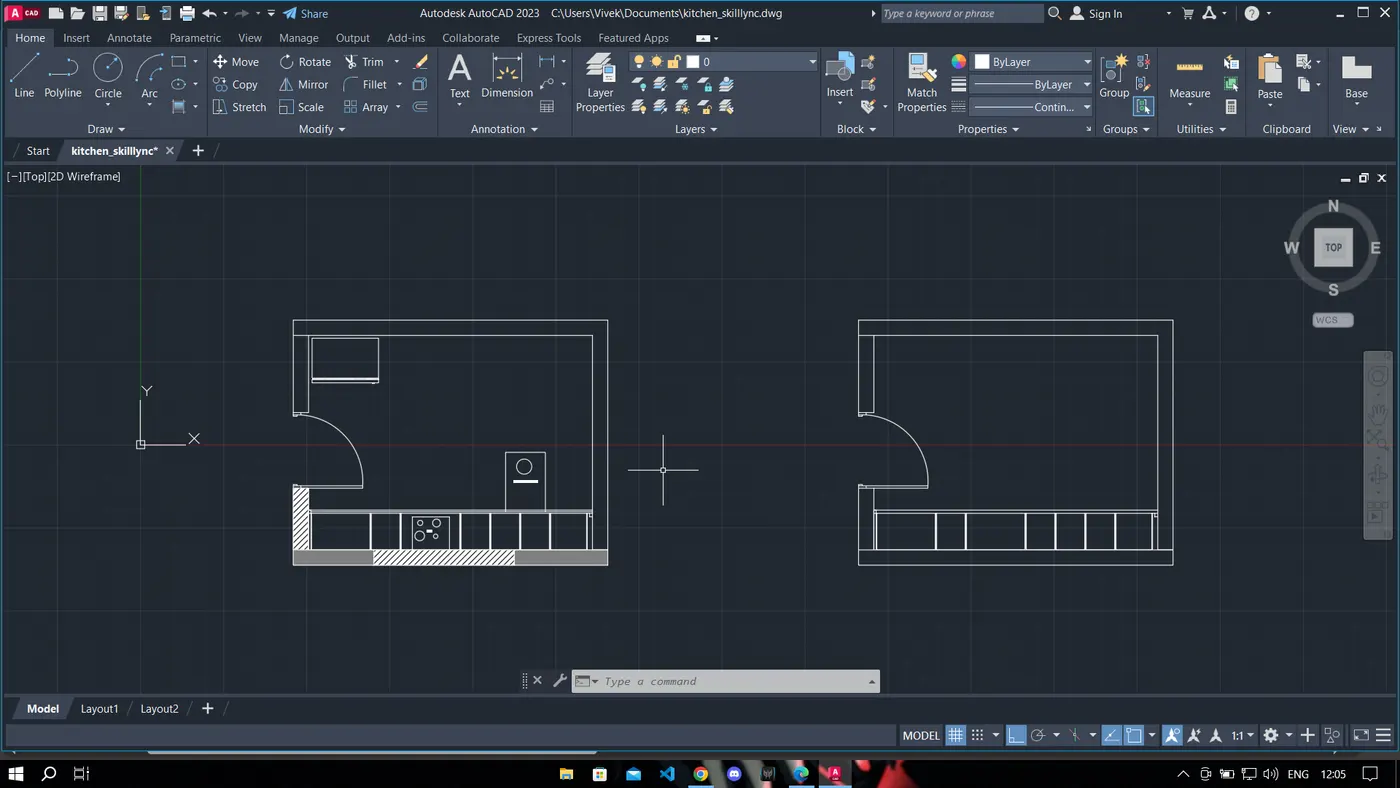

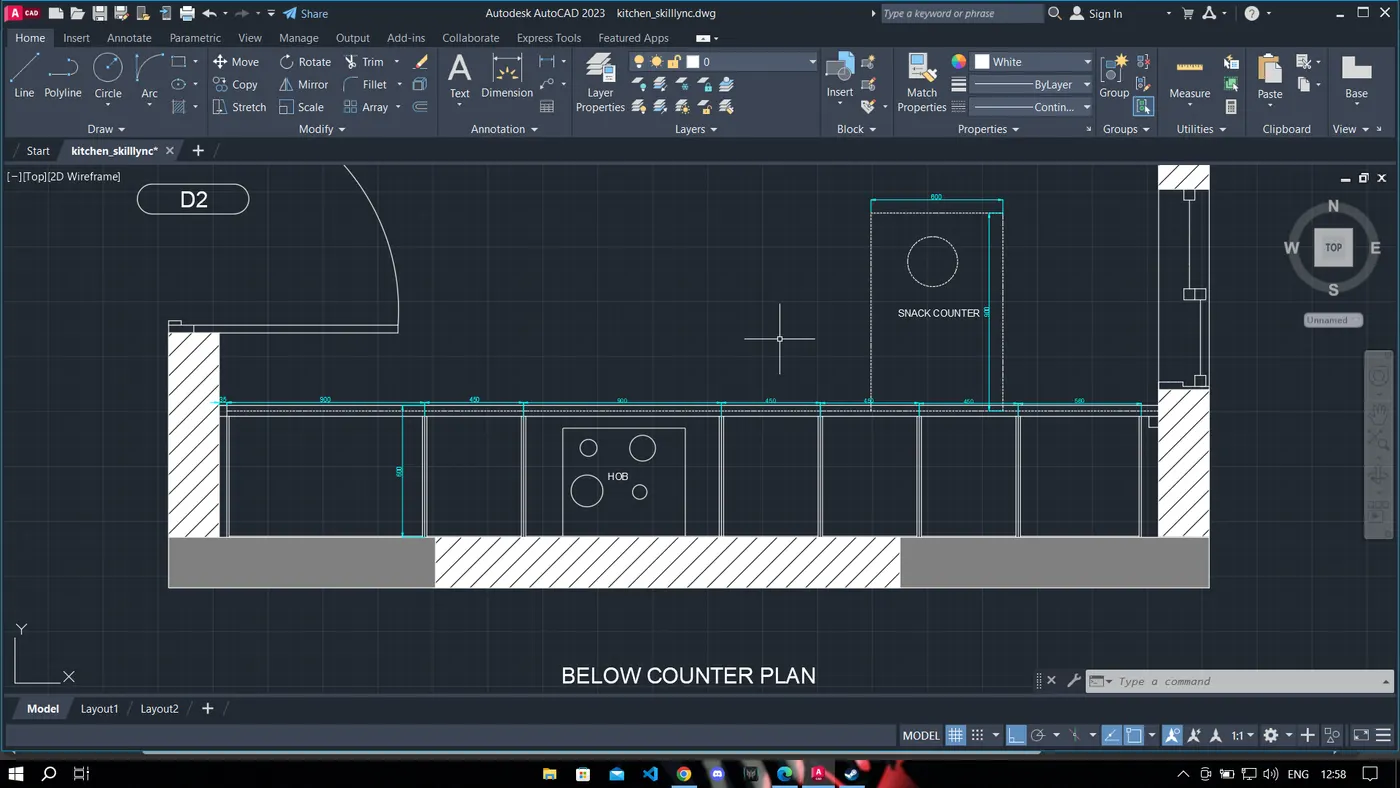

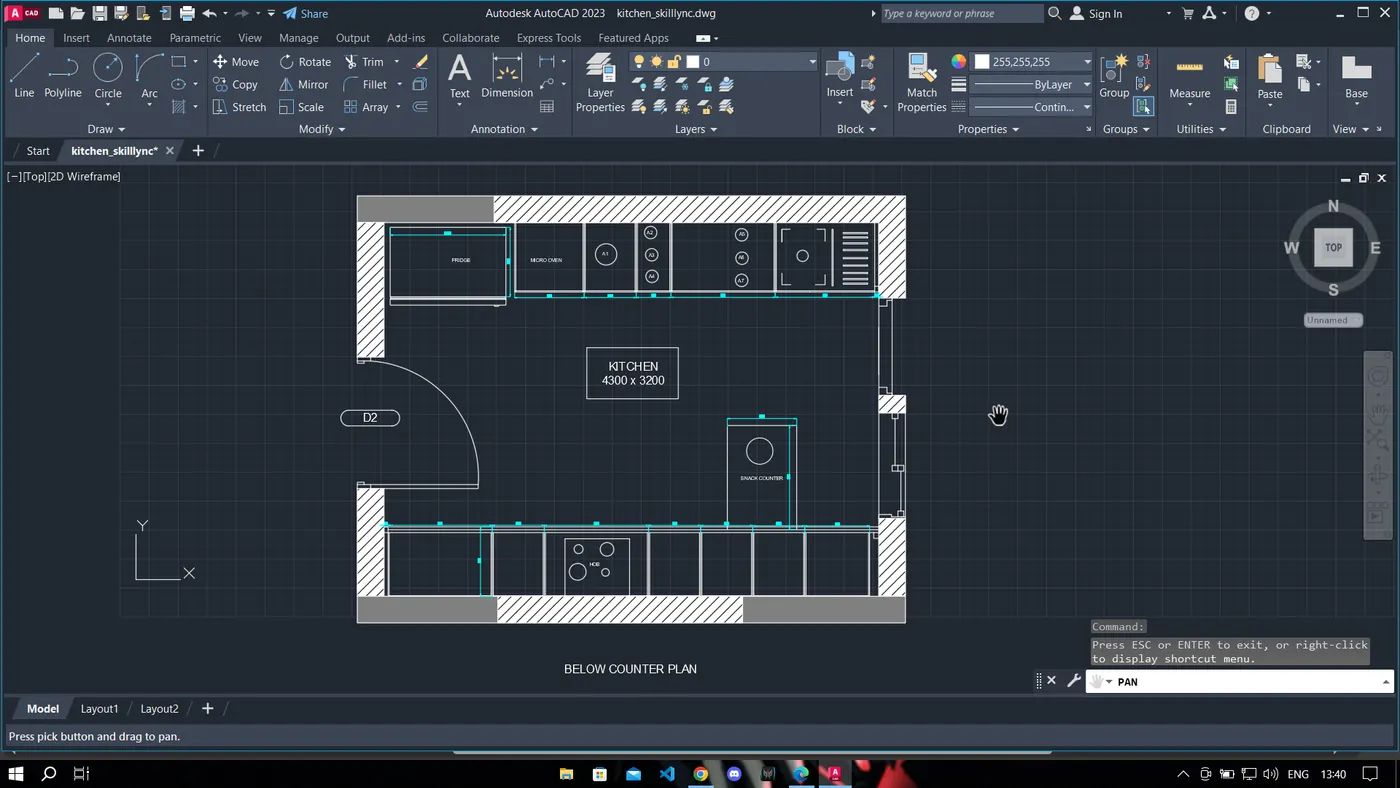

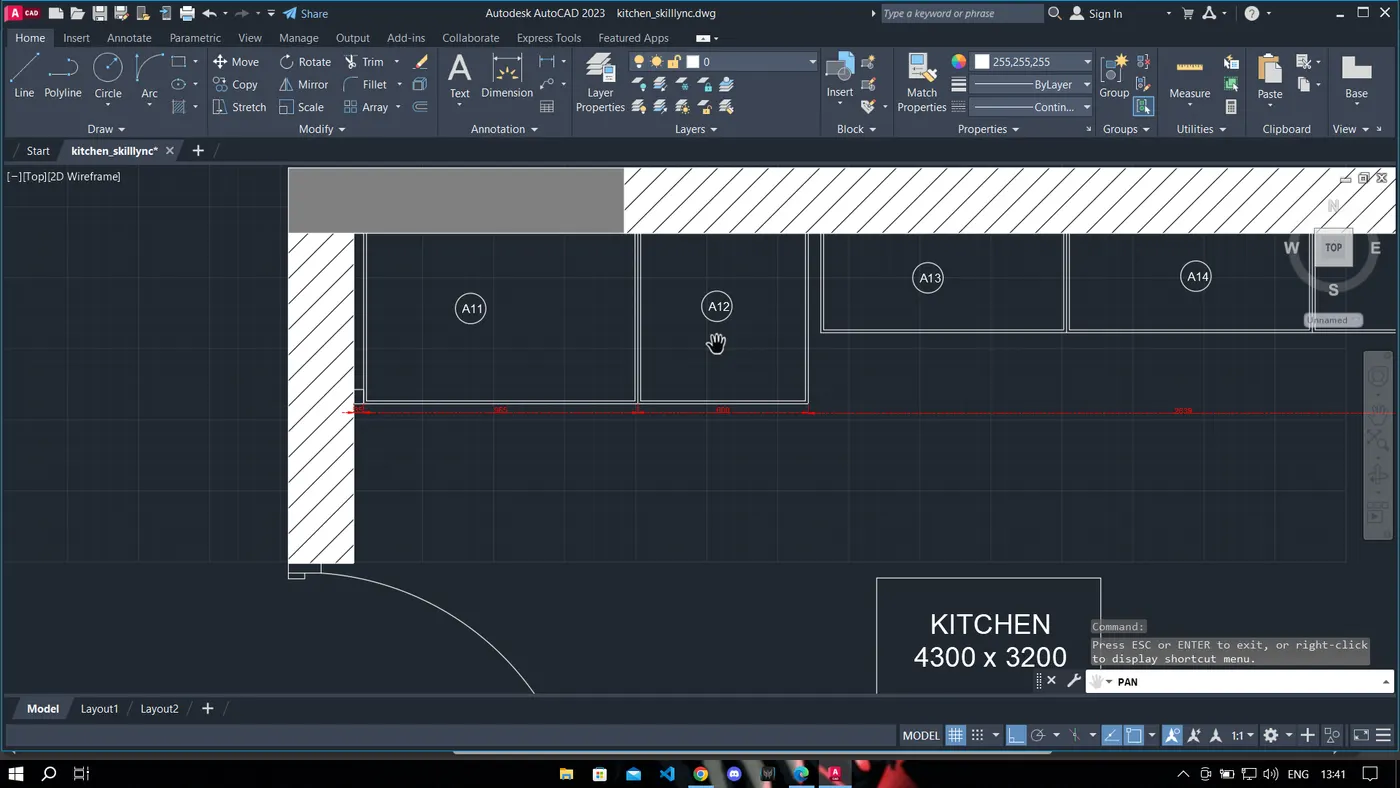

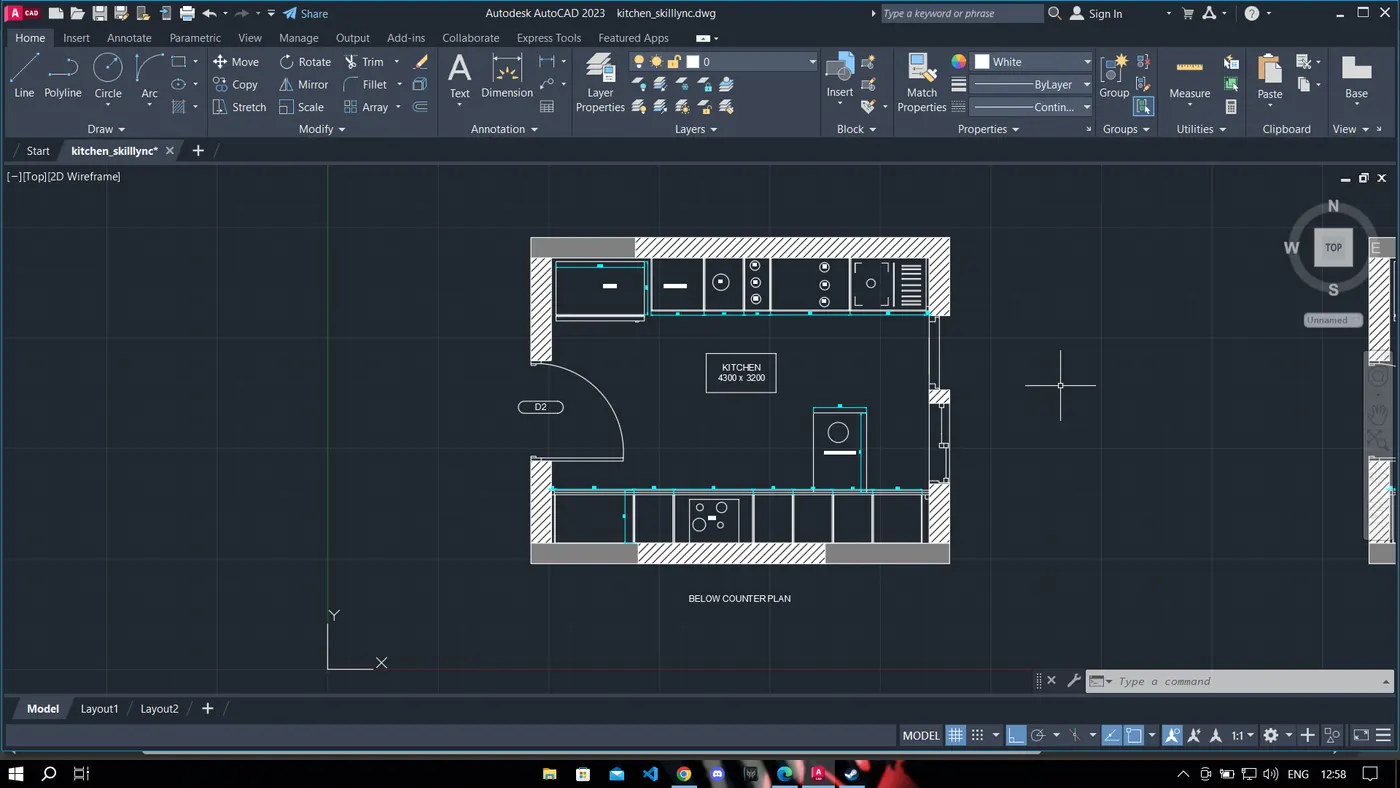

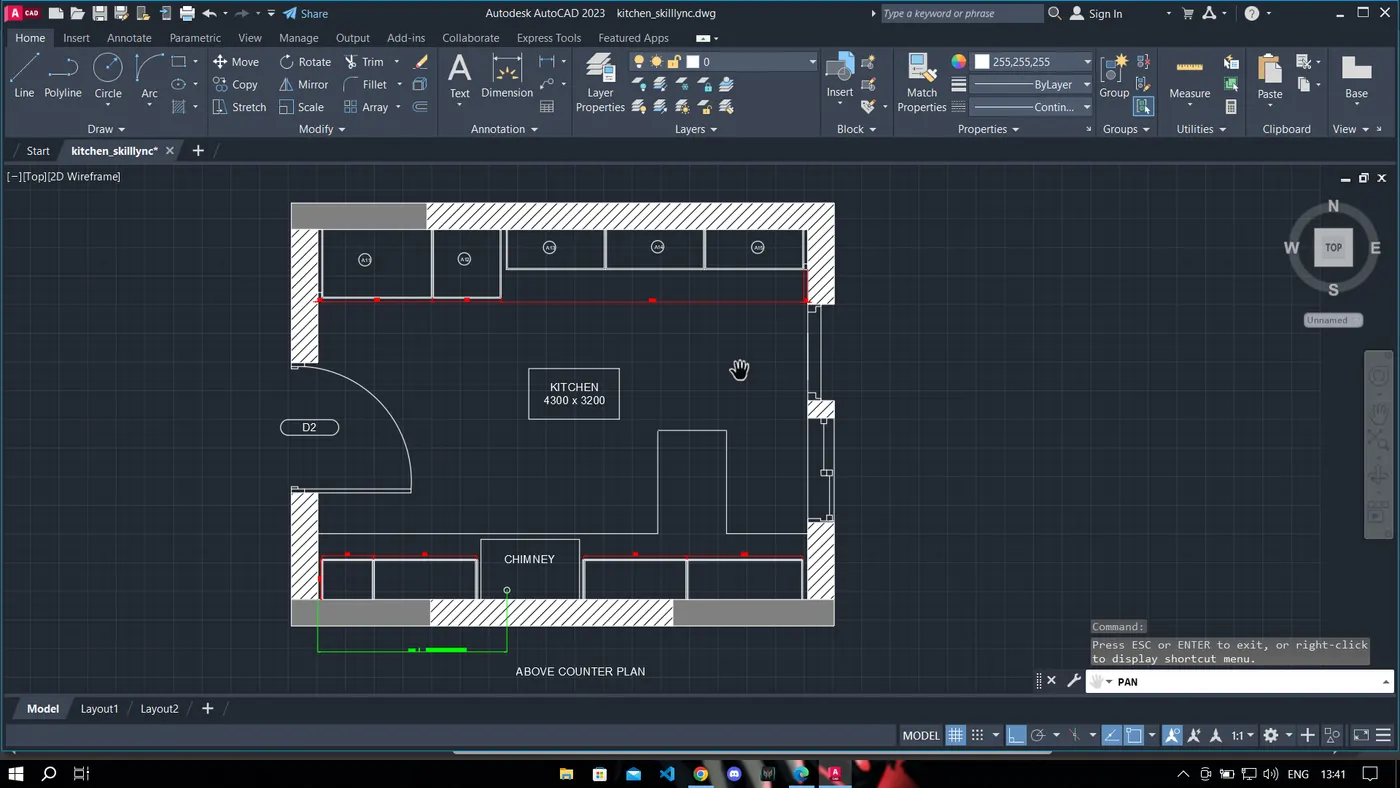

To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

Procedure:

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used
• hatch command
• fillet command

Step 2:

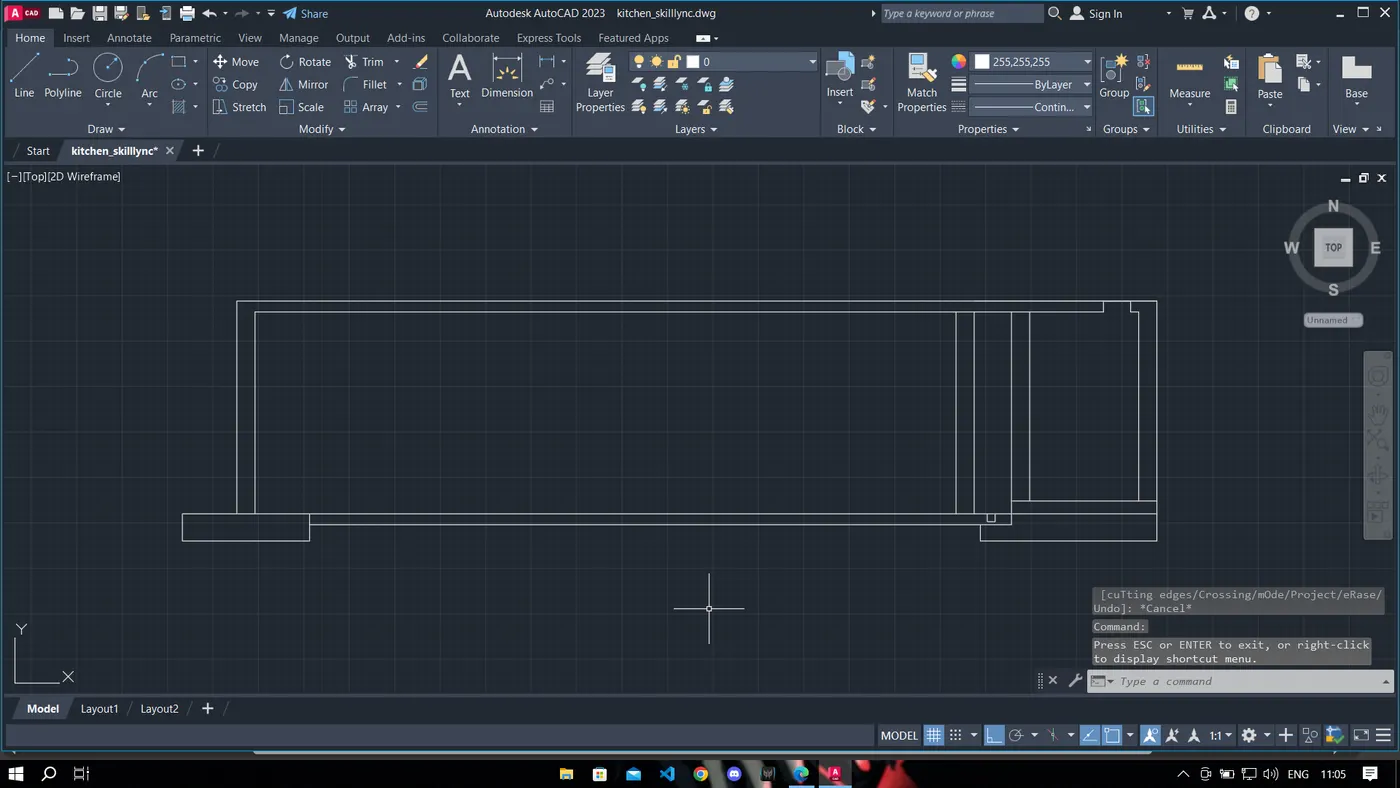

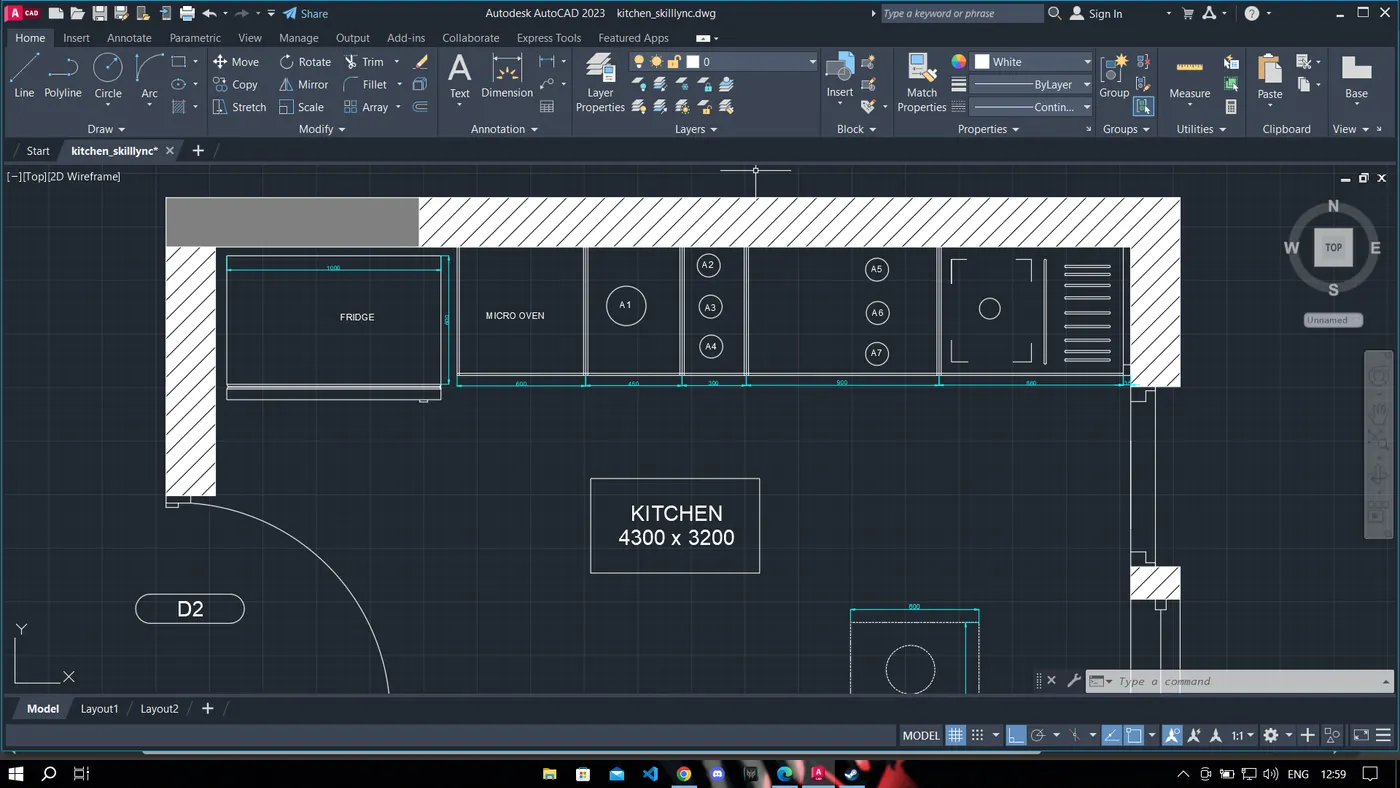

In the command prompt type rec and the dimensions are 4734 x 3688 mm
In the command prompt type offset and offset it to the distance of 230mm
Using arc and lines the door is drawn
In the command prompt type hatch to hatch the model
In the command prompt type rec > dimensions , to do the fridge
In the command prompt type offset and offset it to the desired distace to get the Micro Oven
In the command prompt type trim to trim the extras
In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
In the command prompt type offset and offset it to the vertical distance of 600

FOR ELEVATION :

AIM:

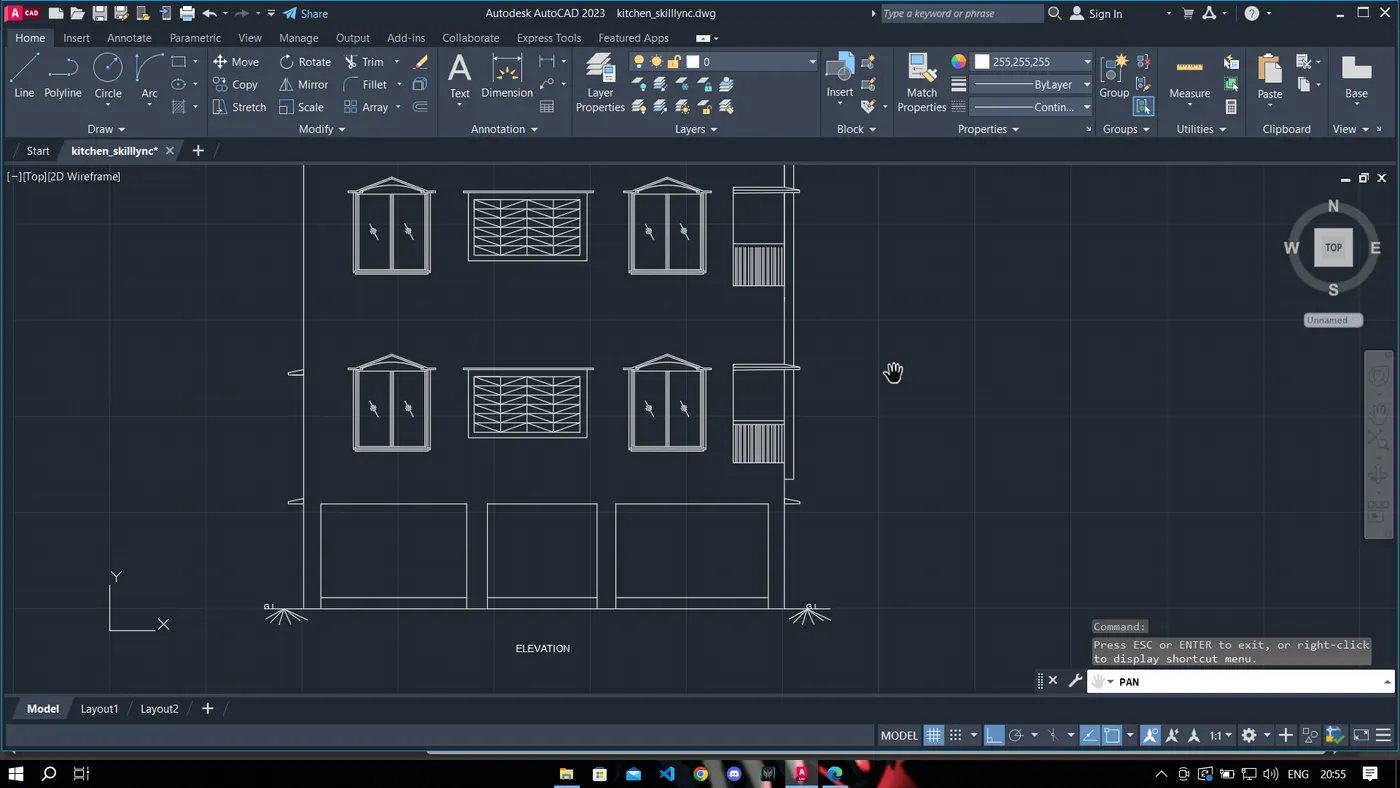

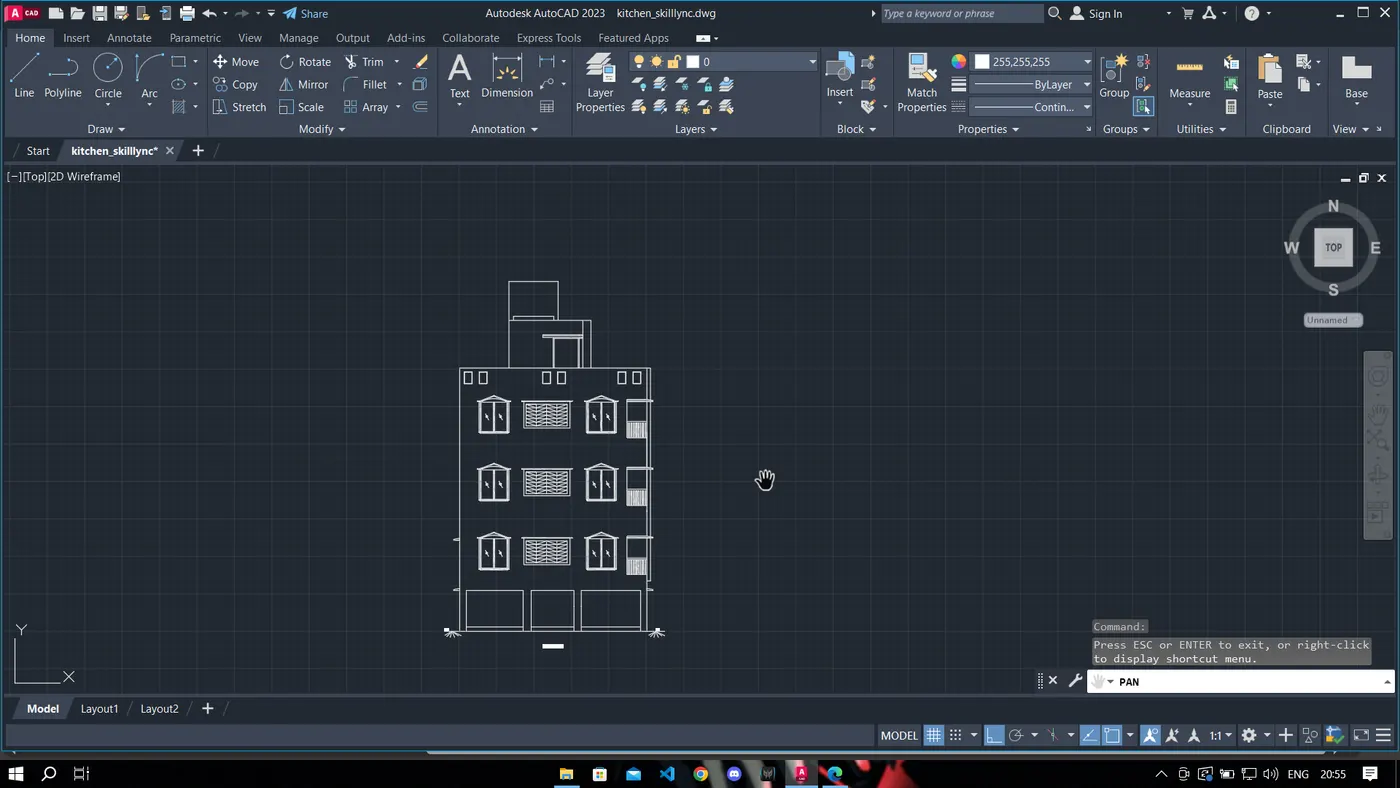

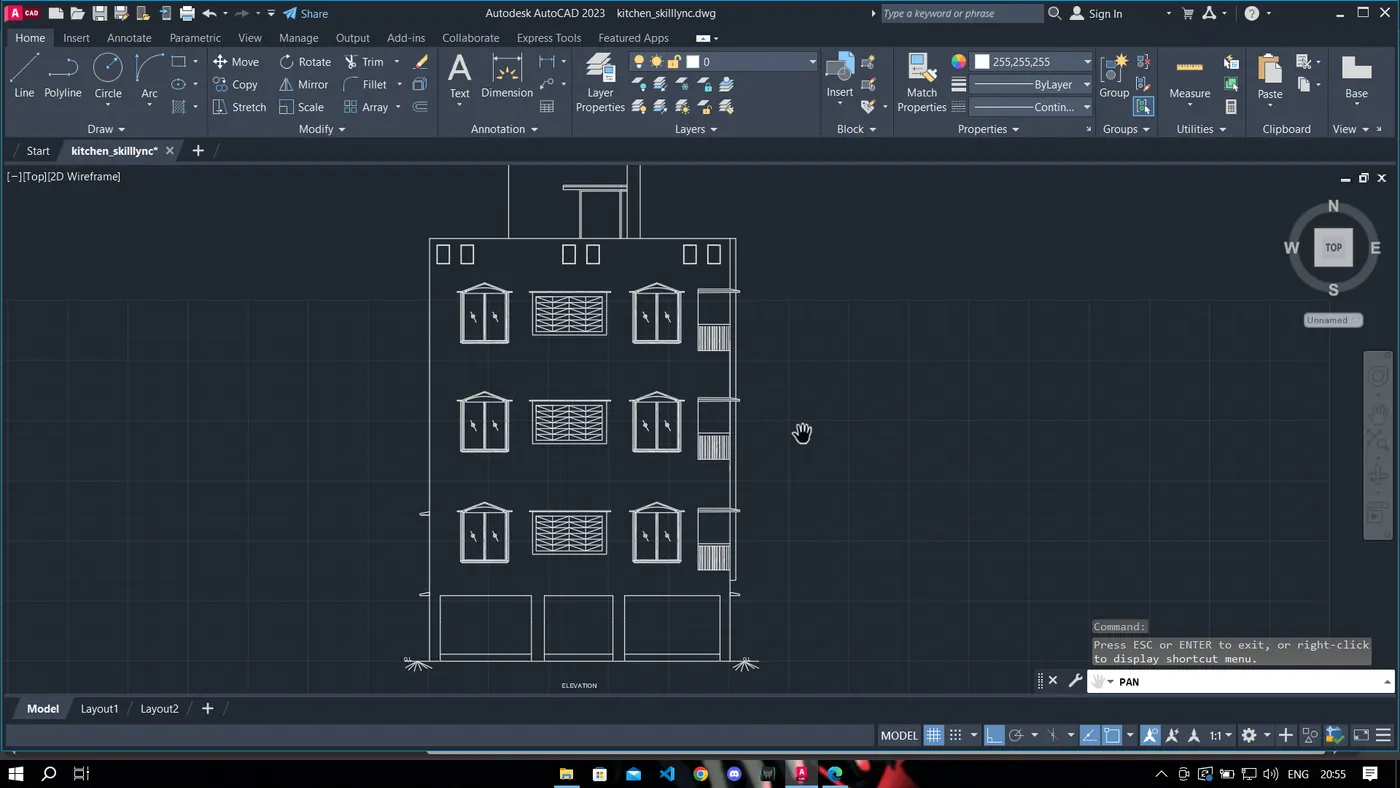

To create the elevation of the plan with hatch

PROCEDURE:

• In the command prompt type l to draw the lines
• In the command prompt type rec to draw the rectangle
• In the command prompt type arc to draw the arc
• Therefore, the window is created

copy the above step for one more time to get required results.

finally complete the terrace part using rectang command .

For SECTION

AIM:

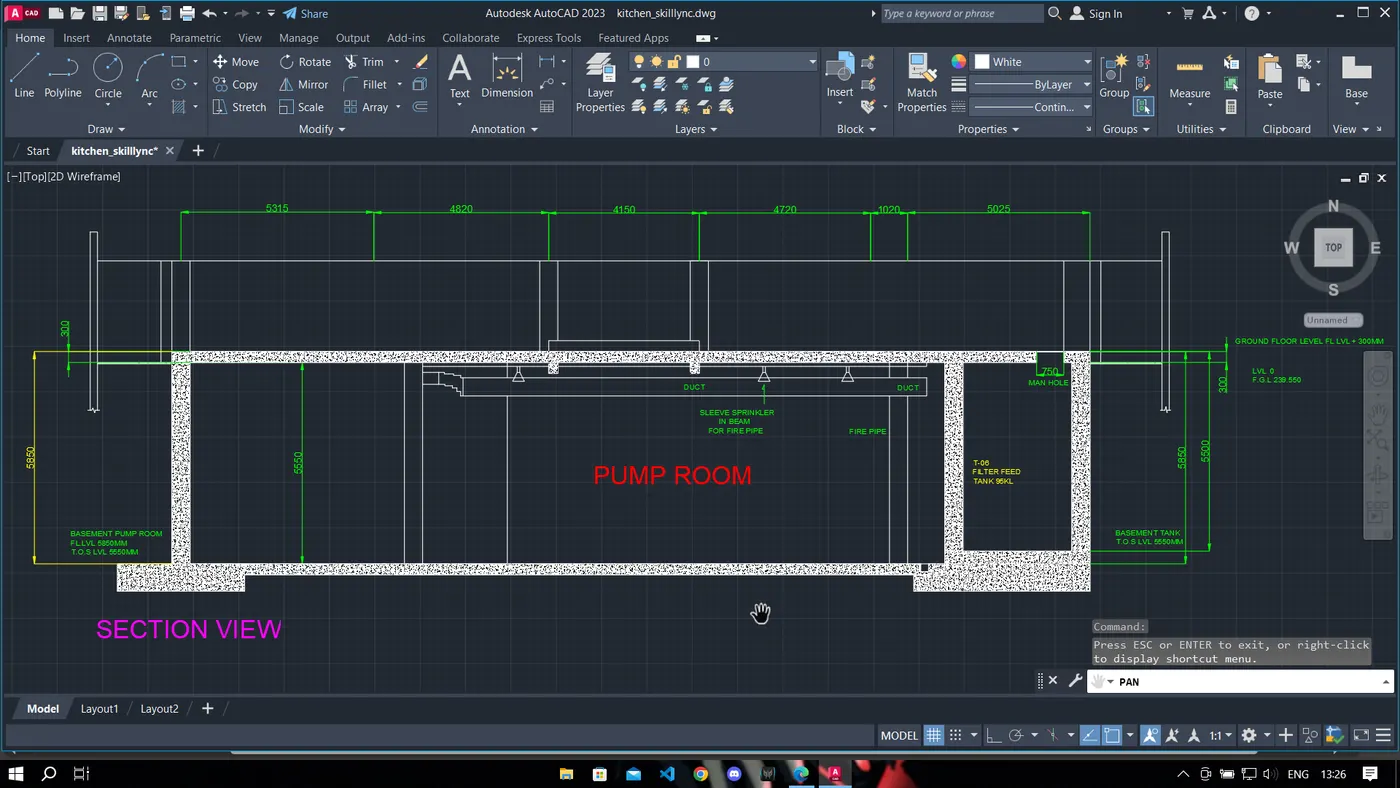

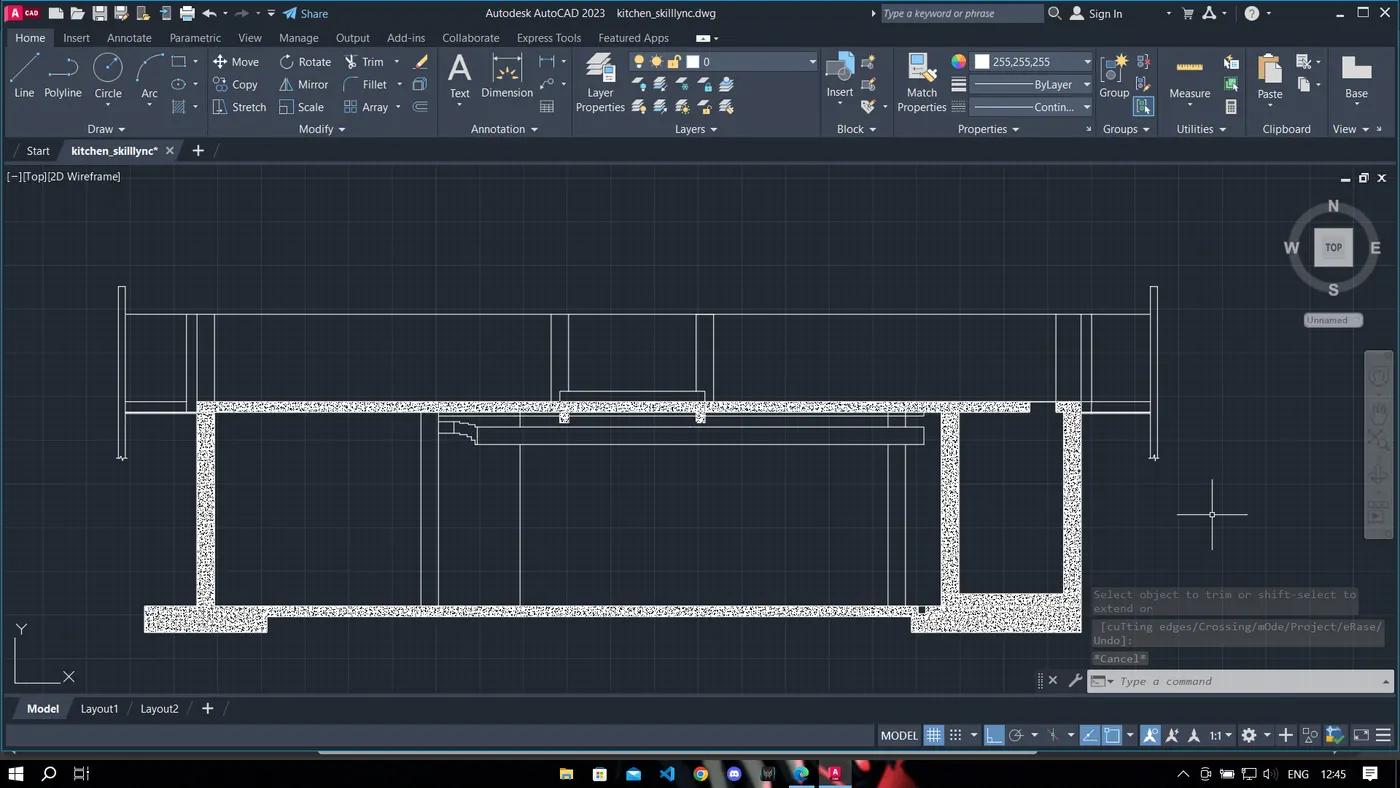

To create the section view of an industrial building .

PROCEDURE:

• In the command prompt type l to draw the lines .
• In the Ribbon bar > hatch > AR-Conc
• In the command prompt type rec to draw the rectangle.
• In the command prompt type LT to get the dotted lines
• In the command prompt type c to draw the circle
• In the command prompt type Mt to draft the text
• In the command prompt type dim to draft the dimensions
