Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

Aim: To create:

1. Template, inserting text and attributes
2. Doors of warehouse and placing it in blocks
3. Electrical legend and making it blocks
4. Different types of door for residential project
5. Drawing bars, making it as block and making it as a table as bar bending schedule.

Commands used:

1. Block.
2. Insert.
3. Attributes.
4. Field.
5. Rectangle.
6. Line
7. Text.
8. Array.
9. Mirror.
10. Copy.
11. Offset.

1)

Aim: Creating templates, inserting text and attributes

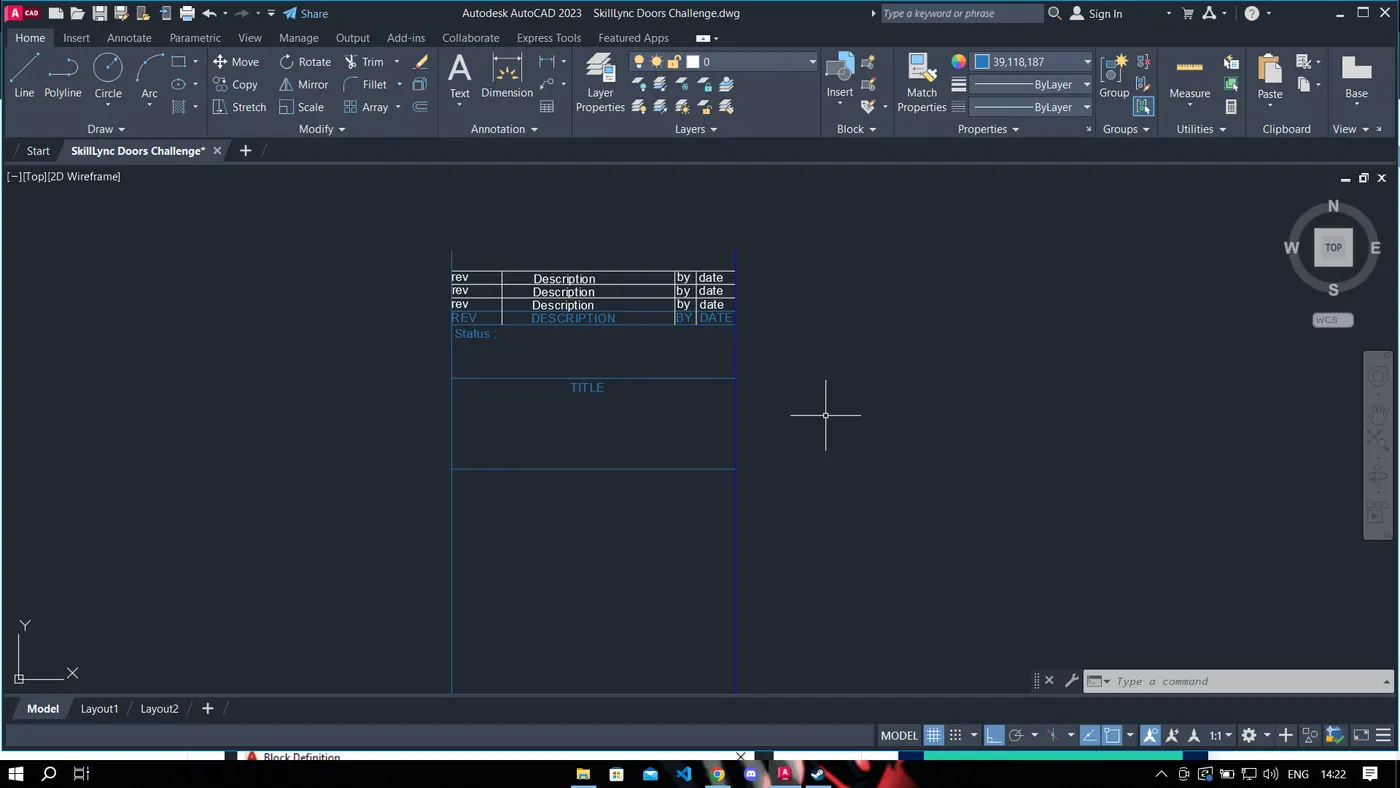

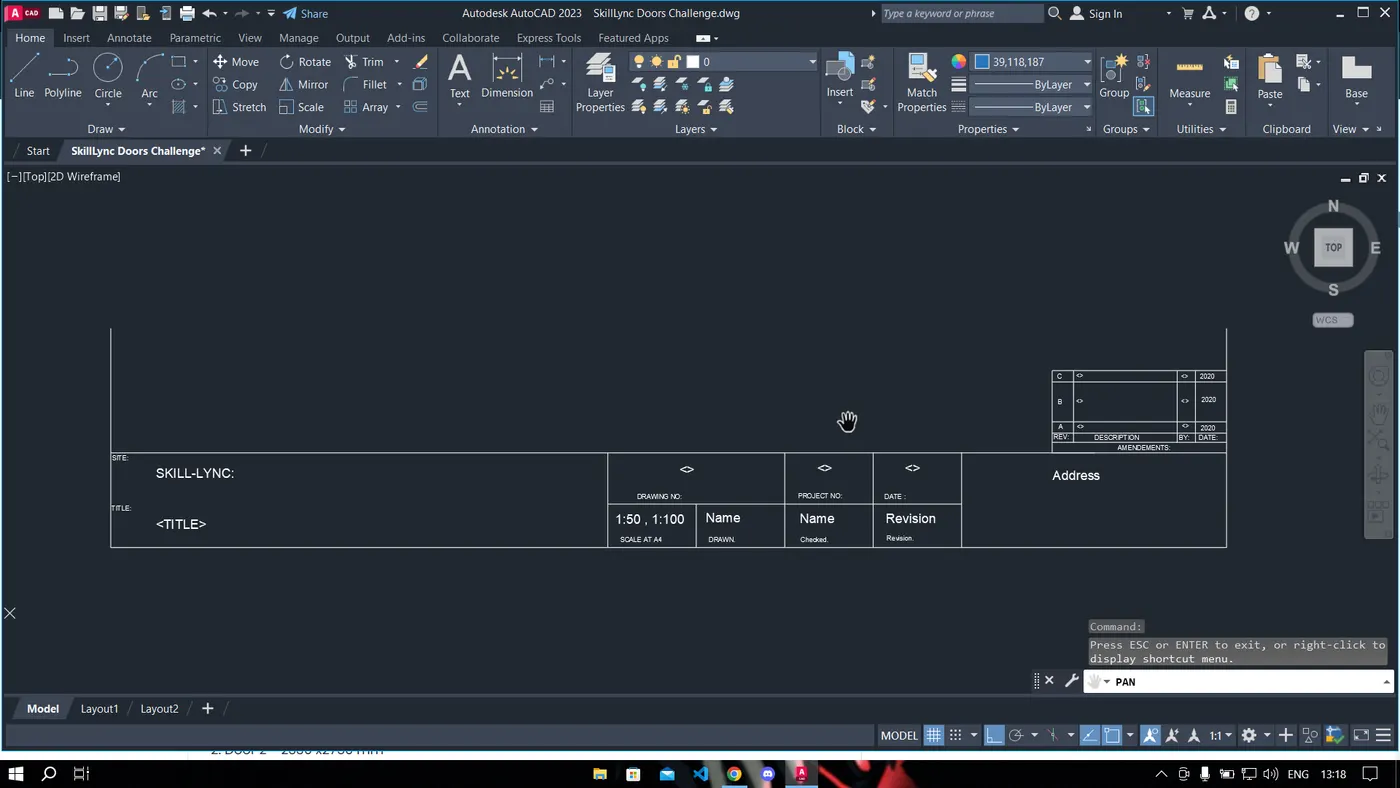

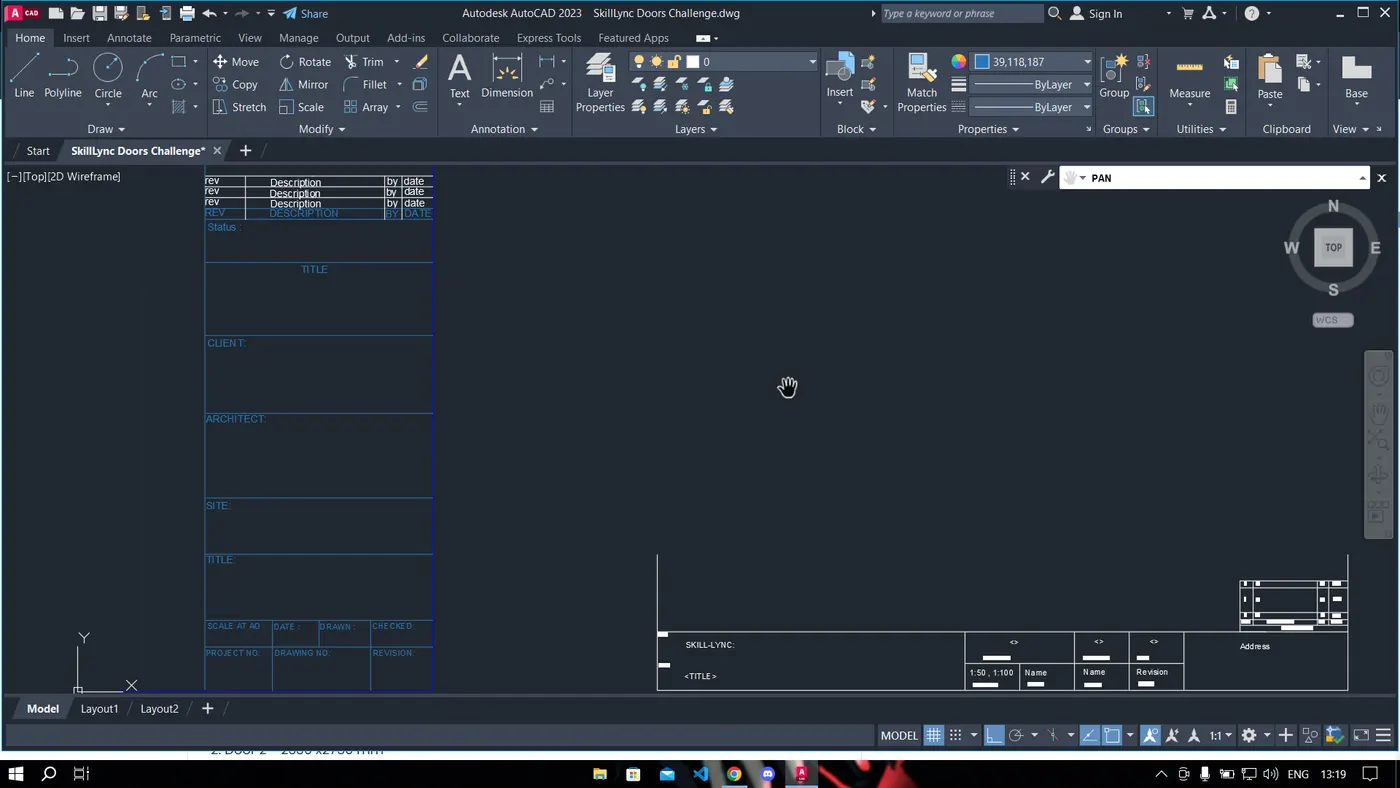

• Custom 1_ title block
• Custom 2_ title block

Procedure:

Custom 1_ title block:

• Create a rectangle of size defined units
• Divide it with line for the text box into columns
• For rows, take offset of 5,10,5,5,8,30,15,15,20,20,10,15 mm.
• By multiline text, type rev, description, by, date on the first row by text height 2.5 and style - Times New Roman.
• As it is repeated in the other two rows, take array give column as 1, rows as 3, spacing between rows as 7.
• Again, use multiline text and type the required text in caps with text height 1.5 and style as Times New Romans.

Creating block:

Command "B" -  block definition dialogue box appears- give name as "Custom1_ title block"- select pick point and select a point in the table- select the object- select the whole table including the text.Give scale uniformly and tick allow exploding.Select convert to block option.
