Underbody Coating

UNDERBODY COATING:-

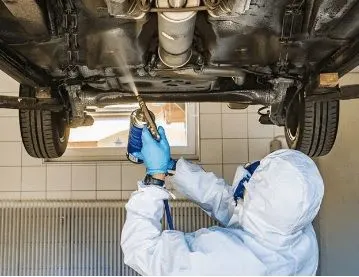

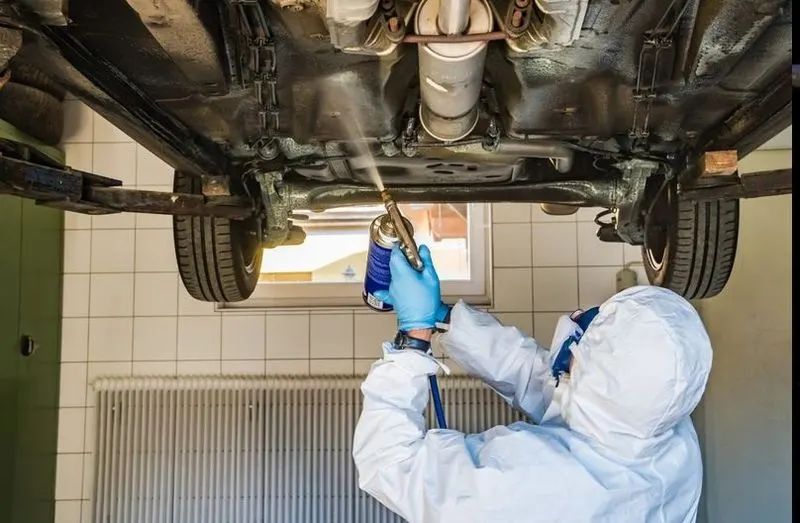

• Underbody caoting is a thick resilient coating applied to the underbody or chassis of an automobile to protect against impact damage from small stones, which would rapidly chip ordinary paint, allowing rusting to begin.
• Underbody coating provides long term protection from corrosion to car’s underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion.
• Underbody coating plays a very important role in the service life of the vehicle. In general, it is required to spray such a protective coating in the manufacturing of the new car.

TYPES OF UNDERBODY COATING:-

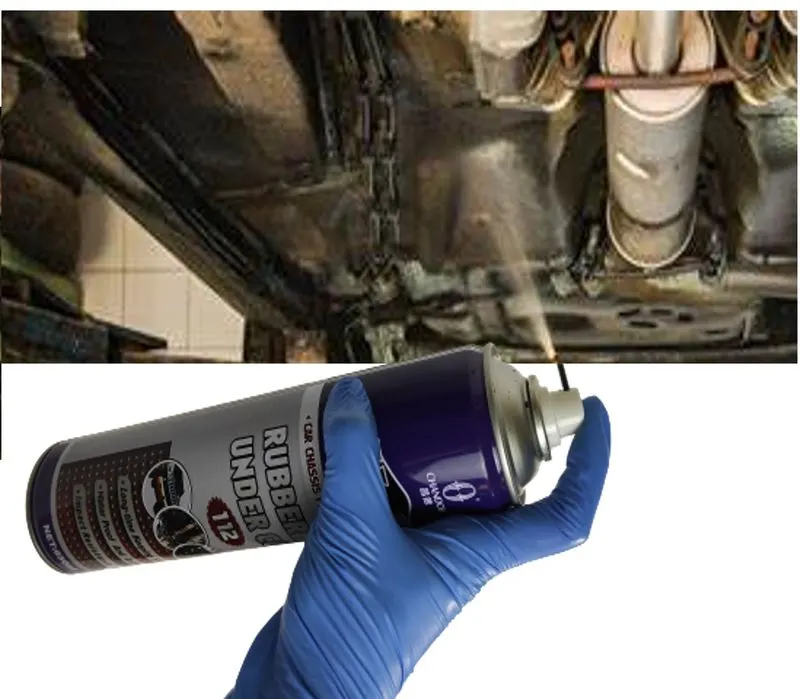

1. Rubberized Undercoating-

   It is easy to apply and offers sound-cushioning as well as protection from dust, moisture, and dings or dents.

   In addition undercarriage, rubberized undercoating is also safe to use on wheel wells and quarter panels, and dries to a soft rubbery finish that prevents further rust, damage, or moisture seeps. The coating can be painted over and if necessary for bodywork, can be easily removed with an anti-undercoating spray.


2. Polyurethane Undercoating-


   This type of vehicle undercoating is a little bit quicker and easier to apply.

   Oftentimes, polyurethane undercoating will come in canisters ready to preload into an application gun. This type of sealant works by seeping into all cracks and seams, displacing salt and moisture and oozing around rusty areas to bond with and protect unoxidized metal. It also sands quickly in case you'll need to perform bodywork and can be painted over.

   On the flipside, this type of car undercoating generally requires a little bit more surface prep work before applying sanding and applying an etching primer to bare metals before using are generally recommended.



3. Wax or Paraffin-Based Undercoatings

   A paraffin based undercoating will be the cheapest and quickest option available to protect the undercarriage of your vehicle. However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year.

   Wax-based undercoatings never truly harden. During application, they drip or flow into seams and cracks to provide protective properties. They are usually available in a spray gun canister or in an aerosol can and offer at least a base protection in moderately humid climates.



4. Asphalt-Based Undercoating

   For standard vehicles, any of the aforementioned types of undercoating will provide sufficient protection. For large trucks and heavy machinery, asphalt-based undercoating provides a bit of extra durability against rocks, chips, and moisture.

   Asphalt-based undercoating generally contains a little bit of rubberized material that sets up firmly and also helps soften noise. This type of undercoating also needs more cure time than the other three, and is NOT paintable, making it best to use only for undercarriages



Vehicle Undercoating Pros

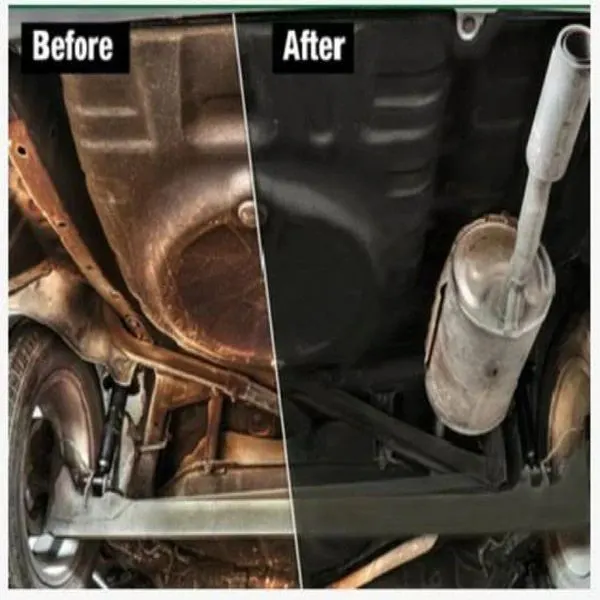

1) Protection Against Corrosion And Rust

Undercoating offers a layer of protection against corrosion and rust. Any debris will be repelled by the undercoating.

It can expect years of protection from undercoating although it wears out in the end. This is the reason why the process is popular.

2) Extend The Life Of Your Vehicle

It will extend the life of your car. Undercoating stops rust. Corrosion isn’t just about causing an issue with the metal under the car but it can also get into cables and wires in fact anything made of aluminum or steel can be affected including the engine and transmission.

3) Cover Small Damages

It can undercoat damaged parts of the car such as scratches, chips and nicks caused by debris flying up as you drive.

4) Reduce Noise Inside the Car

Undercoating of vehicle can reduce noise inside the car while driving. The coating creates a sound barrier meaning the interior of the car will be quieter.

Vehicle Undercoating Cons

1) Doesn’t Work So Well On Old Cars

Undercoating doesn’t work so well on old cars because the residue from under the car has to be removed before the undercoating is applied. If we don’t remove the debris first, the already-present debris will be sealed in.

2) It Makes Your Vehicle Heavier

It makes the vehicle 10 to 20 pounds heavier which affects fuel economy (how far you can travel on one tank of gas).

3) It must be reapplied every 3 to 5 years for the best results

The only way for an undercoating to provide ongoing protection for our vehicle is to have the service repeated frequently. Most owners can have a new layer applied in about 5 years without worrying about their underbelly being compromised. In salty or destructive environments, however, we may need to have a new undercoating applied every 3 years for the best results.

4) It Can Be Expensive

Reapply it every 3 to 5 years. This is the only way to ensure your vehicle is protected properly.

Since it can cost 30000 To 50000₹ to get the undercoating professionally applied, this is quite a big cost to do it regularly.

Conclusion

As a final conclusion we can say that Underbody coating is a must to make sure the underbody is given a layer of protection from all grime and grit and annual clean up and touch up is necessary.
