Section Modulus calculation and optimization

Aim :        To create the A Pillar Design with the master section given as the intersection sketch with the Class A surface and create the tooling axis and perform the Draft analysis for the final solid part. Objective : Create the required Tooling axis by using master section. Design the Class-B and Class-C surfaces…

 AIM: Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Creation of the Heat Stakes and the locators considering…

Introduction: We are designing a Door Handle using given class A surface. The approach includes creation of Class B surface keeping 2.5 mm of thickness in mind for the complete component. The design also included Class C creation from the given parent surface.  Tree Structure CLASS A:  Following surface is given as the…

Tool Used to create model: CATIA V5 Introduction: We are designing a Door Handle using given class A surface. The approach includes creation of Class B surface keeping 2.5 mm of thickness in mind for the complete component. The design also included Class C creation from the given parent surface.  CLASS A:  Following surface…

Tool Used to create model: CATIA V5 Introduction: We are designing a base bracket using given class A surface. The approach includes creation of Class B surface keeping 3 mm of thickness in mind for the complete component. The design also included Class C creation from the given parent surface.  CLASS A:  Following surface…

Objectives:  Creation of Tooling Axis. Creation of Class B and Class C surface with referance of Class A surface. Creating a solid part out of surface modeling. Draft Analysis of Class A surface and final plastic component. Tool Used to create model: CATIA V5 Introduction: We are designing a base bracket using given class…

Objectives:  Creation of Tooling Axis. Creation of Class B and Class C surface. Creating a solid part out of surface modelling. Draft Analysis of Class A surface and final plastic component. Tool Used used to create model: CATIA V5 Introduction: We are designing a base bracket using given class A surface. The approach…

AIM: Create the individual part files and then create a complete assembly of those part files in the assembly workbench. Also create a 2D drawing using drafting tool.   MODEL DRAWING 1: CV JOINT Individual parts are as follows. Body 1:   Body-2   Body-3   CV JOINT ASEEMBLY     MODEL DRAWING:-2…

INTRODUCTION:-  The Back Door of a car is the rearmost part of the vehicle which gives access to the trunk space of the vehicle. The rear door also supports the reinforcements and added weights of the Wiper Motor, Gas Stay, Tail Lamp, and Latch and Striker. The Backdoor/tailgate is one of the closure commodities in…

Introduction: Roof:- An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements. The roof is a styling surface part which is fixed with the BIW body through the rails…

Fender: A fender is the curved part of the car's body that sits over and houses the wheels. The function of the wheel arch is to protect from mud, and stone and during accidents help pedestrians and consider wrap-around distance for head impact. It is found in the distance from the outermost tyre to the L-shaped brackets…

 ABOUT WHEEL ARC-:  Wheel Arch is an arch shaped cavity in the fender body, which houses a wheel. The main intention for the calculation of wheel arc radius is to position the wheel inside the fender body , because during motion the car tyres will tend to throw particles present on the road like sand, mudrocks,…

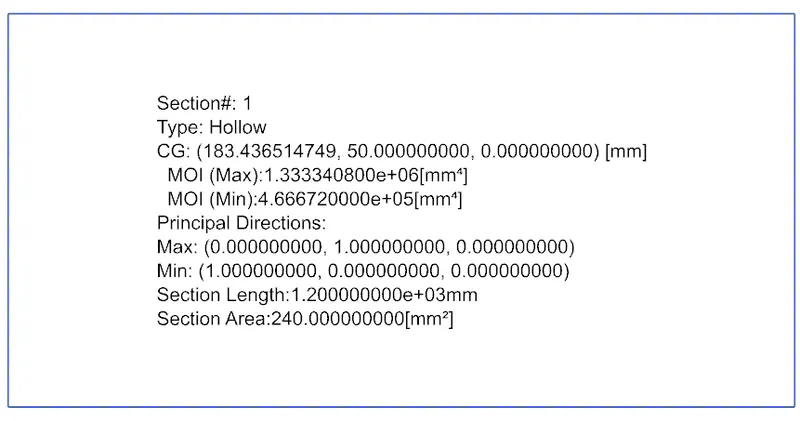

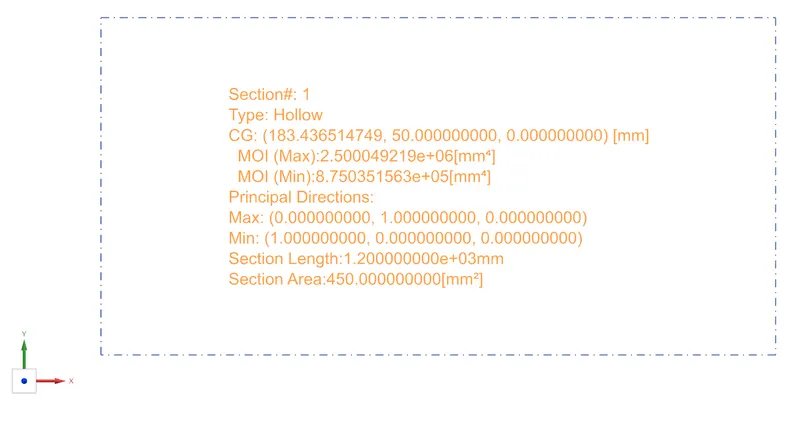

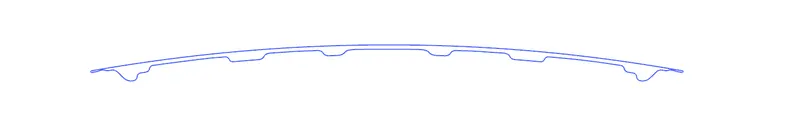

The Section Modulus:-  The section modulus is a concept in structural design that measures the bending strength of a cross-section. It plays an important role in determining the stability and load-carrying capacity of beams and columns. It depends on cross-sectional dimensions such as height and width. Formula S =…

HOOD The car’s hood consists of an inner and an outer panel. The inner panel provides strength, while the outer panel is just a metal cover. The underside of the hood is often covered with a sound-absorbing material. Hood are typically made out of steel or aluminum, although aftermarket manufacturers may manufacture…

UNDERBODY COATING:-  Underbody caoting is a thick resilient coating applied to the underbody or chassis of an automobile to protect against impact damage from small stones, which would rapidly chip ordinary paint, allowing rusting to begin. Underbody coating provides long term protection from corrosion to car’s…

CONCLUSION:-  I'm suggesting Mr. Pughazhyendhi to buy Maruti Vitara Brezza VXi. Maruti Suzuki Brezza VXi is the mid petrol variant in the Brezza lineup and is priced at Rs. 9.54 Lakh. This VXi variant comes with an engine putting out and of max power (101.65bhp@6000rpm) and max torque (138Nm@4400rpm) respectively.…
