Underbody Coating

1. Write a one-pager about Under-Body Coating and its purpose, its types in detail, and its pros and cons.

answer:-

what is under body coating.

• basically under body coating is coating used as anti corrosion.
• Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile.
• Underbody coating provides long term protection from corrosion to car's underbody.
• It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion.

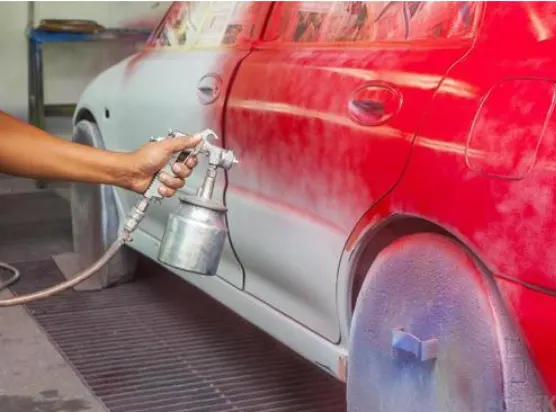

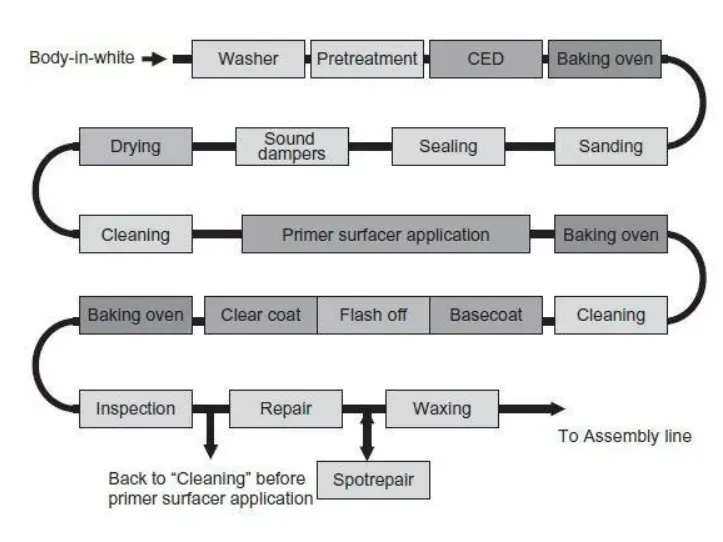

automobile coating process:-

steps involved.

this is how presized the process is .

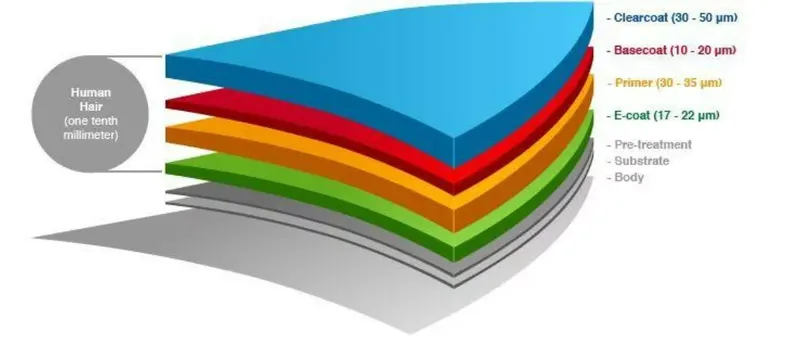

• Cathodic e-coating:- gives the car body a primer coat. It protects the car from corrosion , especially the cavities of the body that cannot be reached easily by spray application.
• Primer:- evens out any irregularities of the underlying layer. It can be sanded easily and provides a smooth surface.
• Basecoat:- gives the main color to the piece, therefore it plays a significant role in establishing the final visual impression.
• Clearcoat: seals everything else and is applied last. It protects the car from external elements like snow, UV radiation, dirt, etc…

TYPES OF UNDER BODY COATING:-

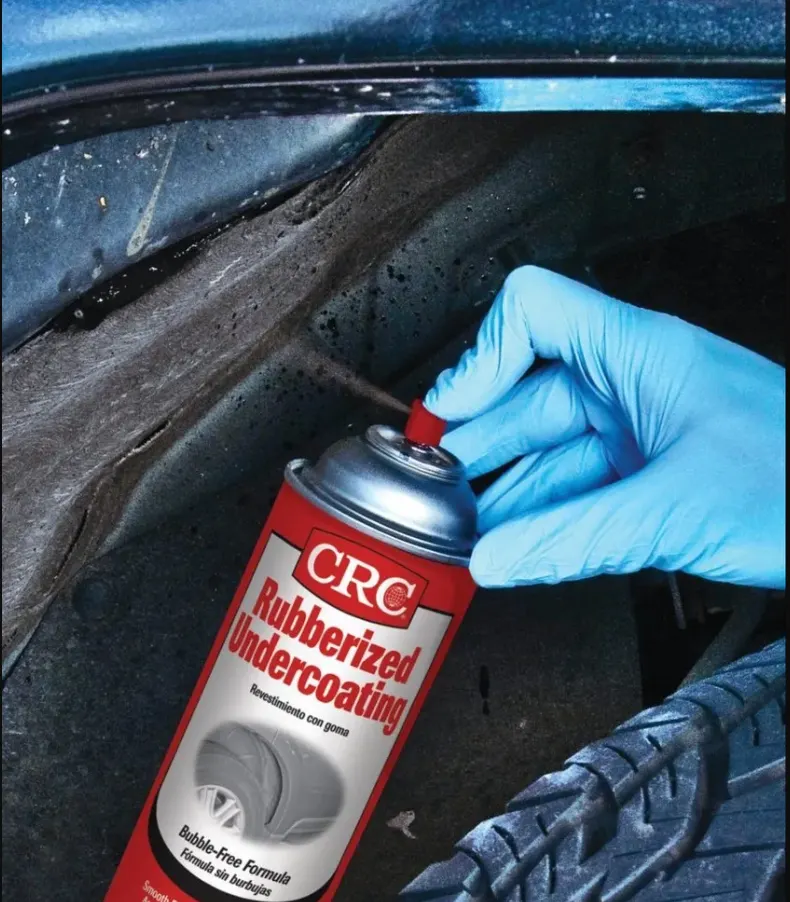

1)rubberized undercoating:- is easy to apply and offers sound-cushioning as well as protection from dust, moisture, and dings or dents.

2) polyurethane undercoating:-

This type of sealant works by seeping into all cracks and seams, displacing salt and moisture and oozing around rusty areas to bond with and protect unoxidized metal. It also sands quickly in case you'll need to perform bodywork and can be painted over.

On the flipside, this type of car undercoating generally requires a little bit more surface prep work before applying -- sanding and applying an etching primer to bare metals before using are generally recommended.

3)Wax or paraffin based underbody coating:-

A paraffin-based undercoating will be the cheapest and quickest option available with which to protect the undercarriage of your vehicle. However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year.

Wax-based undercoatings never truly harden. During application, they drip or flow into seams and cracks to provide protective properties. They are usually available in a spray gun canister or in an aerosol can and offer at least a base protection in moderately humid climates.

4)Asphalt based under coating:-

For standard vehicles, any of the aforementioned types of undercoating will provide sufficient protection. For large trucks and heavy machinery, asphalt-based undercoating provides a bit of extra durability against rocks, chips, and moisture.

Asphalt-based undercoating generally contains a little bit of rubberized material that sets up firmly and also helps soften noise. Generally sold in five gallon containers, this type of undercoating also needs more cure time than the other three, and is NOT paintable, making it best to use only for undercarriages.

pros and cons.

pros:-

• Minimizes Sound:- It minimizes the sound from underneath the car resulting a noiseless, smooth driving experience.
• Heat Insulation:- It insulates the interior of the car from extreme temperatures from beneath the vehicle providing a comfortable cabin experience.
• Anti-chipping property:- If any stone hits the coating it does not get chipped away hence protects the underbody from exposure to water.


cons:-

• Undercoating will work best on new vehicles that have not been exposed to road conditions. A used vehicle may already have residue on the bottom of the car or even have spots of rust and corrosion. Undercoating will not help you if corrosion already exists and the corrosion needs to be removed first before it can be applied, which can be expensive for you.
• It works best on new cars.
