Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

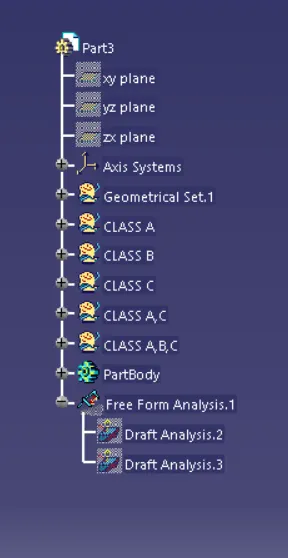

TREE STRECTURE

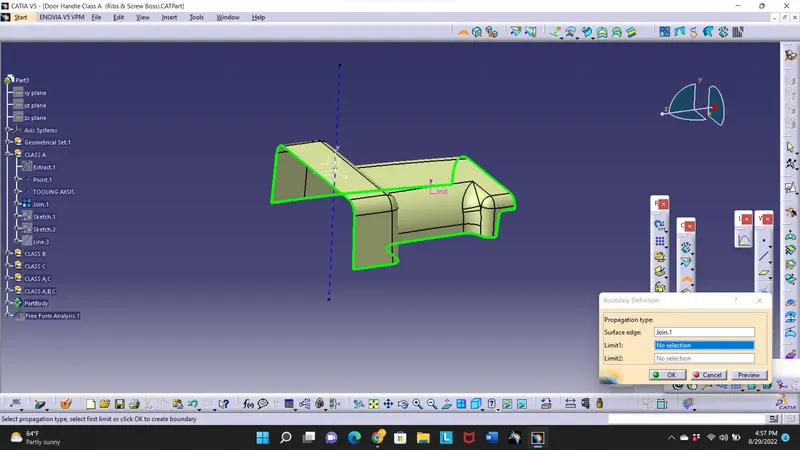

CLASS A.

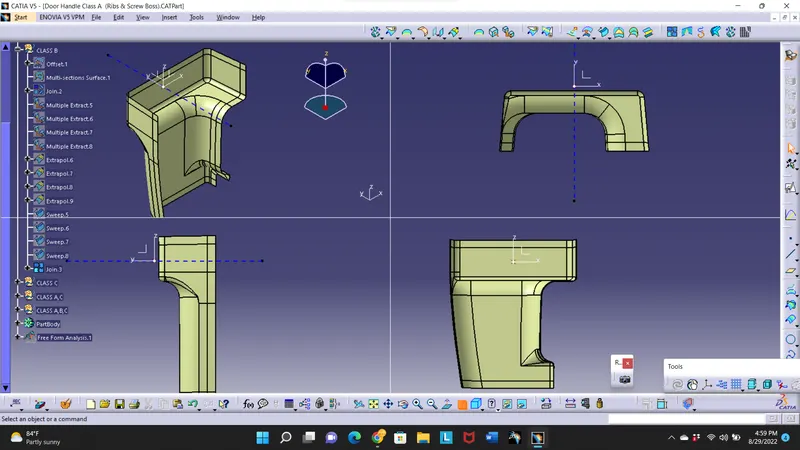

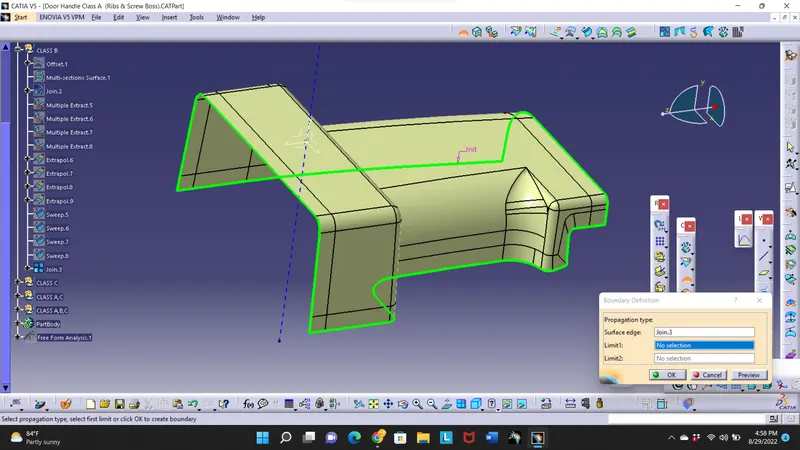

CLASS B

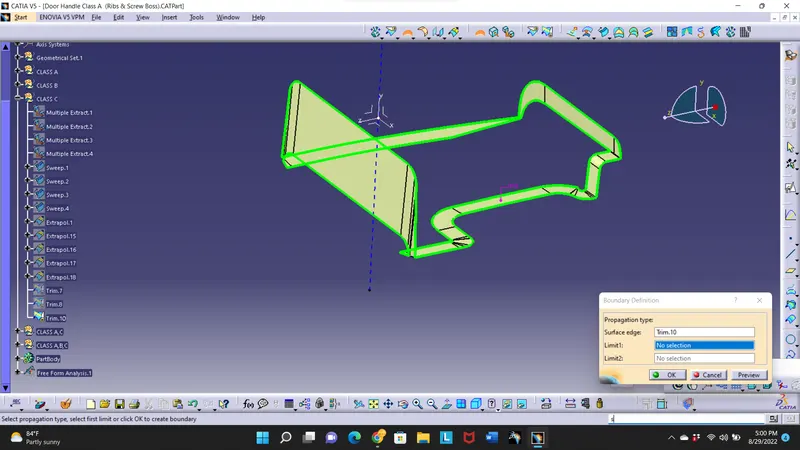

CLASS C

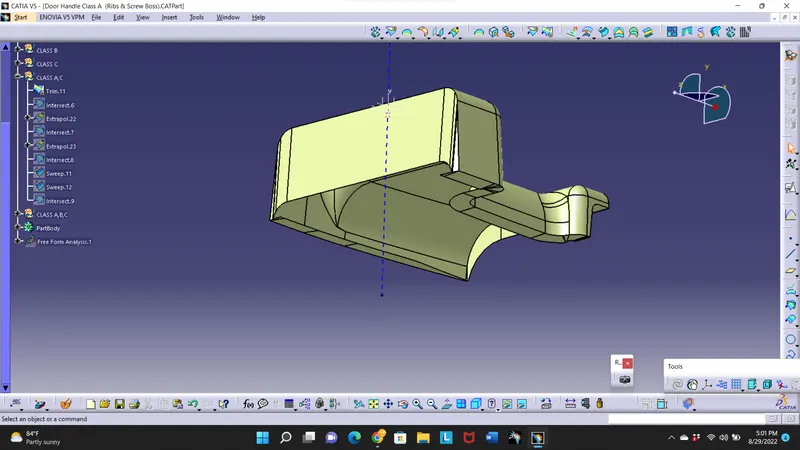

CLASS A,C

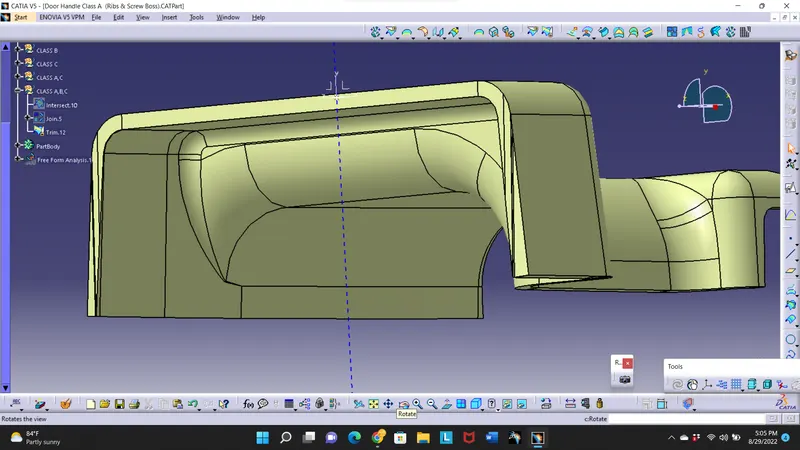

CLASS A,B,C

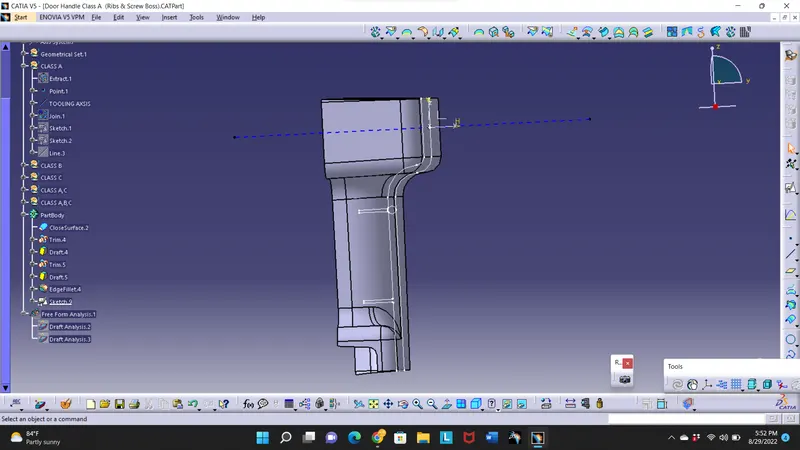

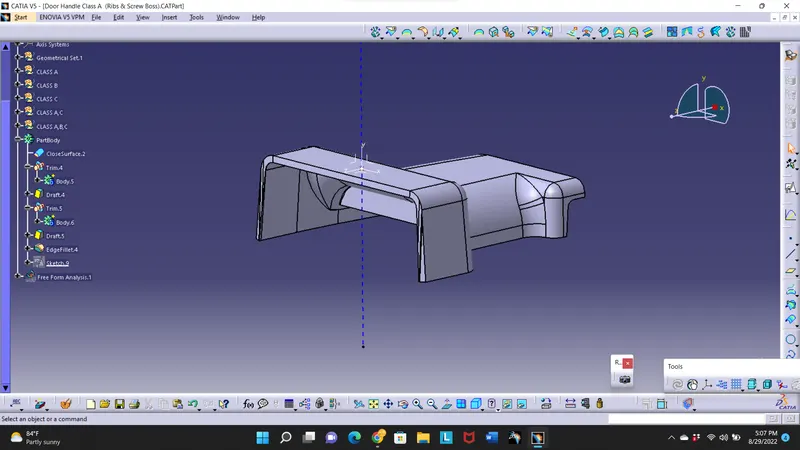

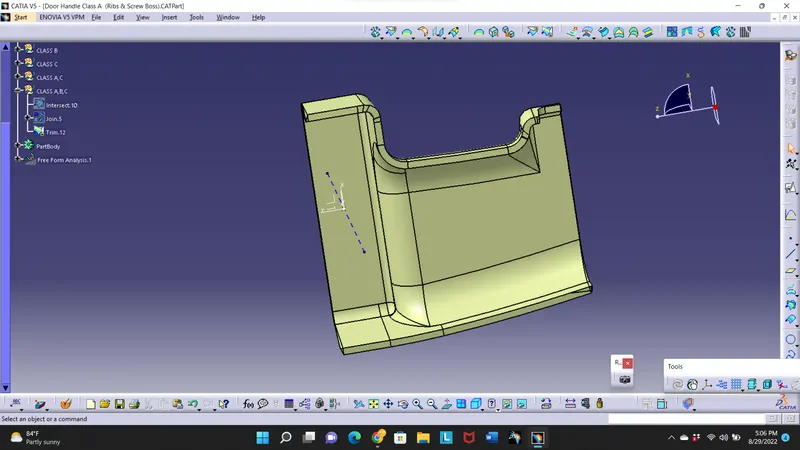

SOLID MODEL

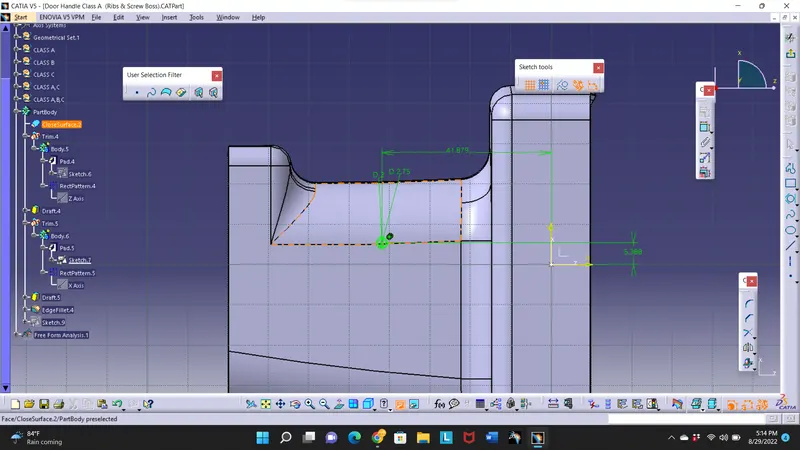

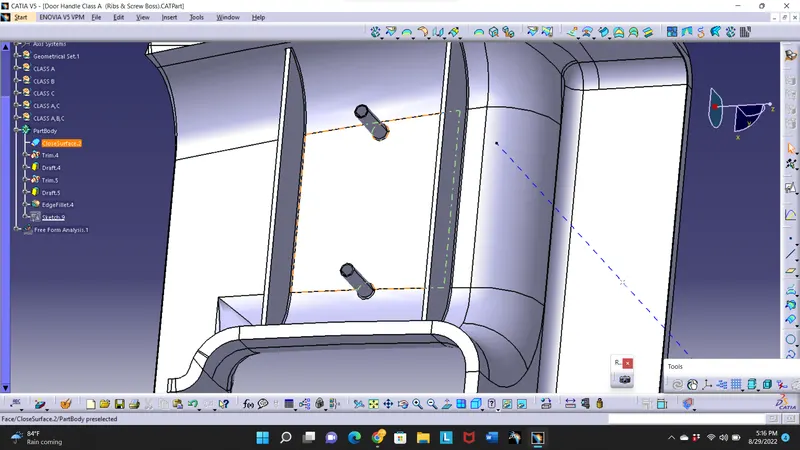

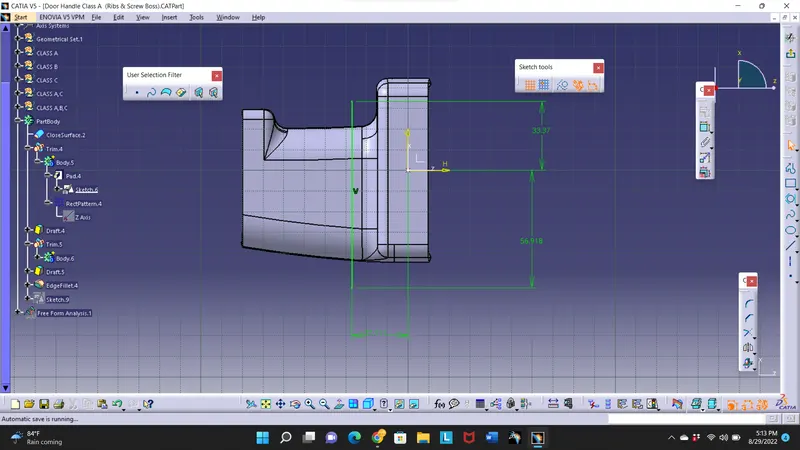

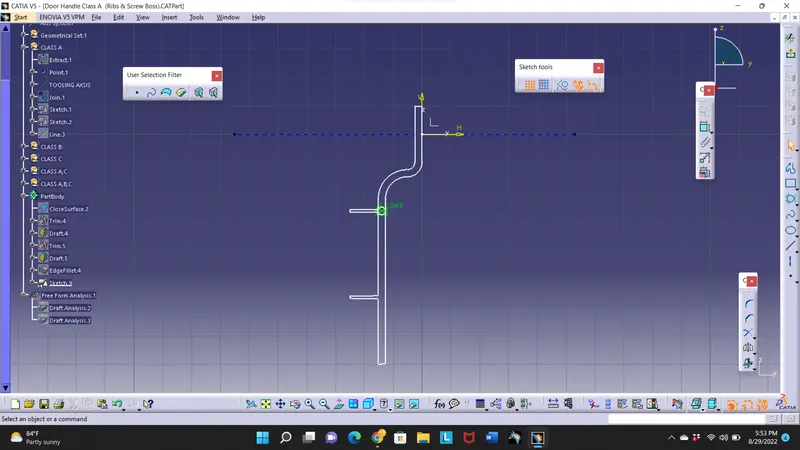

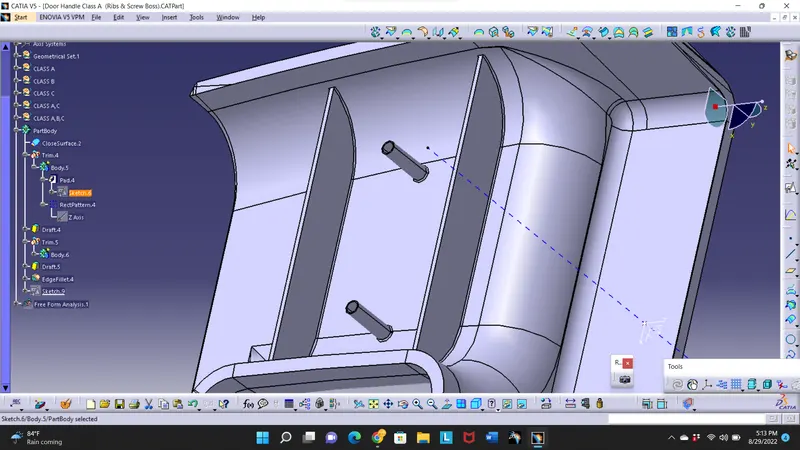

CREATION OF RIB AND SCRWE BOSS

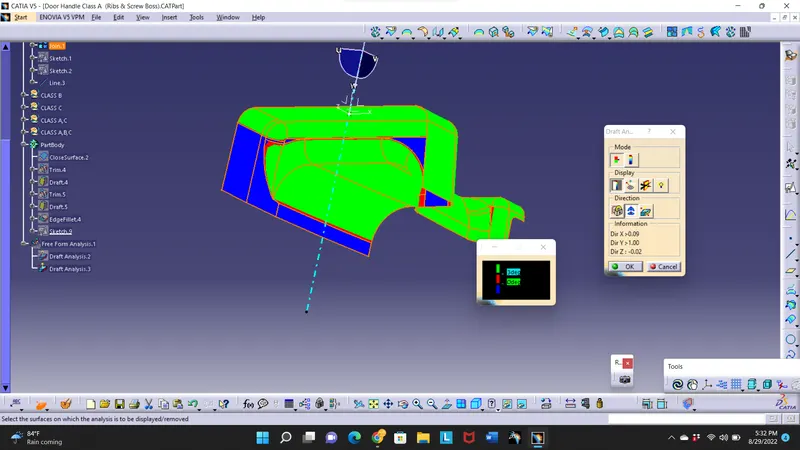

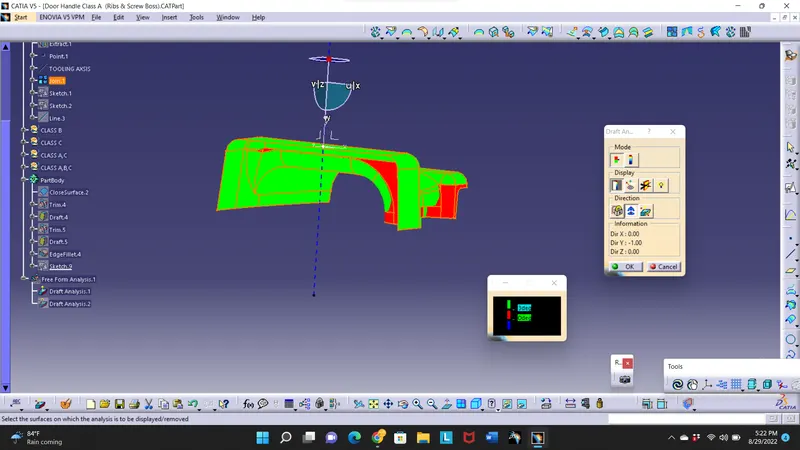

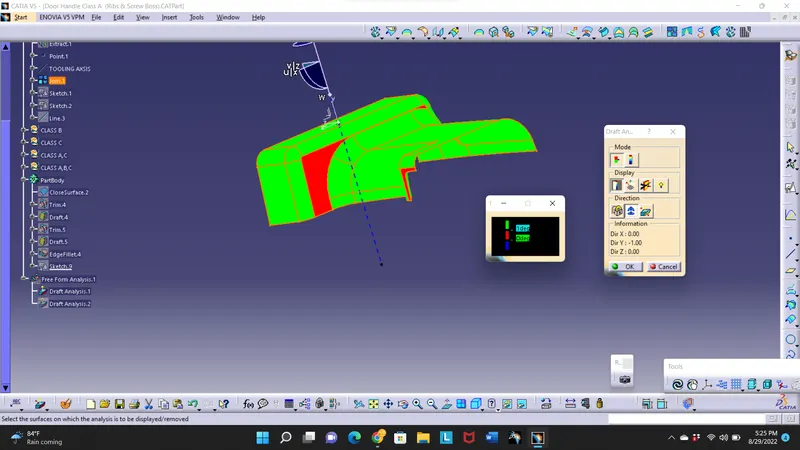

DRAFT ANALYSIS PF CLASS A

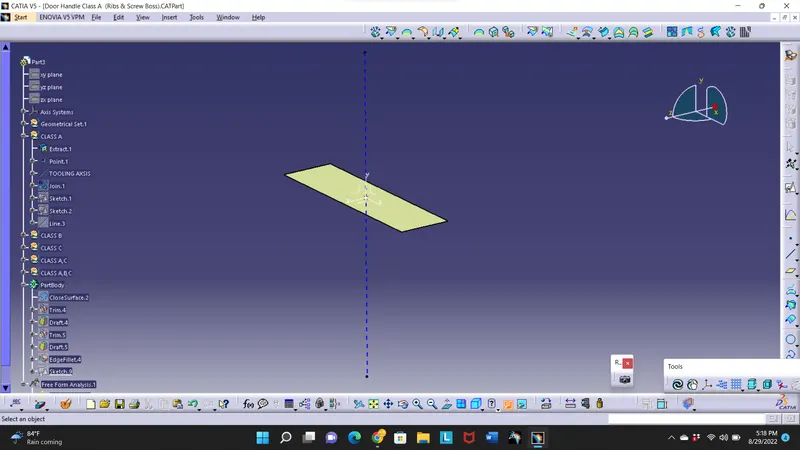

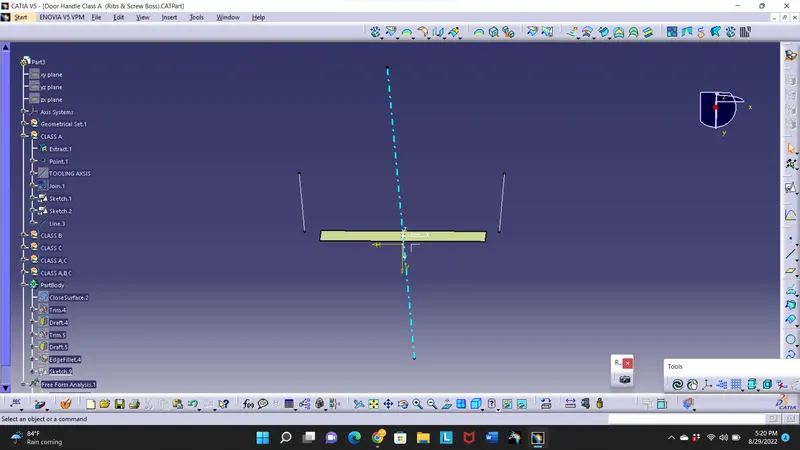

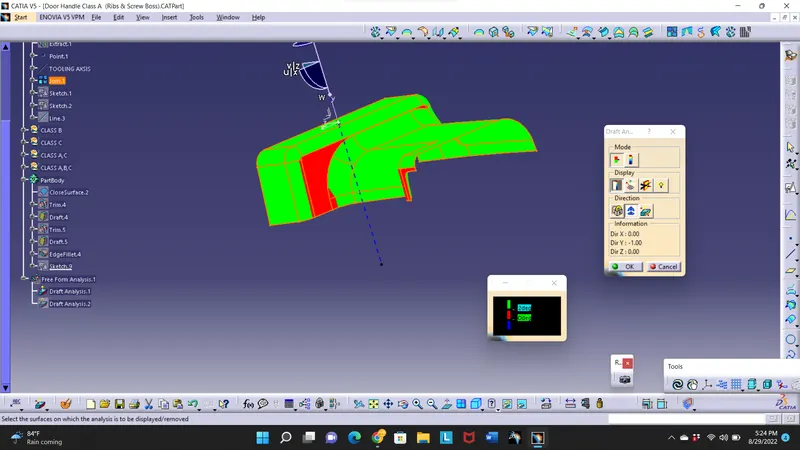

NATURAL TOOLING AXSIS

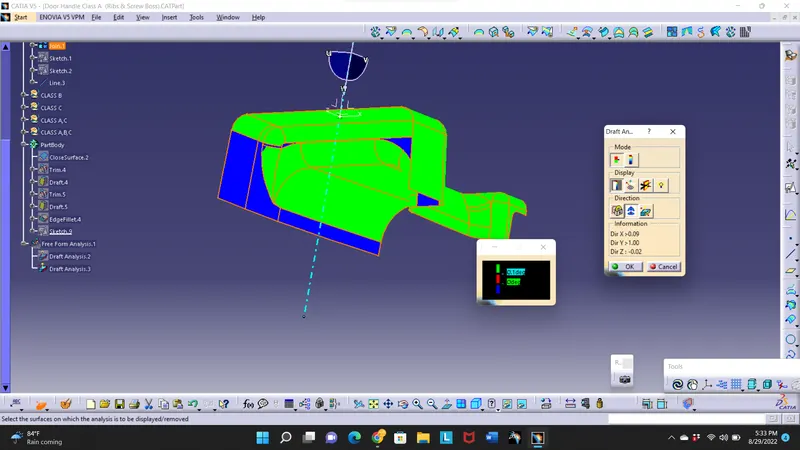

BISECTING TOOLING AXSIS

GIVEN CLASS A SHOWS NEGATIVE DRAFT AT SOME SURFACE WITH 3 DEGREE OF DRAFT ANGLE

ON BISECTING TOOLING AXSIS

CONCLUSION :-

TRYING ITRATION FROM 3 DEGREE TO 0.5 DEGREE NEGATIVE DRAFT ONLY CLEARED AT 0.5 DEGREE

OF DRAFT ANGLE .

SAME RESULTS SHOWN ON BISECTING TOOLING AXSIS, INFACT ON BISECTING TOOLING AXSIS GIVEN CLASS A DO NOT CLEARE AT ANY POINT.

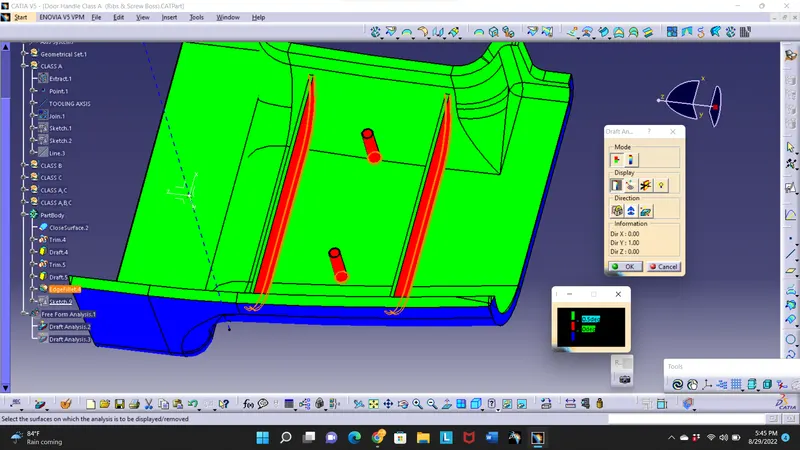

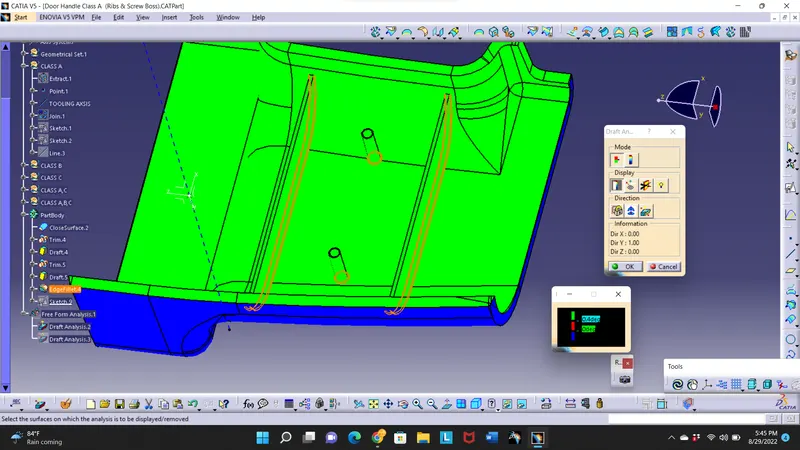

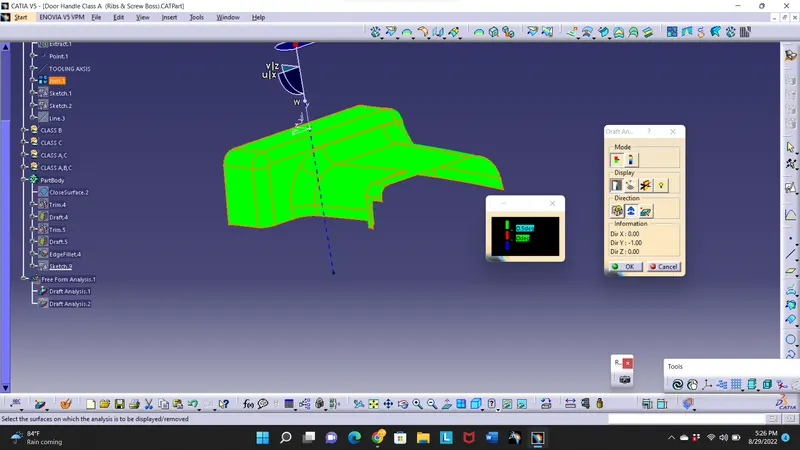

DRAFT ANALYSIS OF RIB AND SCREW BOSS

IN DRAFT ANALYSIS OF RIB AND SCREW BOSS DRAFTED WITH 0.5 DEGREE ANGLE,

AT 0.5 DEGREE OF DRAFT ANGLE RIB AND SCREW BOSS SHOWS NEGATIVE DRAFT BUT , AT 0.4 DEGREE OF DRAFT ANGLE IT CLEARED THE DRAFT ANALYSIS WHICH IS EXCEPTIABLE.

CONCLUSION:-

AS COMPONANT CLEARED DRAFT ANALYSIS THE COMPONANT CNA BE MANUFACTURED.

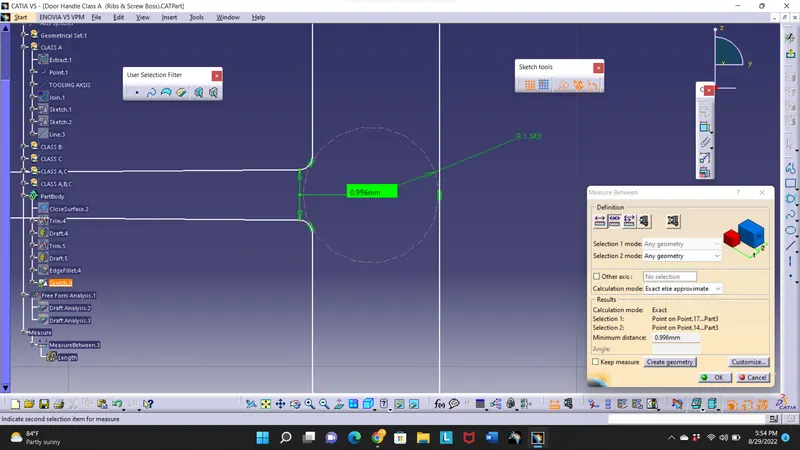

RIB ROOT THICKNEES ANALYSIS .
