Tool Test

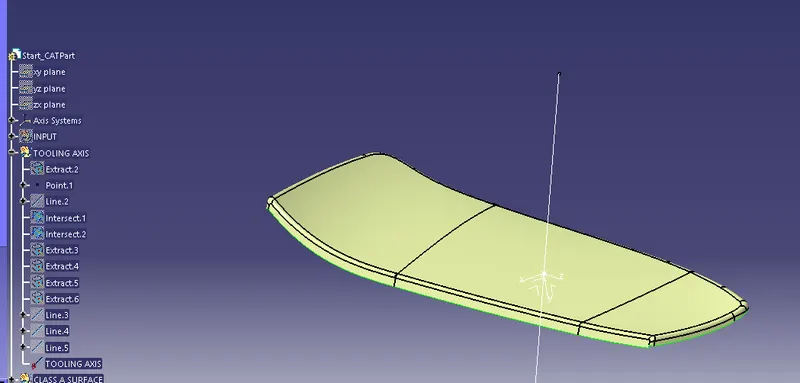

Creation of tooling axis:

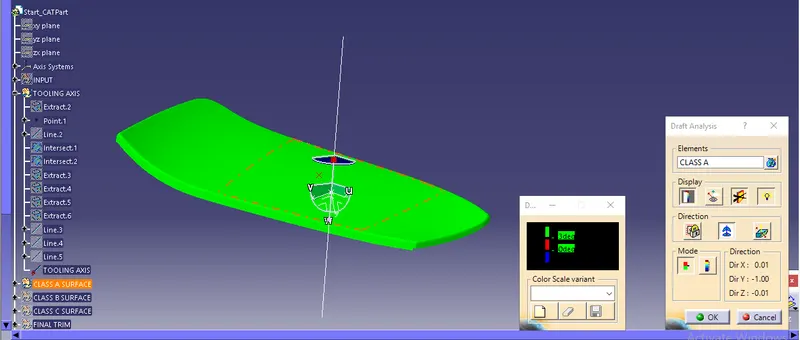

Performing draft analysis on CLASS A:

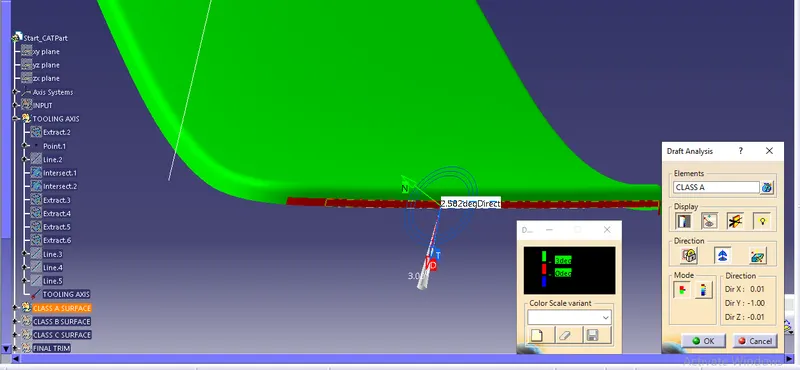

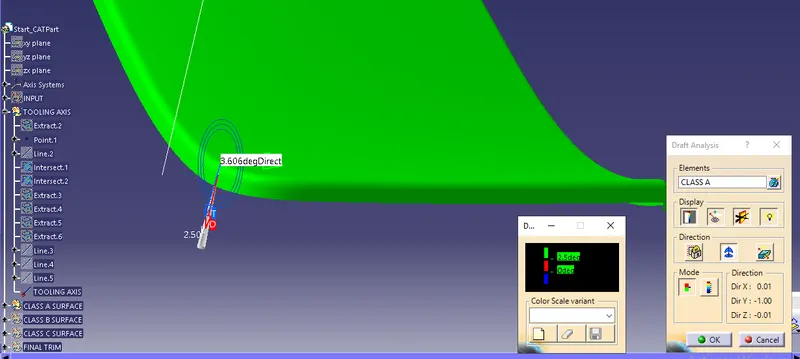

It is observed that this surface is not getting cleared at 3 degrees but getting cleared around 2.5 degrees:

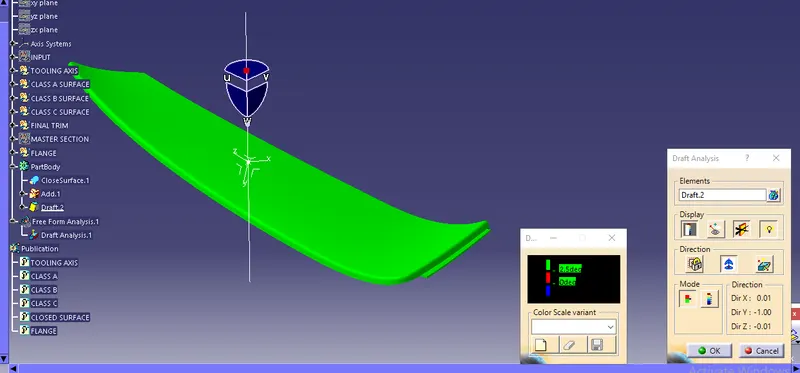

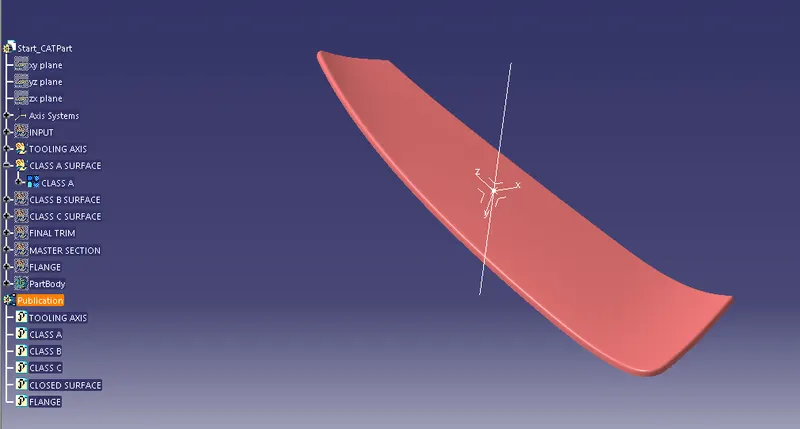

Performing draft analysis with an upper limit of 2.5, CLASS A is getting cleared:

Creation of CLASS A

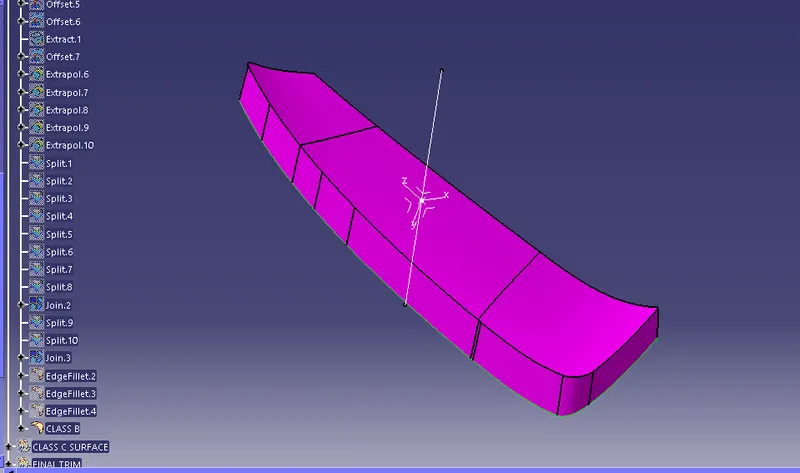

Creation of CLASS B

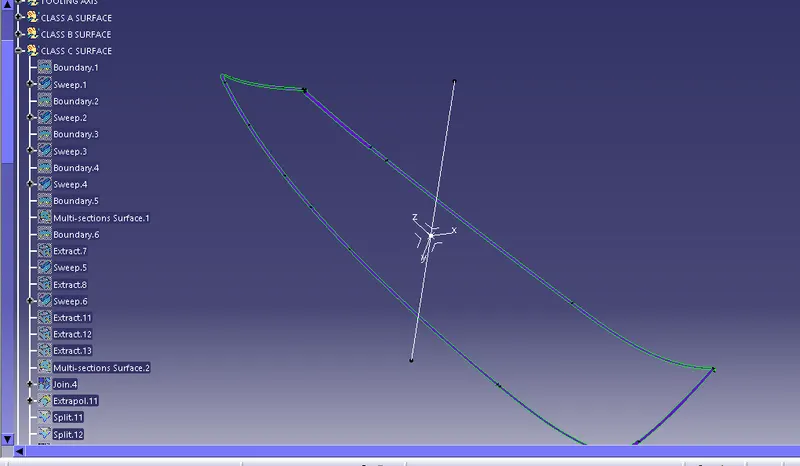

Creation of CLASS C

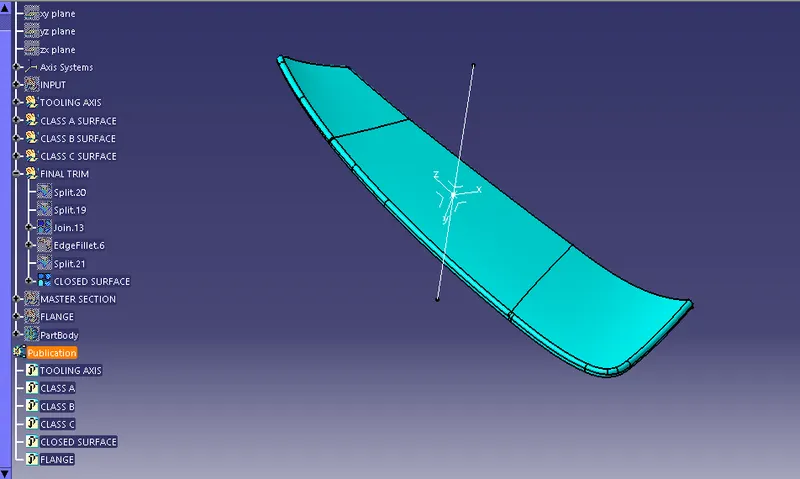

Closed surface

Solid model

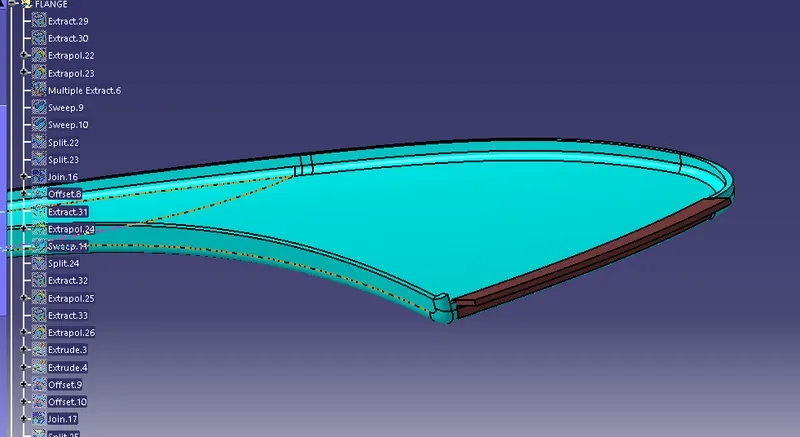

Flange Creation:

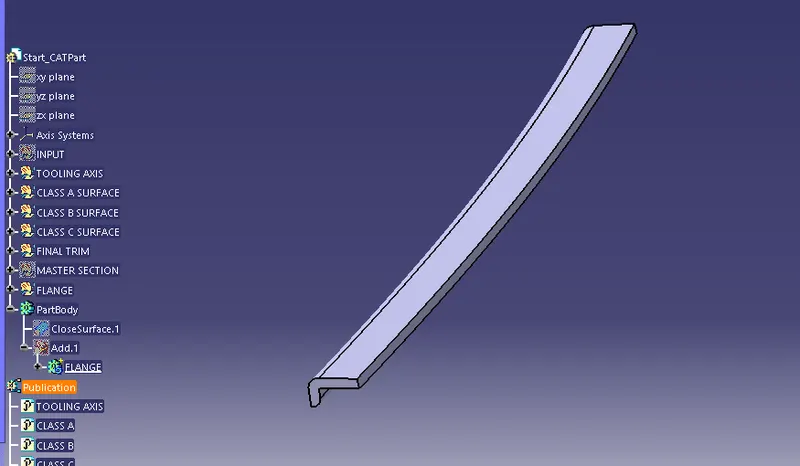

Flange Solid model

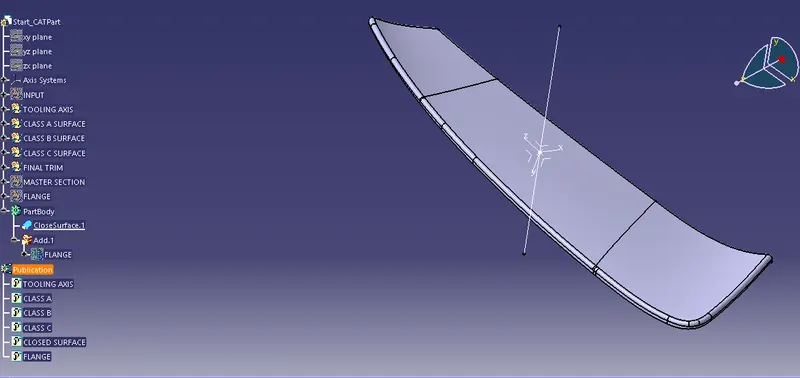

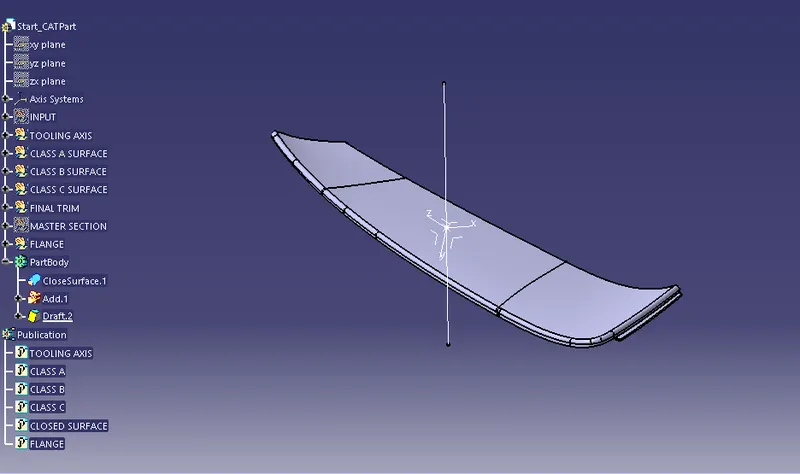

Final Part body

Draft analysis on the final part with an upper limit of 2.5 degrees:
