Tool Test-2
AIM:
- For the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.
|
S.No |
Quality Criteria |
Value |
|
1 |
Target/Average length |
3 |
|
2 |
Minimum Length |
1 |
|
3 |
Maximum Length |
5 |
-
Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.
S.No
Quality Criteria
Value
1
Tet collapse
0.2
Surface Quality after Volume mesh should be good. (i.e. There should not and kinks and dips on the surface of the component.)
Ans:

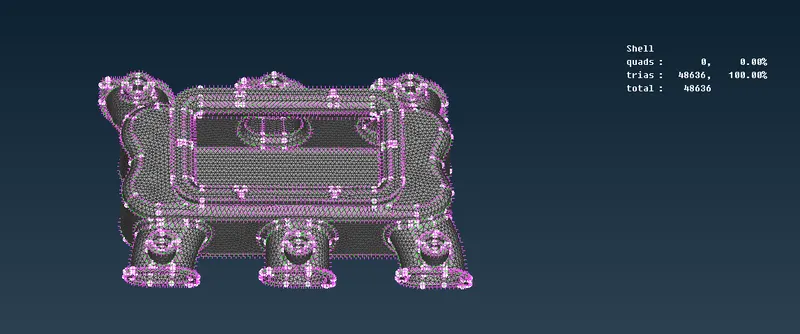

This image is after the shell mesh

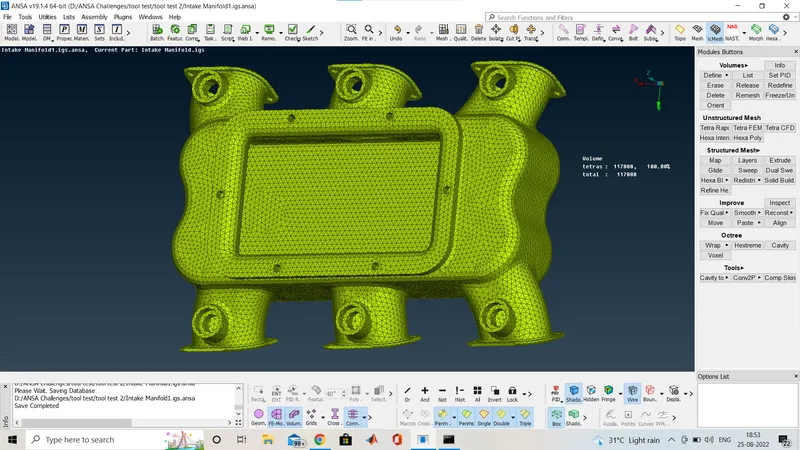

This image is after the volume mesh and i used here Tetra FEM for volume mesh.
