Tool Test-2
Tool Test-2
AIM:
For the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.
|
S.No |
Quality Criteria |
Value |
|
1 |
Target/Average length |
3 |
|
2 |
Minimum Length |
1 |
|
3 |
Maximum Length |
5 |
Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.
|
S.No |
Quality Criteria |
Value |
|
1 |
Tet collapse |
0.2 |
PROCESS:

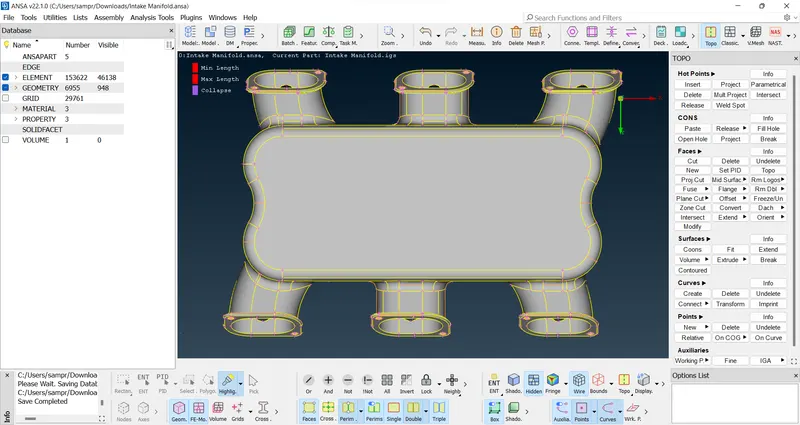

- THE given parental surface is inetial checked for the Geometric Check,& errors are Fixed.
- The given parental has 1 Component , Each surface is Surface/Shell Meshed seperately.

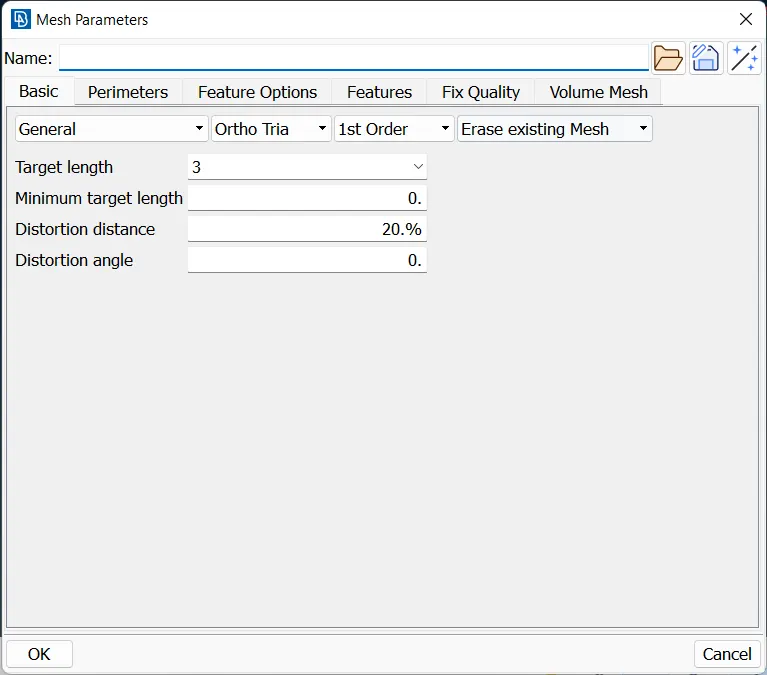

- Mesh parameters is applied

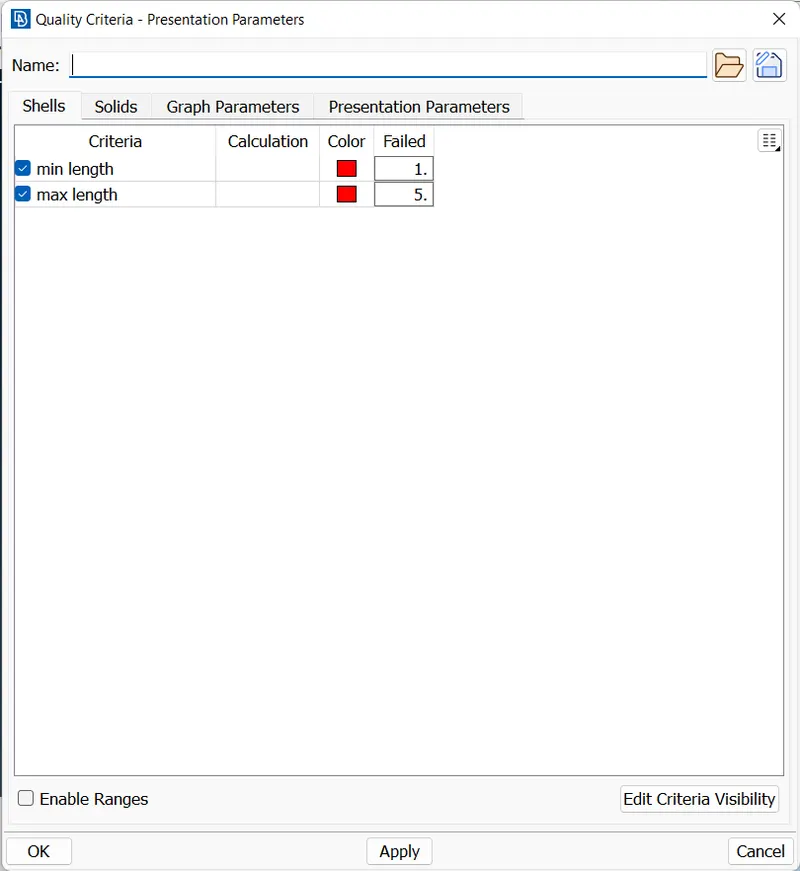

- Quality Criteria is applied and checked on the Shelled Mesh.

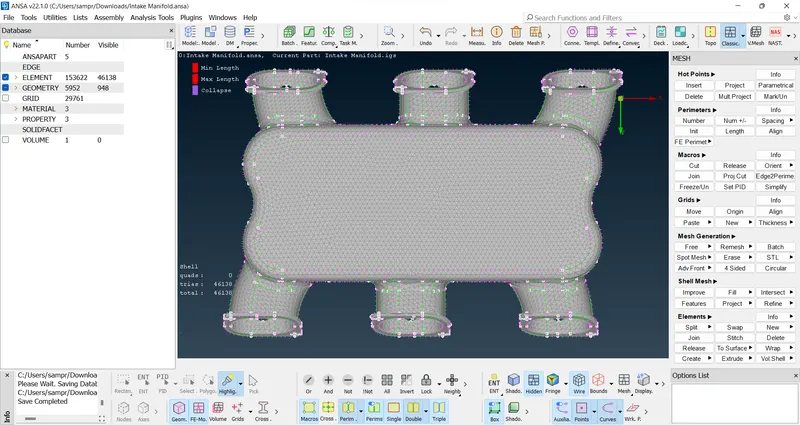

AFTER MESHING OF ALL COMPONENTS QUALITY OF ALL SHELLS IS VIEWED AND CLEARED

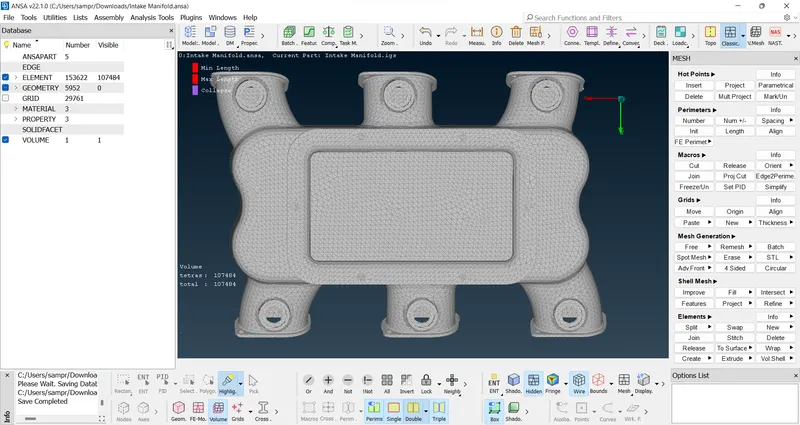

SOLID MESH IS DEFINED

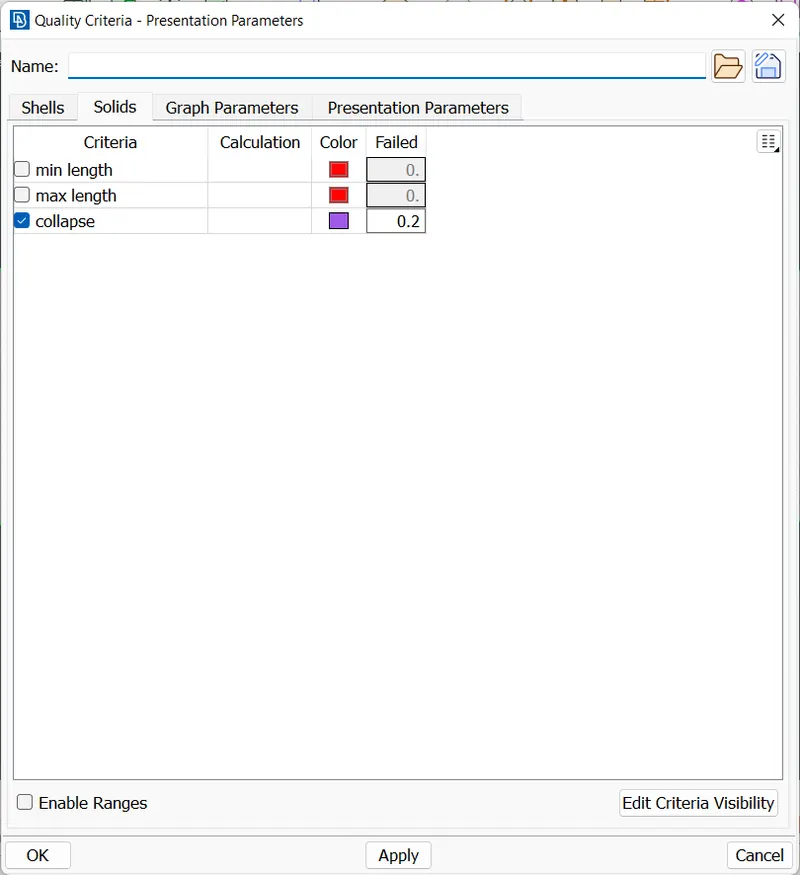

QUALITY CRITERIA IS DEFINED AND MADE FOR CHECK:
IT IS DONE BY TETRA FEA
