Tool Test-2
AIM
Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias.
Quality Criteria
|
S.No |
Quality Criteria |
Value |
|
1 |
Target/Average length |
3 |
|
2 |
Minimum Length |
1 |
|
3 |
Maximum Length |
5 |
tetra elements to mesh the Volumes and quality
|
S.No |
Quality Criteria |
Value |
|
1 |
Tet collapse |
0.2 |
PROCEDURE

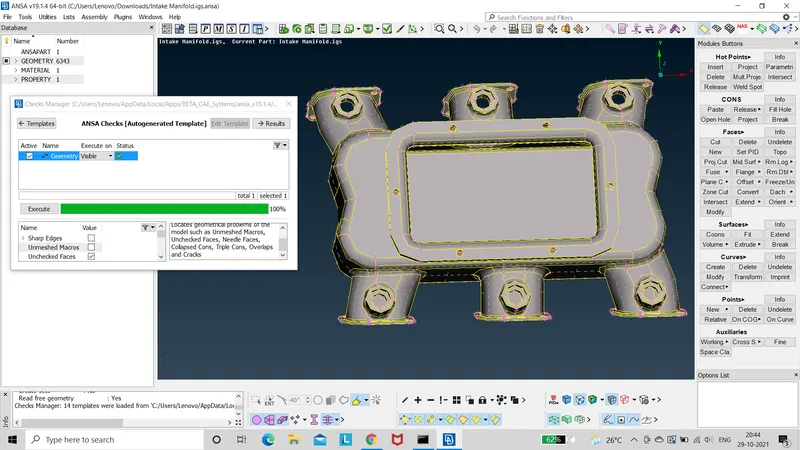

Geomentry Check
The model is checked for geomentry errors and cleared if any.

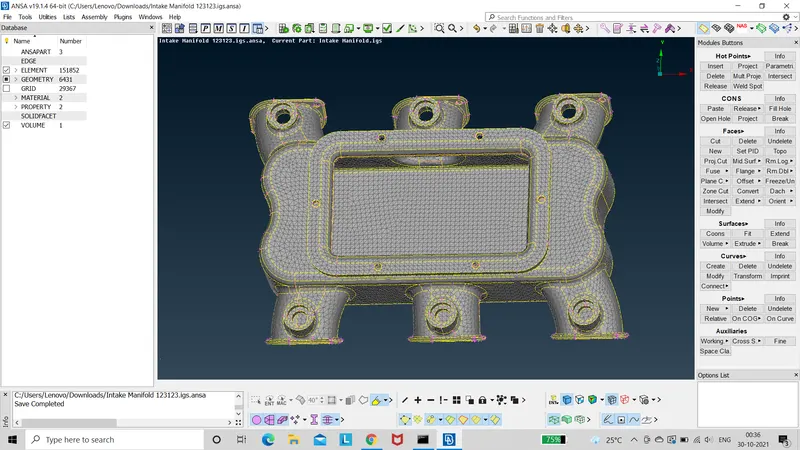

2D meshing
The component is meshed with ortho tria and tria mesh as per needed.

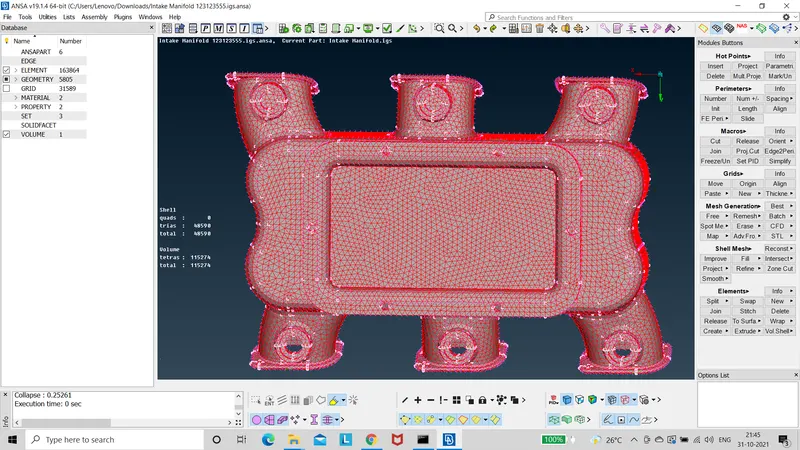

Volume Meshing
The intake manifoldcomponent is then solid meshed and checked for any collapse errors.
Checked for any dips and kinks in the mesh and it is fixed using the Align, Orgin option
Conclusion
The model is solid meshed with required mesh quality.
Thanks and Regards,
Vishal R
