Performing Volume mesh on Intake Manifold using ANSA
AIM:
The main objective of the Tool test is to perform the Volume mesh on the given CAD – Intake Manifold under the given Quality criteria.
PROCEDURE:
- Open the latest version of ANSA software in your system.
- Import the given sheet metal cad geometry file (.step) in the ANSA, it will automatically change their file extension into ANSA readable file(.ansa).
- Identify the topo errors present in cad geometry, by the way, check > geometry present in the top.
- The topological errors are notified as a single con, triple cons, cracks, overlapping faces, and many more.
- Understand the reason for the error and perform the actions to resolve it. Material identities(MID) and part identities(PID) should be set before doing the meshing operations
Importing :
Open the latest version of ANSA on your Pc/Laptop. Import the cad geometry files through file > open or Ctrl + O.

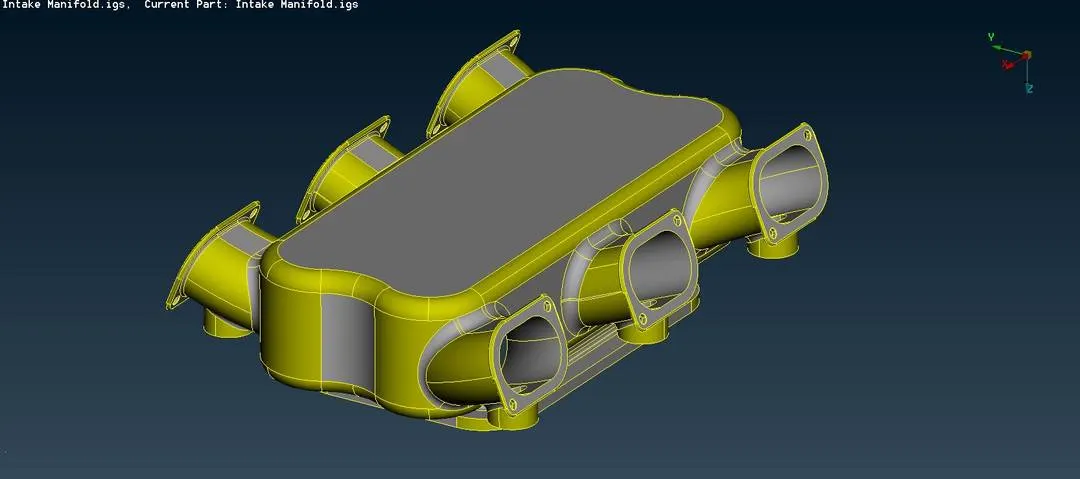

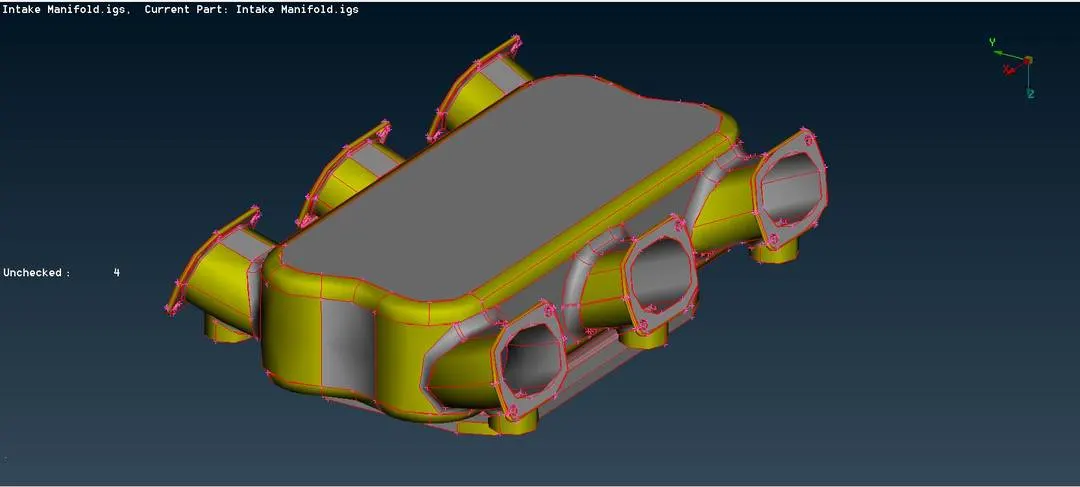

Topo for the given CAD geometry
Geometry check :

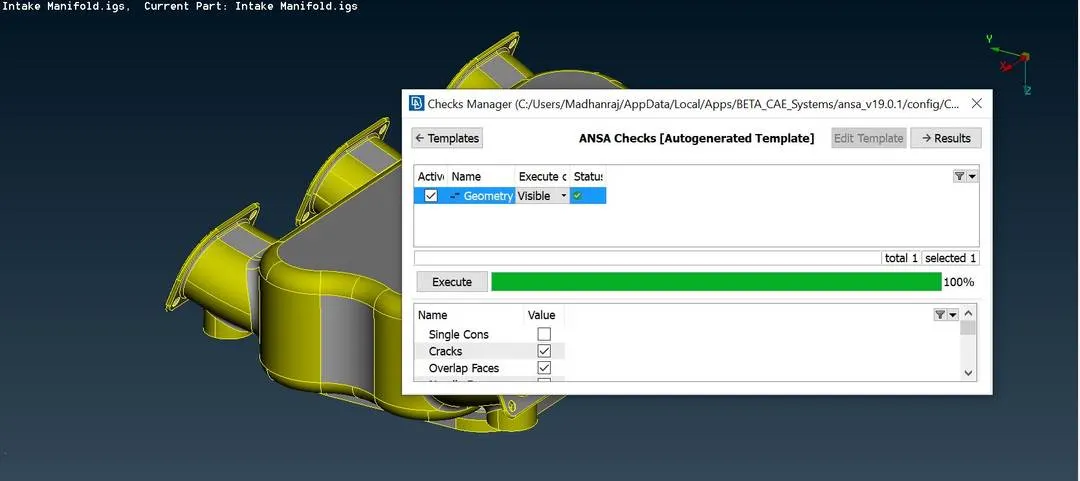

Topological errors have to be checked for the given Hood Assembly component through the following steps – Tools > checks > geometry.

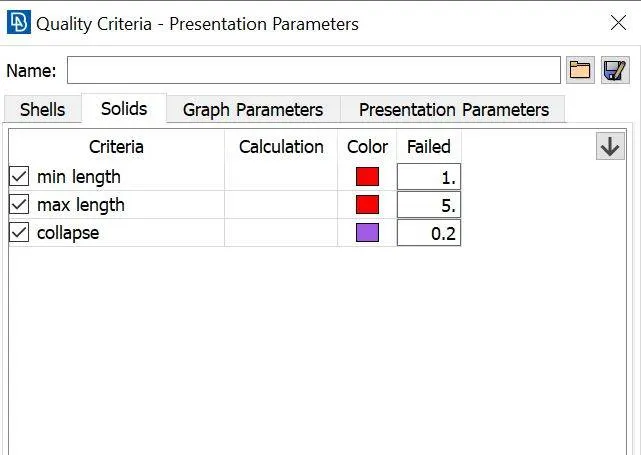

Apply quality criteria given as per the requirements.

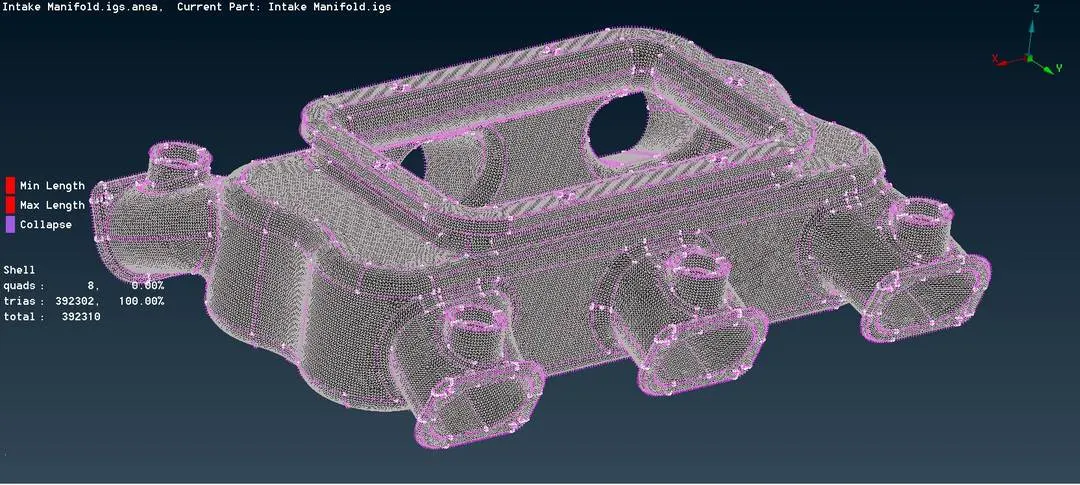

Perform neat Mesh as per the Requirements.

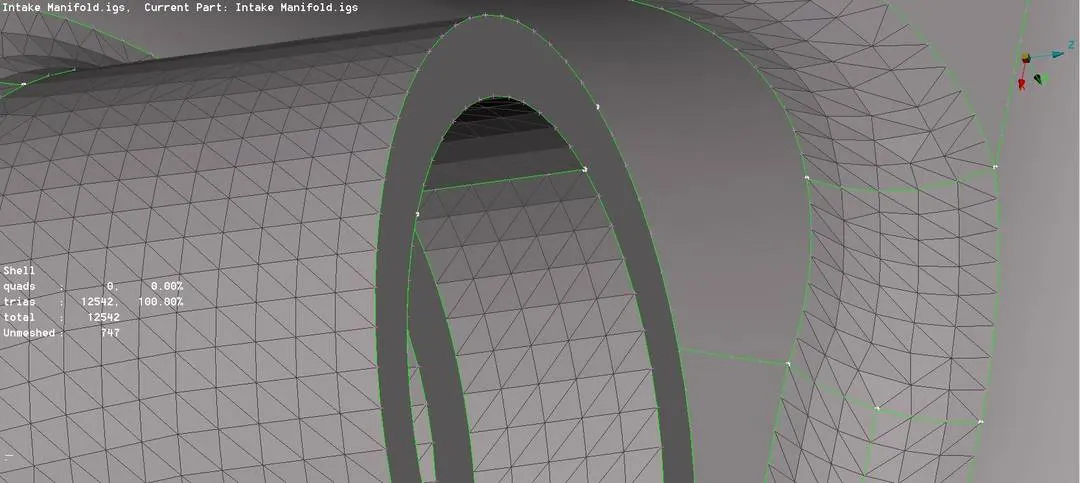

Use ortho tria and tria as per the responsible area.
Enable hidden mode and Fix the error using auto-fix quality and reconstruction like this

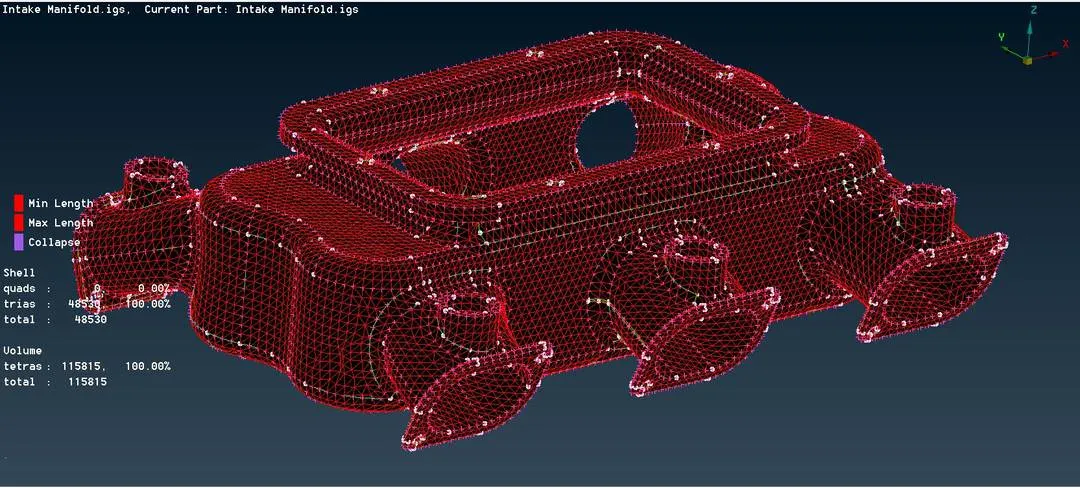

Complete the entire as per the quality criteria.
Conclusion:-

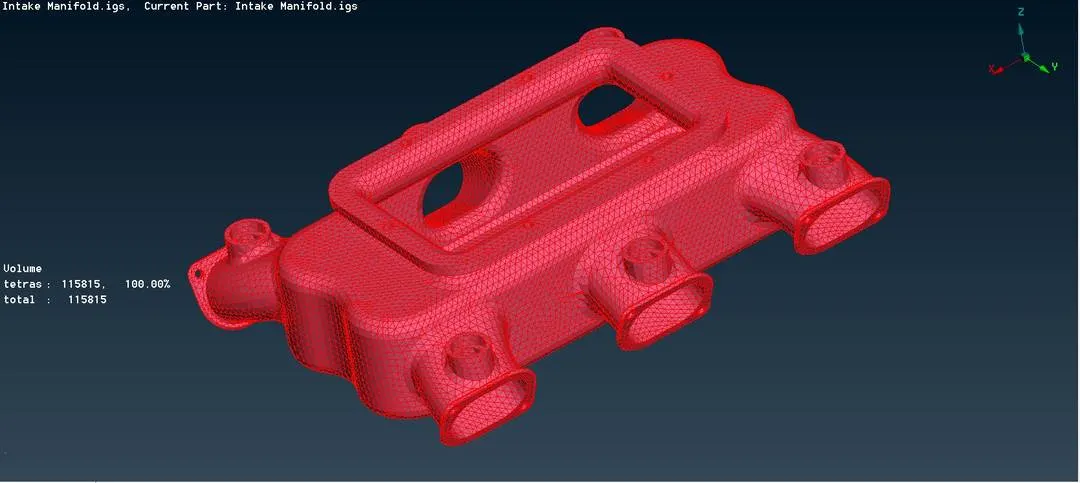

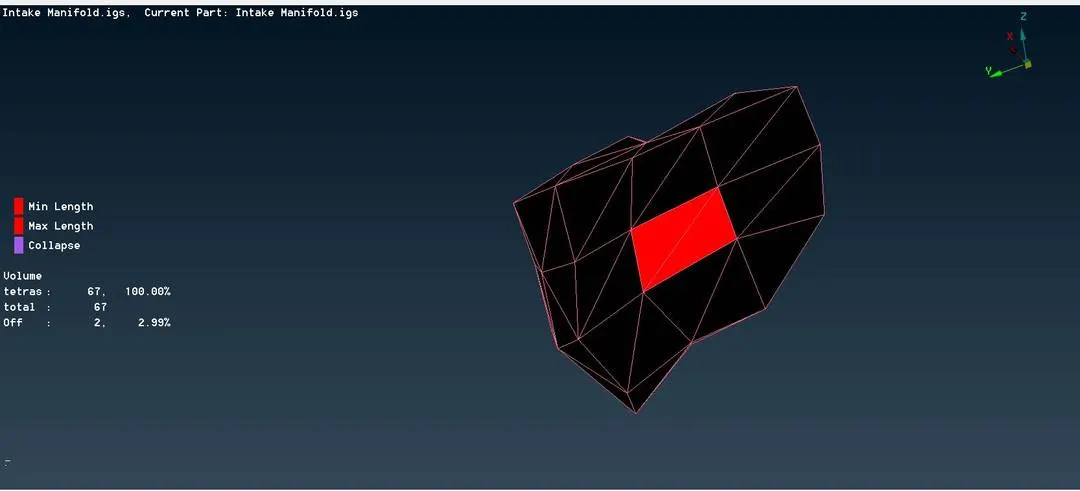

In this tool test 2, I learn how to make volume mesh inside the structure of the cad geometry and a lot about new quality criteria like tetcollapse.
Time took:
Less than 6 Hours
