Tool Test 1

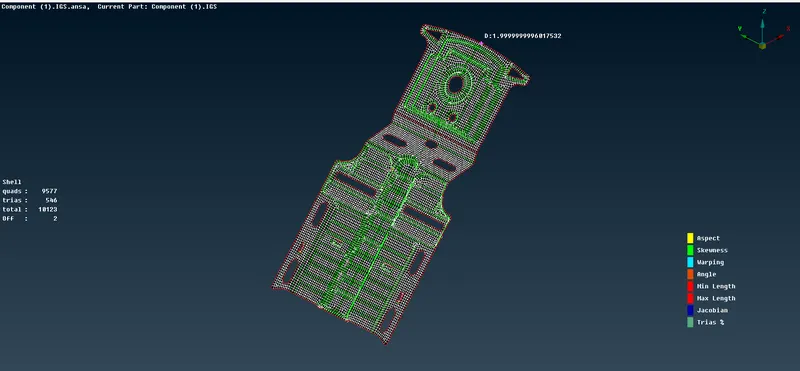

MODEL-1 : Time(8hrs and 30Minutes) : Initially the offset to extract the midsurface was undertaken with the FACES>>MIDDLE>>MULTI. Result extracted took time as it depeds on the processor of the PC. The surface. however the results yielded with help of above mention command was not proper. therefore Manual offset was attempted and final output post meshing is as follows :-

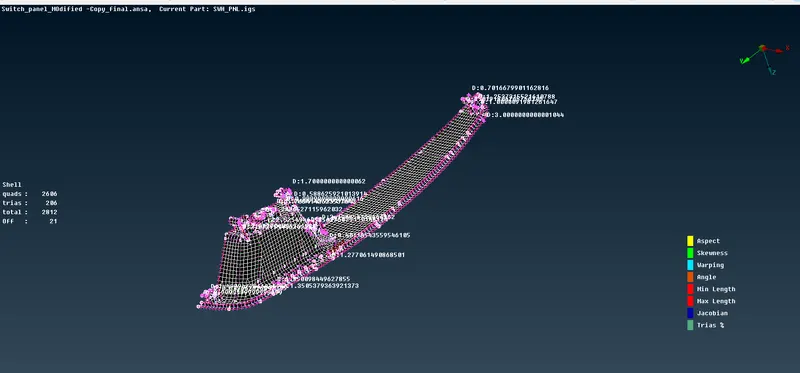

MODEL-2 : Time(2hrs and 30Minutes) : Initially the offset to extract the midsurface was undertaken with the FACES>>MIDDLE>>MULTI. The surface. however the results yield was not proper. therefore Manual offset was attempted and final output post meshing is as follows :-
